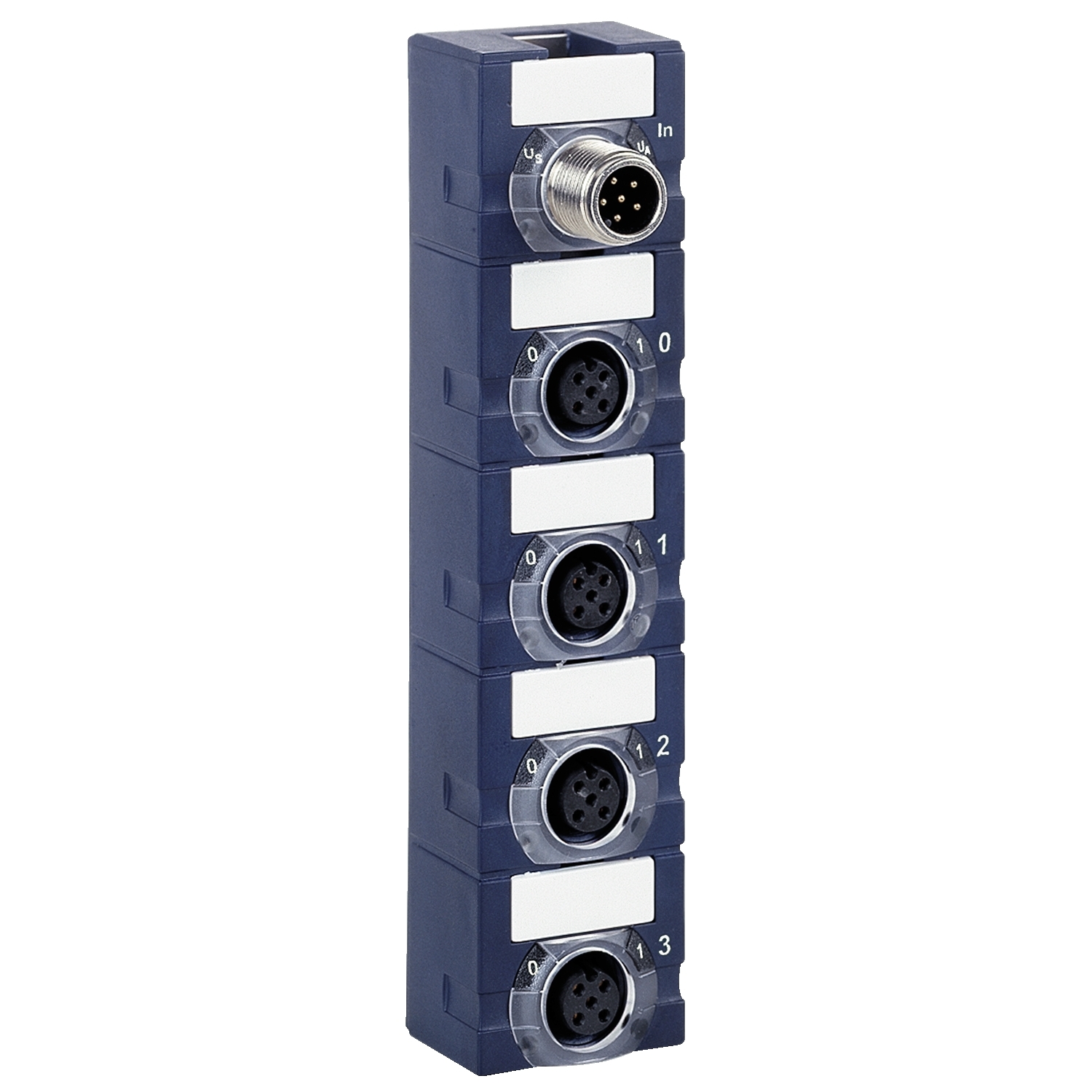

Picture of DeviceNet - bus module interface - 4 twisted shielded wires - 500 kbit/s - IP67

Sorry - this product is no longer available

SKU:

FTM1DN10

DeviceNet - bus module interface - 4 twisted shielded wires - 500 kbit/s - IP67

Please contact our sales team to buy on 1300 724 622 or click here
Availability: Please contact our sales team on 1300 724 622.
DeviceNet - bus module interface - 4 twisted shielded wires - 500 kbit/s - IP67
Be the first to review this product
Manufacturer: Telemecanique
User guide
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
IP degree of protection IP67
Structure type according to EN 50325, according to CAN, layer 7, according to ISO 11898
Transmission rate 500 kbit/s
Product or component type bus module interface
Bus type DeviceNet
Range of product Advantys FTM
Complementary
Net weight 0.42 kg
Transmission support medium 4 twisted shielded wires
Binary rate 125 kbit/s, 500 kbit/s, 250 kbit/s
Operating position any position
Number of addresses 1-63
Fixing mode by 2 screws
Method of access master/slave
[Ue] rated operational voltage 24 V DC
Maximum supply current 9 A
Electrical connection 4 female connectors M12 (I/O splitter boxes), 1 male connector M12 (bus IN), 1 male connector 7/8" (power supply), 1 female connector M12 (bus OUT)
Number of splitter box 1/16/2024 12:00:00 AM
Tightening torque 1.5 N.m for M4 screw(s)
Internal current consumption 70 mA
Surge withstand 500 kV power supply conforming to IEC 61000-4-5, -500 kV power supply conforming to IEC 61000-4-5, 500 kV ground/PE conforming to IEC 61000-4-5, -500 kV ground/PE conforming to IEC 61000-4-5, 1000 kV signal conforming to IEC 61000-4-5, -1000 kV signal conforming to IEC 61000-4-5
Environment
Operating altitude 0...2000 m
Resistance to fast transients 2 kV (signal) conforming to IEC 61000-4-4, -2 kV (signal) conforming to IEC 61000-4-4, 2 kV (power supply) conforming to IEC 61000-4-4, -2 kV (power supply) conforming to IEC 61000-4-4
Resistance to magnetic fields 30 A/m 50 Hz conforming to IEC 61000-4-8
Shock resistance 50 gn for 11 ms conforming to IEC 68-2-27, EA tests
Resistance to electrostatic discharge 8 kV in air conforming to IEC 61000-4-2, -8 kV in air conforming to IEC 61000-4-2, 4 kV in contact conforming to IEC 61000-4-2, -4 kV in contact conforming to IEC 61000-4-2
Resistance to radiated fields 10 V/m conforming to IEC 61000-4-3
Ambient air temperature for storage -25-70 °C
Ambient air temperature for operation 0-55 °C
Resistance to conducted disturbances 10 V conforming to IEC 61000-4-6
Vibration resistance 15 gn conforming to IEC 68-2-6
Product certifications cULus
