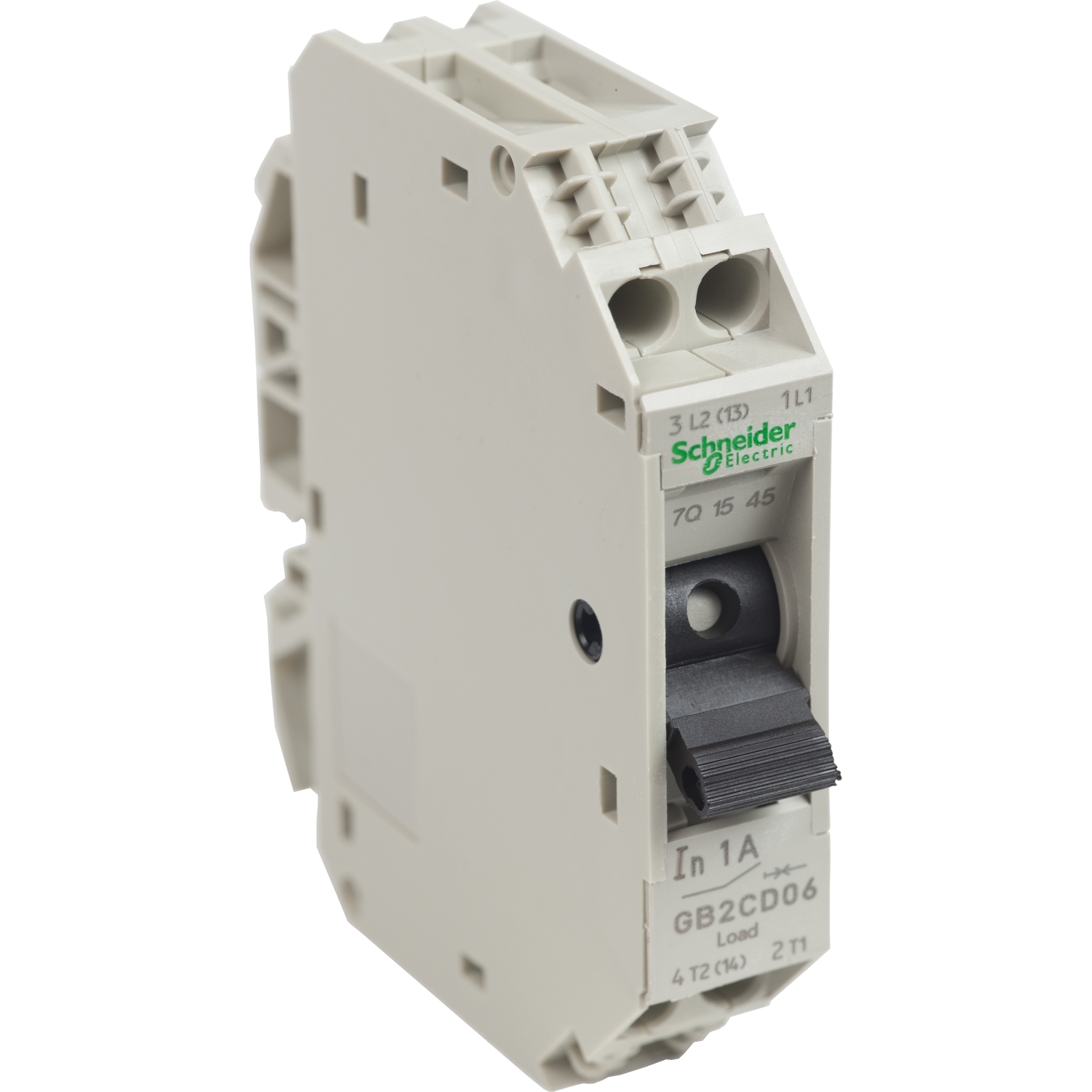

Picture of TeSys, Circuit breaker, TeSys GB2, 1P+N, 1A, Icu 50kA at 240V, Thermal magnetic, DIN rail mounted
SKU:

GB2CD06

TeSys, Circuit breaker, TeSys GB2, 1P+N, 1A, Icu 50kA at 240V, Thermal magnetic, DIN rail mounted

$120.07
TeSys, Circuit breaker, TeSys GB2, 1P+N, 1A, Icu 50kA at 240V, Thermal magnetic, DIN rail mounted
  • Provides thermal-magnetic protection with a magnetic tripping level
  • Network type can be AC & DC
  • Devices can be mounted on all types of 35mm symmetric rails and Telequick mounting plates
  • Circuit breakers are Tamper proof
  • Easy to maintain
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Product environmental
Catalogue
Product Page Link
Product Data Sheet
TeSys GB circuit breaker, 2 poles (1P+N), 1A/250V IEC/277V UL, for the protection of industrial equipment control circuits. It provides thermal magnetic protection with a magnetic tripping level at 14A (13 In) and breaking capacity Icu 50kA@240V. It can also be used for protection of DC loads up to 1A/48V DC-13 with a breaking capacity Icu 1.5kA@24V. Compact device (30mm wide), mounting on 35mm DIN-rail, control by toggle lever (start-stop guaranteed for 8000 cycles). Sold in lots of 3 units. Multi standards certified (IEC, UL, CSA), Green Premium product (RoHS/REACh).

Products specifications

Attribute nameAttribute value
Main
Device short nameGB2
Device applicationcontrol
Breaking capacity1 kA Icu at 48 V DC conforming to IEC 60947-2, 1.5 kA Icu at 24 V DC conforming to IEC 60947-2, 50 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA Icu at 110 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service short-circuit breaking capacity50 % at 110 V AC 50/60 Hz conforming to IEC 60947-2, 25 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
RangeTeSys
Magnetic tripping current14-14 A
Trip unit technologythermal-magnetic
Network frequency50/60 Hz conforming to IEC 60947-2
Poles description1P + N
Utilisation categoryDC-13 conforming to IEC 60947-5-1, DC-12 conforming to IEC 60947-5-1, category A conforming to IEC 60947-2
Product nameTeSys GB2
Product or component typecircuit breaker
Network typeAC/DC
Complementary
Quantity per setset of 6
Compatibility codeGB2
Mechanical durability8000 cycles
Tightening torque1.2 N.m on connector
Mounting modeby clips
Electrical durability8000 cycles
Power dissipation per pole2 W
Control typetoggle
Connections - terminalsconnector 2 cable(s) 0.75-2.5 mm²flexible with cable end, connector 1 cable(s) 0.75-4 mm²flexible with cable end, connector 2 cable(s) 0.75-4 mm²solid without cable end, connector 1 cable(s) 0.75-6 mm²solid without cable end
Height74 mm
Mechanical robustnessvibrations: 5 Gn, 5...110 Hz conforming to IEC 60068-2-6, shocks: 22 Gn for 20 ms conforming to IEC 60068-2-27
Depth67 mm
Width15 mm
Mounting positionvertical, horizontal
[Uimp] rated impulse withstand voltage4 kV conforming to IEC 60947-2
Net weight0.07 kg
9 mm pitches2
Mounting supportrail, plate
[Ue] rated operational voltage48 V DC, 277 V AC 60 Hz conforming to UL 1077, 277 V AC 60 Hz conforming to CSA C22.2 No 235, 250 V AC 50/60 Hz conforming to IEC 60947-2
[In] rated current1 A
Environment
Fire resistance960 °C conforming to IEC 60695-2-1
IP degree of protectionIP20 conforming to IEC 60529
Protective treatmentTC
Ambient air temperature for storage-40-80 °C
Ambient air temperature for operation-20-60 °C
Operating altitude3000 m
StandardsUL 1077, CSA C22.2 No 235, EN/IEC 60947-2, EN/IEC 60947-1
Product certificationsCSA, UL
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height1.5 cm
Package 1 Width7.0 cm
Package 1 Length7.5 cm
Package 1 Weight60.0 g
Unit Type of Package 22
Number of Units in Package 26
Package 2 Height8.0 cm
Package 2 Width8.0 cm
Package 2 Length10.0 cm
Package 2 Weight384.0 g
Unit Type of Package 33
Number of Units in Package 372
Package 3 Height15.0 cm
Package 3 Width30.0 cm
Package 3 Length40.0 cm
Package 3 Weight4.918 kg
