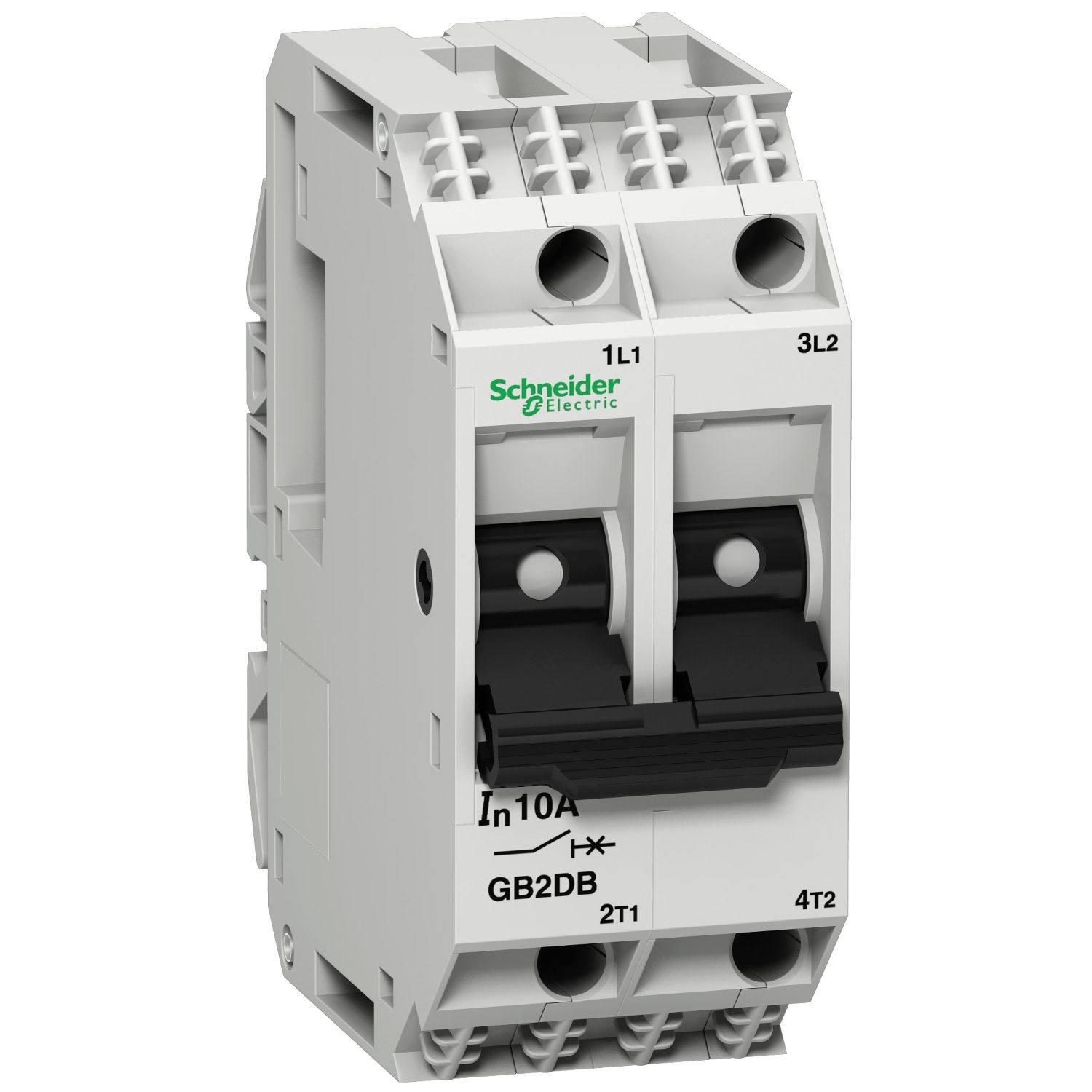

Circuit breaker, TeSys GB2, 2P, 2A, Icu 15kA at 415V, Thermal magnetic, DIN rail mounted

$172.58
Available for Shipping : 10-Dec-2024
Circuit breaker, TeSys GB2, 2P, 2A, Icu 15kA at 415V, Thermal magnetic, DIN rail mounted
  • Provides thermal-magnetic protection with a magnetic tripping level
  • Network type can be AC & DC
  • Devices can be mounted on all types of 35mm symmetric rails and Telequick mounting plates
  • Circuit breakers are Tamper proof
  • Easy to maintain
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product environmental
Product Page Link
Product Data Sheet
TeSys GB circuit breaker, 2 poles (2P), 2A/415V, for the protection of industrial equipment control circuits. It provides thermal magnetic protection with a magnetic tripping level at 26A (13 In) and breaking capacity Icu 15kA@415V. It can also be used for protection of DC loads up to 2A/48V DC-13 with a breaking capacity Icu 1.5kA@24V. Compact device (30mm wide), mounting on 35mm DIN-rail, control by toggle lever (start-stop guaranteed for 8000 cycles). Sold in lots of 3 units. It conforms to IEC 60947-1 and IEC 60947-2, Green Premium product (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name GB2
Device application control
Breaking capacity 1 kA Icu at 48 V DC conforming to IEC 60947-2, 1.5 kA Icu at 24 V DC conforming to IEC 60947-2, 15 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2, 15 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2, 15 kA Icu at 110 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service short-circuit breaking capacity 25 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2, 50 % at 110 V AC 50/60 Hz conforming to IEC 60947-2, 25 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
Range TeSys
Magnetic tripping current 26-26 A
Trip unit technology thermal-magnetic
Network frequency 50/60 Hz conforming to IEC 60947-2
Poles description 2P
Utilisation category DC-13 conforming to IEC 60947-5-1, DC-12 conforming to IEC 60947-5-1, category A conforming to IEC 60947-2
Product name TeSys GB2
Product or component type circuit breaker
Network type AC/DC
Complementary
Quantity per set set of 3
Compatibility code GB2
Mechanical durability 8000 cycles
Tightening torque 1.2 N.m on connector
Mounting mode by clips
Electrical durability 8000 cycles
Power dissipation per pole 2 W
Control type toggle
Connections - terminals connector 2 cable(s) 0.75-2.5 mm²flexible with cable end, connector 1 cable(s) 0.75-4 mm²flexible with cable end, connector 2 cable(s) 0.75-4 mm²solid without cable end, connector 1 cable(s) 0.75-6 mm²solid without cable end
Height 74 mm
Mechanical robustness vibrations: 5 Gn, 5...110 Hz conforming to IEC 60068-2-6, shocks: 22 Gn for 20 ms conforming to IEC 60068-2-27
Depth 70 mm
Width 30 mm
Mounting position horizontal, vertical
[Uimp] rated impulse withstand voltage 4 kV conforming to IEC 60947-2
Net weight 0.115 kg
9 mm pitches 4
Mounting support plate, rail
[Ue] rated operational voltage 48 V DC, 415 V AC 50/60 Hz conforming to IEC 60947-2
[In] rated current 2 A
Environment
Fire resistance 960 °C conforming to IEC 60695-2-1
IP degree of protection IP20 conforming to IEC 60529
Protective treatment TC
Ambient air temperature for storage -40-80 °C
Ambient air temperature for operation -20-60 °C
Operating altitude 3000 m
Standards EN/IEC 60947-2, EN/IEC 60947-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.000 cm
Package 1 Width 9.700 cm
Package 1 Length 8.500 cm
Package 1 Weight 113.000 g
Unit Type of Package 2 2
Number of Units in Package 2 3
Package 2 Height 8.000 cm
Package 2 Width 9.700 cm
Package 2 Length 8.500 cm
Package 2 Weight 343.000 g
Unit Type of Package 3 3
Number of Units in Package 3 36
Package 3 Height 15.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 4.433 kg
