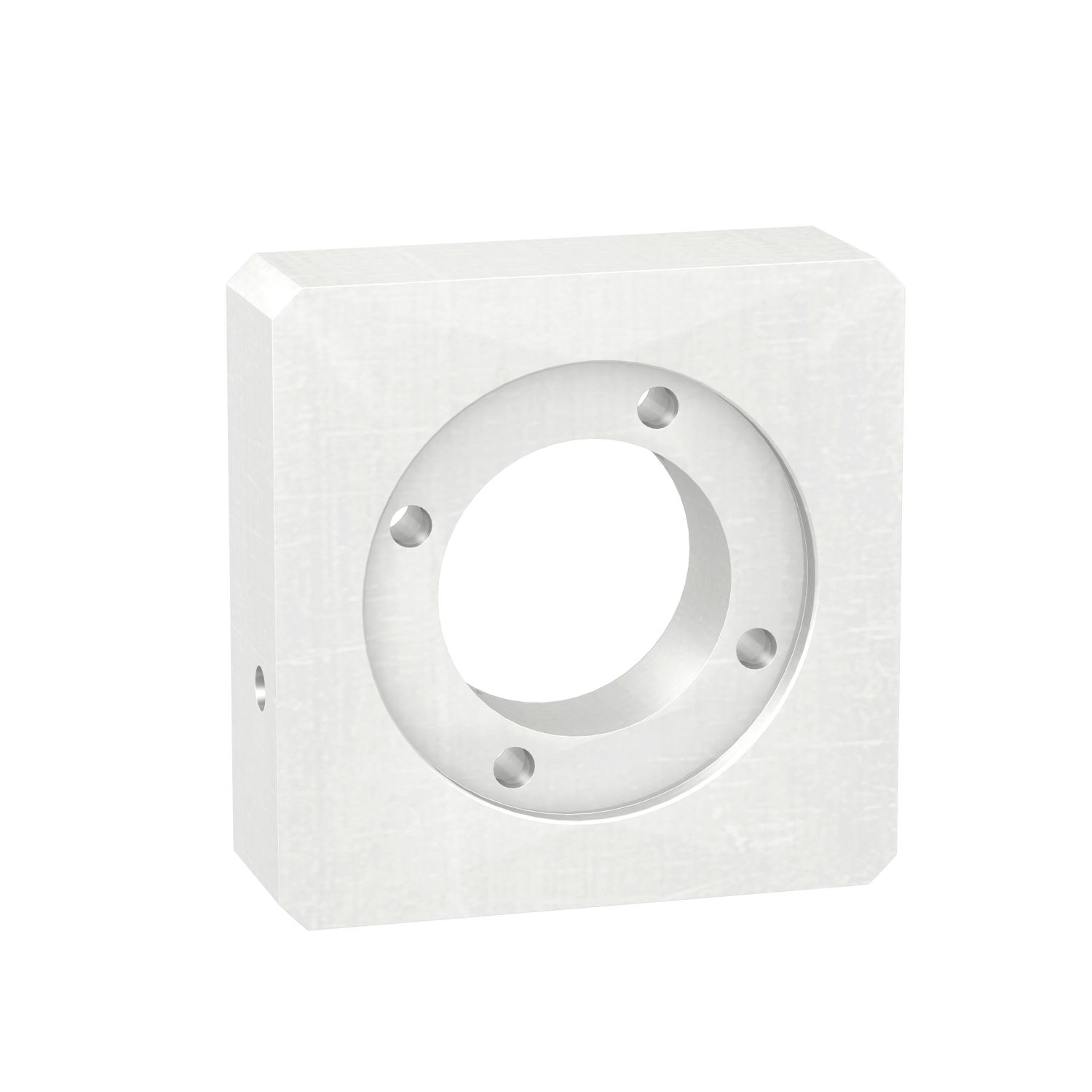

Picture of adaptation kit, Lexium, GBK, size 60, 16mm, for assembly motor and gearbox
SKU:

GBK0600702F

adaptation kit, Lexium, GBK, size 60, 16mm, for assembly motor and gearbox

$270.00
Available for Shipping : 10-Dec-2024
Product Selector
adaptation kit, Lexium, GBK, size 60, 16mm, for assembly motor and gearbox
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Catalogue
Product Page Link
Product Data Sheet
This product is part of the Lexium 32 range, an offer of motion servo drives and servo motors. This adaptation kit is for assembly motors and gearbox. The kit fits 60mm gearbox. This adaptation kit is for mounting servo motor and planetary gearbox. It composes with an adaptor plate, a shaft end adaptor, screws and bolts for mounting. It fits 70mm motor flange size. It weighs 0.2kg. The Lexium 32 range combines servo drives with motors to provide the right power, performance and functionality at the right price. Lexium 32 simplifies all aspects in the machine lifecycle from engineering to maintenance.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part destination for assembly motor and gearbox
Kit composition a shaft end adaptor, an adaptor plate, screws and bolts for mounting
Device short name GBK
Product compatibility ILM, BSH, BMI, MH3, BMH, SH3
Range compatibility Lexium 32, Lexium 62, Lexium 52, Lexium 32i, Lexium 62 ILM
Gearbox external diameter 60 mm
Product or component type adaptation kit
Accessory / separate part category adaptation accessory
Complementary
Compatibility code GBK
Motor flange size 70 mm
Net weight 0.2 kg
Length 16.1 mm
Number of motor stacks 2, 1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.500 cm
Package 1 Width 18.500 cm
Package 1 Length 20.000 cm
Package 1 Weight 254.000 g
Unit Type of Package 2 2
Number of Units in Package 2 50
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 26.100 kg
