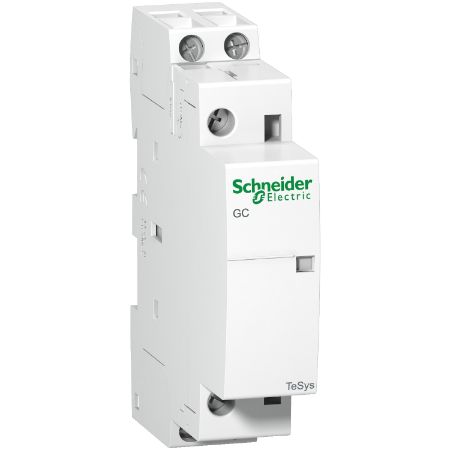

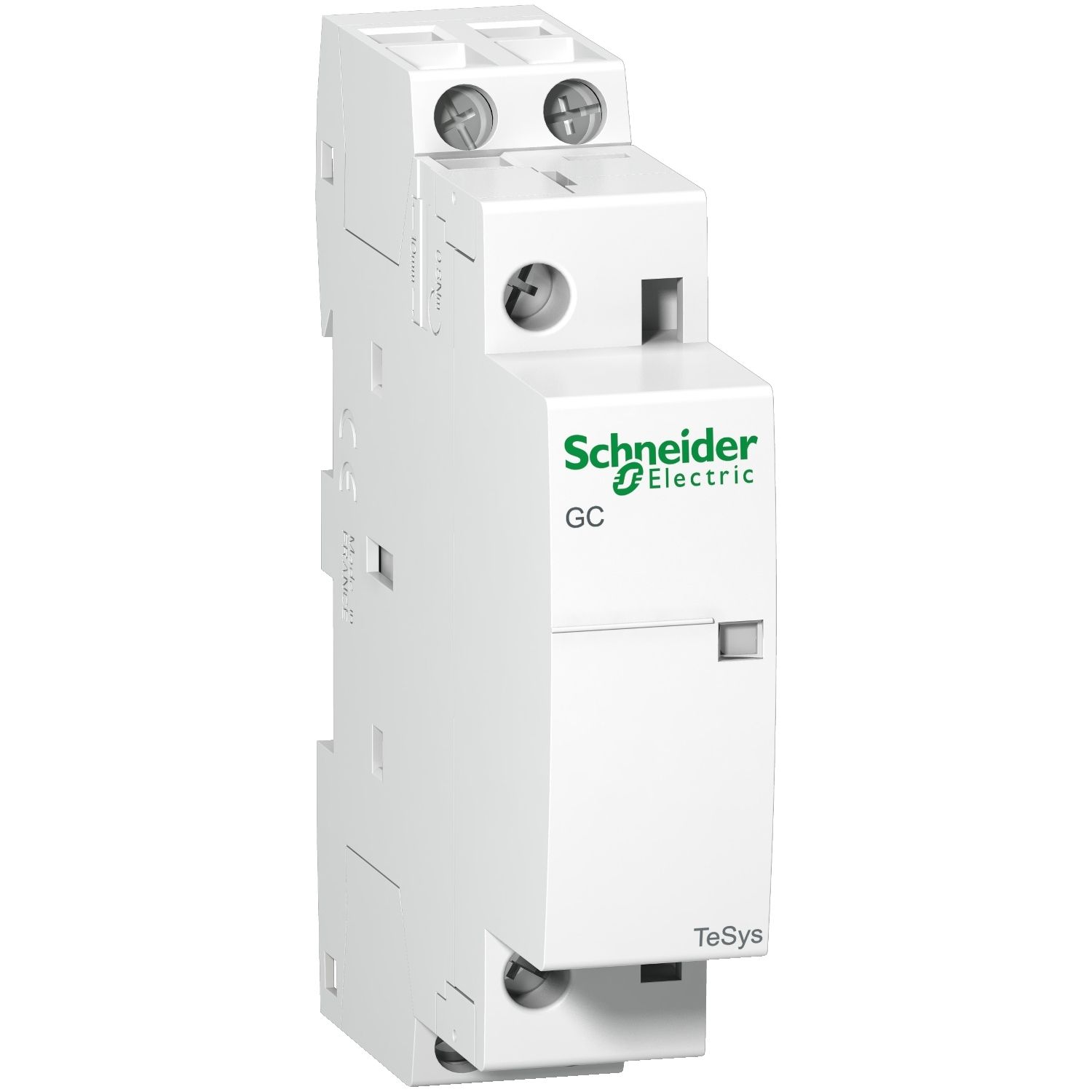

Picture of Modular contactor, TeSys GC, AC-7a, 25A, 2NC, 220 to 240VAC 50Hz coil
SKU:

GC2502M5

Modular contactor, TeSys GC, AC-7a, 25A, 2NC, 220 to 240VAC 50Hz coil

$156.06
Available for Shipping : 24-Nov-2024
Modular contactor, TeSys GC, AC-7a, 25A, 2NC, 220 to 240VAC 50Hz coil
  • Modular contactors has utilisation category of AC-7A
  • Modular contactors has an Electrical endurance 100000 cycles
  • This range of contactors are safe and simple to use and easy to install
  • Devices are compact in size and suitable for use in a wide variety of applications
  • Modular contactors designed for use in modular panels and enclosures
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product Page Link
Product Data Sheet
TeSys GC modular contactor, 2 poles (2NC), 25A/250V AC-7a (heating) and 8.5A/250V AC-7b (motor control), for household applications. Control voltage 220-240V AC 50Hz, state indicator on front. For use in modular panels, compact (18mm width), clipping on 35mm DIN rail, connection by screw terminals. Sold in lots of 12 units. Multi standards certified (IEC, EN, NF-USE, VDE, CEBEC, OVE), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name GC25
Range TeSys
Product name TeSys GC
Product or component type modular contactor
Contactor application motor control, lighting, heating
Complementary
Heat dissipation 1.3-1.3 W at 50/60 Hz
[Icw] rated short-time withstand current 62 A 40 °C - 30 s for power circuit, 200 A 40 °C - 10 s for power circuit
[Uimp] rated impulse withstand voltage 4 kV
Operating time 10...30 ms closing, 10...25 ms opening
Operating position 30°/vertical
Hold-in power consumption in VA 3.8-3.8 VA 50 Hz (at 20 °C)
Compatibility code modular standard contactor
Poles description 2P
Mechanical durability 1000000 cycles
[Ie] rated operational current 8.5 A AC-7B, 25 A AC-7A
Tightening torque power circuit: 0.8 N.m - on screw clamp terminals, control circuit: 0.8 N.m - on screw clamp terminals
Electrical durability AC-7B: 100000 cycles, AC-7A: 100000 cycles
Maximum operating rate 300 cyc/h 50 °C
Mounting mode clip-on
[Ui] rated insulation voltage 500 V conforming to VDE 0110, 500 V conforming to IEC 61095
Utilisation category AC-7B, AC-7A
Control type remote control
Pole contact composition 2 NC
Connections - terminals power circuit: screw clamp terminals 1 cable(s) 6-6 mm²flexible with cable end, power circuit: screw clamp terminals 2 cable(s) 4-4 mm²flexible without cable end, power circuit: screw clamp terminals 1 cable(s) 6-6 mm²flexible without cable end, control circuit: screw clamp terminals 2 cable(s) 1.5-1.5 mm²solid without cable end, control circuit: screw clamp terminals 1 cable(s) 1.5-1.5 mm²solid without cable end, control circuit: screw clamp terminals 2 cable(s) 1.5-1.5 mm²flexible with cable end, control circuit: screw clamp terminals 1 cable(s) 2.5-2.5 mm²flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 2.5-2.5 mm²flexible without cable end, power circuit: screw clamp terminals 2 cable(s) 4-4 mm²solid without cable end, power circuit: screw clamp terminals 1 cable(s) 6-6 mm²solid without cable end, power circuit: screw clamp terminals 2 cable(s) 1.5-1.5 mm²flexible with cable end, control circuit: screw clamp terminals 1 cable(s) 2.5-2.5 mm²flexible without cable end
Inrush power in VA 15-15 VA 50 Hz (at 20 °C)
Associated fuse rating 25 A gL at <= 440 V for power circuit
Irms rated making capacity 68 A at 400 V AC for power circuit conforming to IEC 61095
Rated breaking capacity 68 A at 400 V for power circuit conforming to IEC 61095
Control circuit type AC at 50 Hz
Mounting support DIN rail
Standards IEC 60947-5, IEC 61095
[Ith] conventional free air thermal current 25 A (at 50 °C) for power circuit
Control circuit voltage limits operational: 0.85...1.1 Uc at 50 Hz (at <50 °C), drop-out: 0.2...0.75 Uc at 50 Hz (at <50 °C)
Average impedance 2.5 mOhm - Ith 25 A 50 Hz for power circuit
Power dissipation per pole 1.6 W
[Ue] rated operational voltage <= 250 V AC
[Uc] control circuit voltage 220...240 V AC 50 Hz
Environment
Operating altitude <= 3000 m
Depth 62.5 mm
Width 17.5 mm
Colour white
Quantity per set set of 12
IP degree of protection IP20 conforming to VDE 0106, IP40 conforming to VDE 0106 (in enclosure)
Protective treatment TC
Ambient air temperature for storage -40-70 °C
Net weight 0.11 kg
Total number of 18 mm modules 1
Ambient air temperature for operation -5-50 °C
Height 81 mm
Mechanical robustness vibrations contactor closed: 3 Gn, 5...300 Hz, vibrations contactor open: 2 Gn, 5...300 Hz, shocks contactor closed: 15 Gn for 11 ms, shocks contactor open: 10 Gn for 11 ms
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.0 cm
Package 1 Width 9.5 cm
Package 1 Length 23.0 cm
Package 1 Weight 121.0 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 8.0 cm
Package 2 Width 9.5 cm
Package 2 Length 23.0 cm
Package 2 Weight 1.46 kg
Unit Type of Package 3 3
Number of Units in Package 3 96
Package 3 Height 30.0 cm
Package 3 Width 30.0 cm
Package 3 Length 40.0 cm
Package 3 Weight 12.252 kg
