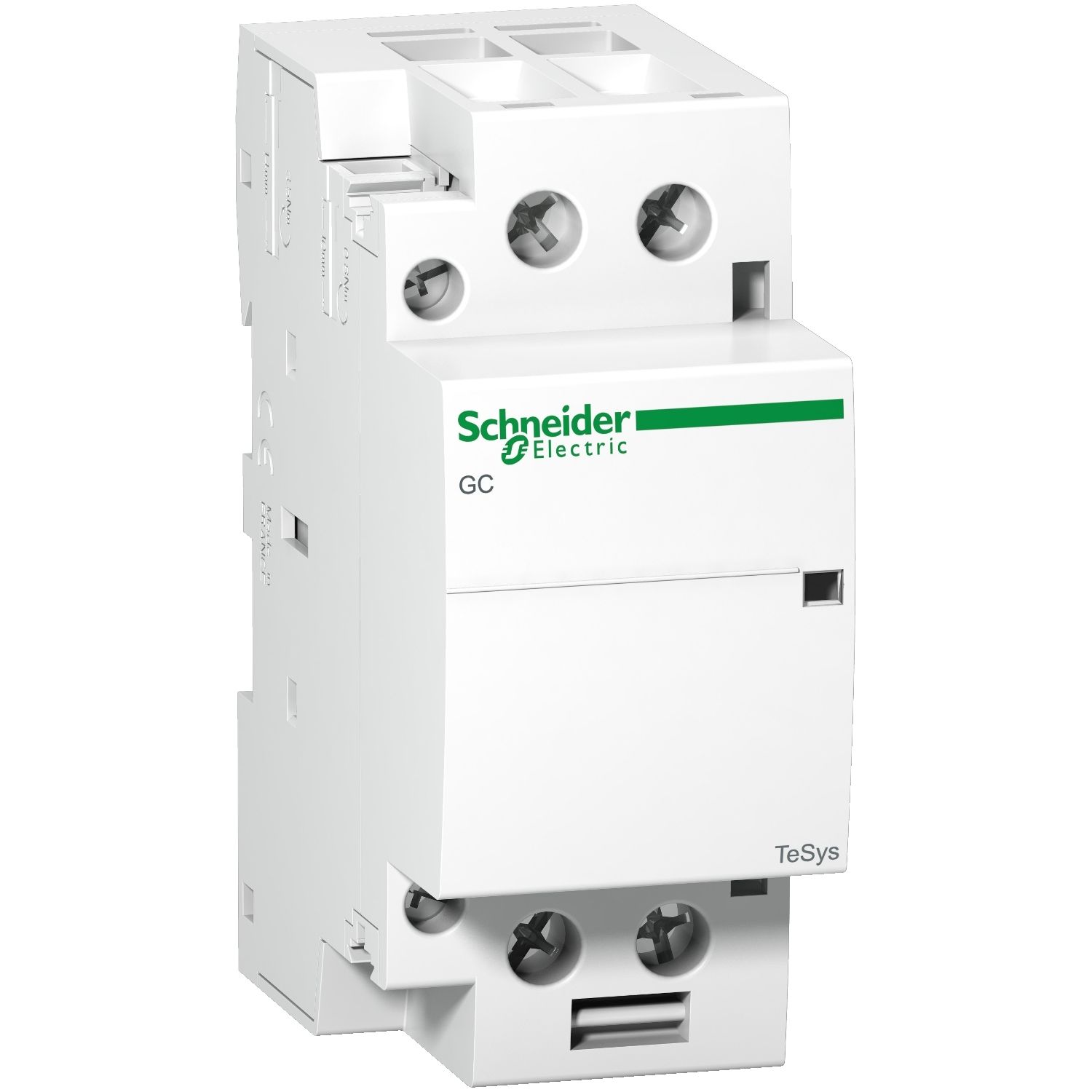

Modular contactor, TeSys GC, AC-7a, 40A, 2NO, 220 to 240VAC 50Hz coil

$292.00
Modular contactor, TeSys GC, AC-7a, 40A, 2NO, 220 to 240VAC 50Hz coil
  • Modular contactors have utilization category of AC-7A
  • Modular contactors has an Electrical endurance 100000 cycles
  • This range of contactors are safe and simple to use and easy to install
  • Devices are compact in size and suitable for use in a wide variety of applications
  • Modular contactors designed for use in modular panels and enclosures
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Catalogue
Product Page Link
Product Data Sheet
TeSys GC modular contactor, 2 poles (2NO), 40A/250V AC-7a (heating) and 15A/250V AC-7b (motor control), for household applications. Control voltage 220-240V AC 60Hz, state indicator on front. For use in modular panels, compact (36mm width), clipping on 35mm DIN rail, connection by screw terminals. Sold in lots of 6 units. Multi standards certified (IEC, EN, NF-USE, VDE, CEBEC, OVE), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute nameAttribute value
Main
Device short nameGC40
RangeTeSys
Product nameTeSys GC
Product or component typemodular contactor
Contactor applicationheating, motor control, lighting
Complementary
Heat dissipation1.6-1.6 W at 50/60 Hz
[Icw] rated short-time withstand current100 A 40 °C - 30 s for power circuit, 320 A 40 °C - 10 s for power circuit
[Uimp] rated impulse withstand voltage4 kV
Operating time10...30 ms closing, 10...25 ms opening
Operating position30°/vertical
Hold-in power consumption in VA4.6-4.6 VA 50 Hz (at 20 °C)
Compatibility codemodular standard contactor
Poles description2P
Mechanical durability1000000 cycles
[Ie] rated operational current15 A AC-7B, 40 A AC-7A
Tightening torquepower circuit: 2 N.m - on screw clamp terminals, control circuit: 0.8 N.m - on screw clamp terminals
Electrical durabilityAC-7B: 100000 cycles, AC-7A: 100000 cycles
Maximum operating rate300 cyc/h 50 °C
Mounting modeclip-on
[Ui] rated insulation voltage500 V conforming to VDE 0110, 500 V conforming to IEC 61095
Utilisation categoryAC-7A, AC-7B
Control typeremote control
Pole contact composition2 NO
Connections - terminalspower circuit: screw clamp terminals 1 cable(s) 16-16 mm²flexible with cable end, power circuit: screw clamp terminals 2 cable(s) 16-16 mm²flexible without cable end, power circuit: screw clamp terminals 1 cable(s) 25-25 mm²flexible without cable end, control circuit: screw clamp terminals 2 cable(s) 1.5-1.5 mm²solid without cable end, control circuit: screw clamp terminals 1 cable(s) 1.5-1.5 mm²solid without cable end, control circuit: screw clamp terminals 2 cable(s) 1.5-1.5 mm²flexible with cable end, control circuit: screw clamp terminals 1 cable(s) 2.5-2.5 mm²flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 2.5-2.5 mm²flexible without cable end, power circuit: screw clamp terminals 2 cable(s) 6-6 mm²solid without cable end, power circuit: screw clamp terminals 1 cable(s) 25-25 mm²solid without cable end, power circuit: screw clamp terminals 2 cable(s) 4-4 mm²flexible with cable end, control circuit: screw clamp terminals 1 cable(s) 2.5-2.5 mm²flexible without cable end
Inrush power in VA34-34 VA 50 Hz (at 20 °C)
Associated fuse rating40 A gL at <= 440 V for power circuit
Irms rated making capacity120 A at 400 V AC for power circuit conforming to IEC 61095
Rated breaking capacity120 A at 400 V for power circuit conforming to IEC 61095
Control circuit typeAC at 60 Hz
Mounting supportDIN rail
StandardsIEC 61095, IEC 60947-5
[Ith] conventional free air thermal current40 A (at 50 °C) for power circuit
Control circuit voltage limitsoperational: 0.85...1.1 Uc at 50 Hz (at <50 °C), drop-out: 0.2...0.75 Uc at 50 Hz (at <50 °C)
Average impedance2 mOhm - Ith 40 A 50 Hz for power circuit
Power dissipation per pole3.2 W
[Ue] rated operational voltage<= 250 V AC
[Uc] control circuit voltage220...240 V AC 60 Hz
Environment
Operating altitude<= 3000 m
Depth62.5 mm
Width36 mm
Colourwhite
Quantity per setset of 6
IP degree of protectionIP20 conforming to VDE 0106, IP40 conforming to VDE 0106 (in enclosure)
Protective treatmentTC
Ambient air temperature for storage-40-70 °C
Net weight0.23 kg
Total number of 18 mm modules2
Ambient air temperature for operation-5-50 °C
Height85 mm
Mechanical robustnessvibrations contactor closed: 3 Gn, 5...300 Hz, vibrations contactor open: 2 Gn, 5...300 Hz, shocks contactor closed: 15 Gn for 11 ms, shocks contactor open: 10 Gn for 11 ms
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height8 cm
Package 1 Width9.5 cm
Package 1 Length23 cm
Package 1 Weight233 g
Unit Type of Package 22
Number of Units in Package 26
Package 2 Height8 cm
Package 2 Width9.5 cm
Package 2 Length23 cm
Package 2 Weight1.401 kg
Unit Type of Package 33
Number of Units in Package 348
Package 3 Height30 cm
Package 3 Width30 cm
Package 3 Length40 cm
Package 3 Weight11.897 kg
