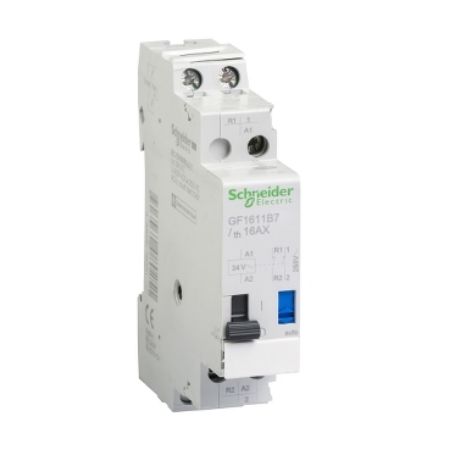

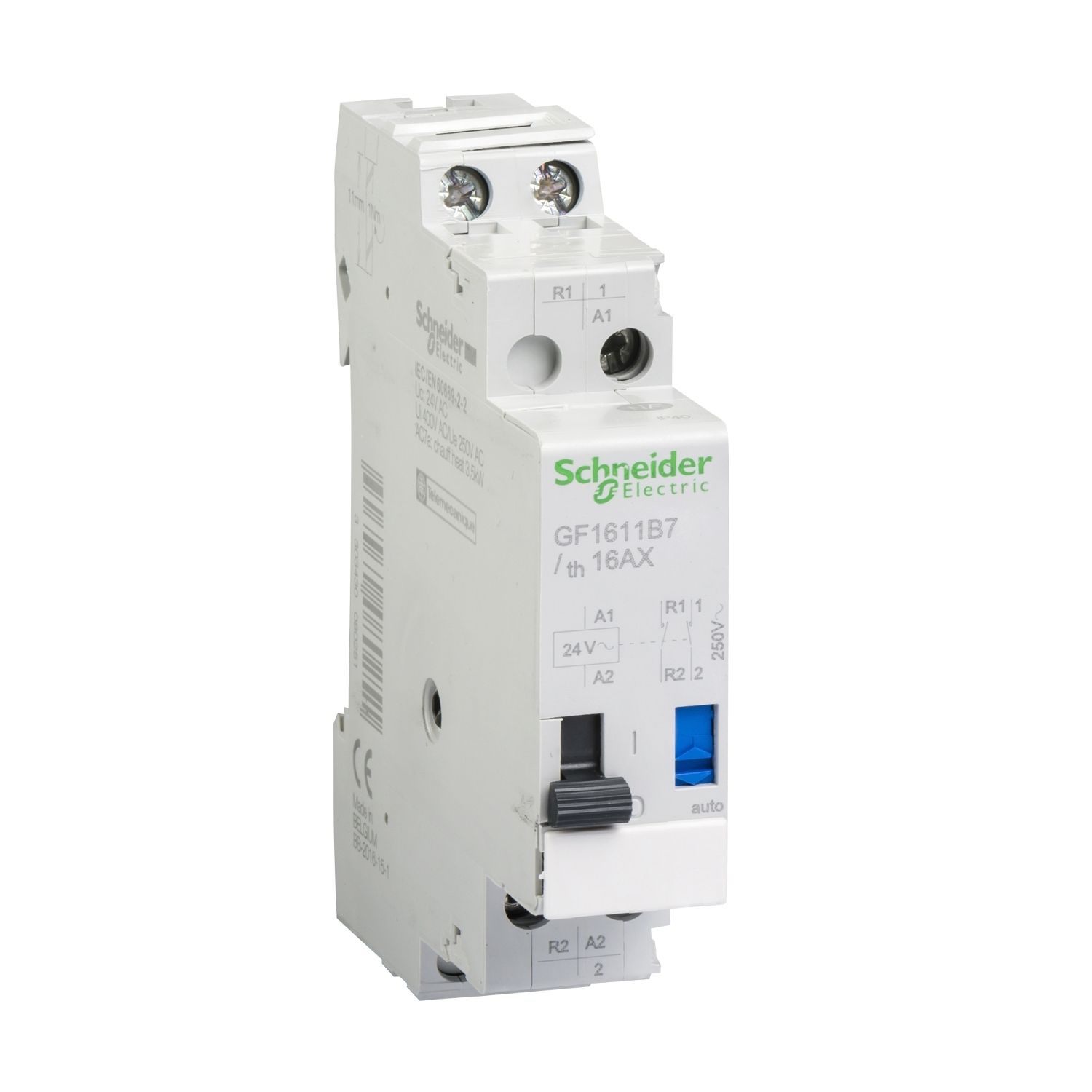

Picture of Impulse relay, TeSys GF, AC-1, 2P, 16A, 1NO+1NC, 24VAC 50/60Hz coil
SKU:

GF1611B7

Impulse relay, TeSys GF, AC-1, 2P, 16A, 1NO+1NC, 24VAC 50/60Hz coil

$144.94
Impulse relay, TeSys GF, AC-1, 2P, 16A, 1NO+1NC, 24VAC 50/60Hz coil
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Declaration of conformity
End of life manual
Catalogue
Product environmental
Product Page Link
Product Data Sheet

Products specifications

Attribute nameAttribute value
Main
Device short nameGF16
Operating position+/- 90° to vertical plane
Poles description2P
[Ie] rated operational current16 A AC-1
Mounting modeclip-on
Utilisation categoryAC-1
Pole contact composition1 NO + 1 NC
RangeTeSys
Product nameTeSys GF
Product or component typeimpulse relay
Control circuit typeAC at 50/60 Hz
Mounting support35 mm symmetrical DIN rail
[Ue] rated operational voltage250 V AC 50/60 Hz
[Uc] control circuit voltage24 V AC 50/60 Hz
Permissible short-time rating96 A 40 °C 10 s, 48 A 40 °C 30 s, 320 A 40 °C 1 s
Complementary
Depth64 mm
Tightening torquepower circuit: 0.8-0.8 N.m - on screw clamp terminals, control circuit: 0.8-0.8 N.m - on screw clamp terminals
Width18 mm
Operating time70 ms opening, 70 ms closing
Quantity per setset of 12
Control circuit voltage limits0.85...1.1 Uc 50 °C 50/60 Hz
Compatibility codemodular impulse relay
Mechanical durability1 Mcycles
[Ui] rated insulation voltage400 V conforming to VDE 0110, 400 V conforming to IEC 60947-5-1
Electrical durability200000 cycles AC-21, 100000 cycles AC-22
Maximum operating rate900 cyc/h
Impulse duration>= 70 ms
Power dissipation per pole1 W
[Uimp] rated impulse withstand voltage4 kV in enclosure
Net weight0.11 kg
Connections - terminalspower circuit: screw clamp terminals 1 cable(s) 0.5-6 mm² solid without cable end, power circuit: screw clamp terminals 1 cable(s) 0.5-6 mm² flexible without cable end, power circuit: screw clamp terminals 1 cable(s) 0.5-6 mm² flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 2.5-2.5 mm² flexible without cable end, control circuit: screw clamp terminals 2 cable(s) 1.5-1.5 mm² solid without cable end, control circuit: screw clamp terminals 2 cable(s) 1.5-1.5 mm² flexible with cable end, control circuit: screw clamp terminals 1 cable(s) 2.5-2.5 mm² flexible without cable end, control circuit: screw clamp terminals 1 cable(s) 2.5-2.5 mm² flexible with cable end, power circuit: screw clamp terminals 2 cable(s) 0.5-4 mm² solid without cable end, power circuit: screw clamp terminals 2 cable(s) 0.5-4 mm² flexible without cable end, power circuit: screw clamp terminals 2 cable(s) 0.5-4 mm² flexible with cable end, control circuit: screw clamp terminals 1 cable(s) 1.5-1.5 mm² solid without cable end
9 mm pitches2
[Ith] conventional free air thermal current16 A (at 50 °C)
Average consumption19 VA AC 50 Hz at at Uc at 20 ºC
Average impedance4 mOhm at 50 Hz - Ith 16 A
Height81 mm
Environment
Operating altitude<= 2000 m without derating
IP degree of protectionIP20 conforming to VDE 0106, IP40 conforming to VDE 0106 (in enclosure)
Protective treatmentTC
Ambient air temperature for storage-40-80 °C
StandardsIEC 60669-2, NF C 61-112, IEC 60669-1
Ambient air temperature for operation-20-50 °C
Mechanical robustnessvibrations contactor closed: 4 Gn, 5...300 Hz, vibrations contactor open: 4 Gn, 5...300 Hz
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height8.0 cm
Package 1 Width9.4 cm
Package 1 Length23.0 cm
Package 1 Weight120.0 g
Unit Type of Package 22
Number of Units in Package 212
Package 2 Height8.0 cm
Package 2 Width9.4 cm
Package 2 Length23.0 cm
Package 2 Weight1.44 kg
Unit Type of Package 33
Number of Units in Package 348
Package 3 Height15.0 cm
Package 3 Width30.0 cm
Package 3 Length40.0 cm
Package 3 Weight6.143 kg
