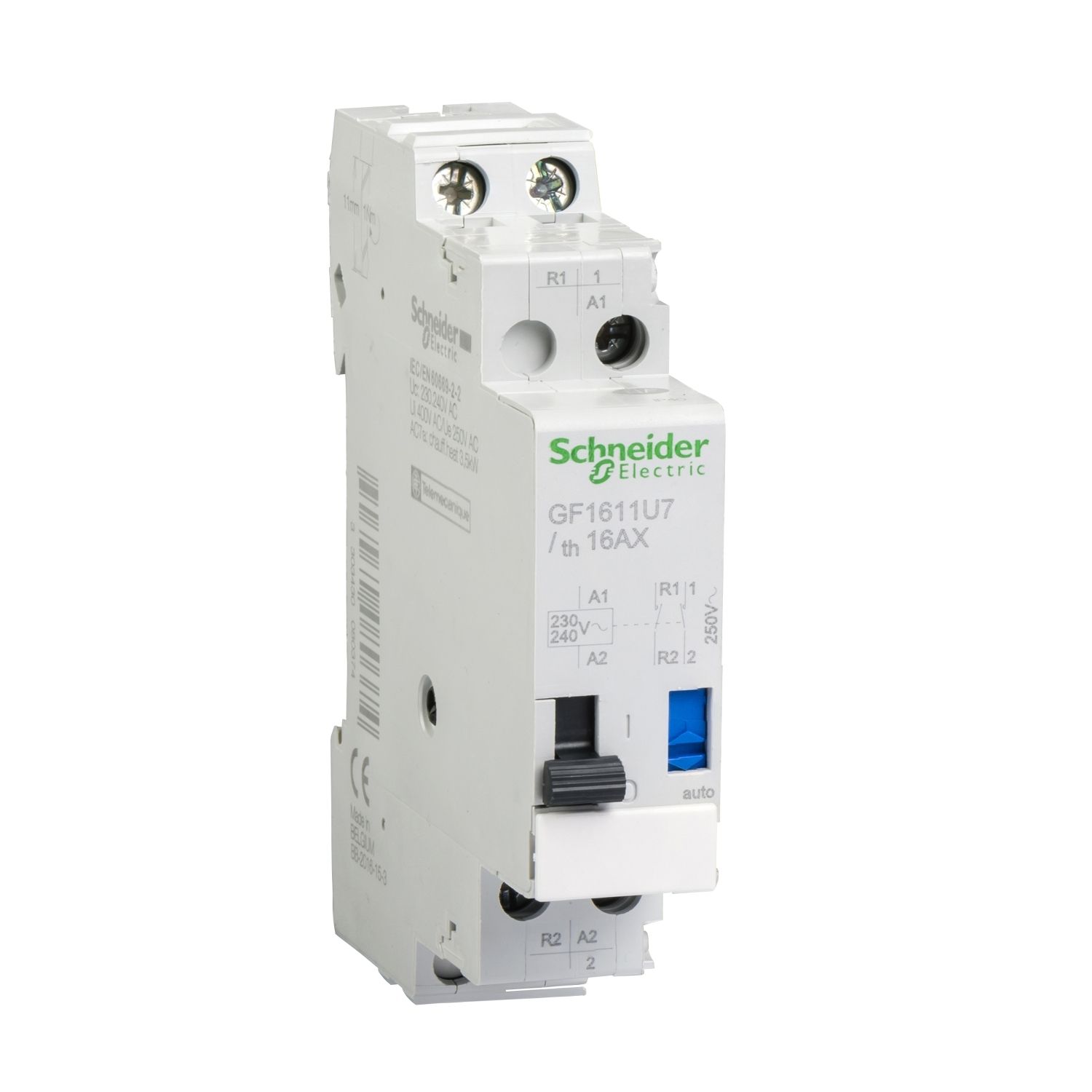

Picture of Impulse relay, TeSys GF, AC-1, 2P, 16A, 1NO+1NC, 230 to 240VAC 50/60Hz coil
SKU:

GF1611U7

Impulse relay, TeSys GF, AC-1, 2P, 16A, 1NO+1NC, 230 to 240VAC 50/60Hz coil

$112.21
Available for Shipping : 10-Dec-2024
Impulse relay, TeSys GF, AC-1, 2P, 16A, 1NO+1NC, 230 to 240VAC 50/60Hz coil
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
Declaration of conformity
Catalogue
Product environmental
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name GF16
Operating position +/- 90° to vertical plane
Poles description 2P
[Ie] rated operational current 16 A AC-1
Mounting mode clip-on
Utilisation category AC-1
Pole contact composition 1 NO + 1 NC
Range TeSys
Product name TeSys GF
Product or component type impulse relay
Control circuit type AC at 50/60 Hz
Mounting support 35 mm symmetrical DIN rail
[Ue] rated operational voltage 250 V AC 50/60 Hz
[Uc] control circuit voltage 230...240 V AC 50/60 Hz
Permissible short-time rating 96 A 40 °C 10 s, 48 A 40 °C 30 s, 320 A 40 °C 1 s
Complementary
Depth 64 mm
Tightening torque power circuit: 0.8-0.8 N.m - on screw clamp terminals, control circuit: 0.8-0.8 N.m - on screw clamp terminals
Width 18 mm
Operating time 70 ms opening, 70 ms closing
Quantity per set set of 12
Control circuit voltage limits 0.85...1.1 Uc 50 °C 50/60 Hz
Compatibility code modular impulse relay
Mechanical durability 1 Mcycles
[Ui] rated insulation voltage 400 V conforming to VDE 0110, 400 V conforming to IEC 60947-5-1
Electrical durability 200000 cycles AC-21, 100000 cycles AC-22
Maximum operating rate 900 cyc/h
Impulse duration >= 70 ms
Power dissipation per pole 1 W
[Uimp] rated impulse withstand voltage 4 kV in enclosure
Net weight 0.11 kg
Connections - terminals power circuit: screw clamp terminals 1 cable(s) 0.5-6 mm² solid without cable end, power circuit: screw clamp terminals 1 cable(s) 0.5-6 mm² flexible without cable end, power circuit: screw clamp terminals 1 cable(s) 0.5-6 mm² flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 2.5-2.5 mm² flexible without cable end, control circuit: screw clamp terminals 2 cable(s) 1.5-1.5 mm² solid without cable end, control circuit: screw clamp terminals 2 cable(s) 1.5-1.5 mm² flexible with cable end, control circuit: screw clamp terminals 1 cable(s) 2.5-2.5 mm² flexible without cable end, control circuit: screw clamp terminals 1 cable(s) 2.5-2.5 mm² flexible with cable end, power circuit: screw clamp terminals 2 cable(s) 0.5-4 mm² solid without cable end, power circuit: screw clamp terminals 2 cable(s) 0.5-4 mm² flexible without cable end, power circuit: screw clamp terminals 2 cable(s) 0.5-4 mm² flexible with cable end, control circuit: screw clamp terminals 1 cable(s) 1.5-1.5 mm² solid without cable end
9 mm pitches 2
[Ith] conventional free air thermal current 16 A (at 50 °C)
Average consumption 19 VA AC 50 Hz at at Uc at 20 ºC
Average impedance 4 mOhm at 50 Hz - Ith 16 A
Height 81 mm
Environment
Operating altitude <= 2000 m without derating
IP degree of protection IP20 conforming to VDE 0106, IP40 conforming to VDE 0106 (in enclosure)
Protective treatment TC
Ambient air temperature for storage -40-80 °C
Standards NF C 61-112, IEC 60669-2, IEC 60669-1
Ambient air temperature for operation -20-50 °C
Mechanical robustness vibrations contactor closed: 4 Gn, 5...300 Hz, vibrations contactor open: 4 Gn, 5...300 Hz
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.0 cm
Package 1 Width 9.4 cm
Package 1 Length 23.0 cm
Package 1 Weight 118.0 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 8.0 cm
Package 2 Width 9.4 cm
Package 2 Length 23.0 cm
Package 2 Weight 1.42 kg
Unit Type of Package 3 3
Number of Units in Package 3 48
Package 3 Height 15.0 cm
Package 3 Width 30.0 cm
Package 3 Length 40.0 cm
Package 3 Weight 6.043 kg
