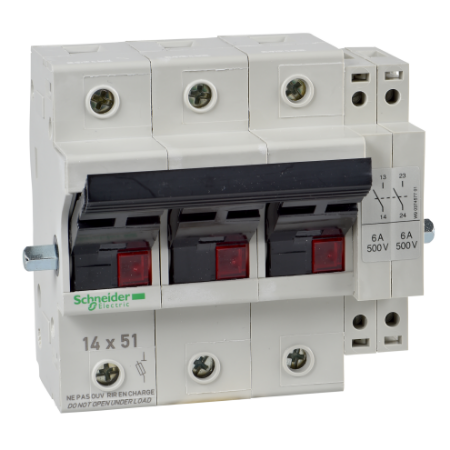

Picture of Fuse disconnector, TeSys DF, 3P, 690VAC, 50A, fuse size 14 x 51mm, 1 NO early break, without single phase prot
SKU:

GK1EK

Fuse disconnector, TeSys DF, 3P, 690VAC, 50A, fuse size 14 x 51mm, 1 NO early break, without single phase prot

$114.35
Product Selector
Fuse disconnector, TeSys DF, 3P, 690VAC, 50A, fuse size 14 x 51mm, 1 NO early break, without single phase prot
  • Protection for motors and transformers
  • To be used with 14x51mm fuse links up to 50A
  • Dual positions locking system for easy DIN-rail mounting
  • Prevent damage to your installation
  • Reduce risk for equipment and personnel
Be the first to review this product
Manufacturer: Schneider Electric
Availability: Please contact our sales team on 1300 724 622.
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet
TeSys GK fuse carrier block, 3 poles (3P), for protection of motors and transformers up to 50A/690V. To be used with 14x51mm fuse links up to 50A. It provides a front handle, 1NO early break auxiliary contact. It can be used in modular panels, clipping on 35mm DIN rail, connection by screw terminals. Fuse links (14x51mm aM, gG type) and add-on auxiliaries (tubular links for Neutral, side handle operators, padlocking devices) are available (to be ordered separately). Multi standards certified (IEC, EN, Marine), it conforms to RoHS/REACh regulation.

Products specifications

Attribute nameAttribute value
Main
Device short nameGK1 E
Poles description3P
RangeTeSys
Product nameTeSys GK1
Product or component typefuse-disconnector
Range of productTeSys fuse-disconnector
Complementary
Product compatibilityfuse cartridge
Compatibility codeGK1 E
[Ie] rated operational current6 A for signalling circuit, 50 A for power circuit
Fuse typeaM, gG
Tightening torque2 N.m power circuit: on connector
Control typetoggle
Mounting positionvertical (tolerance: +/- 23°)
Connections - terminalspower circuit: connector 1 cable(s) 2.5-16 mm²flexible with cable end, power circuit: connector 1 cable(s) 2.5-25 mm²flexible without cable end, power circuit: connector 1 cable(s) 2.5-25 mm²solid
Contacts type and composition1 NO early-break
Mounting supportrail
[Ue] rated operational voltagesignalling circuit: 440 V DC, signalling circuit: 500 V AC, power circuit: 690 V AC
Fuse size14 x 51 mm
Environment
Depth89.5 mm
Width88 mm
Protective treatmentTC
IP degree of protectionIP20
Net weight0.43 kg
StandardsIEC 60947-3
Height97 mm
Ambient air temperature for operation-50-70 °C
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height10.0 cm
Package 1 Width10.0 cm
Package 1 Length12.4 cm
Package 1 Weight511.0 g
Unit Type of Package 22
Number of Units in Package 212
Package 2 Height30.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight6.65 kg
