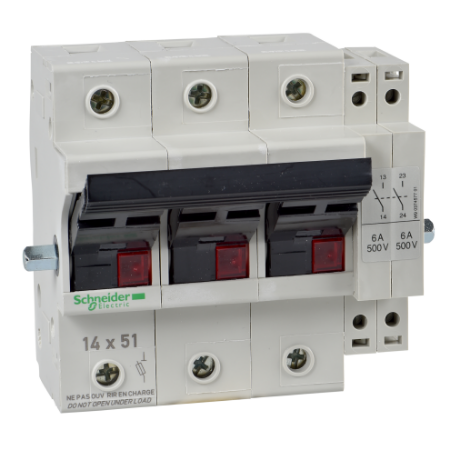

Picture of Fuse disconnector, TeSys DF, 3P, 690VAC, 50A, fuse size 14 x 51mm, 2 NO early break, with single phase prot
SKU:

GK1EW

Fuse disconnector, TeSys DF, 3P, 690VAC, 50A, fuse size 14 x 51mm, 2 NO early break, with single phase prot

$145.27
Availability: Please contact our sales team on 1300 724 622.
Product Selector
Fuse disconnector, TeSys DF, 3P, 690VAC, 50A, fuse size 14 x 51mm, 2 NO early break, with single phase prot
  • Protection for motors and transformers
  • To be used with 14x51mm fuse links up to 50A
  • Dual positions locking system for easy DIN-rail mounting
  • Prevent damage to your installation
  • Reduce risk for equipment and personnel
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet
TeSys GK fuse carrier block, 3 poles (3P), for protection of motors and transformers up to 50A/690V. To be used with 14x51mm fuse links up to 50A. It provides a front handle, 2NO early break auxiliary contacts, 1NO/NC changeover blown fuse auxiliary contact. It can be used in modular panels, clipping on 35mm DIN rail, connection by screw terminals. Fuse links (14x51mm aM, gG type) and add-on auxiliaries (tubular links for Neutral, side handle operators, padlocking devices) are available (to be ordered separately). Multi standards certified (IEC, EN, Marine), it conforms to RoHS/REACh regulation.

Products specifications

Attribute name Attribute value
Main
Device short name GK1 E
Poles description 3P
Range TeSys
Product name TeSys GK1
Product or component type fuse-disconnector
Range of product TeSys fuse-disconnector
Complementary
Product compatibility fuse cartridge striker
Compatibility code GK1 E
[Ie] rated operational current 6 A for signalling circuit, 50 A for power circuit
Fuse type aM, gG
Tightening torque 2 N.m power circuit: on connector
Control type toggle
Mounting position vertical (tolerance: +/- 23°)
Connections - terminals power circuit: connector 1 cable(s) 2.5-16 mm²flexible with cable end, power circuit: connector 1 cable(s) 2.5-25 mm²flexible without cable end, power circuit: connector 1 cable(s) 2.5-25 mm²solid
Contacts type and composition 1 C/O upstream device tripping on blown fuse, 2 NO early-break
Mounting support rail
[Ue] rated operational voltage signalling circuit: 440 V DC, signalling circuit: 500 V AC, power circuit: 690 V AC
Fuse size 14 x 51 mm
Environment
Depth 89.5 mm
Width 115 mm
Protective treatment TC
IP degree of protection IP20
Net weight 0.51 kg
Standards IEC 60947-3
Height 97 mm
Ambient air temperature for operation -50-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10.0 cm
Package 1 Width 10.0 cm
Package 1 Length 15.7 cm
Package 1 Weight 632.0 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 6.837 kg
