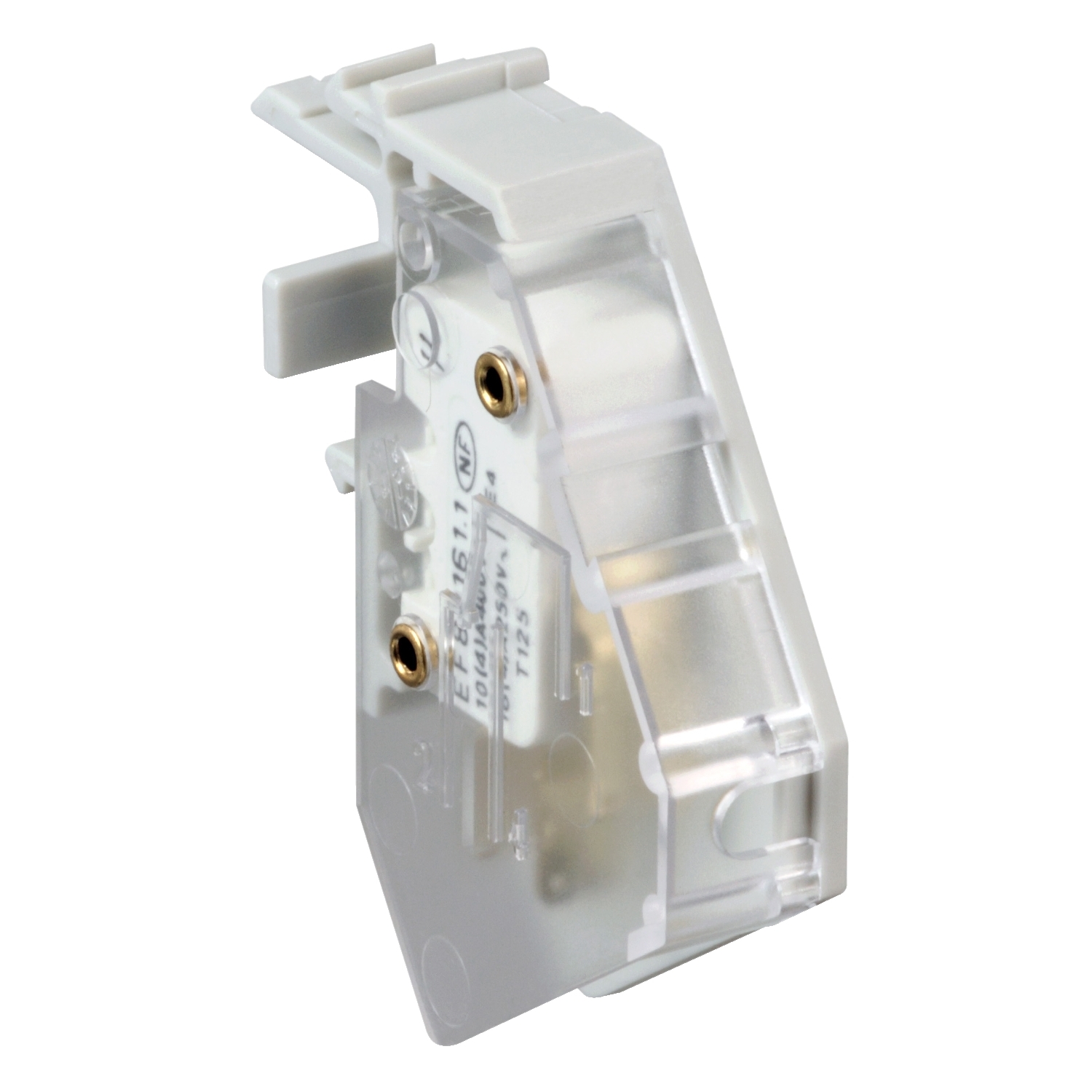

Picture of Auxiliary contacts, TeSys GS, 1 C/O, early break, front mounting, for GS1 50 to 400A with direct right handle
SKU:

GS1AM1

Auxiliary contacts, TeSys GS, 1 C/O, early break, front mounting, for GS1 50 to 400A with direct right handle

$40.81
Availability: Please contact our sales team on 1300 724 622.
Auxiliary contacts, TeSys GS, 1 C/O, early break, front mounting, for GS1 50 to 400A with direct right handle
  • Instantaneous auxiliary contact for fuse switch-disconnectors GS1
  • Front side mounting and connection by screw terminals
  • High short circuit performance up to 100 KA
  • Robust and compact handles
  • Effective protection thanks to fuse speed fusion
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
Declaration of conformity
End of life manual
Product environmental
Product Page Link
Product Data Sheet
TeSys GS instantaneous auxiliary contact block for 3-pole and 4-pole 50-400A IEC fuse switch-disconnectors GS1FD, GS1GD, GS1JD, GS1KD, GS1KKD, GS1LLD, GS1LD, GS1ND, GS1QQD. It provides 1C/O early break contacts rated up to 12A/24V DC-13 and 4A/230V AC-15, for I/O position signaling. Front mounting and connection by Faston terminals. IEC certified, it conforms to RoHS/REACh regulation.

Products specifications

Attribute name Attribute value
Main
Device short name GS1AM
Contact operation early-break
[Ie] rated operational current 0.4 A at 220 V DC-13, 0.6 A at 110 V DC-13, 2 A at 48 V DC-13, 12 A at 24 V DC-13, 2 A at 440 V AC-15, 3 A at 400/415 V AC-15, 4 A at 230 V AC-15, 5 A at 127 V AC-15
Contacts type and composition 1 C/O
Contact application O and I position signalling
Product or component type auxiliary contact
Range compatibility TeSys TeSys GS GS1Q fuse-switch disconnector, TeSys TeSys GS GS1 N fuse-switch disconnector, TeSys TeSys GS GS1 L fuse-switch disconnector, TeSys TeSys GS GS1 K fuse-switch disconnector, TeSys TeSys GS GS1 J fuse-switch disconnector, TeSys TeSys GS GS1G fuse-switch disconnector, TeSys TeSys GS GS1 F fuse-switch disconnector
[Ith] conventional free air thermal current 16 A (at 40 °C)
Range of product TeSys
Complementary
[In] rated current 400 A, 315 A, 250 A, 200 A, 160 A, 125 A, 100 A, 63 A, 50 A
Compatibility code auxiliary early break and signalling contact
Mechanical durability 1 Mcycles
Fuse type BS, DIN, NFC
Electrical durability 30000 cycles AC-15
Mounting location front face
Net weight 0.023 kg
Type of operating handle direct right side
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.5 cm
Package 1 Width 9.5 cm
Package 1 Length 11.0 cm
Package 1 Weight 24.0 g
Unit Type of Package 2 2
Number of Units in Package 2 60
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 1.895 kg
