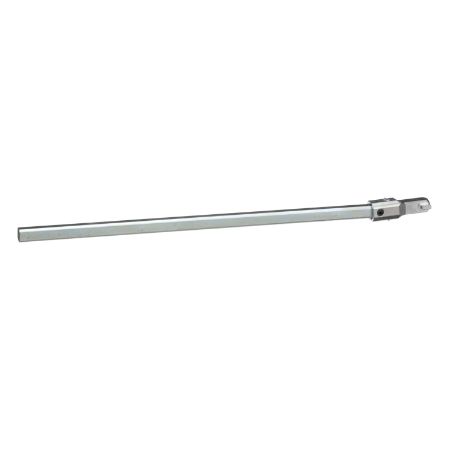

Picture of Shaft extension, TeSys GS, L 320mm, cross section 10x10mm, for switches 50 to 400A
SKU:

GS2AE2

Shaft extension, TeSys GS, L 320mm, cross section 10x10mm, for switches 50 to 400A

$47.03
Available for Shipping : 10-Dec-2024
Shaft extension, TeSys GS, L 320mm, cross section 10x10mm, for switches 50 to 400A
  • shaft extension for external operating handle for fuse switch-disconnectors GS2
  • Shaft length 320mm, cross section 10x10mm
  • High short circuit performance up to 100 KA
  • Robust and compact handles
  • Effective protection thanks to fuse speed fusion
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
End of life manual
Product environmental
Product Page Link
Product Data Sheet
TeSys GS accessory, shaft extension for external operating handle, to be used with 3-pole and 4-pole 30A-400A IEC/UL fuse switch-disconnectors GS2E, GS2F, GS2G, GS2J, GS2K, GS2L, GS2M, GS2N, GS2Q. Shaft length 320mm, cross section 10x10mm. Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name GS2AE
[In] rated current 400 A, 315 A, 250 A, 200 A, 160 A, 125 A, 100 A, 63 A, 60 A, 50 A
Range TeSys
Product or component type shaft extension
Accessory / separate part category control accessory
Range compatibility FuPact FuPacT GS GSD400, FuPact FuPacT GS GSB400, FuPact FuPacT GS GSD250, FuPact FuPacT GS GSB250, FuPact FuPacT GS GSB200, FuPact FuPacT GS GSD160, FuPact FuPacT GS GSD125, FuPact FuPacT GS GSC125, FuPact FuPacT GS GSB100, FuPact FuPacT GS GSD63, FuPact FuPacT GS GSB63, FuPact FuPacT GS GSC50, TeSys TeSys GS GS2Q, TeSys TeSys GS GS2P, TeSys TeSys GS GS2N, TeSys TeSys GS GS2M, TeSys TeSys GS GS2L, TeSys TeSys GS GS2K, TeSys TeSys GS GS2J, TeSys TeSys GS GS2G, TeSys TeSys GS GS2F
Complementary
Compatibility code shaft extension
Shaft cross section 10 x 10 mm
Net weight 0.28 kg
Length 320 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.600 cm
Package 1 Width 1.600 cm
Package 1 Length 32.000 cm
Package 1 Weight 254.000 g
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.393 kg
Unit Type of Package 3 3
Number of Units in Package 3 320
Package 3 Height 77.000 cm
Package 3 Width 80.000 cm
Package 3 Length 60.000 cm
Package 3 Weight 94.788 kg
