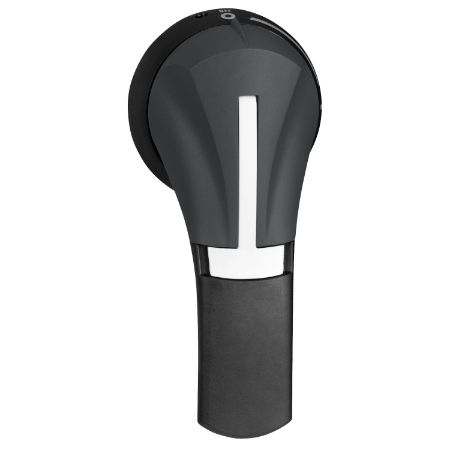

Picture of External rotary handle, TeSys GS, black handle, front mounting, 2 positions I-O, IP65, for GS 100 to 400A IEC
SKU:

GS2AH530

External rotary handle, TeSys GS, black handle, front mounting, 2 positions I-O, IP65, for GS 100 to 400A IEC

$127.33 INC GST
Available for Shipping : 17-Feb-2025
External rotary handle, TeSys GS, black handle, front mounting, 2 positions I-O, IP65, for GS 100 to 400A IEC
  • Mounted on door of an enclosure with IP65 protection, for front side operation
  • Black handle with grey front plate and with padlock
  • High short circuit performance up to 100 KA
  • Robust and compact handles
  • Effective protection thanks to fuse speed fusion
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet
TeSys GS external operating handle for 3-pole and 4-pole 100-400A IEC fuse switch-disconnectors GS2J, GS2JB, GS2K, GS2KK, GS2LL, GS2LLB, GS2L, GS2LB, GS2MMB, GS2N, GS2NB, GS2QQ, GDSQQB. Black handle with grey front plate, padlockable, to be mounted on door of an enclosure with IP65 protection, for front side operation. To be completed with a shaft for external operator GS2AE, several lengths available (to be ordered separately). Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name GS2AH
Range TeSys
Product or component type rotary handle
Handle colour black
Handle front plate colour grey
Range compatibility FuPact FuPacT GS GSD400, FuPact FuPacT GS GSB400, FuPact FuPacT GS GSD250, FuPact FuPacT GS GSB250, FuPact FuPacT GS GSB200, FuPact FuPacT GS GSB160, FuPact FuPacT GS GSD125, FuPact FuPacT GS GSC125, FuPact FuPacT GS GSB100, TeSys TeSys GS GS2Q, TeSys TeSys GS GS2P, TeSys TeSys GS GS2N, TeSys TeSys GS GS2L, TeSys TeSys GS GS2K, TeSys TeSys GS GS2J
Type of operating handle external frontal
Range of product TeSys
Complementary
[In] rated current 400 A, 315 A, 250 A, 200 A, 160 A, 125 A, 100 A
Rotary handle padlocking with
Compatibility code GS2 handle
Net weight 0.24 kg
Marking O-I
Standards IEC
Environment
IP degree of protection IP65
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.0 cm
Package 1 Width 18.6 cm
Package 1 Length 16.9 cm
Package 1 Weight 248.0 g
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 5.48 kg
