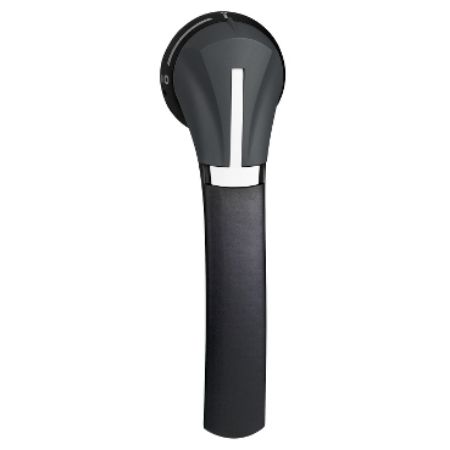

Picture of External rotary handle, TeSys GS, black handle, front mounting, 2 positions I-O, IP65, for GS 630 to 800A IEC
SKU:

GS2AH550

External rotary handle, TeSys GS, black handle, front mounting, 2 positions I-O, IP65, for GS 630 to 800A IEC

$116.47
Available for Shipping : 28-Nov-2024
External rotary handle, TeSys GS, black handle, front mounting, 2 positions I-O, IP65, for GS 630 to 800A IEC
  • Mounted on door of an enclosure with IP65 protection, for front side operation
  • Black handle with grey front plate and with padlock
  • High short circuit performance up to 100 KA
  • Robust and compact handles
  • Effective protection thanks to fuse speed fusion
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet
TeSys GS external operating handle for 3-pole and 4-pole 630-800A IEC fuse switch-disconnectors GS2S, GS2SB, GS2T, GS2TB. Black handle with grey front plate, padlockable, to be mounted on door of an enclosure with IP65 protection, for front side operation. To be completed with a shaft for external operator GS2AE, several lengths available (to be ordered separately). Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name GS2AH
Range TeSys
Product or component type rotary handle
Handle colour black
Handle front plate colour grey
Range compatibility FuPact FuPacT GS GSD800, FuPact FuPacT GS GSB800, FuPact FuPacT GS GSD630, FuPact FuPacT GS GSB630, TeSys TeSys GS GS2T, TeSys TeSys GS GS2S
Type of operating handle external frontal
Range of product TeSys
Complementary
[In] rated current 800 A, 630 A
Rotary handle padlocking with
Compatibility code GS2 handle
Net weight 0.28 kg
Marking O-I
Standards IEC
Environment
IP degree of protection IP65
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.0 cm
Package 1 Width 10.0 cm
Package 1 Length 27.0 cm
Package 1 Weight 266.0 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 2.95 kg
