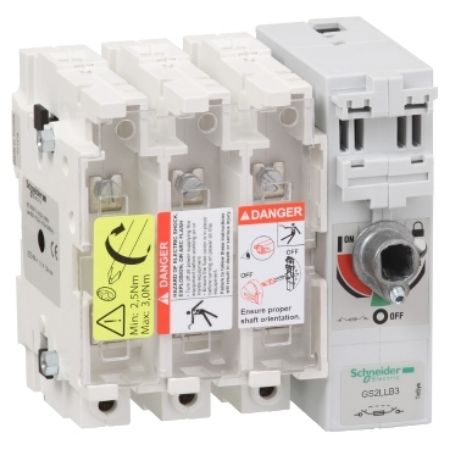

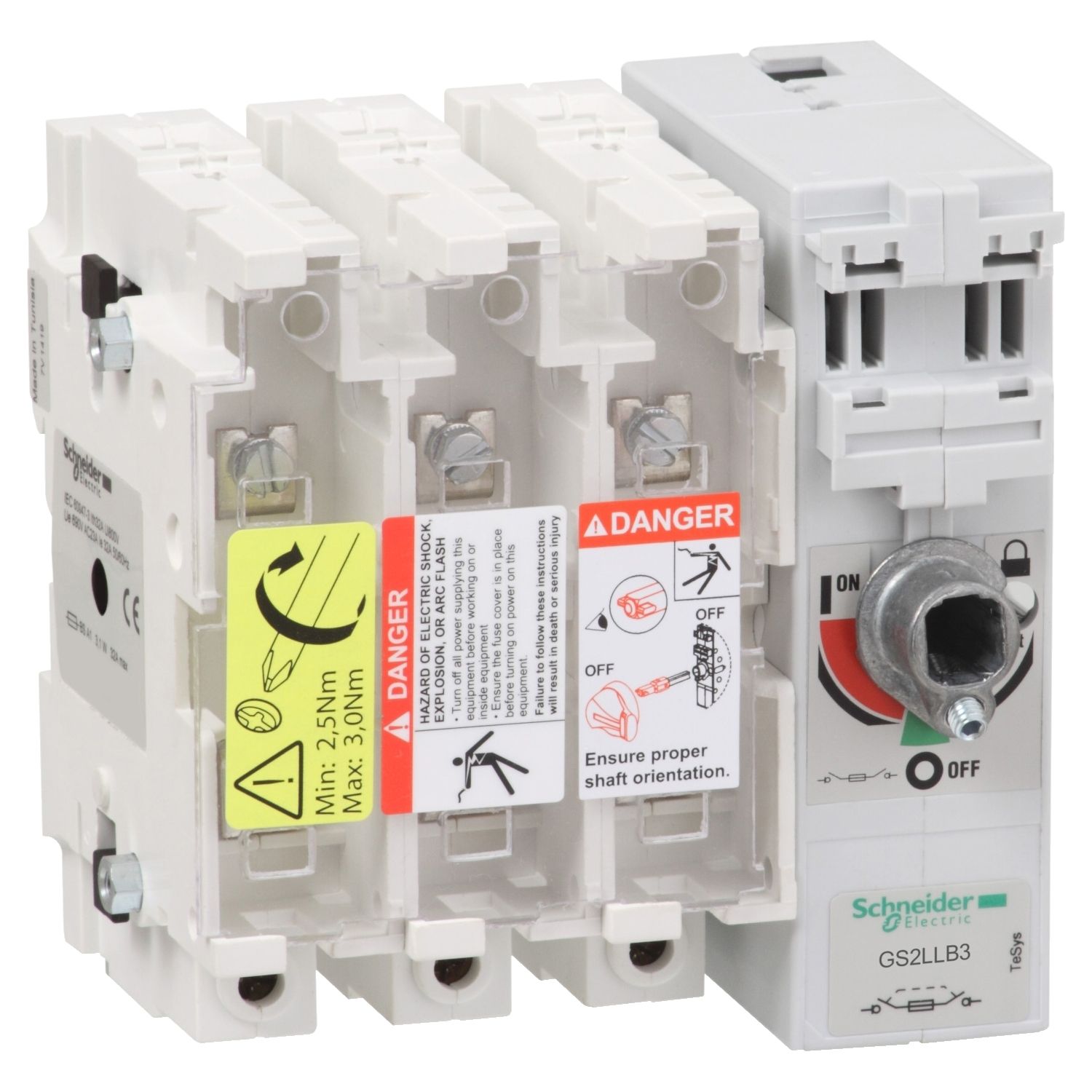

Picture of Switch disconnector fuse, TeSys GS, 3P, 160A, fuse type BS, size A4
SKU:

GS2LLB3

Switch disconnector fuse, TeSys GS, 3P, 160A, fuse type BS, size A4

$837.55
Available for Shipping : 10-Dec-2024
Switch disconnector fuse, TeSys GS, 3P, 160A, fuse type BS, size A4
  • Equipped with an External front side or right-hand side-mounted operators
  • Lockable with door interlock
  • To be used with type BS fuse links
  • High short circuit performance up to 100 KA
  • Robust and compact handles
  • Effective protection thanks to fuse speed fusion
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Declaration of conformity
Catalogue
End of life manual
Product environmental
Product Page Link
Product Data Sheet
TeSys GS fuse switch-disconnector, 3 poles (3P), 160A/750V, to be used with type BS fuse links size A4 up to 160A, for motor applications up to 80kW@400V AC-23. To be equipped with an external front side or right-hand side mounting operating handle GS2AH (several models available). Screw terminals to be equipped with upstream and downstream 3P terminal shrouds GS1AP33 (to be ordered separately), it provides high short circuit current rating 100kA@400V. Add-on auxiliary contact modules front mounting GS1AM (early-break and position signaling) can complete the assembly (to be ordered separately). Multi standards certified (IEC, Marine), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name GS2L
Poles description 3P
Fuse type BS
[Ie] rated operational current 160 A at 500 V AC-23B, 160 A at 500 V AC-23A, 160 A at 400 V AC-23B, 160 A at 400 V AC-23A, 125 A at 690 V AC-23B, 125 A at 690 V AC-23A, 125 A at 440 V 2 poles in series per phase DC-23B, 125 A at 440 V 2 poles in series per phase DC-23A
Contacts type and composition 3 NO
Range TeSys
Product name TeSys GS
Product or component type switch-disconnector-fuse
Protected poles description 3t
Network type AC, DC
[Ith] conventional free air thermal current 160 A (at 40 °C)
Fuse size A4
Network frequency 50/60 Hz
Complementary
Breaking capacity 1280 A at 400 V (AC-23B)
Rated operational power in W 110 kW at 690 V, 110 kW at 500 V, 80 kW at 400 V
Tightening torque power circuit: 12-12 N.m
Compatibility code GS2L
Mechanical durability 10000 cycles
Electrical durability 200 cycles DC-23B, 200 cycles DC-23A, 1000 cycles AC-23B, 1000 cycles AC-23A
[Icm] rated short-circuit making capacity 80 kA at 400 V with protection by gG fuses
[Ui] rated insulation voltage 750 V AC 50/60 Hz
Short-circuit withstand 22.7 kA
[Uimp] rated impulse withstand voltage 8 kV
Making capacity 1600 A at 400 V AC-23B
Connections - terminals power circuit: lugs-ring terminals50-95 mm², power circuit: bars20-20 mm²
Mounting support plate
Type of operating handle external frontal, external right side
Environment
Depth 136.5 mm
Width 190 mm
Fire resistance 960 °C body conforming to IEC 60695-2-1, 850 °C fuse cover conforming to IEC 60695-2-1
IP degree of protection IP20 conforming to IEC 60529 (with terminal cover)
Ambient air temperature for storage -40-80 °C
Net weight 1.8 kg
Standards IEC 60947-3
Ambient air temperature for operation -20-70 °C
Height 162 mm
Product certifications CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 16.600 cm
Package 1 Width 16.800 cm
Package 1 Length 26.200 cm
Package 1 Weight 2.288 kg
Unit Type of Package 2 2
Number of Units in Package 2 2
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.128 kg
