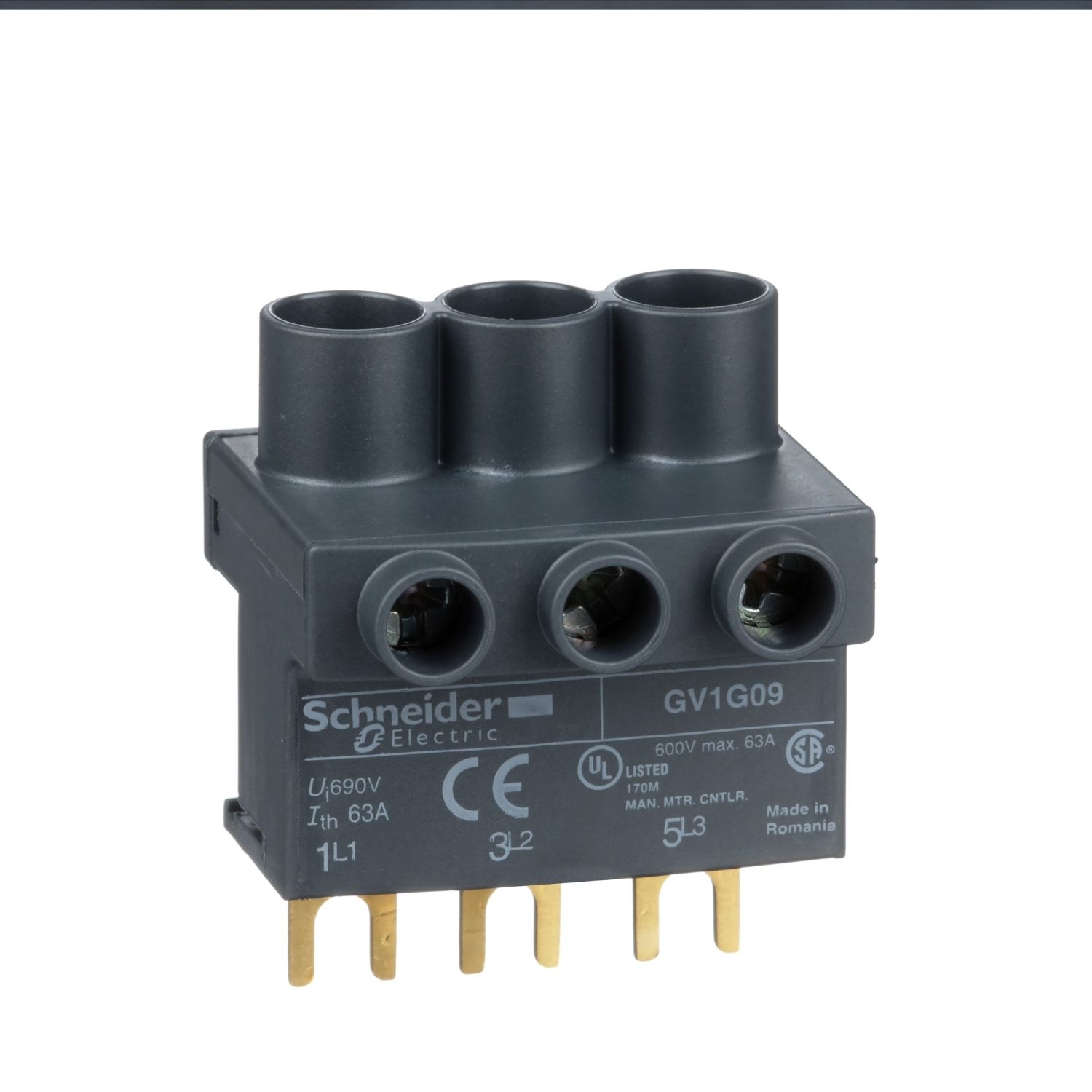

Picture of Linergy, Terminal block,TeSys Deca & TeSys U,3P,from the top,for supply to one or more GV2G busbar sets
SKU:

GV1G09

Linergy, Terminal block,TeSys Deca & TeSys U,3P,from the top,for supply to one or more GV2G busbar sets

$65.11
Available for Shipping : 25-Nov-2024
Linergy, Terminal block,TeSys Deca & TeSys U,3P,from the top,for supply to one or more GV2G busbar sets
  • Simple wiring kits for GV
  • New modern look & feel of all machines
  • Easier to install.
  • Digital customer experience for technical documents
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product environmental
End of life manual
Instruction sheet
Product Page Link
Product Data Sheet
TeSys GV terminal block, 3 phases, 63A/690V, to supply busbar sets GV2G. To be inserted directly on the top terminals of the devices connected by the busbar sets. Connection to the supply cable by screw connectors. Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name GV1G
Range compatibility TeSys LS1, TeSys U, TeSys Deca, TeSys GV2
Poles description 3P
Range Linergy
Product name FT
Product or component type terminal block
Accessory / separate part category connection accessory
Range of product TeSys Deca, TeSys U, TeSys GV2
Complementary
Tightening torque 2.2-2.2 N.m - on connector, 1.7-1.7 N.m - on screw clamp terminals
Compatibility code GV1G
[Ie] rated operational current 63 A
[Ui] rated insulation voltage 690 V conforming to IEC 60947-1
IP degree of protection IP20 conforming to IEC 60529
Mounting location top
Net weight 0.04 kg
Connections - terminals screw clamp terminals 1 flexible AWG 4, screw clamp terminals 2 cable(s) 1.5-4 mm² flexible without cable end, screw clamp terminals 2 cable(s) 1.5-6 mm² solid, screw clamp terminals 2 cable(s) 1.5-4 mm² flexible with cable end, screw clamp terminals 1 cable(s) 1.5-25 mm² solid, screw clamp terminals 1 cable(s) 1.5-16 mm² flexible without cable end, screw clamp terminals 1 cable(s) 1.5-16 mm² flexible with cable end, screw clamp terminals 1 solid AWG 4
Environment
Product certifications UKCA, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4 cm
Package 1 Width 5 cm
Package 1 Length 5.5 cm
Package 1 Weight 48 g
Unit Type of Package 2 2
Number of Units in Package 2 70
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 3.678 kg
Unit Type of Package 3 3
Number of Units in Package 3 1120
Package 3 Height 77 cm
Package 3 Width 80 cm
Package 3 Length 60 cm
Package 3 Weight 68.18 kg
