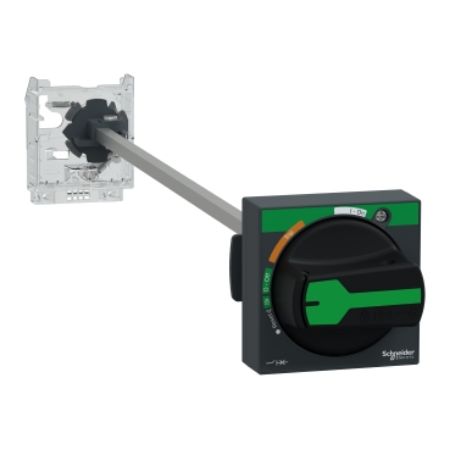

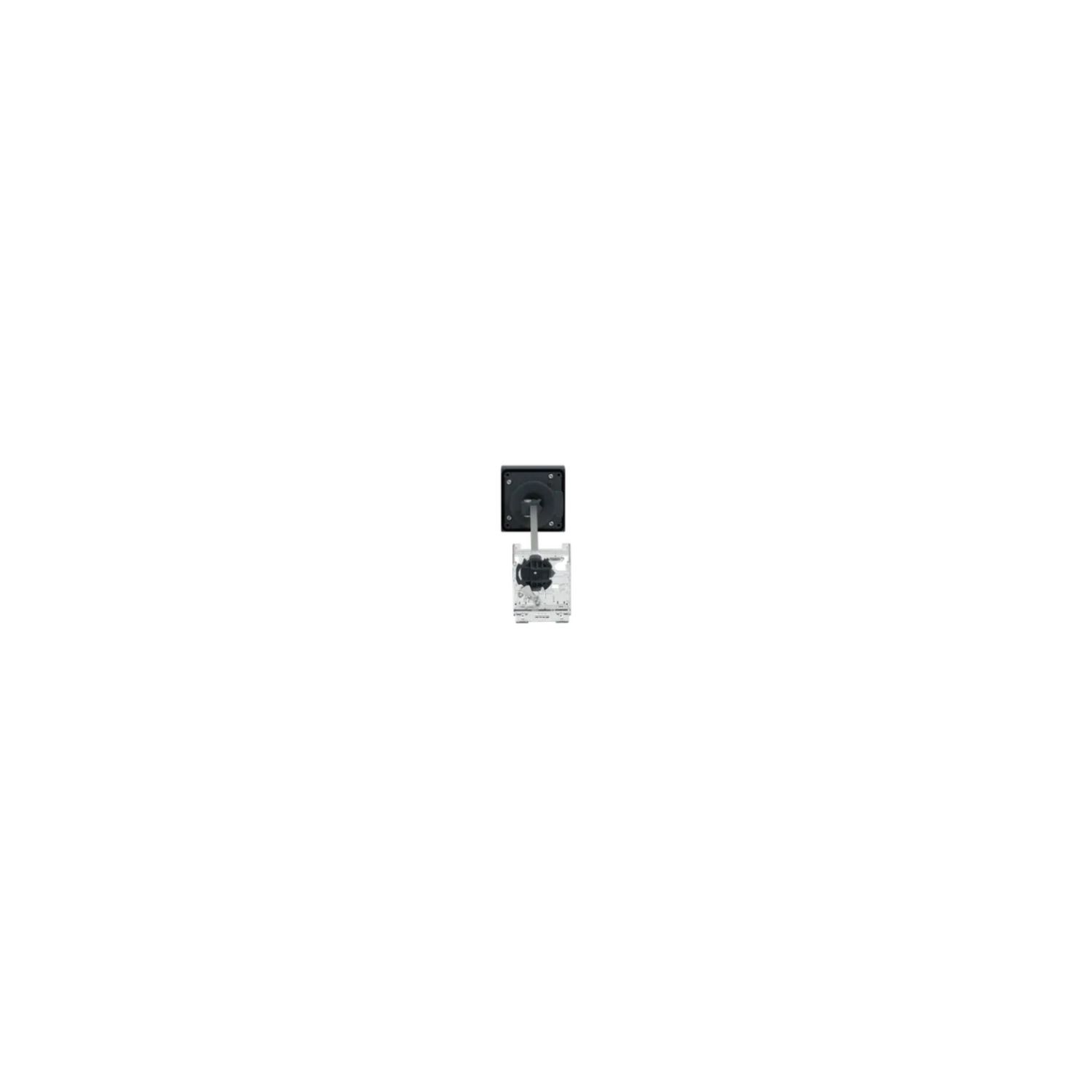

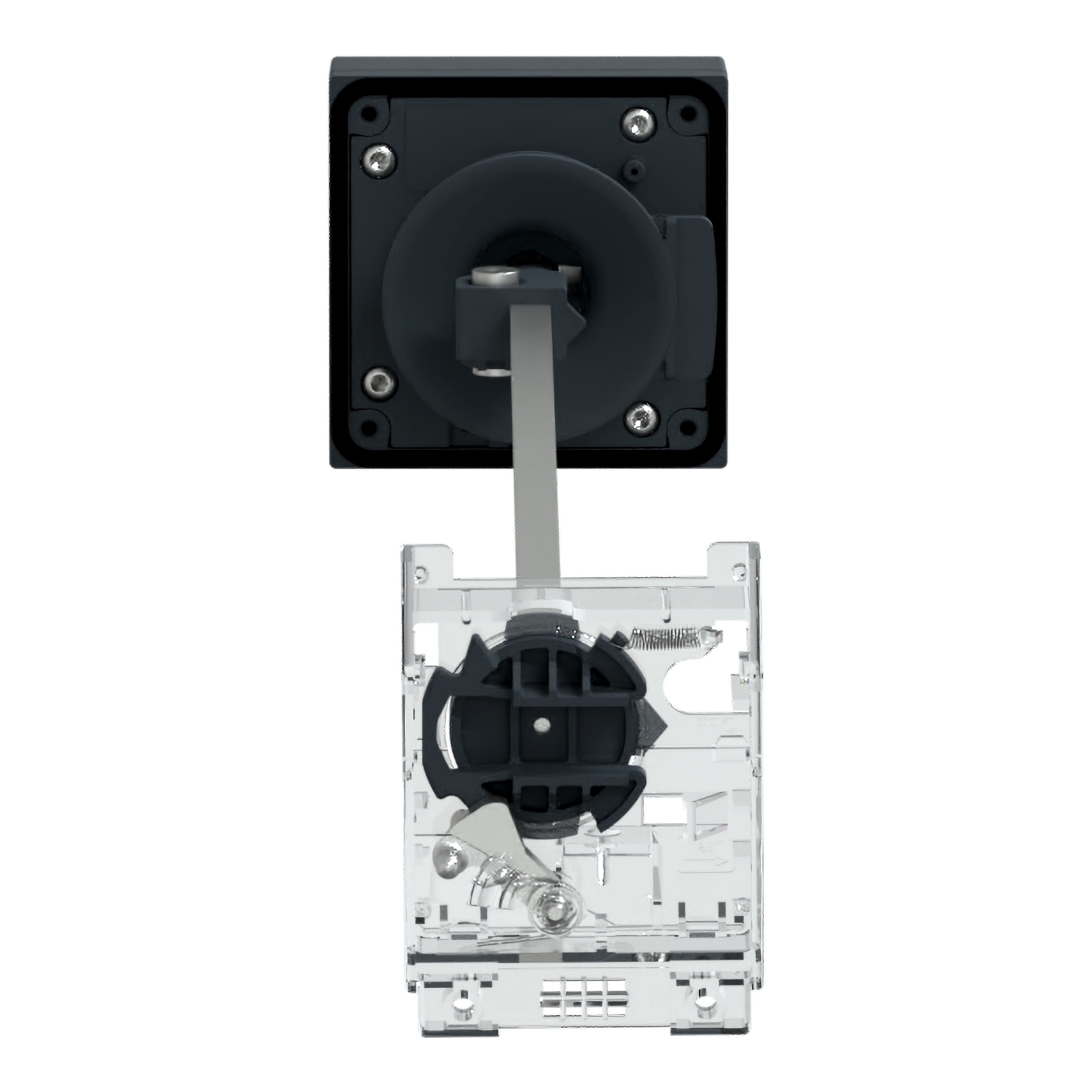

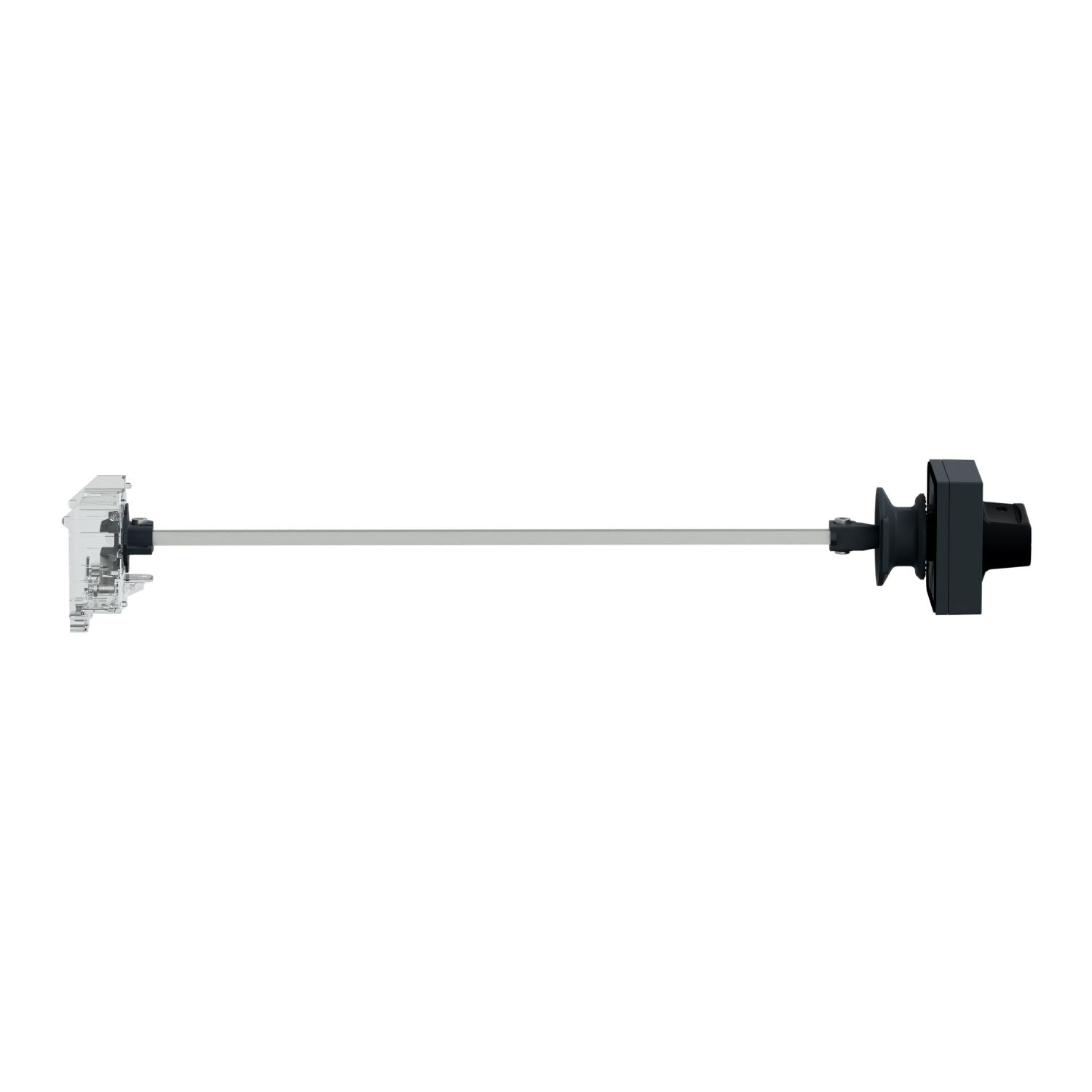

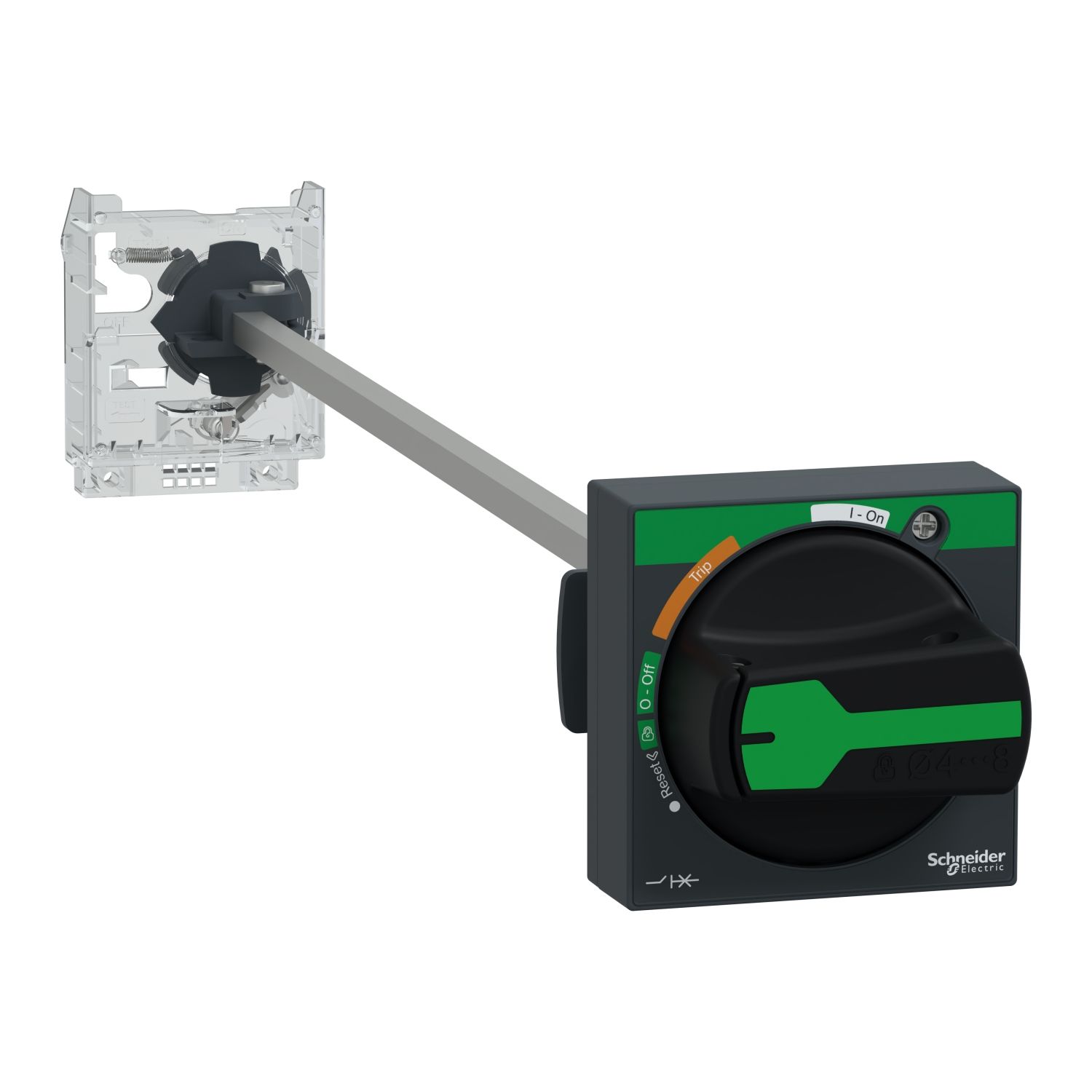

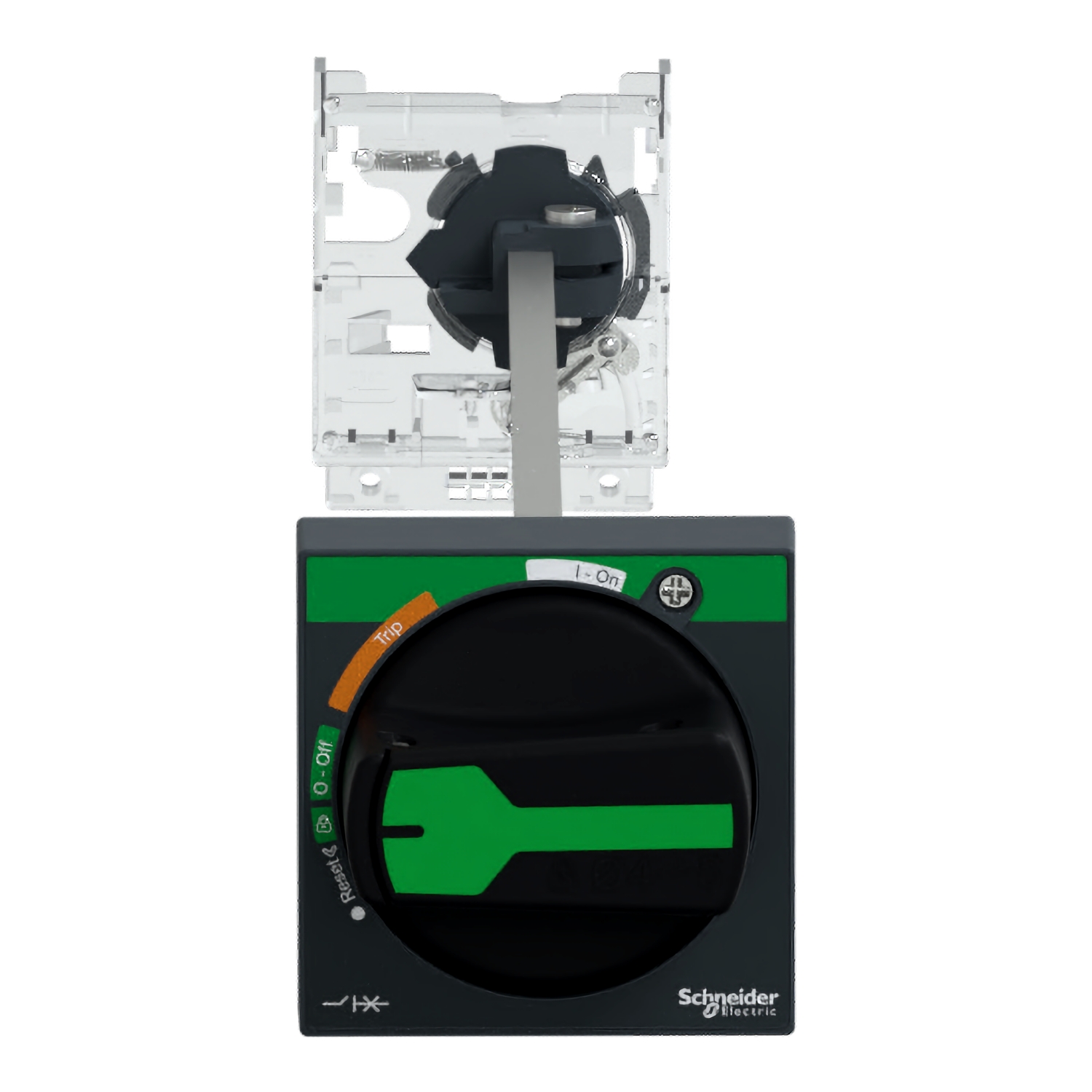

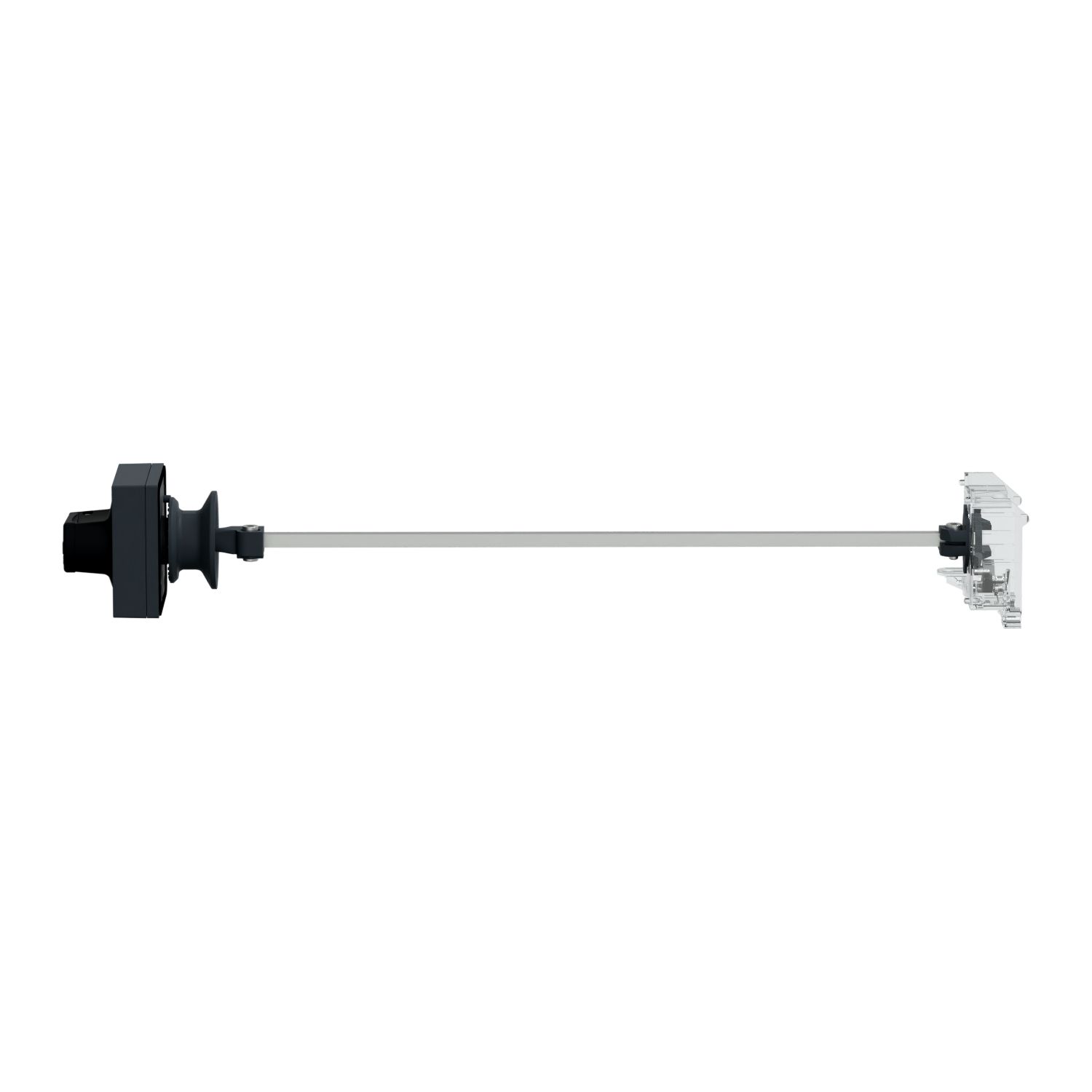

Picture of TeSys; TeSys Deca, Extended rotary handle kit, IP54, black handle, with trip indication, for GV2L-GV2P
Picture of TeSys; TeSys Deca, Extended rotary handle kit, IP54, black handle, with trip indication, for GV2L-GV2P
Picture of TeSys; TeSys Deca, Extended rotary handle kit, IP54, black handle, with trip indication, for GV2L-GV2P
Picture of TeSys; TeSys Deca, Extended rotary handle kit, IP54, black handle, with trip indication, for GV2L-GV2P
Picture of TeSys; TeSys Deca, Extended rotary handle kit, IP54, black handle, with trip indication, for GV2L-GV2P
Picture of TeSys; TeSys Deca, Extended rotary handle kit, IP54, black handle, with trip indication, for GV2L-GV2P
SKU:

GV2APN01

TeSys; TeSys Deca, Extended rotary handle kit, IP54, black handle, with trip indication, for GV2L-GV2P

$190.16
Available for Shipping : 24-Nov-2024
TeSys; TeSys Deca, Extended rotary handle kit, IP54, black handle, with trip indication, for GV2L-GV2P
  • New modern look & feel of all machines
  • Wide range of GVs: Magnetic, thermal magnetic, different sizes (GV2,GV3,GV4)
  • Easier to install and operate with multi-standard screws
  • Sturdy and long-lasting power connection with EverLink terminals
  • Digital customer experience for technical documents
  • Maintenance guide via EcoStruxureTM Facility Expect
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
End of life manual
CAD
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet
TeSys GV extended rotary handle, for motor circuit breakers GV2L, GV2P mounted inside an enclosure and to be operated externally. For main switch usage, it provides a black handle on grey front plate with indication of 3 positions OFF, ON, TRIP. To be mounted on the door of the enclosure, the handle mechanism ensures an IP54 protection to the mounting. It also includes a mounting adaptor to be screwed on the face of the circuit breaker, and an extension shaft to be be adjusted in length (distance between the door and the back of the circuit breaker must be in range 146-256mm). Padlockable in OFF or ON position with up to 3 padlocks (to be ordered separately). Locking in ON position does not prevent the circuit breaker from tripping (unlocking is required for fault reset). Green Premium compliant (RoHS/REACh).
