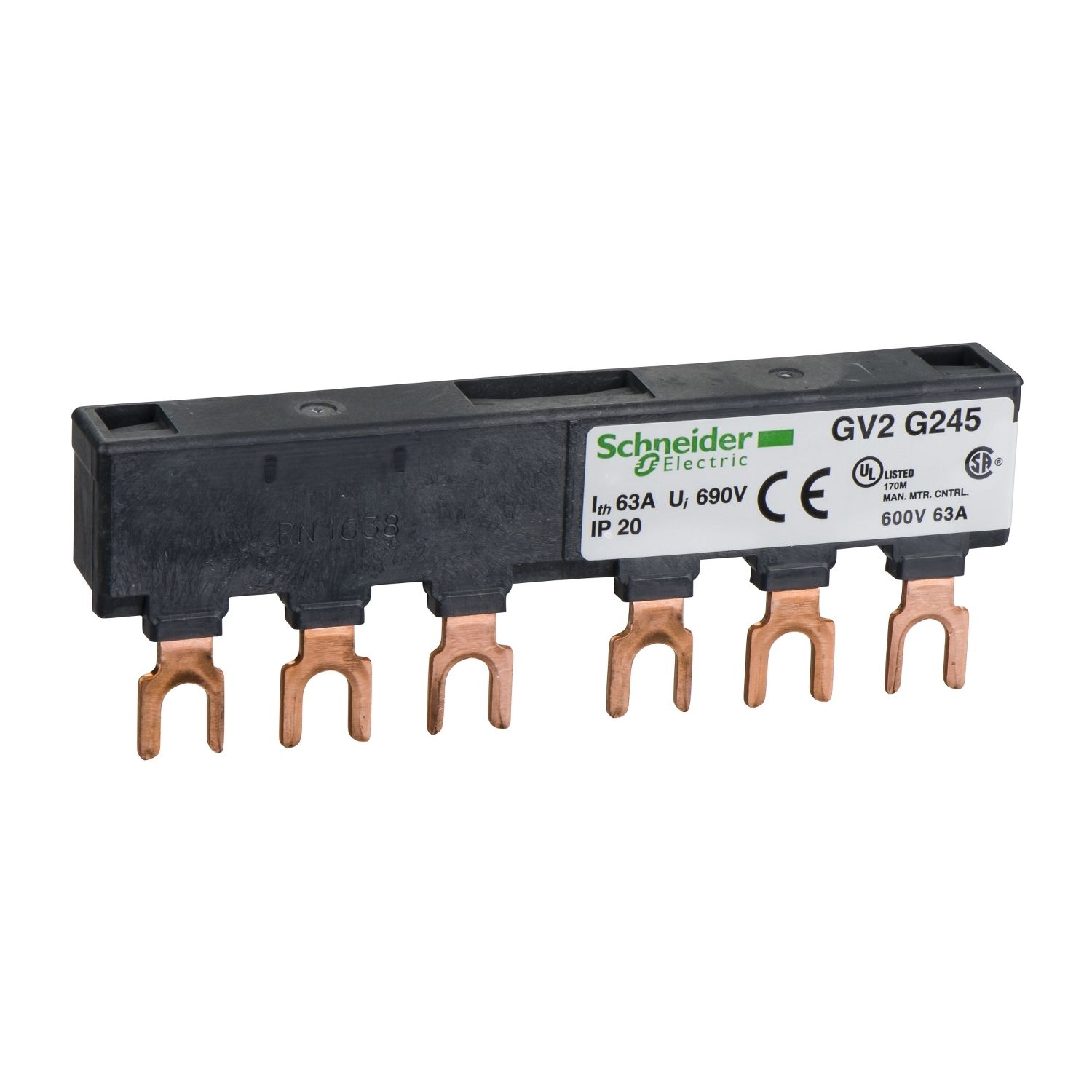

Picture of Linergy, Linergy FT, Comb busbar, 63 A, 2 tap-offs, 45 mm pitch
SKU:

GV2G245

Linergy, Linergy FT, Comb busbar, 63 A, 2 tap-offs, 45 mm pitch

$60.44
Linergy, Linergy FT, Comb busbar, 63 A, 2 tap-offs, 45 mm pitch
  • Simple wiring kits for GV
  • New modern look & feel of all machines
  • Easier to install.
  • Digital customer experience for technical documents
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Catalogue
Product environmental
End of life manual
Instruction sheet
Product Page Link
Product Data Sheet
TeSys GV busbar set, 3 phases, 63A/690V, for the upstream parallel wiring of groups of motor starters composed of GV2 motor circuit breakers or LS1D32 fuse carriers. For use with screw clamp terminal devices, it is composed of 2 tap-off outlets for the paralleling of 2 devices with a pitch of 45mm. The use of a terminal block GV1G09 or GV2G05 is recommended to supply the busbar sets (to be ordered separately). Green Premium compliant (RoHS/REACh).

Products specifications

Attribute nameAttribute value
Main
Device short nameGV2G
Range compatibilityTeSys U, TeSys Deca, TeSys GV2
Number of tap-offs2
Poles description3P
RangeLinergy
Product nameFT
[Ith] conventional free air thermal current63 A
Product or component typecomb busbar
Accessory / separate part categoryconnection accessory
Range of productTeSys Deca, TeSys U, TeSys fuse-disconnector, TeSys GV2
Connection pitch45 mm
Complementary
Compatibility codeGV2G
Mounting locationon terminal
Net weight0.036 kg
Length89 mm
[Ui] rated insulation voltage690 V
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height2 cm
Package 1 Width4 cm
Package 1 Length9.5 cm
Package 1 Weight37 g
Unit Type of Package 22
Number of Units in Package 2100
Package 2 Height15 cm
Package 2 Width15 cm
Package 2 Length40 cm
Package 2 Weight3.862 kg
Unit Type of Package 33
Number of Units in Package 33200
Package 3 Height77 cm
Package 3 Width80 cm
Package 3 Length60 cm
Package 3 Weight130.9 kg
