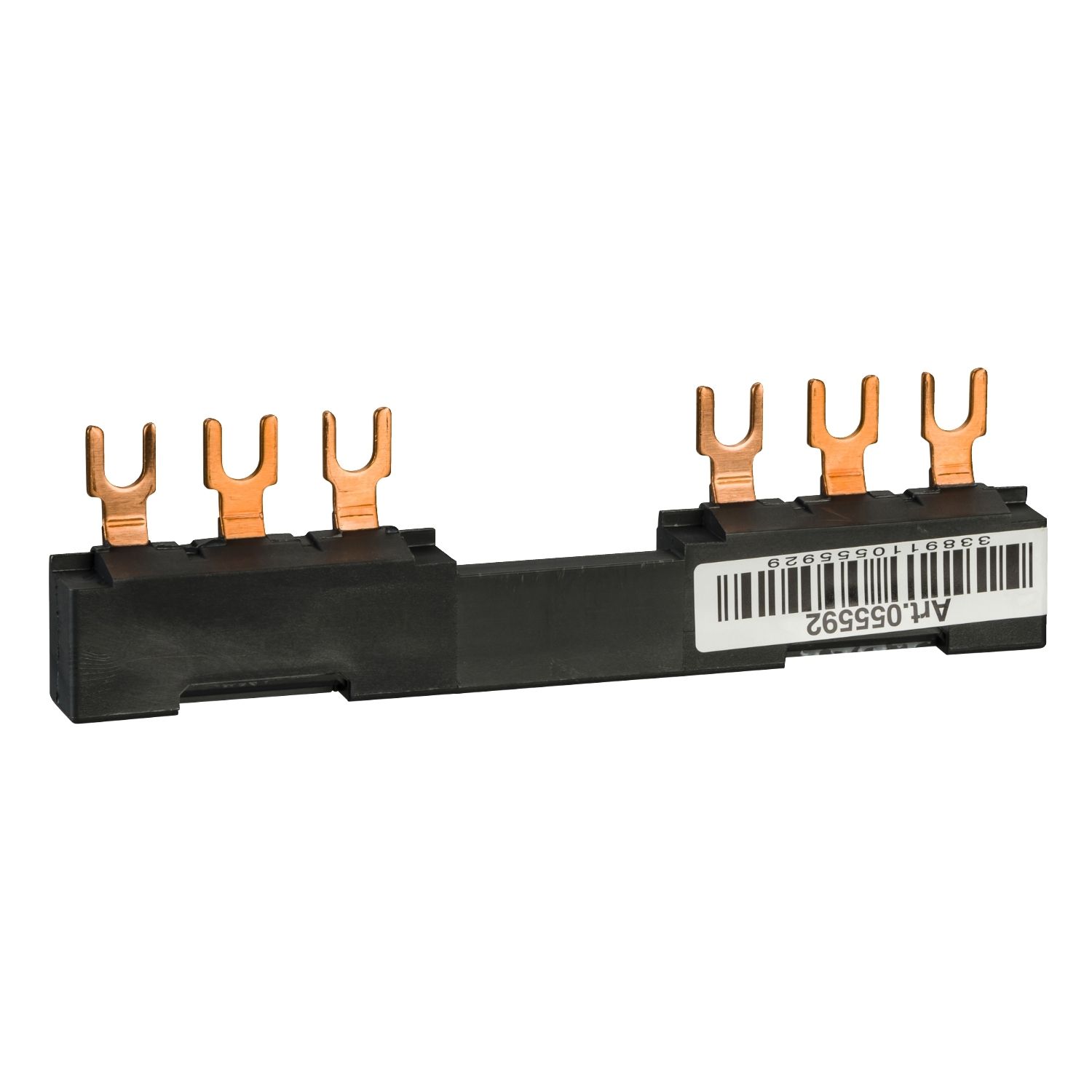

Picture of Linergy FT - Comb busbar - 63 A - 2 tap-offs - 72 mm pitch
SKU:

GV2G272

Linergy FT - Comb busbar - 63 A - 2 tap-offs - 72 mm pitch

$97.01
Available for Shipping : 03-Dec-2024
Linergy FT - Comb busbar - 63 A - 2 tap-offs - 72 mm pitch
  • Simple wiring kits for GV
  • New modern look & feel of all machines
  • Easier to install.
  • Digital customer experience for technical documents
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product environmental
End of life manual
Instruction sheet
Product Page Link
Product Data Sheet
TeSys GV busbar set, 3 phases, 63A/690V, for the upstream parallel wiring of groups of motor starters composed of GV2 motor circuit breakers or LS1D32 fuse carriers. For use with screw clamp terminal devices, it is composed of 2 tap-off outlets for the paralleling of 2 devices with a pitch of 72mm. The use of a terminal block GV1G09 or GV2G05 is recommended to supply the busbar sets (to be ordered separately). Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name GV2G
Range compatibility TeSys U, TeSys K, TeSys GV2, TeSys D
Number of tap-offs 2
Poles description 3P
Range Linergy
Product name FT
[Ith] conventional free air thermal current 63 A
Product or component type comb busbar
Accessory / separate part category connection accessory
Range of product TeSys U, TeSys GV2, TeSys fuse-disconnector, TeSys K, TeSys D
Connection pitch 72 mm
Complementary
Compatibility code GV2G
Mounting location on terminal
Net weight 0.05 kg
Length 116 mm
[Ui] rated insulation voltage 690 V
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.0 cm
Package 1 Width 3.3 cm
Package 1 Length 11.7 cm
Package 1 Weight 46.0 g
Unit Type of Package 2 2
Number of Units in Package 2 40
Package 2 Height 15.0 cm
Package 2 Width 15.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 2.039 kg
