SKU:

GV2G445

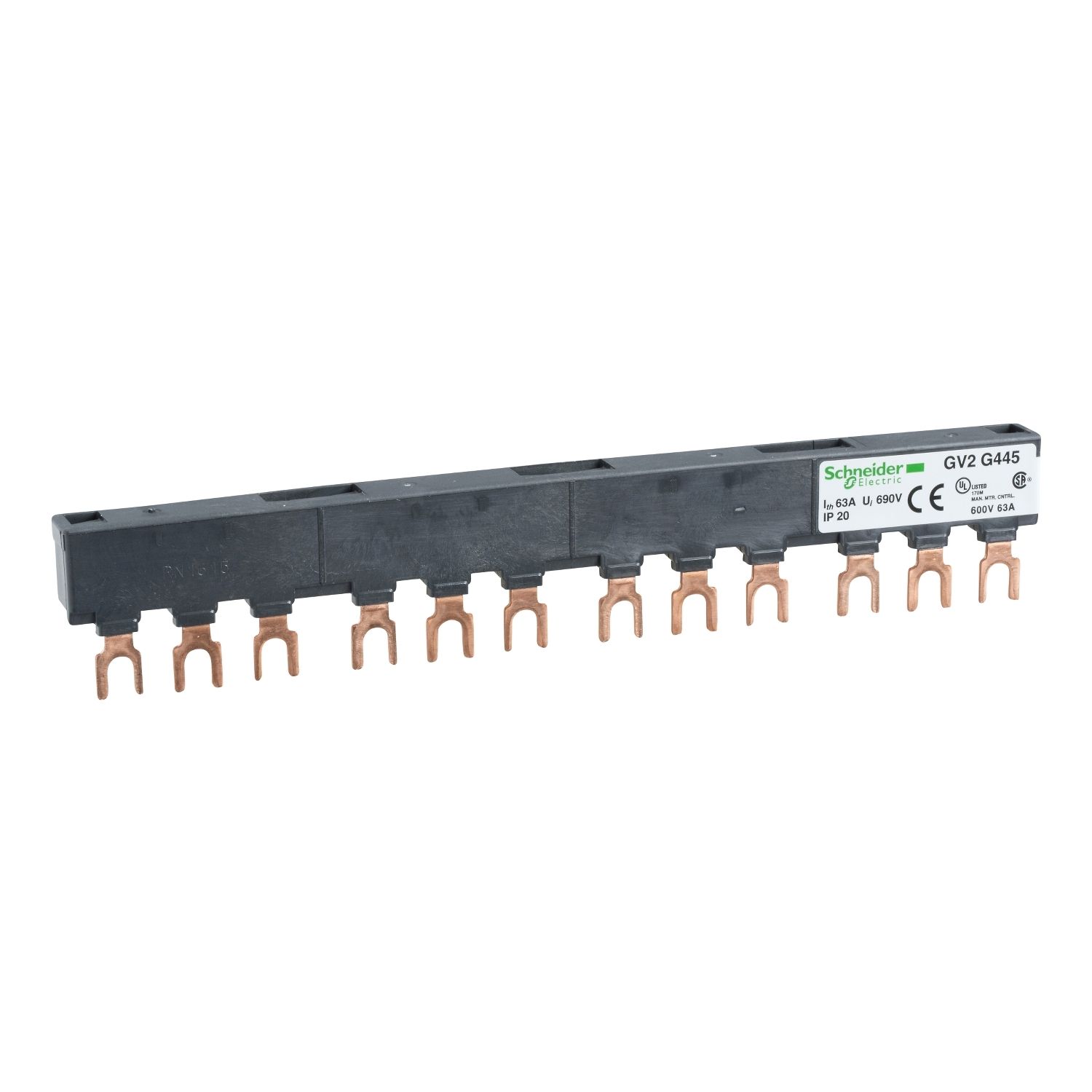

Linergy, Linergy FT, Comb busbar, 63 A, 4 tap-offs, 45 mm pitch

$82.78
Available for Shipping : 24-Nov-2024
Linergy, Linergy FT, Comb busbar, 63 A, 4 tap-offs, 45 mm pitch
  • Simple wiring kits for GV
  • New modern look & feel of all machines
  • Easier to install.
  • Digital customer experience for technical documents
Manufacturer: Schneider Electric
TeSys GV busbar set, 3 phases, 63A/690V, for the upstream parallel wiring of groups of motor starters composed of GV2 motor circuit breakers or LS1D32 fuse carriers. For use with screw clamp terminal devices, it is composed of 4 tap-off outlets for the paralleling of 4 devices with a pitch of 45mm. The use of a terminal block GV1G09 or GV2G05 is recommended to supply the busbar sets (to be ordered separately). Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name GV2G
Range compatibility TeSys U, TeSys K, TeSys GV2, TeSys Deca
Number of tap-offs 4
Poles description 3P
Range Linergy
Product name FT
[Ith] conventional free air thermal current 63 A
Product or component type comb busbar
Accessory / separate part category connection accessory
Range of product TeSys Deca, TeSys K, TeSys U, TeSys fuse-disconnector, TeSys GV2
Connection pitch 45 mm
Complementary
Compatibility code GV2G
Mounting location on terminal
Net weight 0.077 kg
Length 179 mm
[Ui] rated insulation voltage 690 V
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.000 cm
Package 1 Width 3.500 cm
Package 1 Length 18.000 cm
Package 1 Weight 78.000 g
Unit Type of Package 2 2
Number of Units in Package 2 60
Package 2 Height 15.000 cm
Package 2 Width 15.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.930 kg
Unit Type of Package 3 3
Number of Units in Package 3 1920
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 165.460 kg
