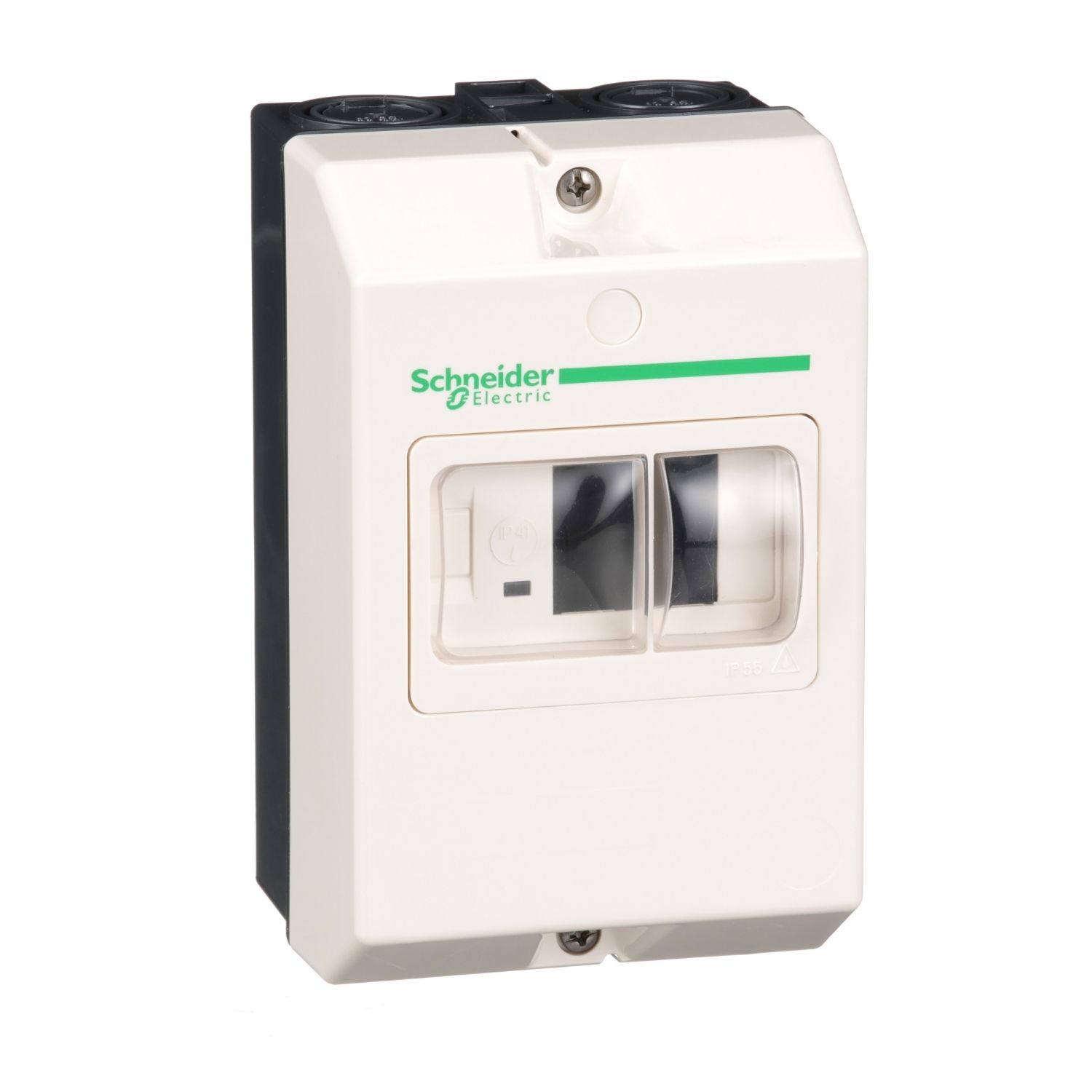

Picture of empty enclosure, for TeSys GV2ME, IP55
SKU:

GV2MC02

empty enclosure, for TeSys GV2ME, IP55

$102.56
empty enclosure, for TeSys GV2ME, IP55
  • Perfectly help GV2ME to against short circuits and overloads by Control, Isolation and Protection
  • Stable and simple installation with strong reliability
  • Suitable for harsh environment thanks to double insulated with protective conductor
  • Compliant with Green Premium
  • Use with complementary circuit breaker and pushbutton allow the construction of safety direct-on-line starters
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet
TeSys enclosed starters, empty enclosure, for thermal magnetic circuit breakers GV2ME. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. Polycarbonate enclosure, double insulated with protective conductor, IP55 protection. To be equipped with a motor circuit breaker GV2ME, and start-emergency stop buttons GV2K (to be ordered separately). Possible mounting of 1 side auxiliary contact blocks GVAD, GVAM, GVAD on both sides of GV2ME (to be ordered separately). It conforms to IEC 60947-2 and IEC 60947-4-1, Green Premium compliant (RoHS/REACh).

Products specifications

Attribute nameAttribute value
Main
Device short nameGV2MC
Product compatibilityGV2ME
RangeTeSys
Enclosure/cubicle descriptionsurface mounting
Product or component typeenclosure
Accessory / separate part categorymounting accessory
Range of productTeSys GV2
Complementary
Auxiliary mounting locationright, left
Depth84 mm
Width93 mm
Compatibility codeGV2MC
Net weight0.3 kg
Height147 mm
Environment
Environmental characteristicstandard environment
IP degree of protectionIP55
Product certificationsUKCA
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height10.000 cm
Package 1 Width10.000 cm
Package 1 Length15.500 cm
Package 1 Weight294.000 g
Unit Type of Package 22
Number of Units in Package 227
Package 2 Height30.000 cm
Package 2 Width40.000 cm
Package 2 Length60.000 cm
Package 2 Weight8.662 kg
Unit Type of Package 33
Number of Units in Package 3108
Package 3 Height75.000 cm
Package 3 Width60.000 cm
Package 3 Length80.000 cm
Package 3 Weight45.800 kg

Related products

TeSys Deca, Motor circuit breaker, TeSys Deca, 3P, 4 to 6.3A, thermal magnetic, screw clamp terminals, button control

GV2ME10
$183.61
View Detail

TeSys Deca, Motor circuit breaker, TeSys Deca, 3P, 6 to 10A, thermal magnetic, screw clamp terminals, button control

GV2ME14
$208.97
View Detail

TeSys Deca, Motor circuit breaker, TeSys Deca, 3P, 9 to 14A, thermal magnetic, screw clamp terminals, button control

GV2ME16
$220.75
View Detail

TeSys Deca, Motor circuit breaker, TeSys Deca, 3P, 0.1 to 0.16A, thermal magnetic, screw clamp terminals, button control

GV2ME01
$169.72
View Detail

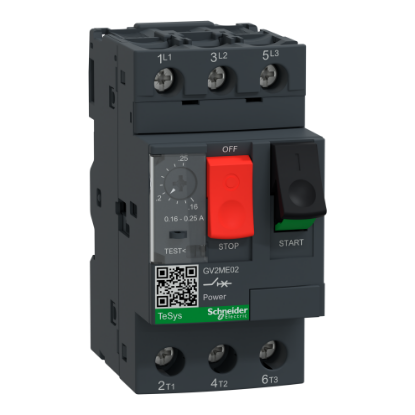

TeSys Deca, Motor circuit breaker, TeSys Deca, 3P, 0.16 to 0.25A, thermal magnetic, screw clamp terminals, button control

GV2ME02
$169.72 $249.00
View Detail

TeSys Deca, Motor circuit breaker, TeSys Deca, 3P, 0.25 to 0.4A, thermal magnetic, screw clamp terminals, button control

GV2ME03
$169.72
View Detail

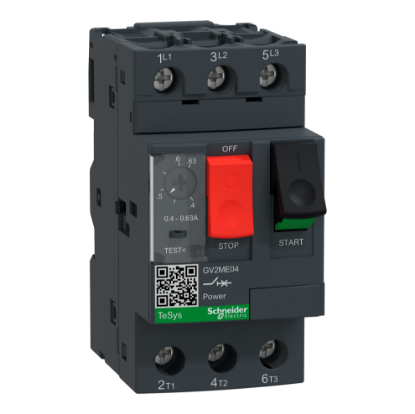

TeSys Deca, Motor circuit breaker, TeSys Deca, 3P, 0.4 to 0.63A, thermal magnetic, screw clamp terminals, button control
