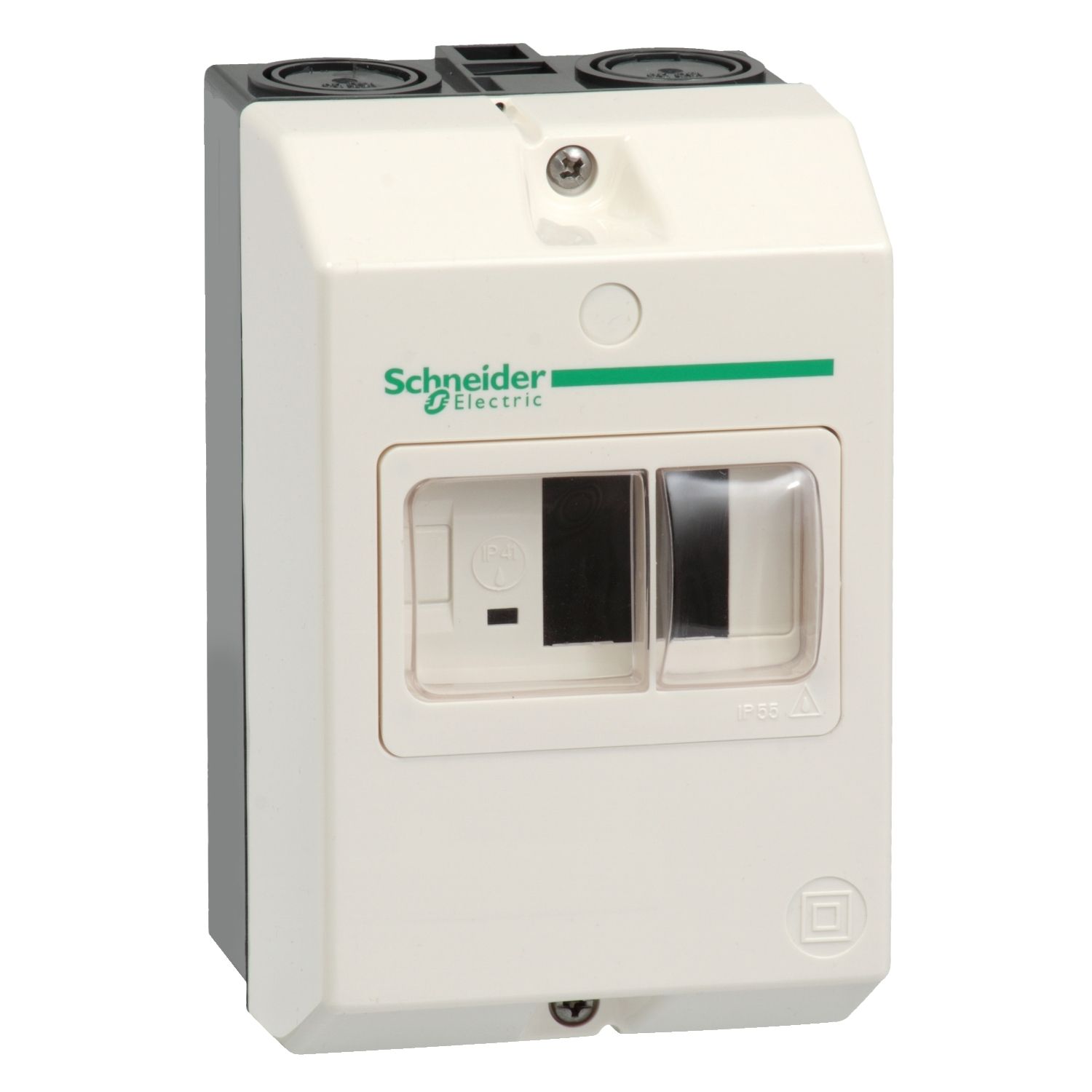

Picture of Enclosure for TeSys GV2ME, TeSys GV2 IP55 for temperature <=5°C
SKU:

GV2MC03

Enclosure for TeSys GV2ME, TeSys GV2 IP55 for temperature <=5°C

$123.01
Enclosure for TeSys GV2ME, TeSys GV2 IP55 for temperature <=5°C
  • Perfectly help GV2ME to against short circuits and overloads by Control, Isolation and Protection
  • Stable and simple installation with strong reliability
  • Suitable for low temperature environment
  • Compliant with Green Premium
  • Use with complementary circuit breaker and pushbutton allow the construction of safety direct-on-line starters
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 18-Oct-2024
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet
TeSys enclosed starters, empty enclosure for thermal magnetic circuit breakers GV2ME. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. Polycarbonate enclosure, double insulated with protective conductor, IP55 protection, for environment temperature less than 5°C. To be equipped with a motor circuit breaker GV2ME, and start-emergency stop buttons GV2K (to be ordered separately). Possible mounting of 1 side auxiliary contact blocks GVAD, GVAM, GVAD on both sides of GV2ME (to be ordered separately). It conforms to IEC 60947-2 and IEC 60947-4-1, Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name GV2MC
Product compatibility GV2ME
Range TeSys
Enclosure/cubicle description surface mounting
Product or component type enclosure
Accessory / separate part category mounting accessory
Range of product TeSys GV2
Complementary
Auxiliary mounting location left, right
Depth 84 mm
Width 93 mm
Compatibility code GV2MC
Net weight 0.3 kg
Height 147 mm
Environment
Environmental characteristic standard environment
IP degree of protection IP55 5 °C
Product certifications UKCA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.4 cm
Package 1 Width 9.8 cm
Package 1 Length 15.5 cm
Package 1 Weight 293.0 g
Unit Type of Package 2 2
Number of Units in Package 2 27
Package 2 Height 30 cm
Package 2 Width 40 cm
Package 2 Length 60 cm
Package 2 Weight 8.669 kg
