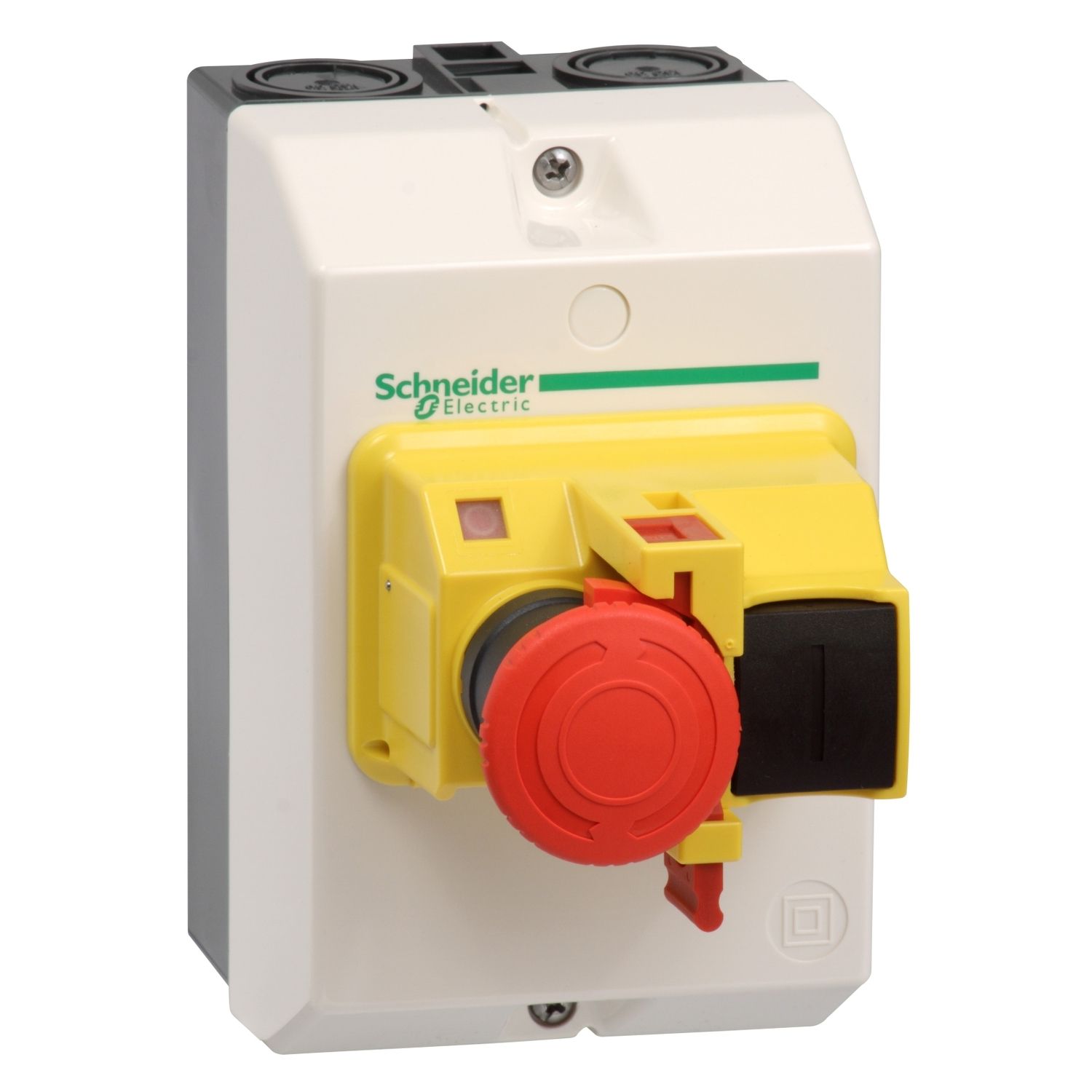

Picture of Enclosure for TeSys GV2ME, TeSys GV2 IP55, fitted with Emergency stop
SKU:

GV2MCK04

Enclosure for TeSys GV2ME, TeSys GV2 IP55, fitted with Emergency stop

$244.14
Available for Shipping : 24-Nov-2024
Enclosure for TeSys GV2ME, TeSys GV2 IP55, fitted with Emergency stop
  • Perfectly help GV2ME to against short circuits and overloads by Control, Isolation and Protection
  • Stable and simple installation with strong reliability
  • Suitable for harsh environments thanks to double insulated with protective conductor
  • Compliant with Green Premium
  • Worry-free purchase: fitted with a GV2K04 mushroom head Emergency stop pushbutton as standard
  • Use with complementary circuit breaker and pushbutton allow the construction of safety direct-on-line starters
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet
TeSys enclosed starters, empty enclosure, for thermal magnetic circuit breakers GV2ME. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. Polycarbonate enclosure, double insulated with protective conductor, IP55 protection. Already fitted with a mushroom head emergency stop pushbutton GV2K04 , it must be equipped with a motor circuit breaker GV2ME (to be ordered separately). Possible mounting of 1 side auxiliary contact blocks GVAD, GVAM, GVAD on both sides of GV2ME (to be ordered separately). It conforms to IEC 60947-2 and IEC 60947-4-1, Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name GV2MC
Product compatibility GV2ME
Provided equipment mushroom head emergency stop push-button
Range TeSys
Enclosure/cubicle description surface mounting
Product or component type enclosure
Accessory / separate part category mounting accessory
Range of product TeSys GV2
Complementary
Auxiliary mounting location left, right
Depth 145.5 mm
Width 93 mm
Compatibility code GV2MC
Net weight 0.3 kg
Height 147 mm
Environment
Environmental characteristic standard environment
IP degree of protection IP55
Product certifications UKCA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10.000 cm
Package 1 Width 15.500 cm
Package 1 Length 16.500 cm
Package 1 Weight 396.000 g
Unit Type of Package 2 2
Number of Units in Package 2 19
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 8.168 kg
