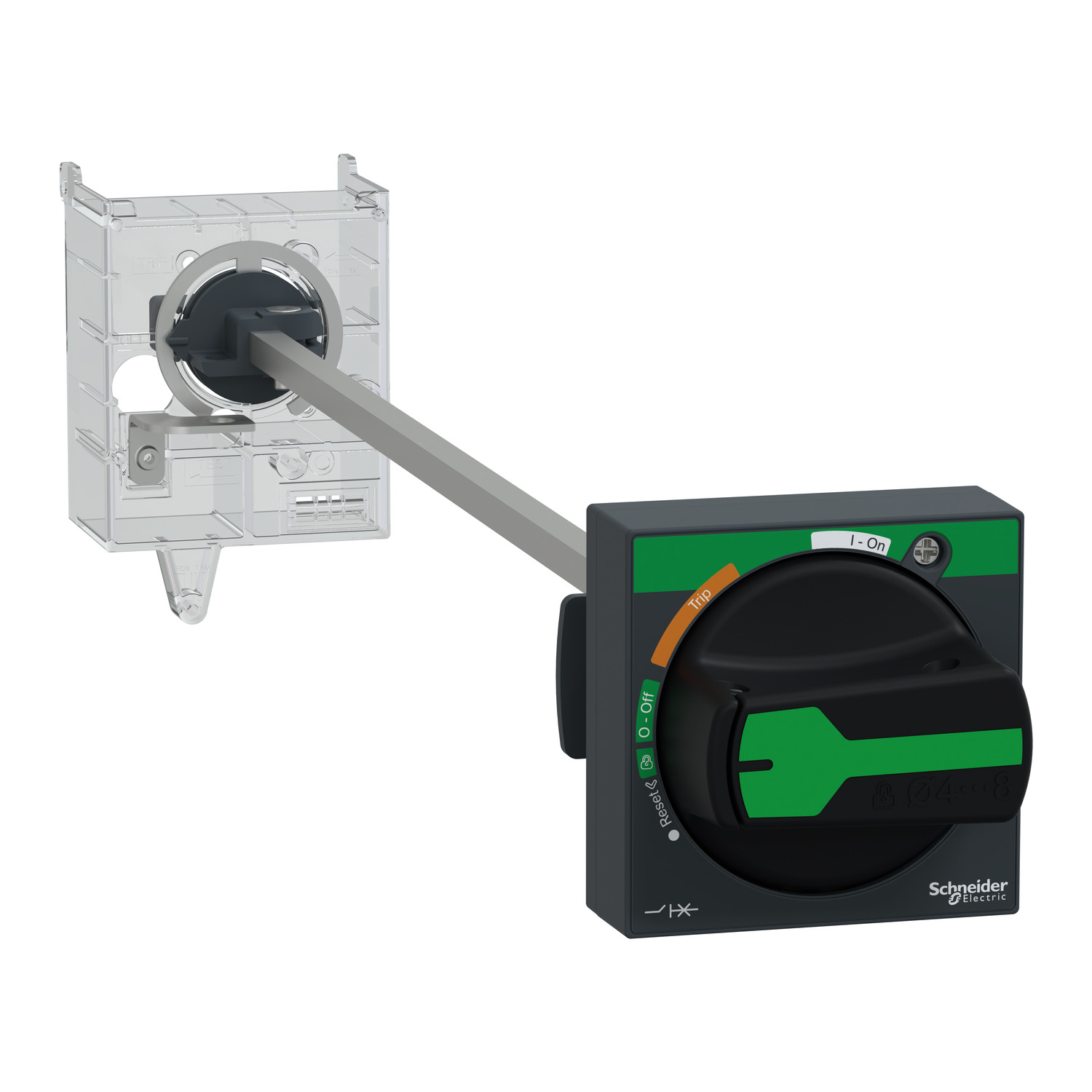

Picture of Extended rotary handle kit,TeSys Deca frame 3,IP54,black handle,with trip indication,for GV3L/GV3P

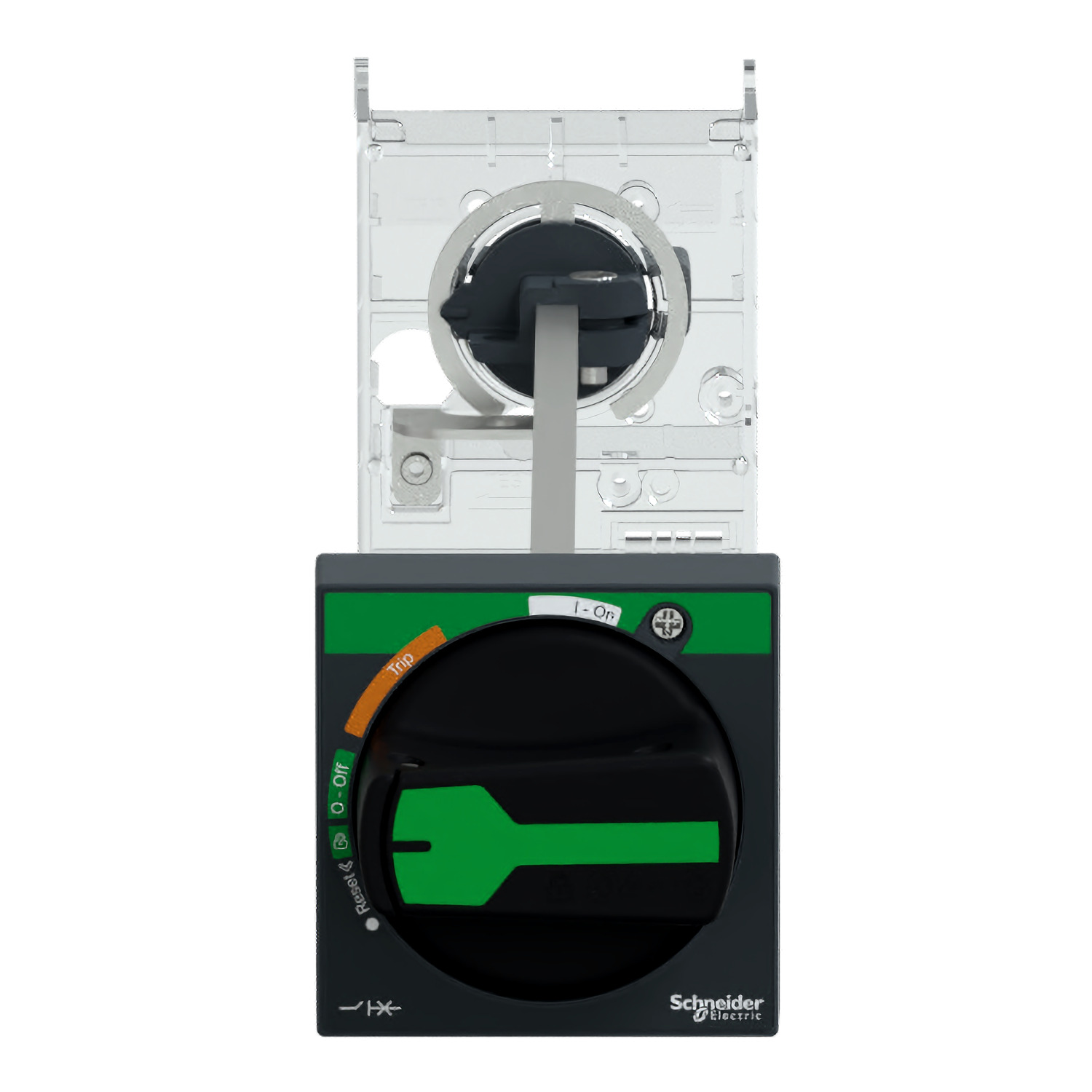

Picture of Extended rotary handle kit,TeSys Deca frame 3,IP54,black handle,with trip indication,for GV3L/GV3P

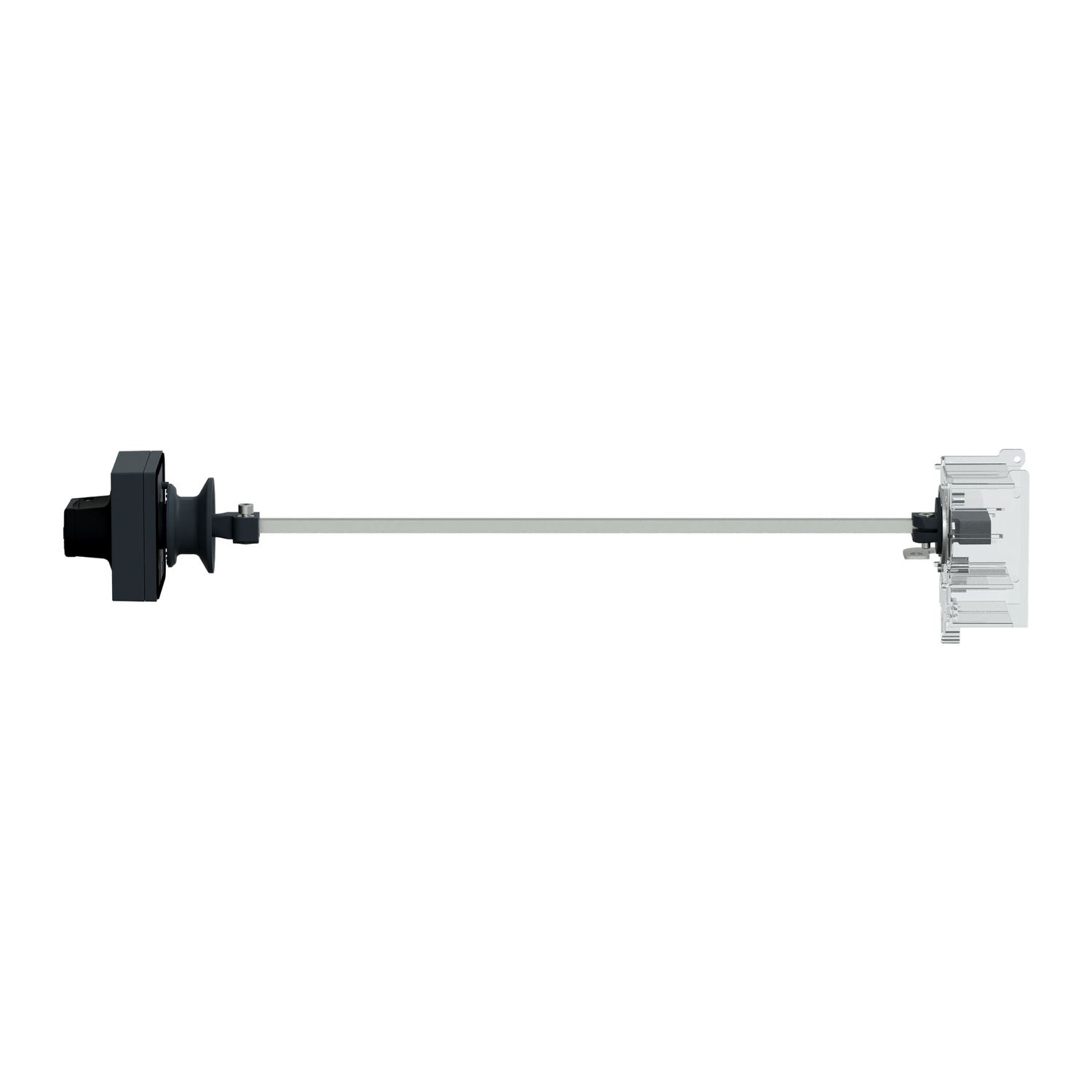

Picture of Extended rotary handle kit,TeSys Deca frame 3,IP54,black handle,with trip indication,for GV3L/GV3P

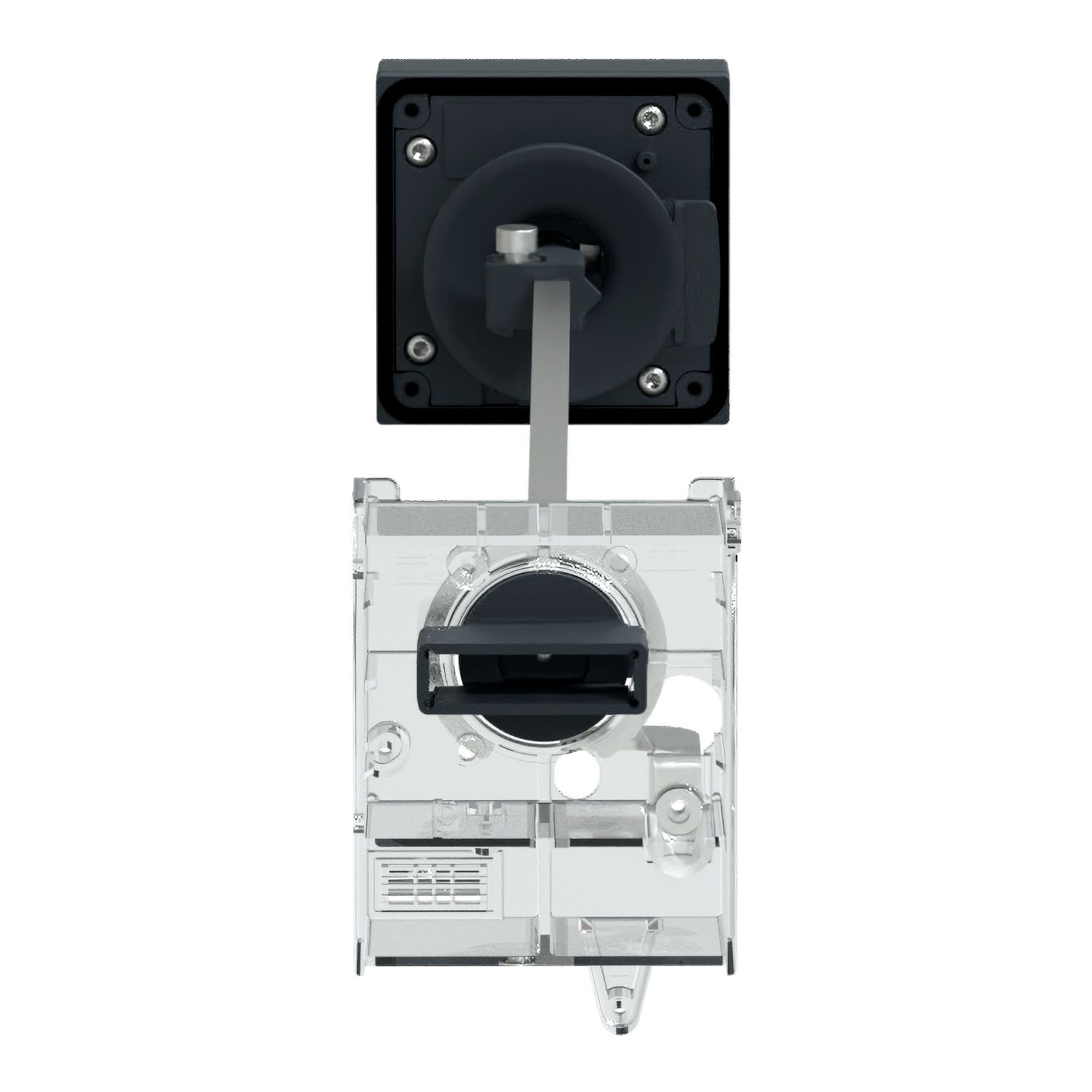

Picture of Extended rotary handle kit,TeSys Deca frame 3,IP54,black handle,with trip indication,for GV3L/GV3P

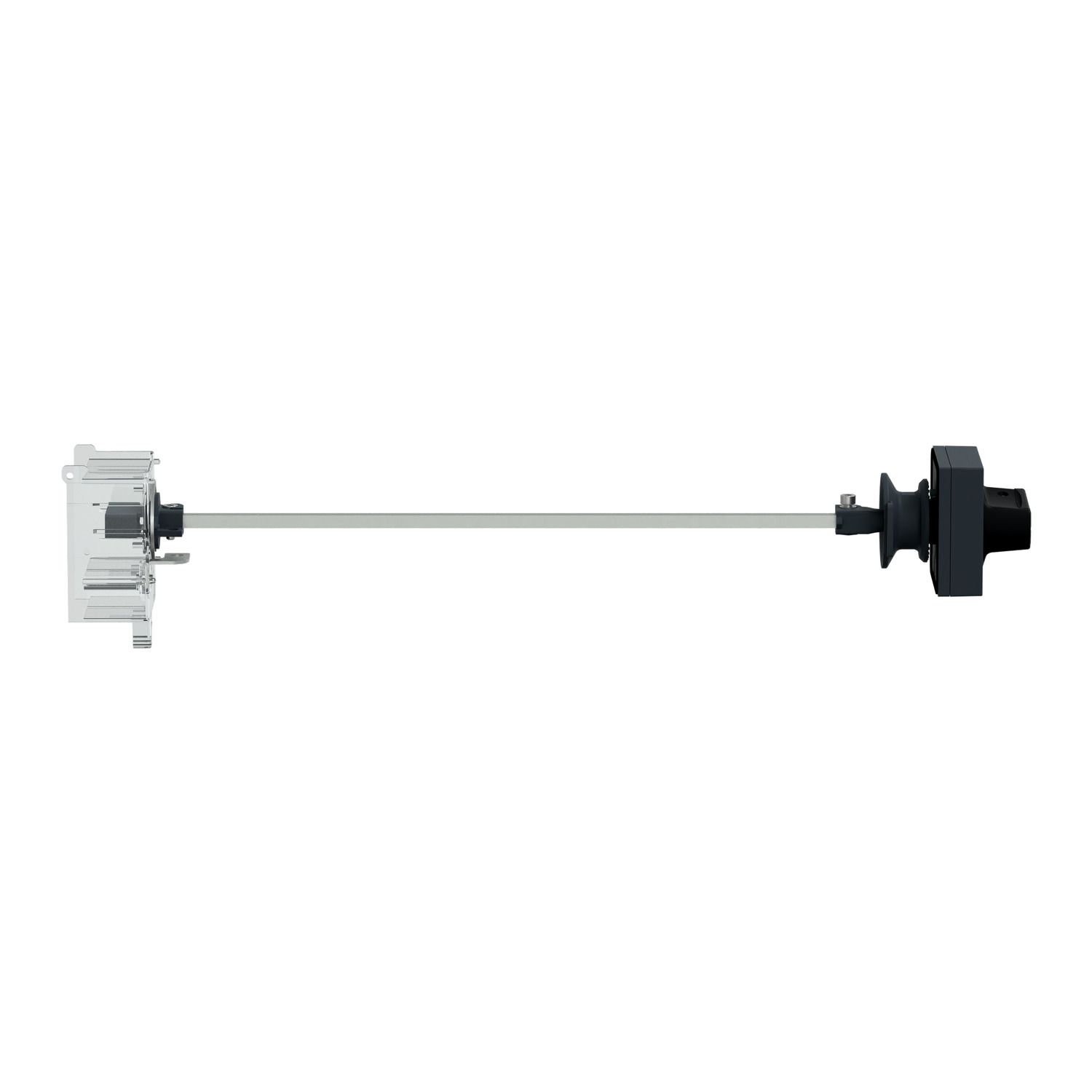

Picture of Extended rotary handle kit,TeSys Deca frame 3,IP54,black handle,with trip indication,for GV3L/GV3P

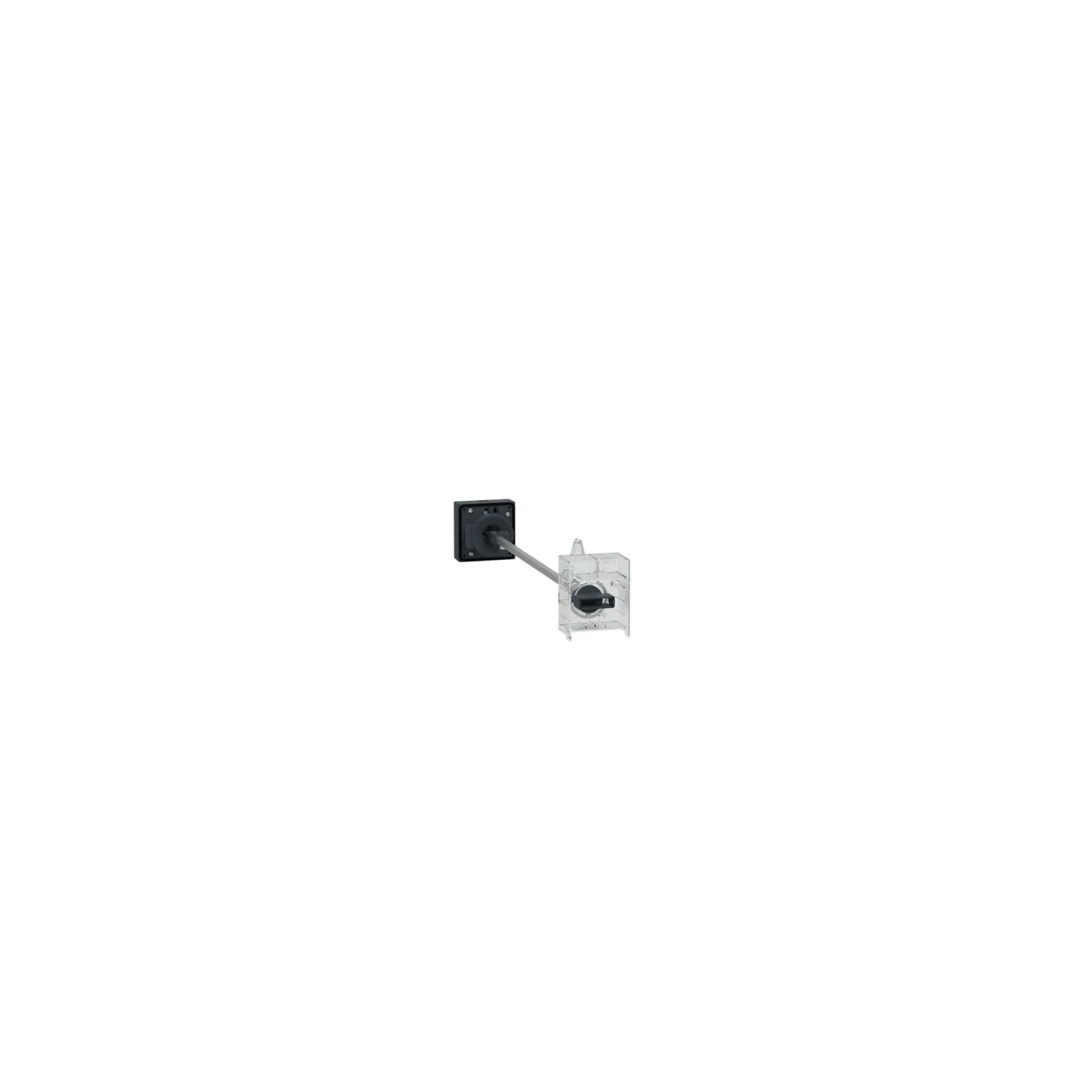

Picture of Extended rotary handle kit,TeSys Deca frame 3,IP54,black handle,with trip indication,for GV3L/GV3P
SKU:

GV3APN01

Extended rotary handle kit,TeSys Deca frame 3,IP54,black handle,with trip indication,for GV3L/GV3P

$234.74
Available for Shipping : 03-Dec-2024
Extended rotary handle kit,TeSys Deca frame 3,IP54,black handle,with trip indication,for GV3L/GV3P
  • New modern look & feel of all machines
  • Wide range of GVs: Magnetic, thermal magnetic, different sizes (GV2,GV3,GV4)
  • Easier to install and operate with multi-standard screws
  • Safe and long-lasting power connection with EverLink terminals
  • Digital customer experience for technical documents
  • Maintenance guide via EcoStruxureTM Facility Expect
Be the first to review this product
Manufacturer: Schneider Electric
CAD
Catalogue
End of life manual
Instruction sheet
Product environmental
Product Page Link
Product Data Sheet
TeSys GV extended rotary handle, for motor circuit breakers GV3L, GV3P mounted inside an enclosure and to be operated externally. For main switch usage, it provides a black handle on grey front plate with indication of 3 positions OFF, ON, TRIP. To be mounted on the door of the enclosure, the handle mechanism ensures an IP54 protection to the mounting. It also includes a mounting adaptor to be screwed on the face of the circuit breaker, and an extension shaft to be be adjusted in length (distance between the door and the back of the circuit breaker must be in range 189-300mm). Padlockable in OFF or ON position with up to 3 padlocks (to be ordered separately). Locking in ON position does not prevent the circuit breaker from tripping (unlocking is required for fault reset). Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name GV3AP
Range TeSys Deca, TeSys
Product or component type rotary handle kit
Handle colour black
Accessory / separate part category control accessory
Handle front plate colour grey
Range of product TeSys Deca, TeSys GV3
Complementary
Product compatibility GV3L, GV3P
Rotary handle padlocking padlock in OFF position, padlock in ON position
Compatibility code GV3AP
Net weight 0.3 kg
Locking options description 1 to 3 padlocks
Back/door distance 189-300 mm
Rotary handle mounting style extended
Environment
IP degree of protection IP54
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.500 cm
Package 1 Width 9.000 cm
Package 1 Length 37.000 cm
Package 1 Weight 353.000 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.700 kg
