Picture of Extended rotary handle kit,TeSys Deca frame 3,IP54,red handle,with trip indication,for GV3L/GV3P
Picture of Extended rotary handle kit,TeSys Deca frame 3,IP54,red handle,with trip indication,for GV3L/GV3P
Picture of Extended rotary handle kit,TeSys Deca frame 3,IP54,red handle,with trip indication,for GV3L/GV3P
Picture of Extended rotary handle kit,TeSys Deca frame 3,IP54,red handle,with trip indication,for GV3L/GV3P
Picture of Extended rotary handle kit,TeSys Deca frame 3,IP54,red handle,with trip indication,for GV3L/GV3P
Picture of Extended rotary handle kit,TeSys Deca frame 3,IP54,red handle,with trip indication,for GV3L/GV3P
SKU:

GV3APN02

Extended rotary handle kit,TeSys Deca frame 3,IP54,red handle,with trip indication,for GV3L/GV3P

$234.74
Extended rotary handle kit,TeSys Deca frame 3,IP54,red handle,with trip indication,for GV3L/GV3P
  • New modern look & feel of all machines
  • Wide range of GVs: Magnetic, thermal magnetic, different sizes (GV2,GV3,GV4)
  • Easier to install and operate with multi-standard screws
  • Safe and long-lasting power connection with EverLink terminals
  • Digital customer experience for technical documents
  • Maintenance guide via EcoStruxureTM Facility Expect
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Image of product
Image of product
Image of product
CAD
Image of product
Catalogue
Instruction sheet
End of life manual
Product environmental
Product Page Link
Product Data Sheet

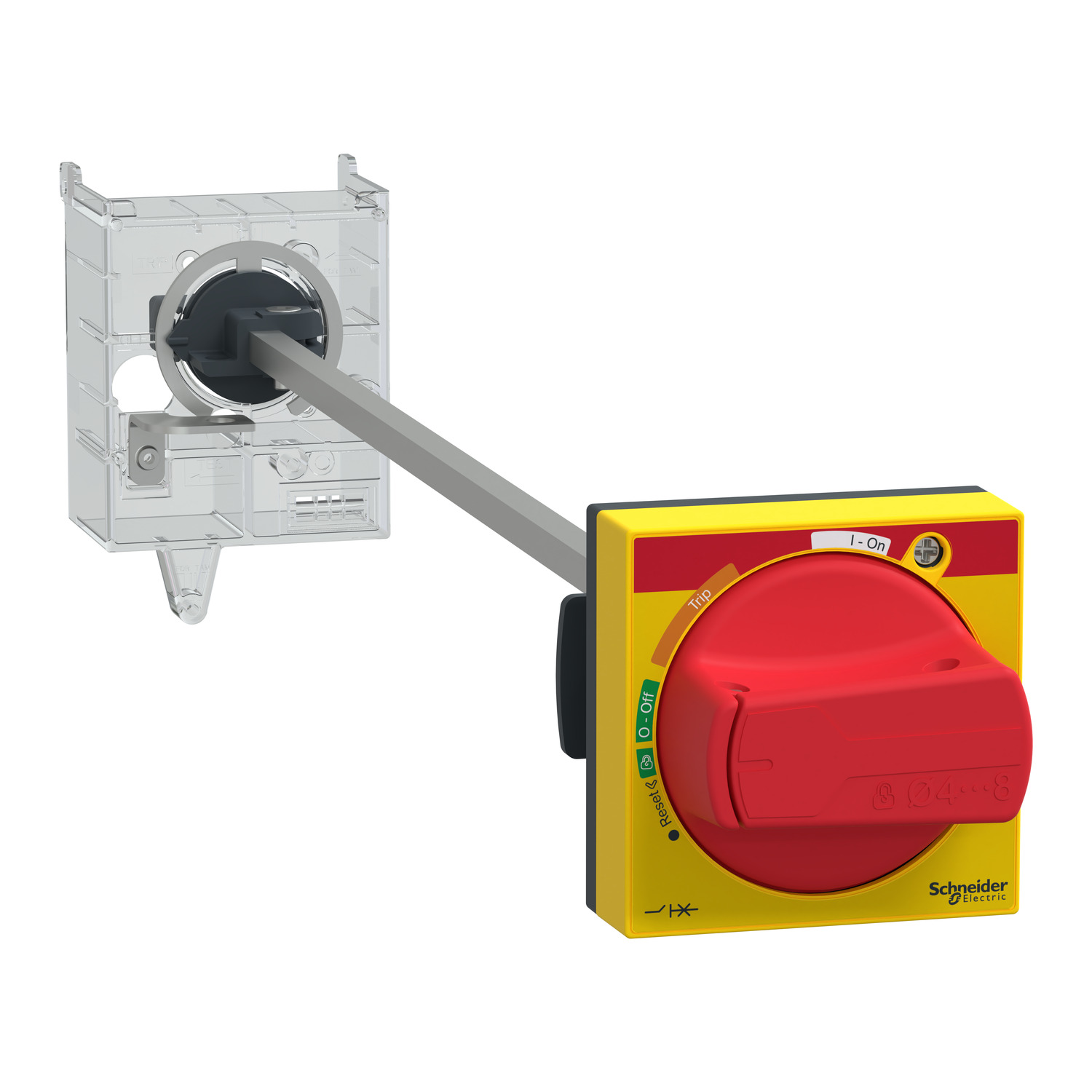

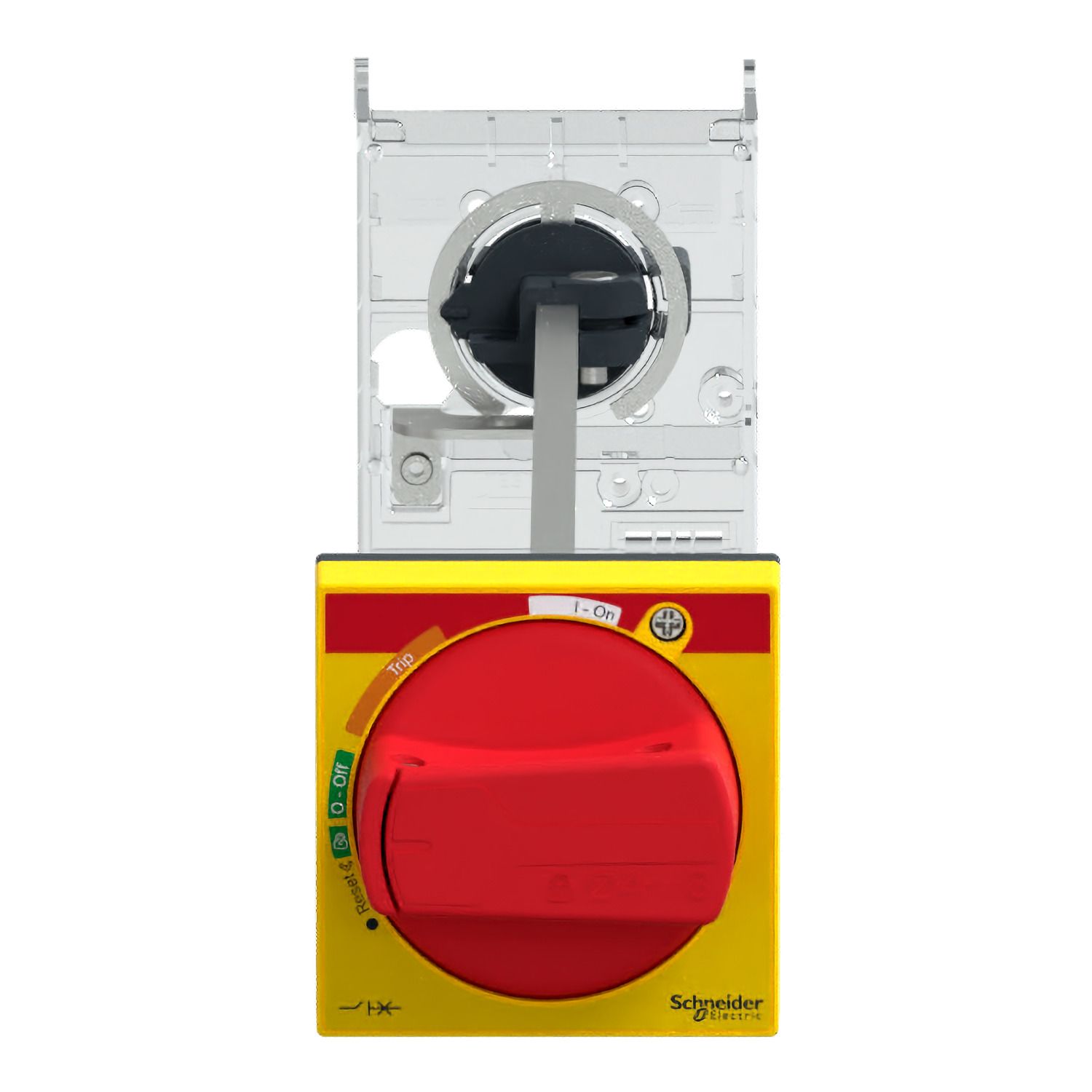

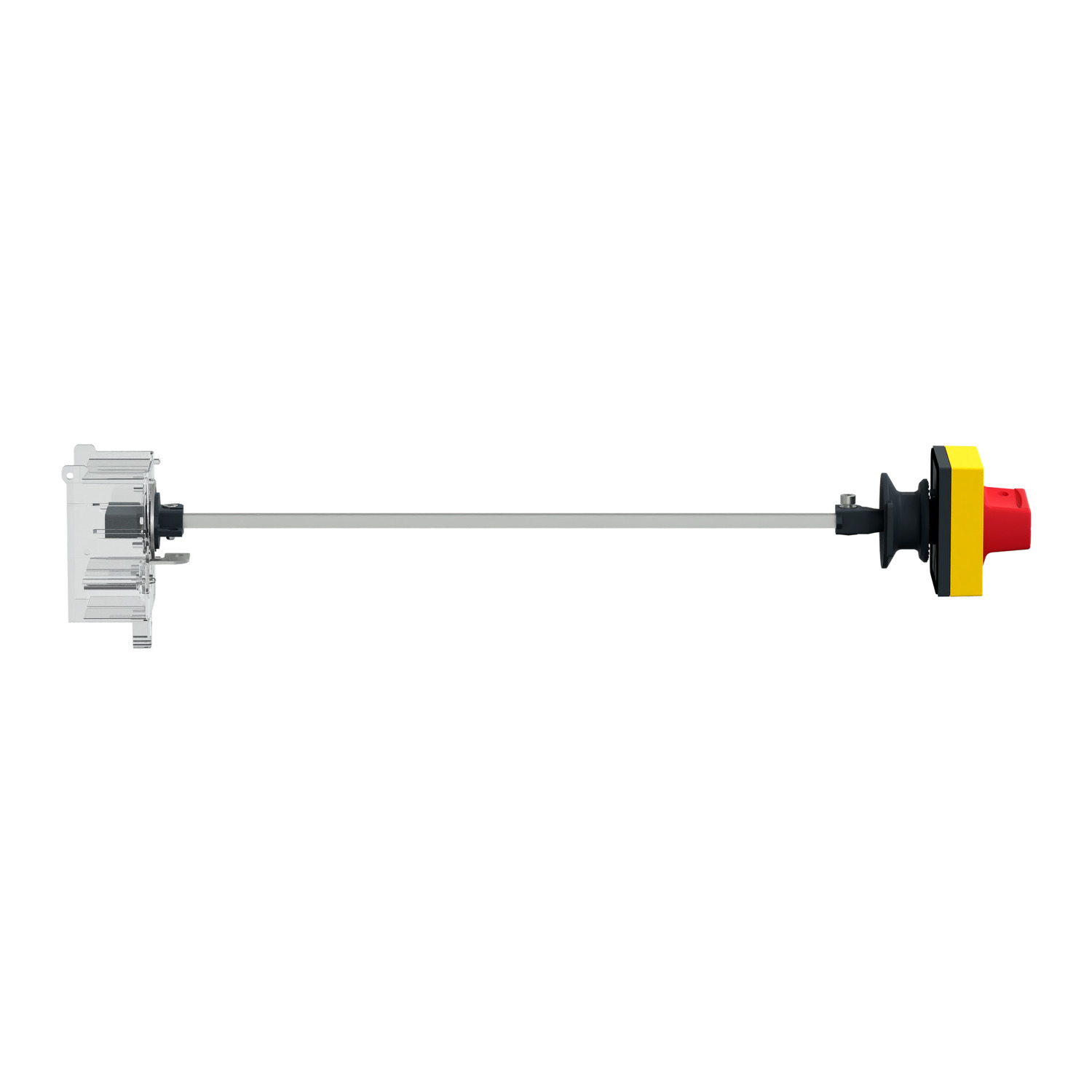

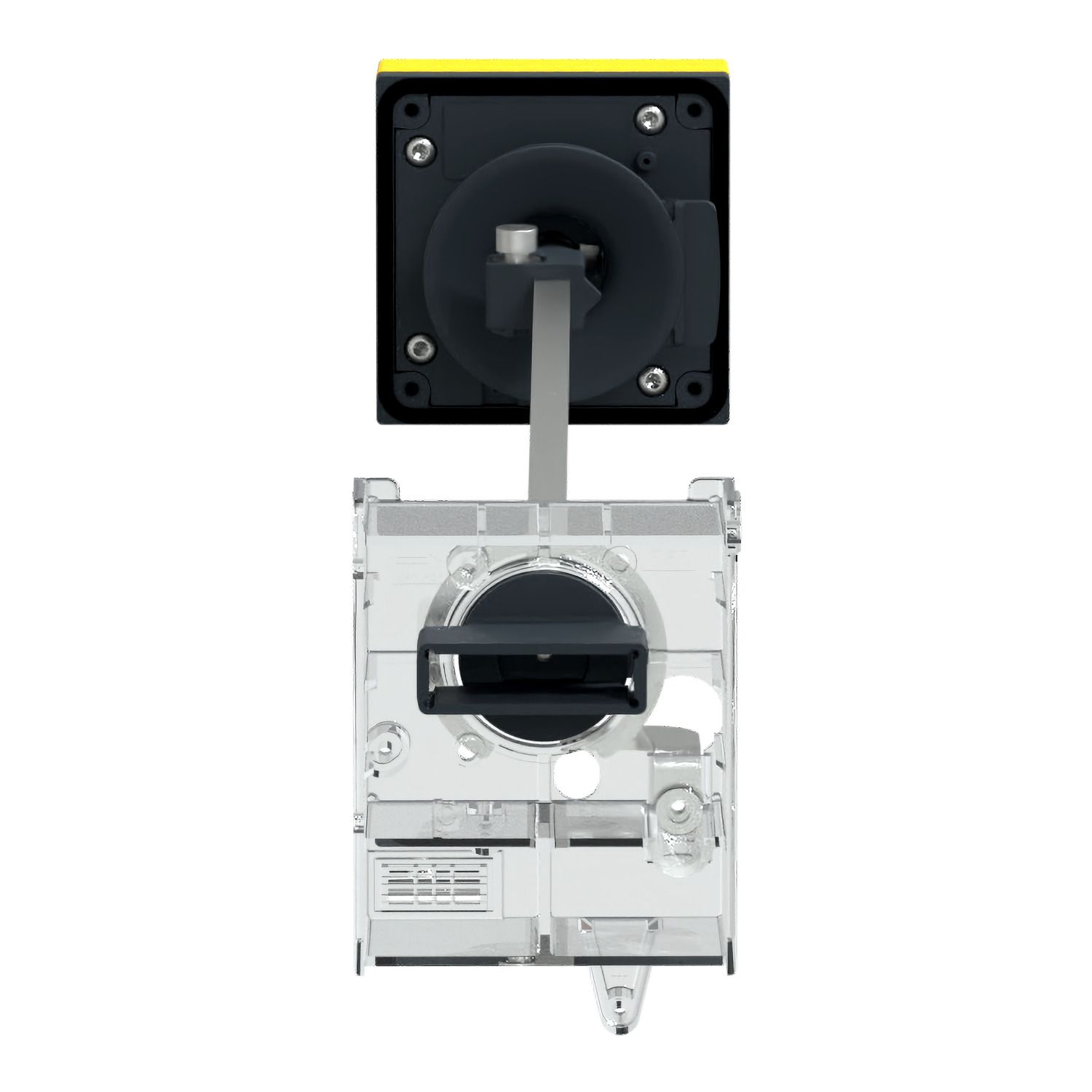

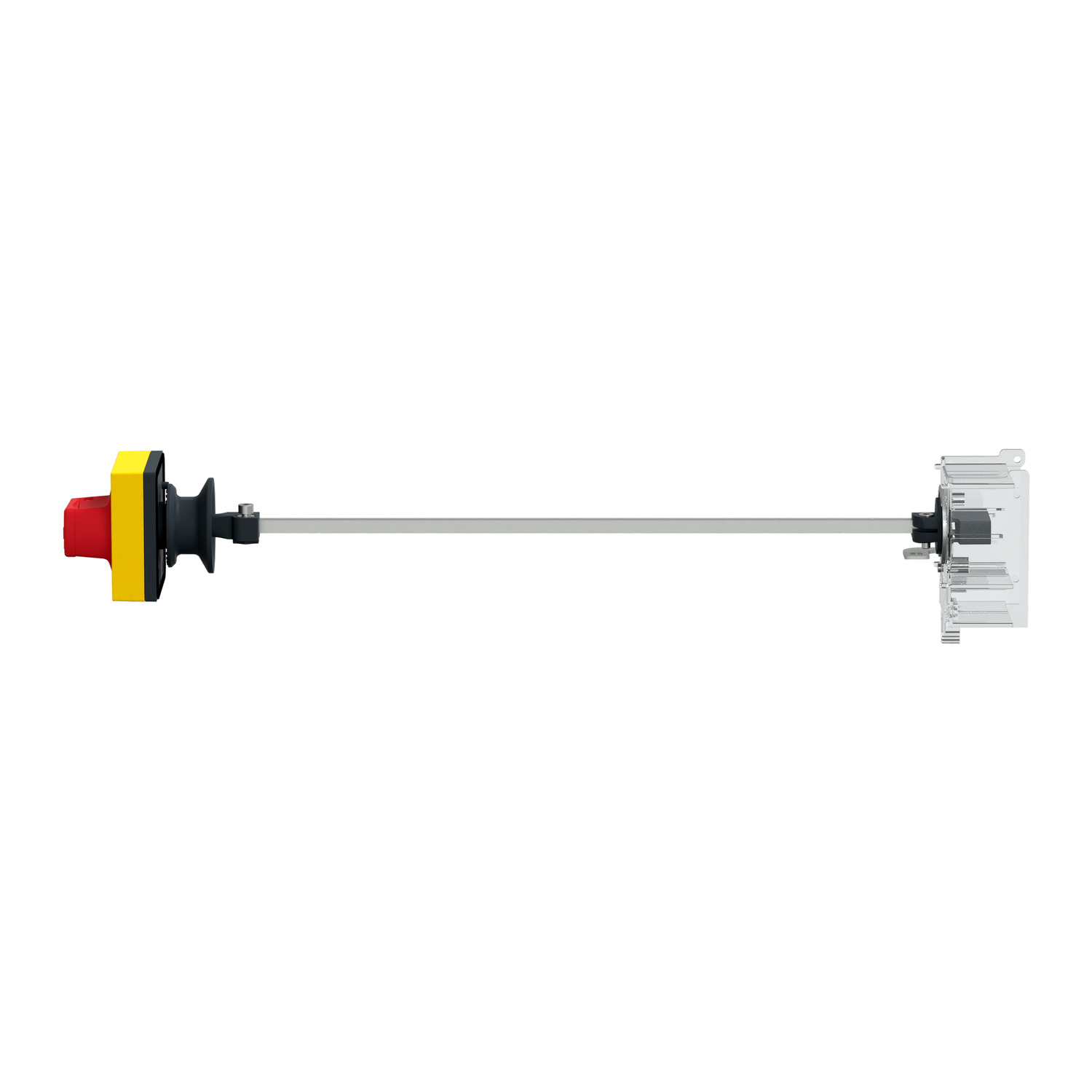

TeSys GV extended rotary handle, for motor circuit breakers GV3L, GV3P mounted inside an enclosure and to be operated externally. For emergency switch usage, it provides a red handle on yellow front plate with indication of 3 positions OFF, ON, TRIP. To be mounted on the door of the enclosure, the handle mechanism ensures an IP54 protection to the mounting. It also includes a mounting adaptor to be screwed on the face of the circuit breaker, and an extension shaft to be be adjusted in length (distance between the door and the back of the circuit breaker must be in range 189-300mm). Padlockable in OFF position with up to 3 padlocks (to be ordered separately). Green Premium compliant (RoHS/REACh).

Products specifications

Attribute nameAttribute value
Main
Device short nameGV3AP
RangeTeSys Deca, TeSys
Product or component typerotary handle kit
Handle colourred
Accessory / separate part categorycontrol accessory
Handle front plate colouryellow
Range of productTeSys Deca, TeSys GV3
Complementary
Product compatibilityGV3P, GV3L
Rotary handle padlockingpadlock in OFF position
Compatibility codeGV3AP
Net weight0.3 kg
Locking options description1 to 3 padlocks
Back/door distance189-300 mm
Rotary handle mounting styleextended
Environment
IP degree of protectionIP54
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height6.700 cm
Package 1 Width9.000 cm
Package 1 Length37.200 cm
Package 1 Weight353.000 g
Unit Type of Package 22
Number of Units in Package 212
Package 2 Height30.000 cm
Package 2 Width30.000 cm
Package 2 Length40.000 cm
Package 2 Weight4.756 kg

Related products

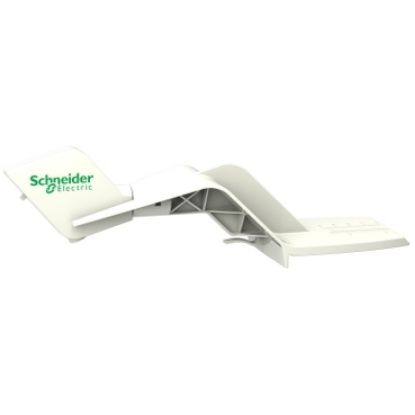

Picture of Laser plotting tool for rotary handle mounting,TeSys Deca Frame 2/3,TeSys Ulta
