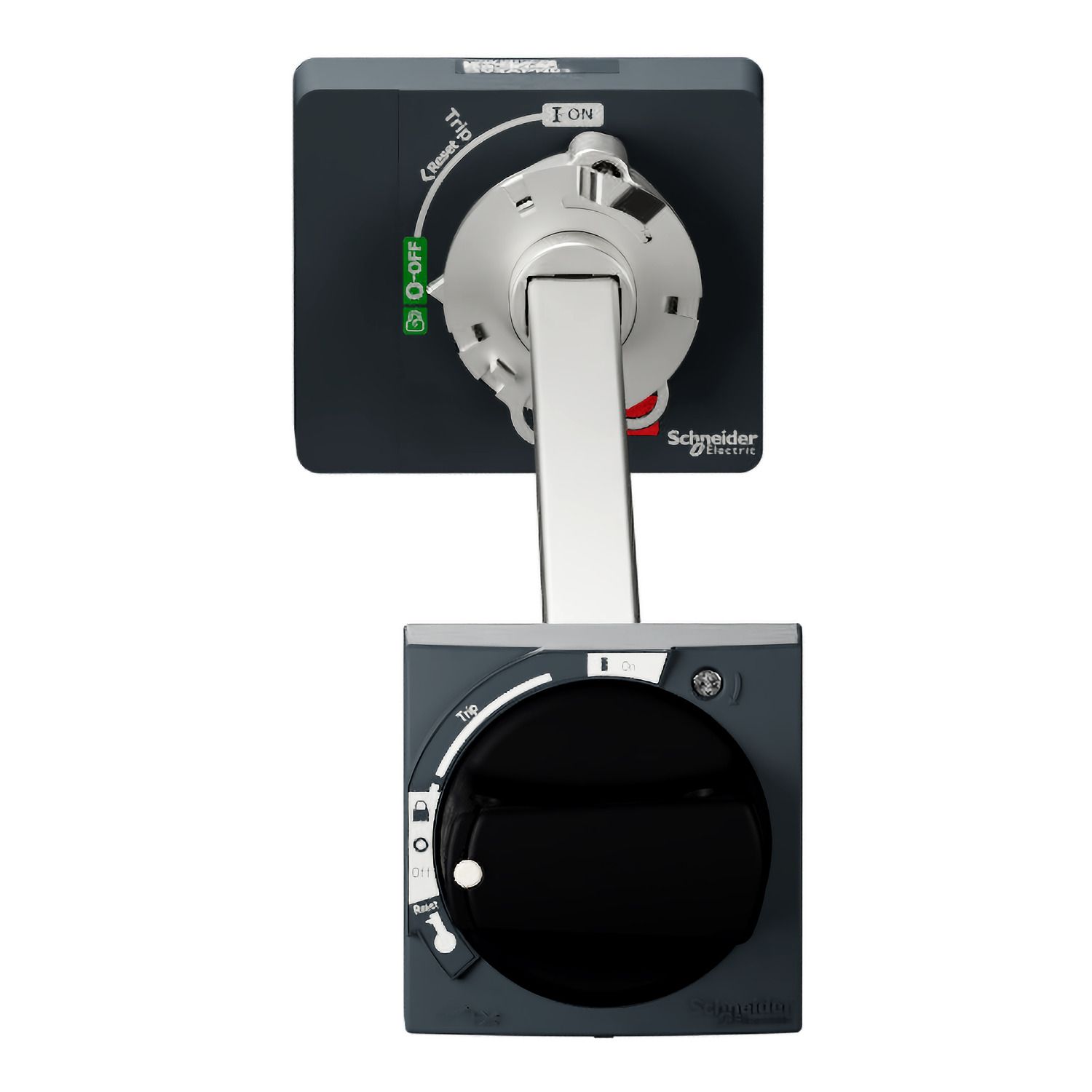

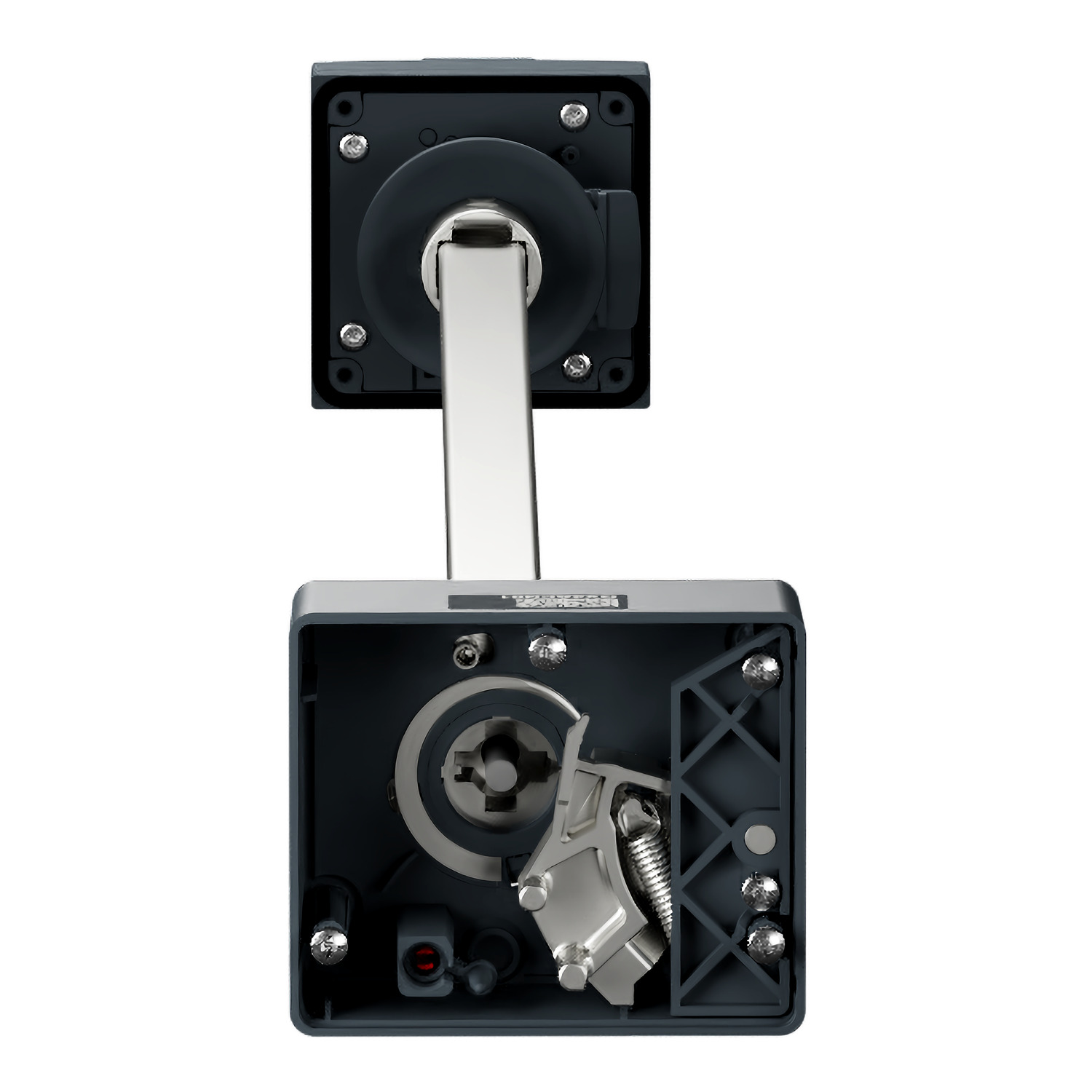

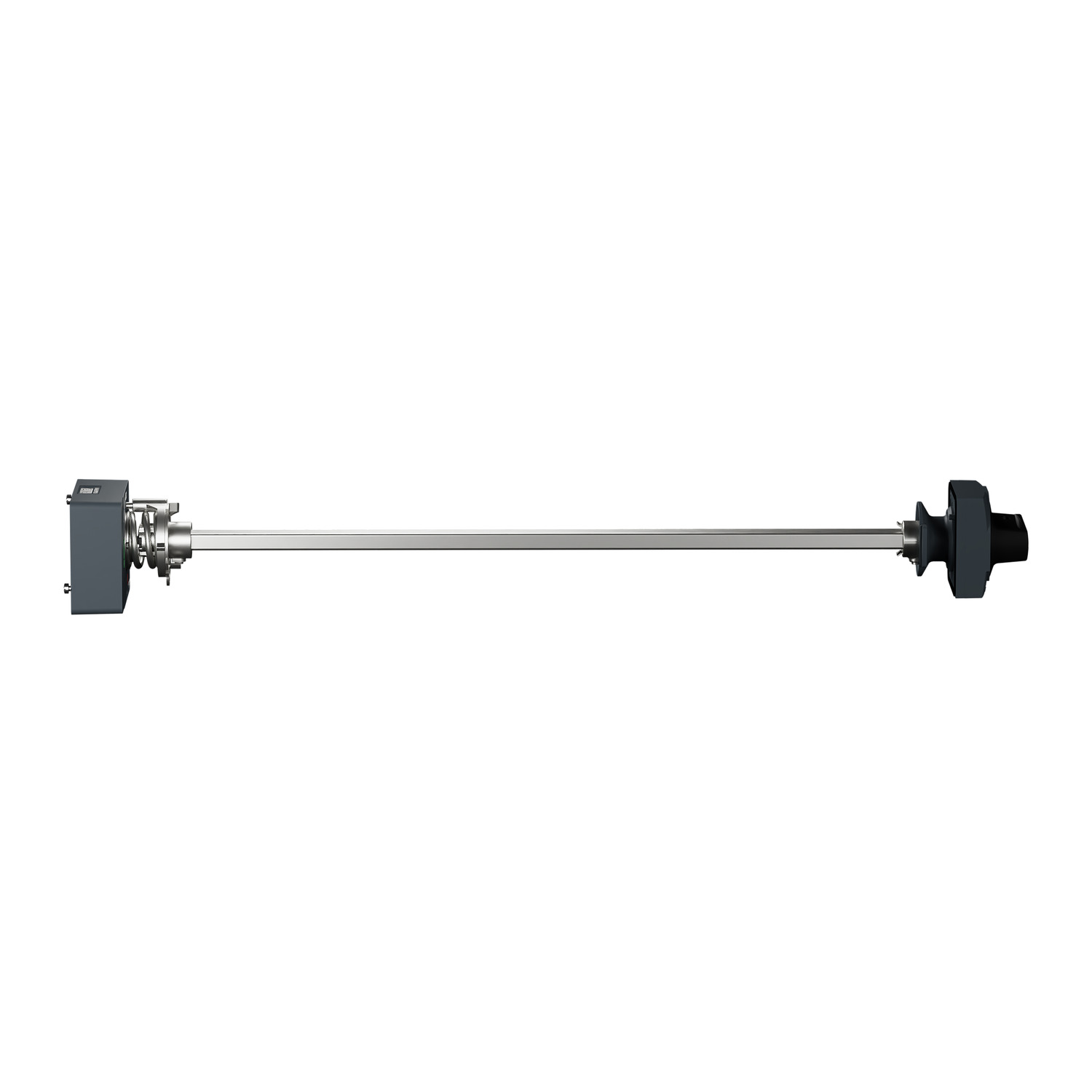

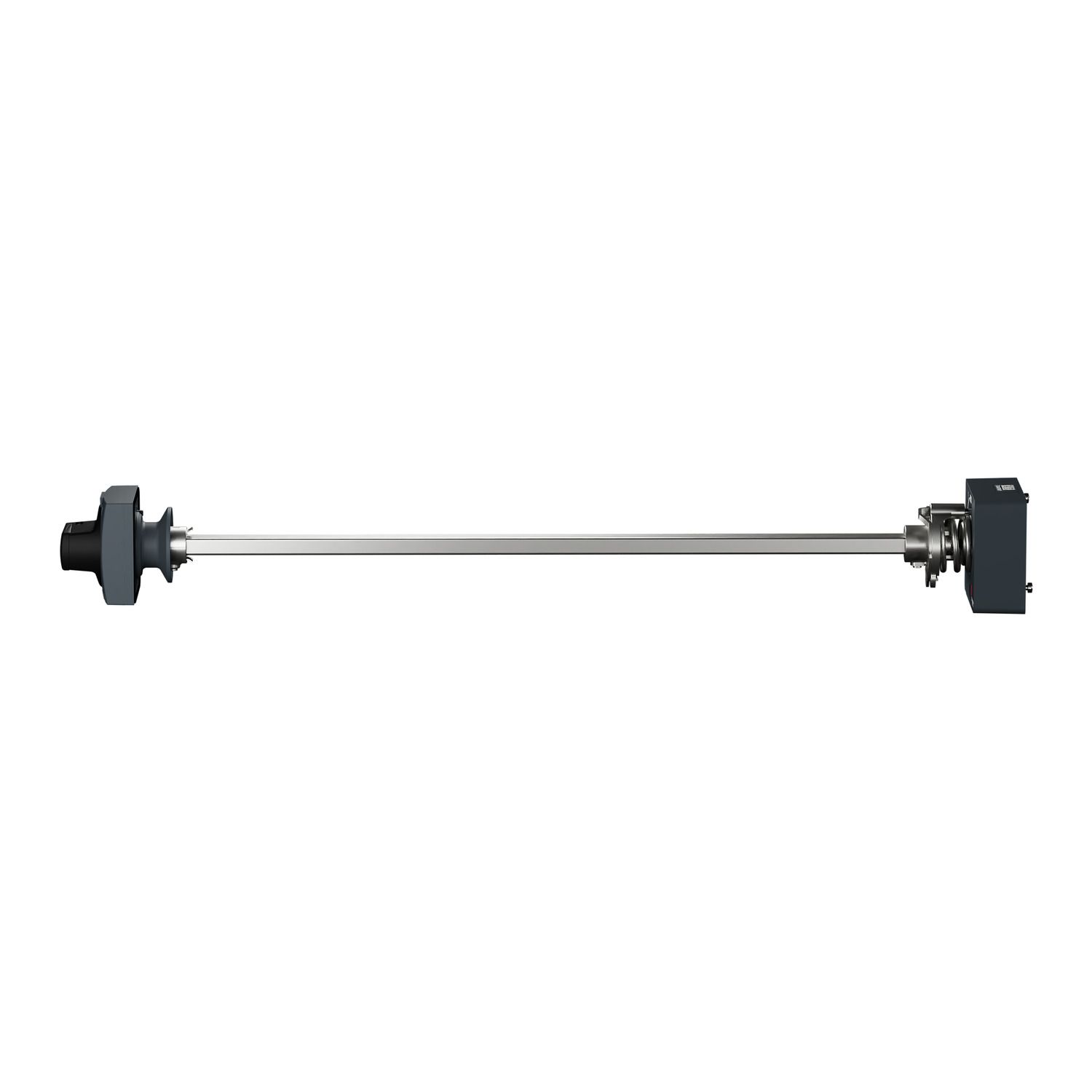

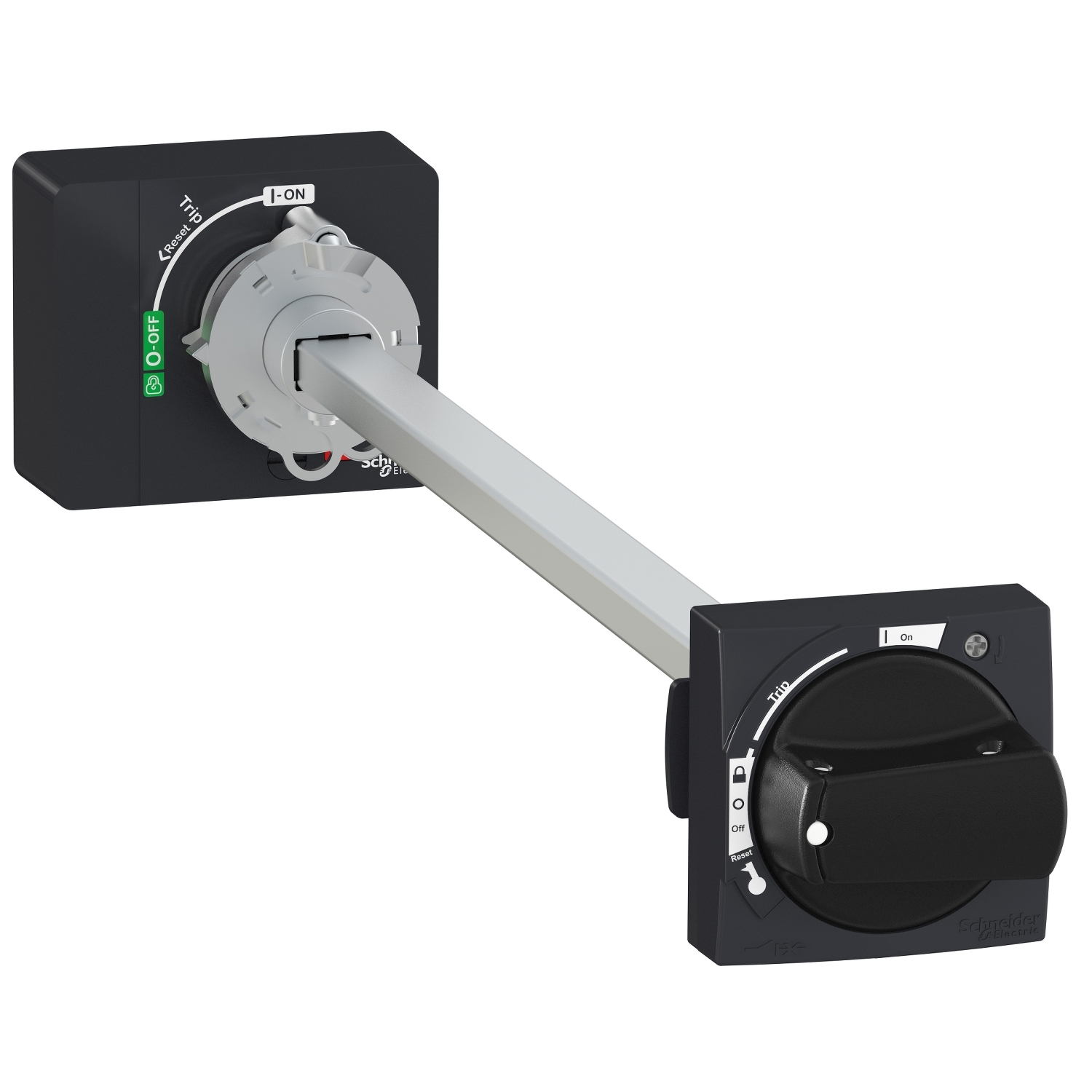

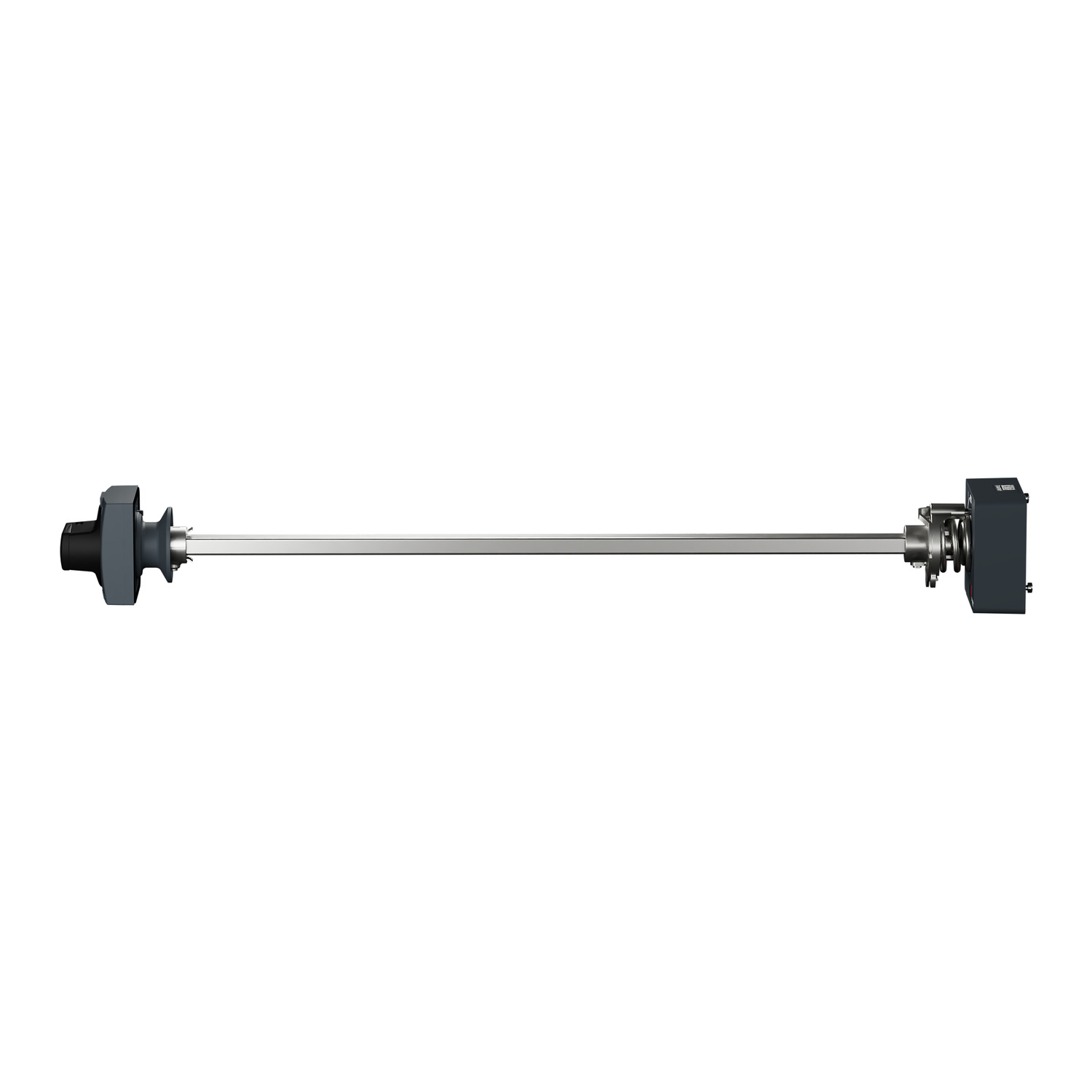

Picture of TeSys; TeSys Deca, Rotary handle kit, TeSys GV4, extended, fixed, black, IP54
Picture of TeSys; TeSys Deca, Rotary handle kit, TeSys GV4, extended, fixed, black, IP54
Picture of TeSys; TeSys Deca, Rotary handle kit, TeSys GV4, extended, fixed, black, IP54
Picture of TeSys; TeSys Deca, Rotary handle kit, TeSys GV4, extended, fixed, black, IP54
Picture of TeSys; TeSys Deca, Rotary handle kit, TeSys GV4, extended, fixed, black, IP54
Picture of TeSys; TeSys Deca, Rotary handle kit, TeSys GV4, extended, fixed, black, IP54
SKU:

GV4APN01

TeSys; TeSys Deca, Rotary handle kit, TeSys GV4, extended, fixed, black, IP54

$178.31
Available for Shipping : 17-Nov-2024
TeSys; TeSys Deca, Rotary handle kit, TeSys GV4, extended, fixed, black, IP54
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet
TeSys GV extended rotary handle, for motor circuit breakers GV4 mounted inside an enclosure and to be operated externally. For main switch usage, it provides a black handle on grey front plate with indication of 3 positions OFF, ON, TRIP. To be mounted on the door of the enclosure, the handle mechanism ensures an IP54 protection to the mounting. It also includes a mounting adaptor to be screwed on the face of the circuit breaker, and an extension shaft to be be adjusted in length (distance between the door and the back of the circuit breaker must be in range 214-627mm). Padlockable in OFF or ON position with up to 3 padlocks (to be ordered separately). Locking in ON position does not prevent the circuit breaker from tripping (unlocking is required for fault reset). Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Rotary handle padlocking padlock in OFF position, 1 to 3 padlocks, padlock in ON position
Range TeSys Deca, TeSys
Marking OFF - Trip - ON
Product or component type rotary handle kit
Handle colour black
Accessory / separate part category control accessory
Handle front plate colour black
Rotary handle mounting style extended
Complementary
Mounting mode fixed
Mounting location door of enclosure
Range compatibility TeSys TeSys Deca, TeSys TeSys BV4, TeSys TeSys GV4
Locking options description 1 to 3 padlocks Ø 4 to Ø 8
Back/door distance 214-627 mm
Environment
IP degree of protection IP54
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.000 cm
Package 1 Width 9.000 cm
Package 1 Length 45.900 cm
Package 1 Weight 673.000 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 8.931 kg

Related products

Picture of External handle protection frame,TeSys Deca Frame 2/3,TeSys Ulta,black frame

External handle protection frame,TeSys Deca Frame 2/3,TeSys Ulta,black frame

GVAPBPHP
$18.89
View Detail
Picture of Laser plotting tool for rotary handle mounting,TeSys Deca Frame 2/3,TeSys Ulta

Laser plotting tool for rotary handle mounting,TeSys Deca Frame 2/3,TeSys Ulta

GVAPL01
$136.09
View Detail

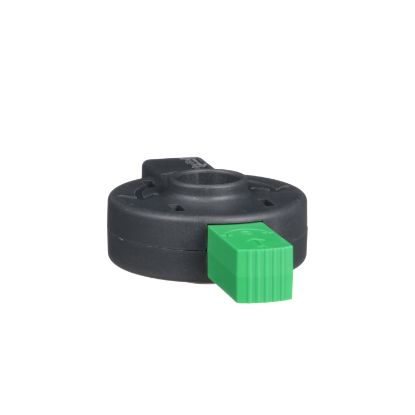

Picture of Open door shaft operator for extended rotary handles, ComPacT NSXm
