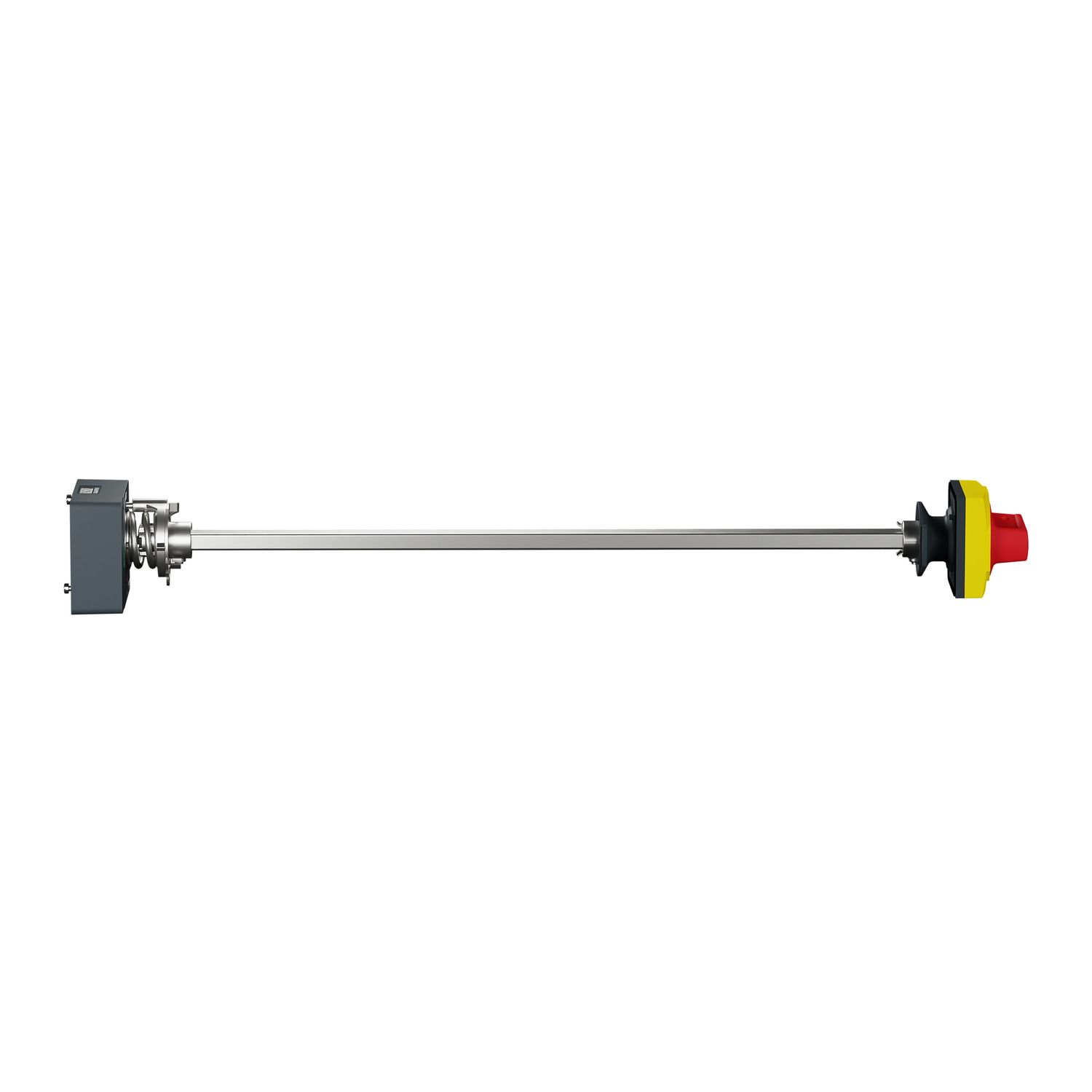

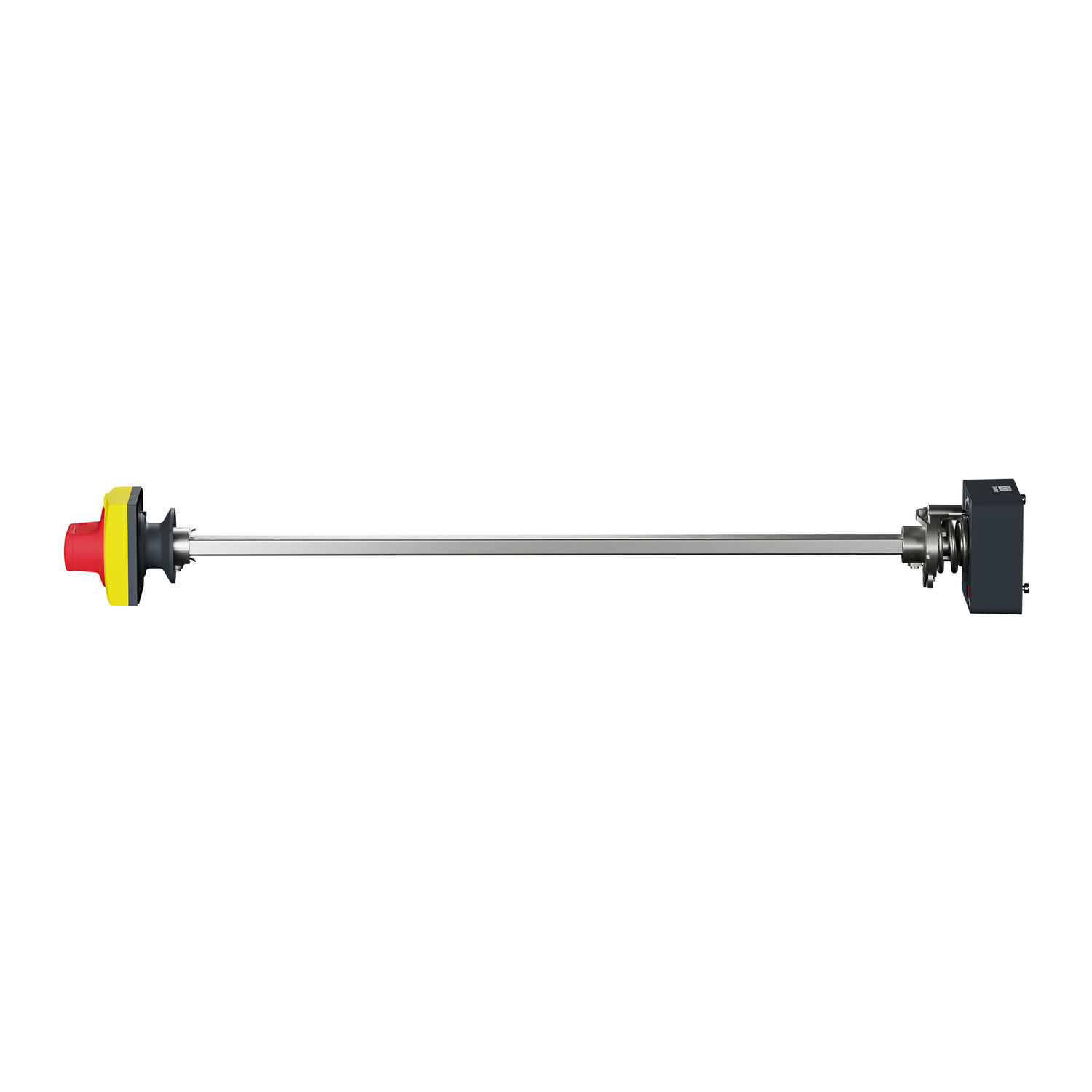

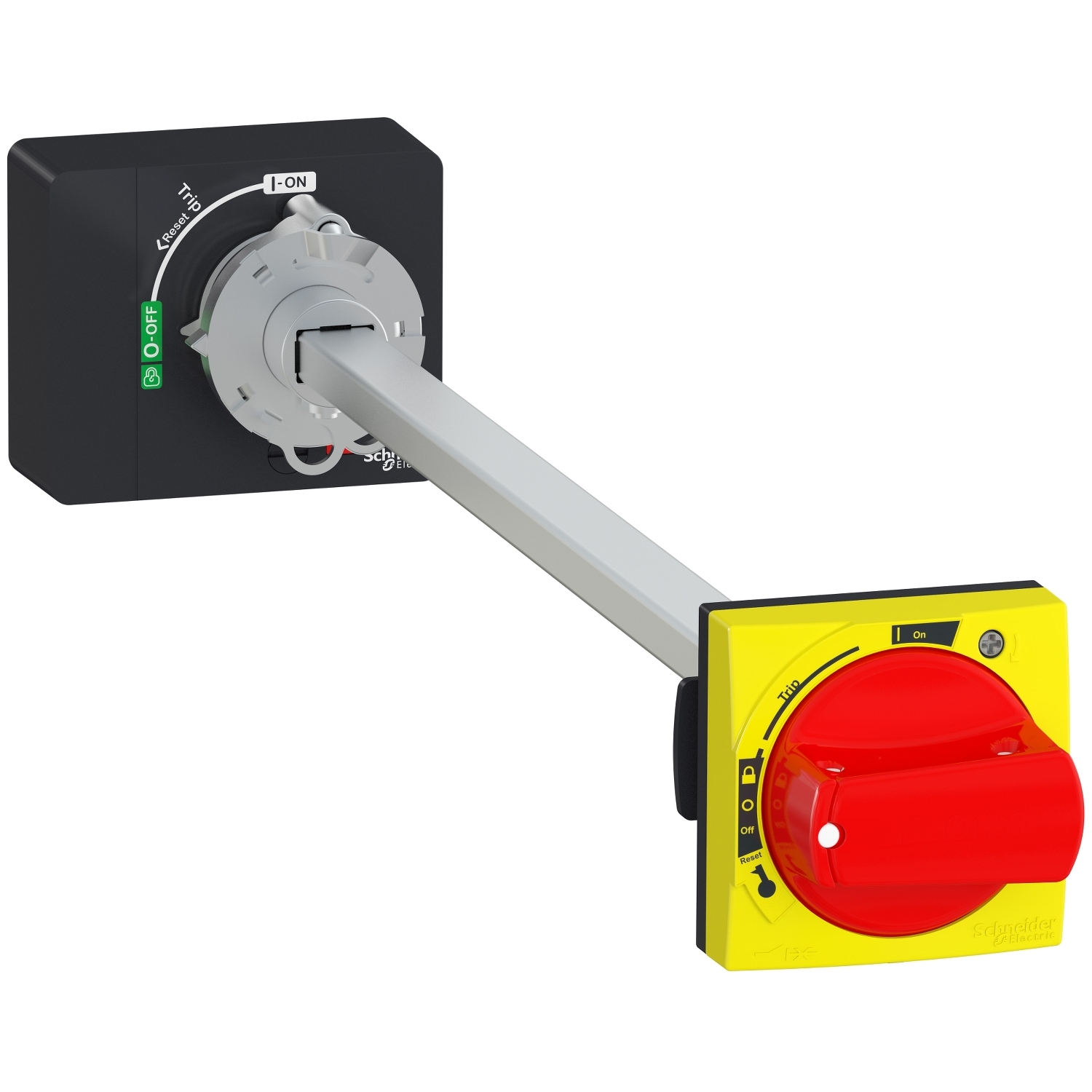

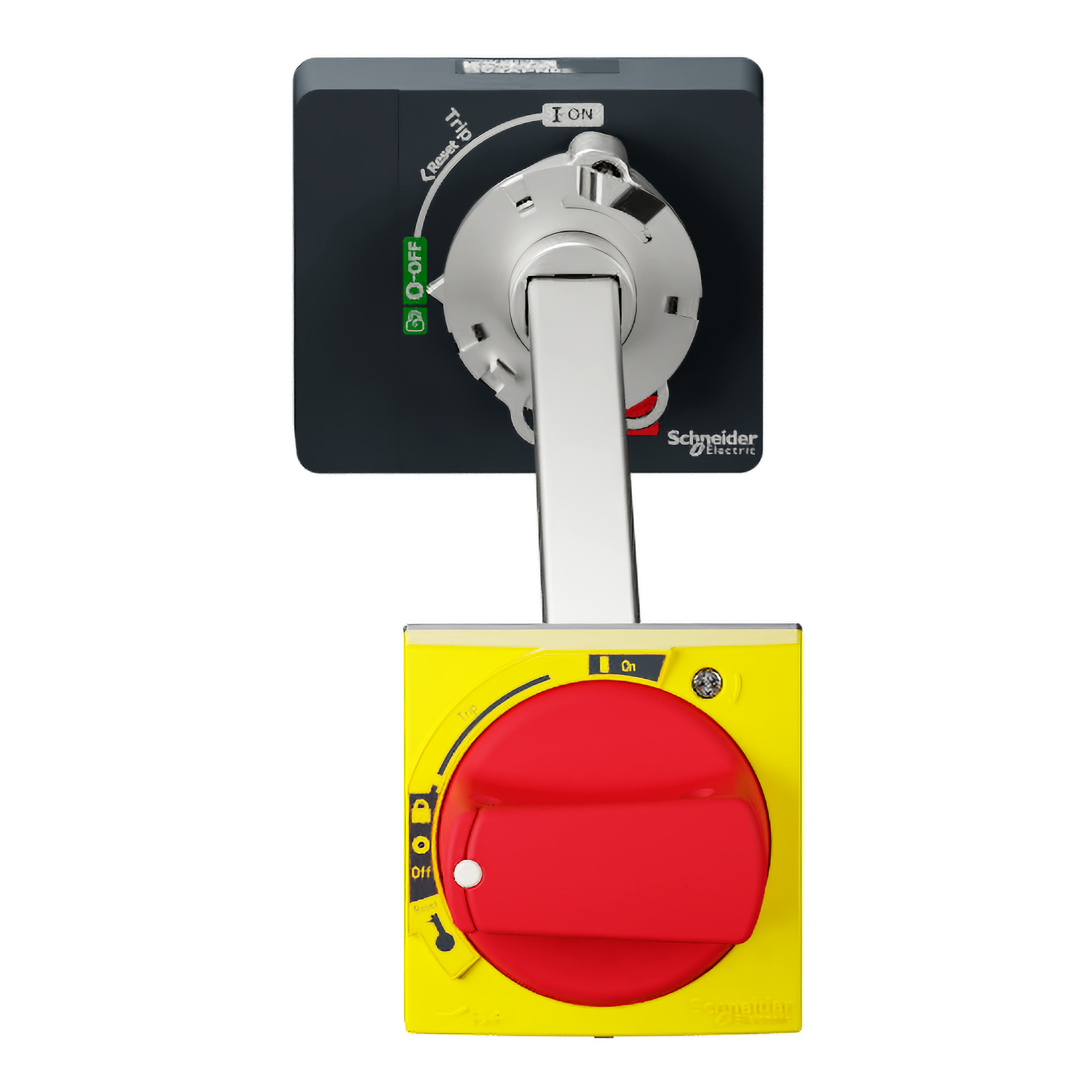

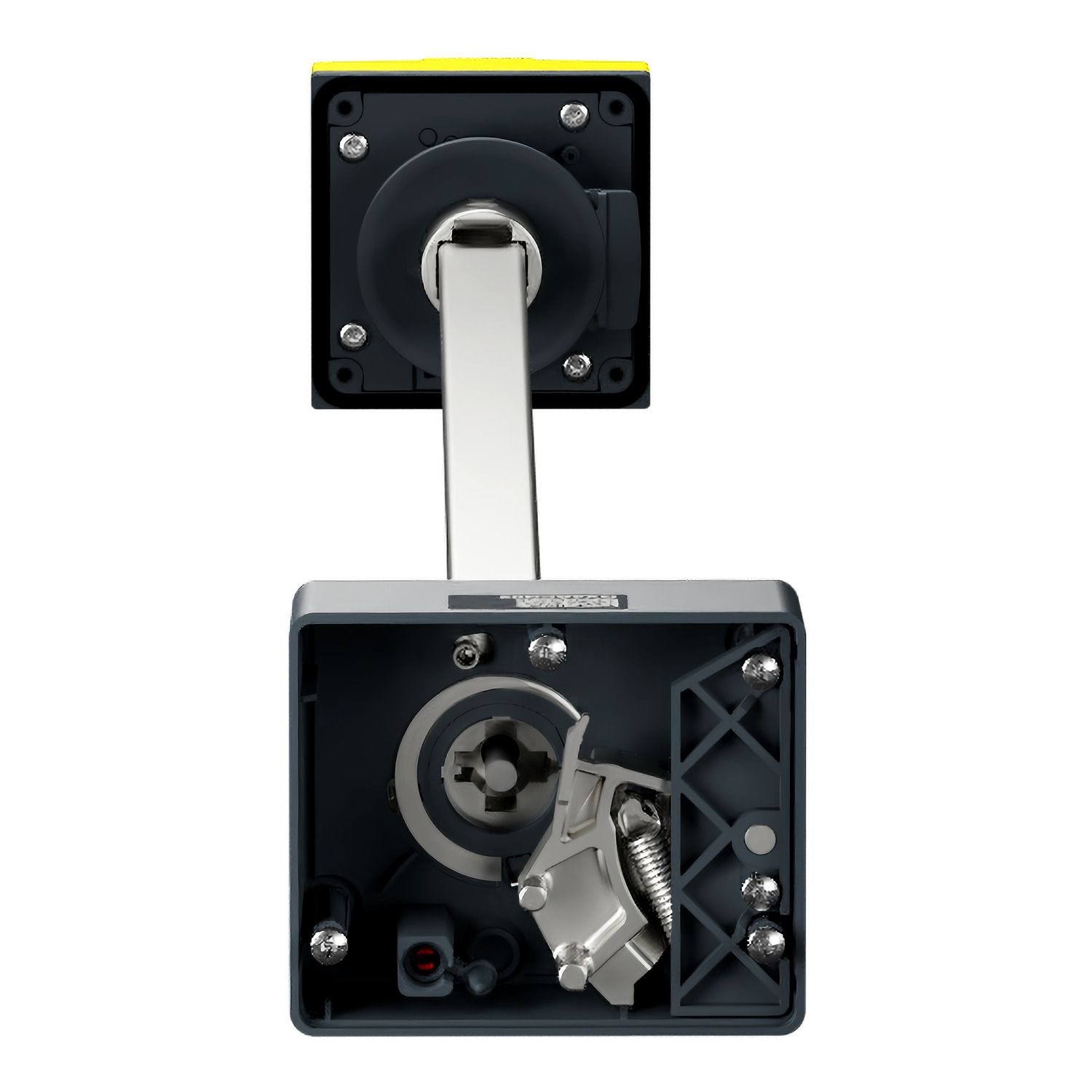

Picture of TeSys; TeSys Deca, Rotary handle kit, TeSys GV4, extended, fixed, red, IP54
Picture of TeSys; TeSys Deca, Rotary handle kit, TeSys GV4, extended, fixed, red, IP54
Picture of TeSys; TeSys Deca, Rotary handle kit, TeSys GV4, extended, fixed, red, IP54
Picture of TeSys; TeSys Deca, Rotary handle kit, TeSys GV4, extended, fixed, red, IP54
Picture of TeSys; TeSys Deca, Rotary handle kit, TeSys GV4, extended, fixed, red, IP54
Picture of TeSys; TeSys Deca, Rotary handle kit, TeSys GV4, extended, fixed, red, IP54
SKU:

GV4APN02

TeSys; TeSys Deca, Rotary handle kit, TeSys GV4, extended, fixed, red, IP54

$140.84
TeSys; TeSys Deca, Rotary handle kit, TeSys GV4, extended, fixed, red, IP54
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 18-Oct-2024
Product environmental
Catalogue
Image of product
Image of product
Image of product
End of life manual
Instruction sheet
Image of product
Product Page Link
Product Data Sheet
TeSys GV extended rotary handle, for motor circuit breakers GV4 mounted inside an enclosure and to be operated externally. For emergency switch usage, it provides a red handle on yellow front plate with indication of 3 positions OFF, ON, TRIP. To be mounted on the door of the enclosure, the handle mechanism ensures an IP54 protection to the mounting. It also includes a mounting adaptor to be screwed on the face of the circuit breaker, and an extension shaft to be be adjusted in length (distance between the door and the back of the circuit breaker must be in range 214-627mm). Padlockable in OFF position with up to 3 padlocks (to be ordered separately). Green Premium compliant (RoHS/REACh).

Products specifications

Attribute nameAttribute value
Main
Rotary handle padlockingpadlock in ON position, 1 to 3 padlocks, padlock in OFF position
RangeTeSys Deca, TeSys
MarkingOFF - Trip - ON
Product or component typerotary handle kit
Handle colourred
Accessory / separate part categorycontrol accessory
Handle front plate colouryellow
Rotary handle mounting styleextended
Complementary
Mounting modefixed
Mounting locationdoor of enclosure
Range compatibilityTeSys TeSys Deca, TeSys TeSys BV4, TeSys TeSys GV4
Locking options description1 to 3 padlocks Ø 4 to Ø 8
Back/door distance214-627 mm
Environment
IP degree of protectionIP54
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height9.000 cm
Package 1 Width9.000 cm
Package 1 Length45.800 cm
Package 1 Weight671.000 g
Unit Type of Package 22
Number of Units in Package 212
Package 2 Height30.000 cm
Package 2 Width40.000 cm
Package 2 Length60.000 cm
Package 2 Weight8.837 kg
