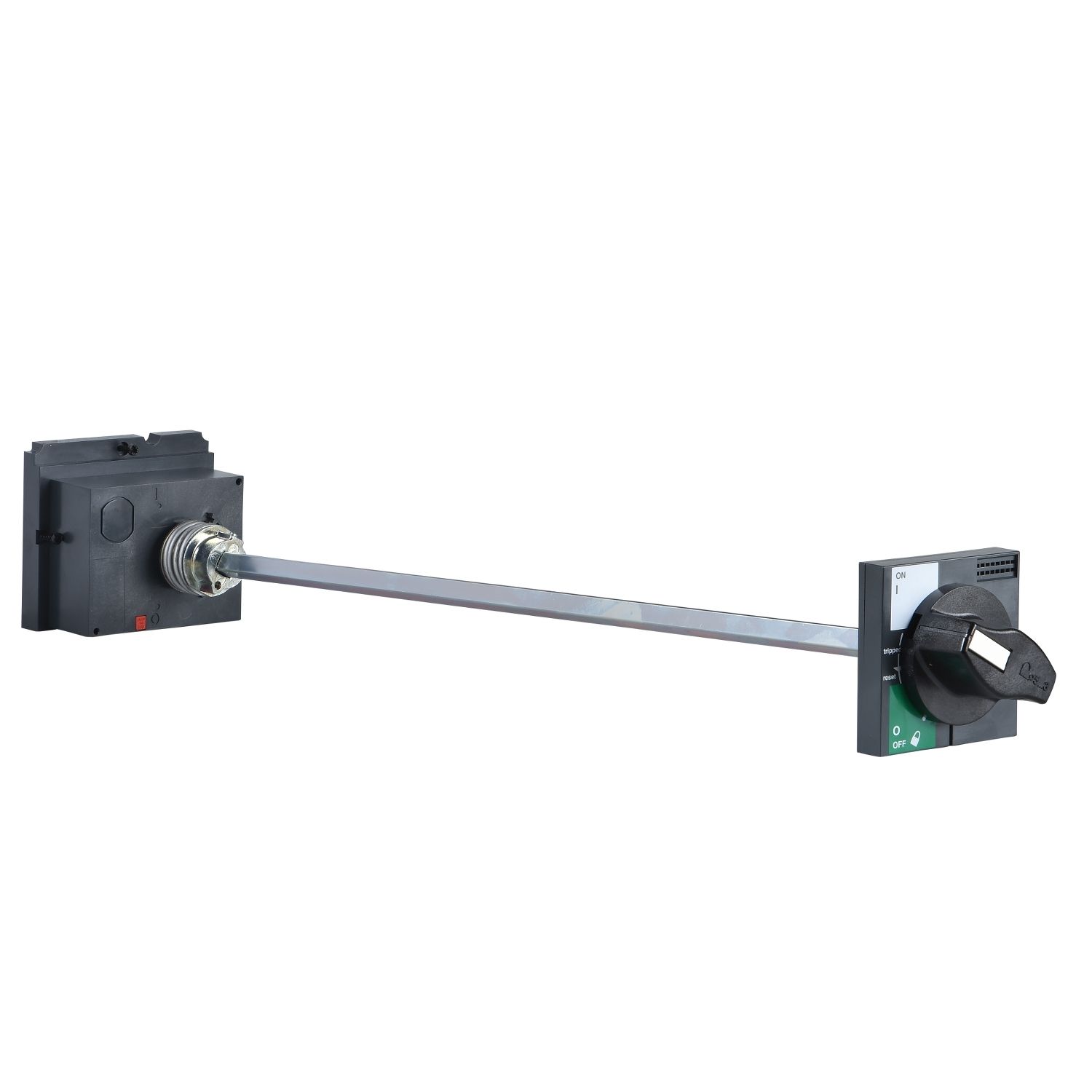

Picture of Extended rotary handle, TeSys GV7, black legend plate, padlockable, IP55
SKU:

GV7AP01

Extended rotary handle, TeSys GV7, black legend plate, padlockable, IP55

$297.31
Available for Shipping : 11-Dec-2024
Extended rotary handle, TeSys GV7, black legend plate, padlockable, IP55
  • Extended rotary handle, for motor circuit breakers GV5, GV6, GV7
  • Provides a black handle on grey front plate with indication of 3 positions OFF, ON, TRIP
  • Easier to install and operate with multi-standard screws
  • Safe and long-lasting power connection with EverLink terminals
  • Digital customer experience for technical documents
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Catalogue
Instruction sheet
User guide
End of life manual
Product Page Link
Product Data Sheet
TeSys GV extended rotary handle, for motor circuit breakers GV5, GV6, GV7 mounted inside an enclosure and to be operated externally. For main switch usage, it provides a black handle on grey front plate with indication of 3 positions OFF, ON, TRIP. To be mounted on the door of the enclosure, the handle mechanism ensures an IP55 protection to the mounting. It also includes a mounting adaptor to be screwed on the face of the circuit breaker, and an extension shaft to be be adjusted in length (distance between the door and the back of the circuit breaker must be in range 185-600mm). Padlockable in OFF or ON position with up to 3 padlocks (to be ordered separately). Locking in ON position does not prevent the circuit breaker from tripping (unlocking is required for fault reset). Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name GV7AP
Rotary handle mounting location front
Range TeSys
Product or component type extended rotary handle
Accessory / separate part category control accessory
Range compatibility TeSys TeSys GV5 motor circuit breaker, TeSys TeSys GV7 motor circuit breaker
Rotary handle mounting style extended
Complementary
Compatibility code extended rotary handle
Net weight 0.775 kg
Handle colour black
Handle front plate colour black
Back/door distance 185-600 mm
Environment
IP degree of protection IP55
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.900 cm
Package 1 Width 10.600 cm
Package 1 Length 49.200 cm
Package 1 Weight 710.000 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 5.512 kg
Unit Type of Package 3 3
Number of Units in Package 3 12
Package 3 Height 45.000 cm
Package 3 Width 80.000 cm
Package 3 Length 60.000 cm
Package 3 Weight 19.000 kg
