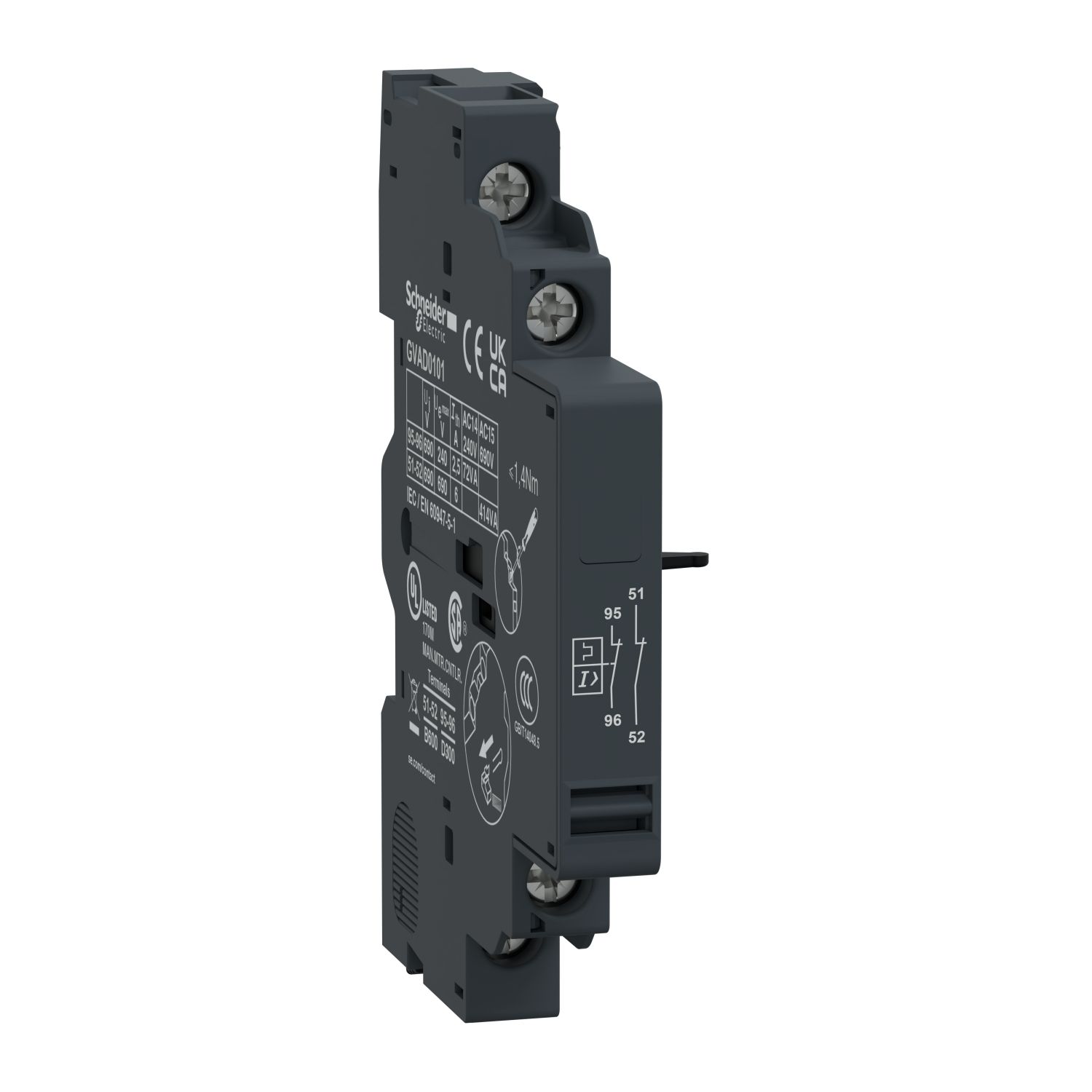

Picture of Add-on contact block,TeSys Deca Frame 2/3,1NC(fault)+1NC,side,for GV2/GV3(except GV3ME)
SKU:

GVAD0101

Add-on contact block,TeSys Deca Frame 2/3,1NC(fault)+1NC,side,for GV2/GV3(except GV3ME)

$118.92
Available for Shipping : 17-Nov-2024
Add-on contact block,TeSys Deca Frame 2/3,1NC(fault)+1NC,side,for GV2/GV3(except GV3ME)
  • New modern look & feel of all machines
  • Designed to meet the requirements of Electro domestic and HVAC applications
  • Easier to install and operate with multi-standard screws
  • With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
  • Digital customer experience for technical documents
  • Maintenance guide via EcoStruxureTM Facility Expect
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product environmental
End of life manual
Instruction sheet
Product Page Link
Product Data Sheet
TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 1NC fault signaling contact + 1NC instantaneous auxiliary contact. Instantaneous auxiliary contact rated for operation up to 6A/690V AC and 6A/240V DC. Fault signaling contact rated for operation up to 2A/240V AC and 1A/60V DC. To be installed on left-hand side of the circuit breaker (1 block mounting maximum), connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name GVAD
Auxiliary contacts operation fault signal 1 NC
Product compatibility GV3P, GV2ME, GV2L, GV2RT, GV2LE, GV2P, GV3L
Pole contact composition 2 NC
Mounting location left side
Range TeSys Deca, TeSys
Product or component type auxiliary contact block
Range of product TeSys Deca, TeSys GV2, TeSys GV3
Complementary
Rated operational power in W 9 W at 60 V DC-13 - electrical durability: 1000 cycles, 24 W at 24 V DC-13 - electrical durability: 1000 cycles, 15 W at 48 V DC-13 - electrical durability: 1000 cycles, 240 W at 48 V DC-13 - electrical durability: 100000 cycles, 180 W at 60 V DC-13 - electrical durability: 100000 cycles, 140 W at 24 V DC-13 - electrical durability: 100000 cycles, 140 W at 110 V DC-13 - electrical durability: 100000 cycles, 120 W at 240 V DC-13 - electrical durability: 100000 cycles
Depth 66 mm
Width 9.3 mm
Colour dark grey
Compatibility code GVAD
Mechanical durability 100000 cycles
Rated operational power in VA 72 VA at 110-127 V AC-14 - electrical durability: 1000 cycles, 48 VA at 48-48 V AC-14 - electrical durability: 1000 cycles, 36 VA at 24-24 V AC-14 - electrical durability: 1000 cycles, 850 VA at 380-415 V AC-15 - electrical durability: 100000 cycles, 720 VA at 230-240 V AC-15 - electrical durability: 100000 cycles, 650 VA at 440-440 V AC-15 - electrical durability: 100000 cycles, 500 VA at 500-500 V AC-15 - electrical durability: 100000 cycles, 500 VA at 110-127 V AC-15 - electrical durability: 100000 cycles, 414 VA at 690-690 V AC-15 - electrical durability: 100000 cycles, 300 VA at 48-48 V AC-15 - electrical durability: 100000 cycles
Tightening torque 1.4 N.m - on screw clamp terminals
Minimum switching voltage 17 V
[Ui] rated insulation voltage 300 V conforming to CSA C22.2 No 14, 300 V conforming to UL 508, 690 V conforming to IEC 60947-1
Net weight 0.055 kg
Protection type gG fuse 10 A, GB2CB... circuit breaker
[Ue] rated operational voltage 24...240 V DC, 48...690 V AC
[Ith] conventional free air thermal current 2.5 A for fault signalling, 6 A
Height 89 mm
Minimum switching current 5 mA
Environment
Environmental characteristic normal environment
Product certifications UKCA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.500 cm
Package 1 Width 7.000 cm
Package 1 Length 9.000 cm
Package 1 Weight 43.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 9.500 cm
Package 2 Width 9.800 cm
Package 2 Length 15.000 cm
Package 2 Weight 471.000 g
Unit Type of Package 3 3
Number of Units in Package 3 60
Package 3 Height 15.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 3.138 kg
