SKU:

GVAE11

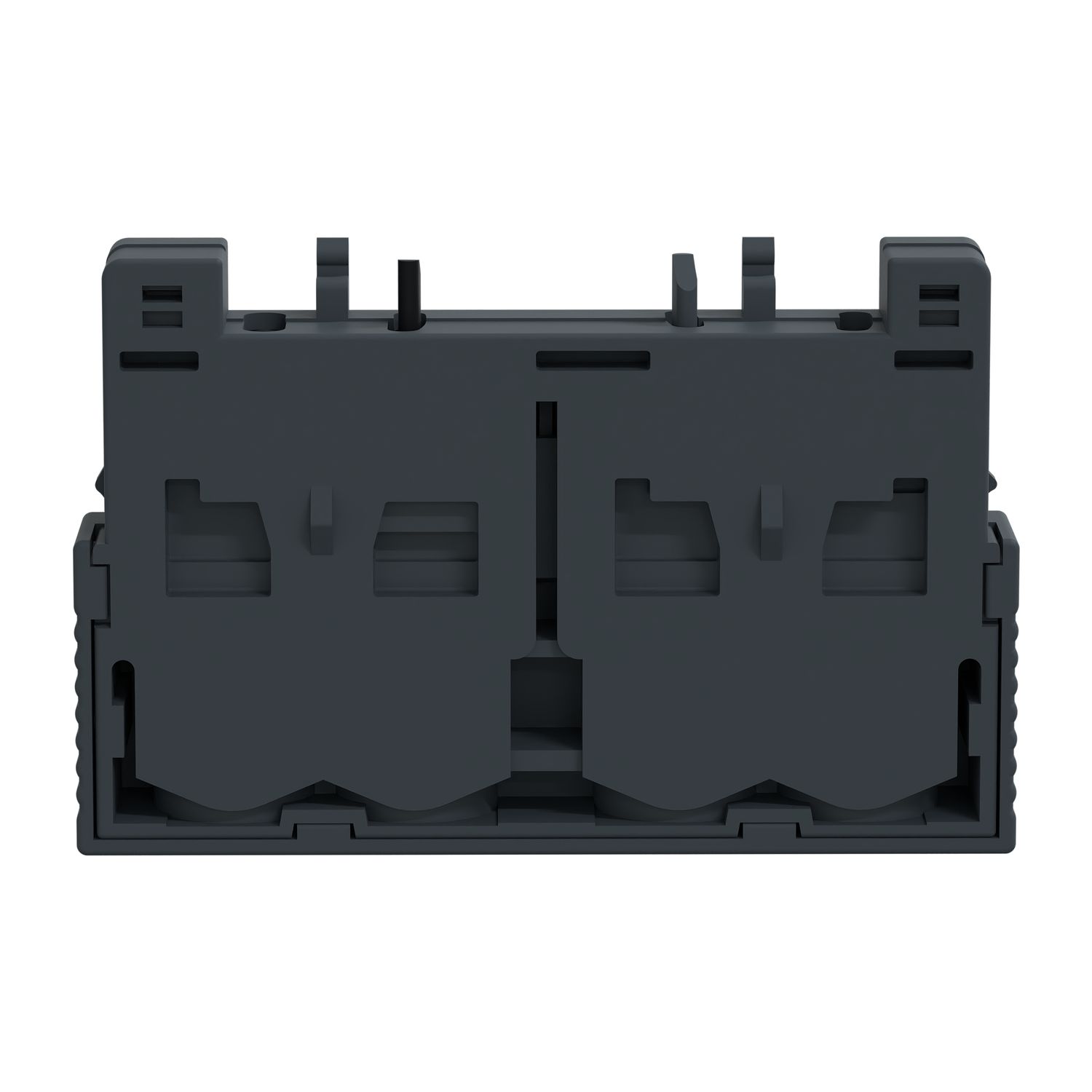

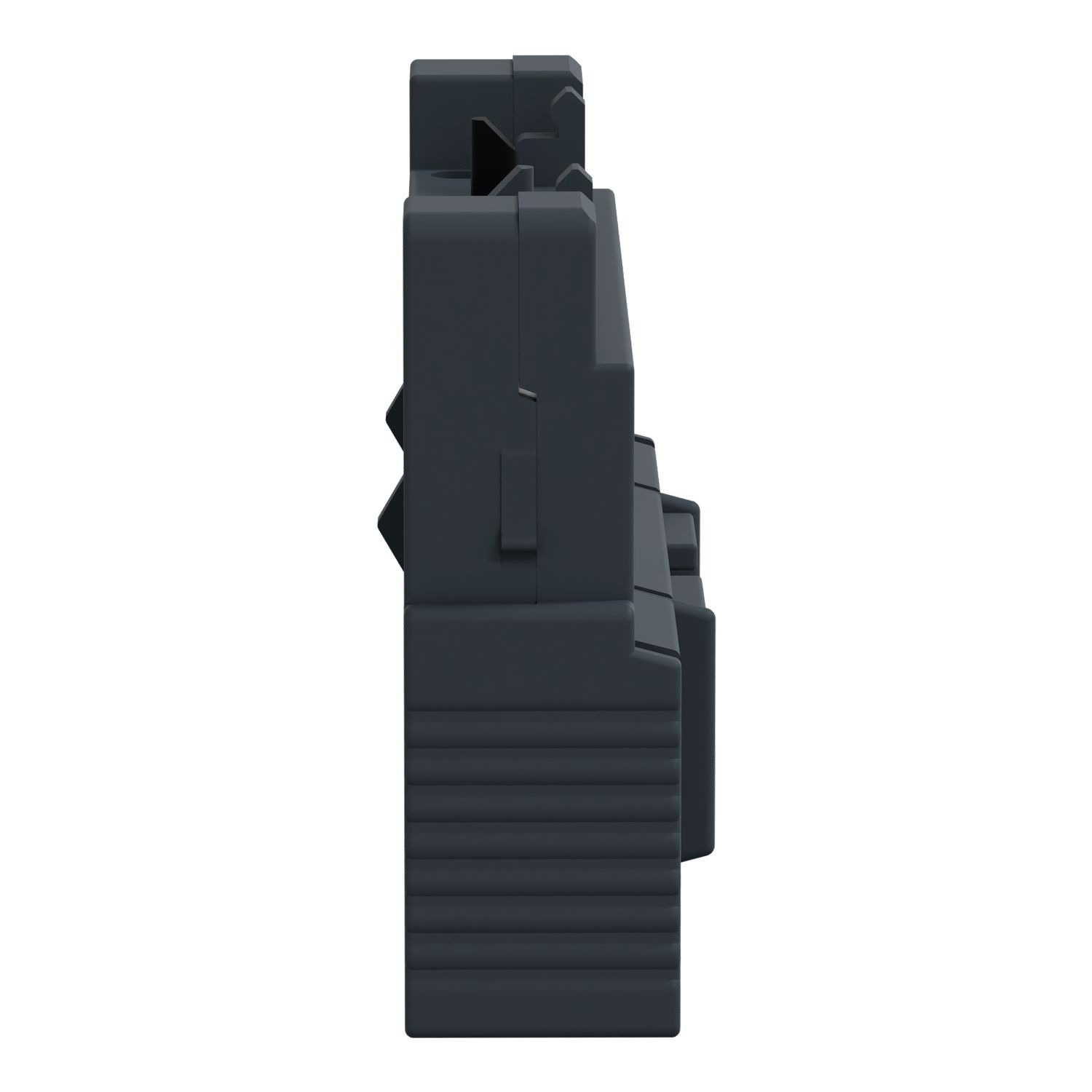

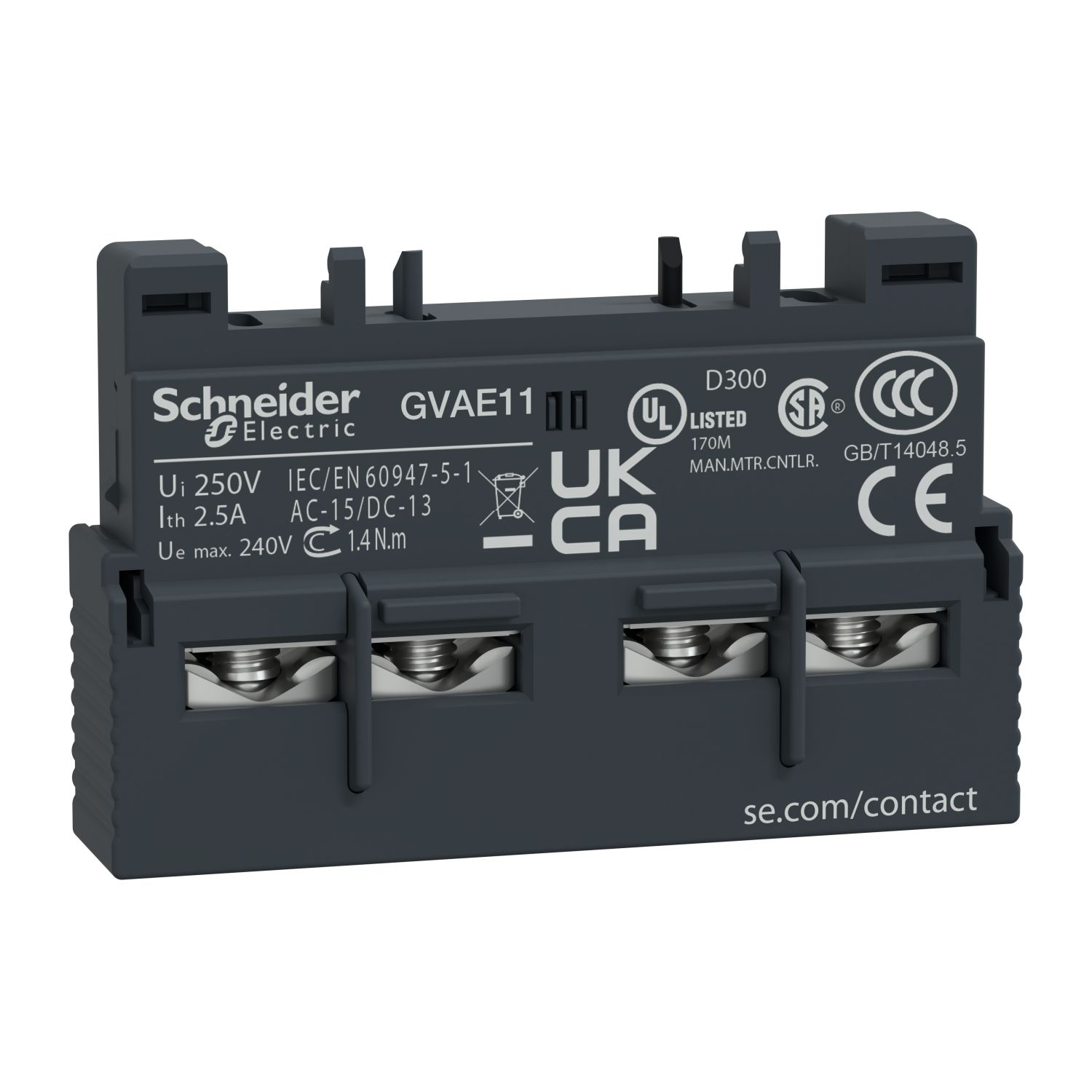

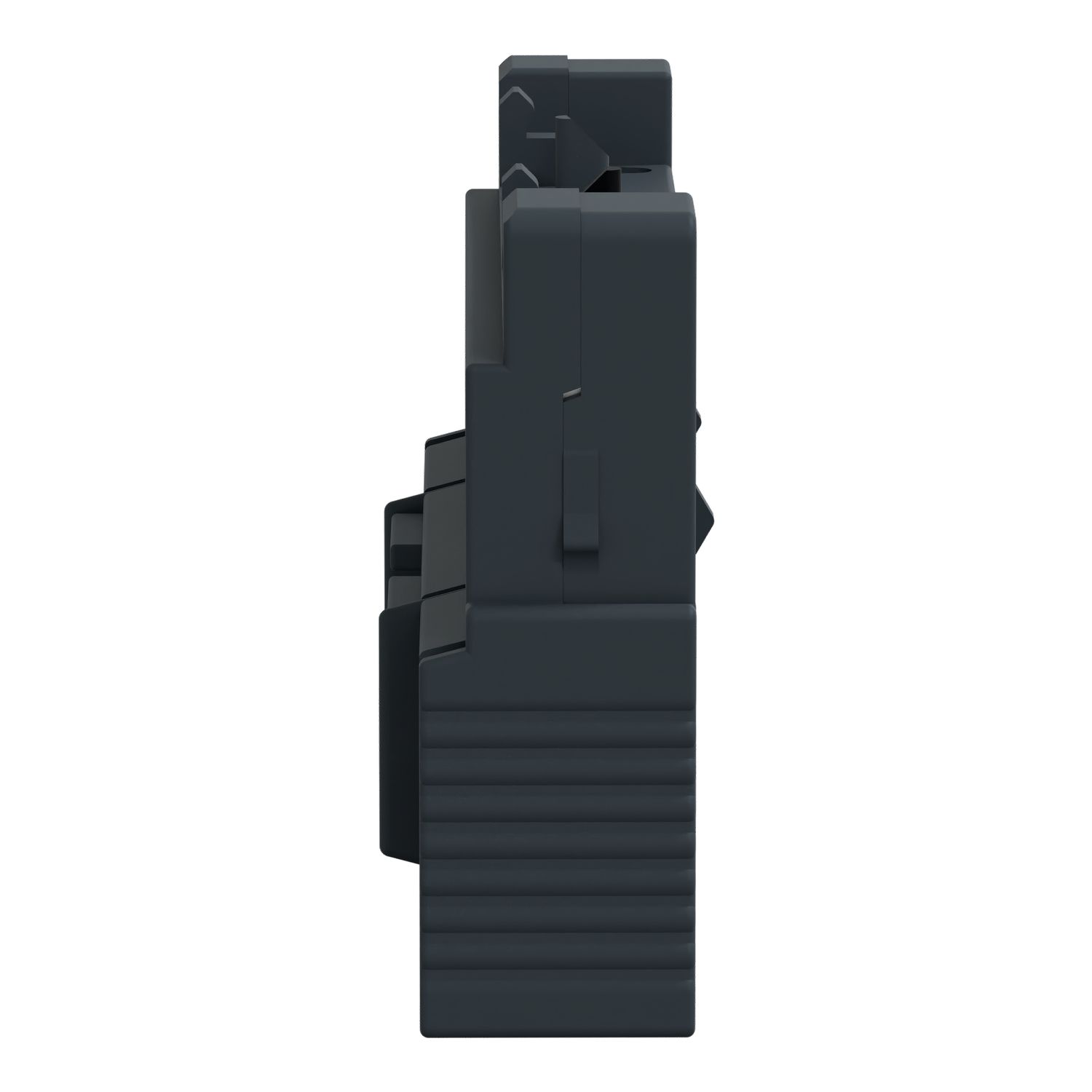

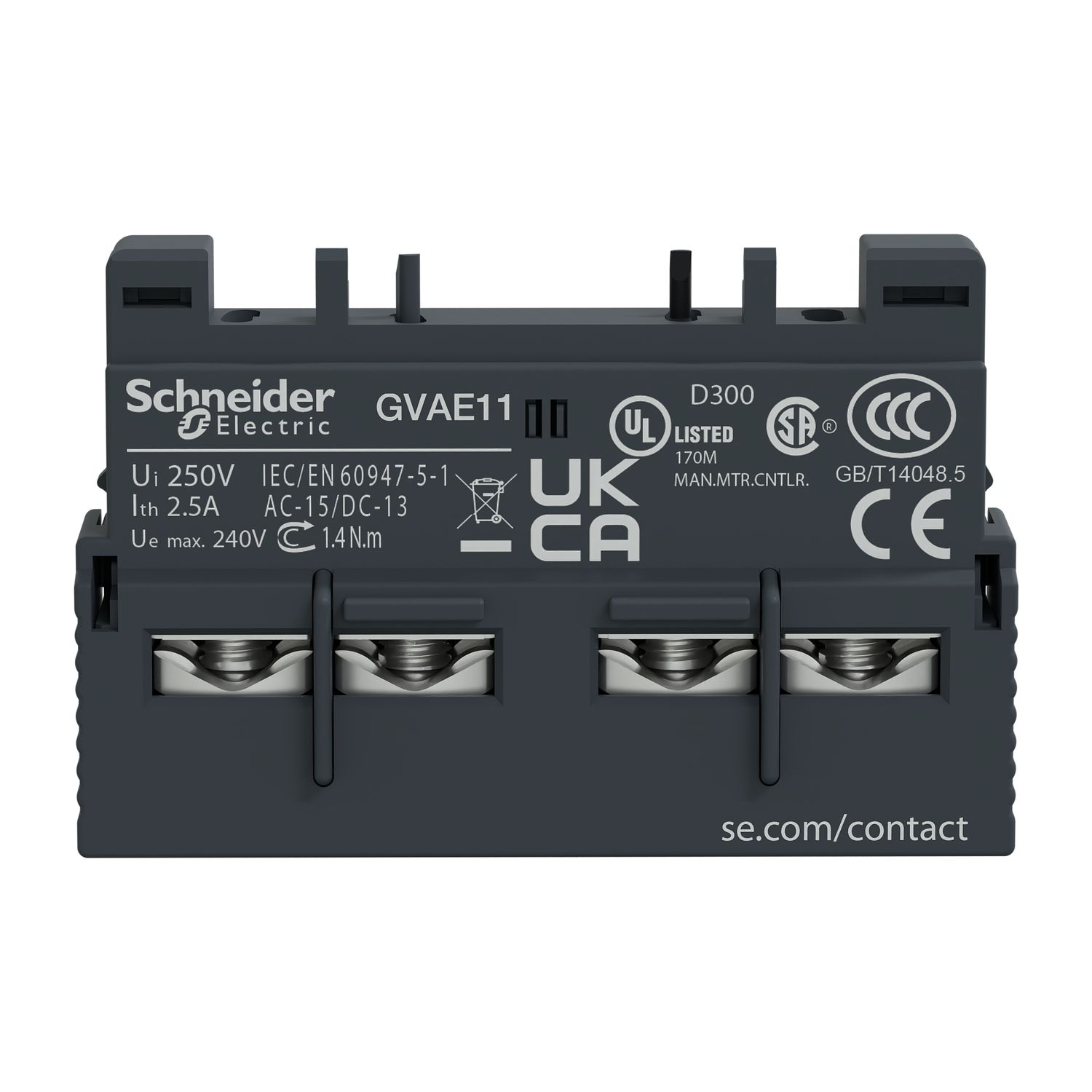

TeSys; TeSys Deca, Auxiliary contact block,TeSys Deca, 1NO+1NC,front mounting,for GV2

$48.01
TeSys; TeSys Deca, Auxiliary contact block,TeSys Deca, 1NO+1NC,front mounting,for GV2
  • New modern look & feel of all machines
  • Designed to meet the requirements of Electro domestic and HVAC applications
  • Easier to install and operate with multi-standard screws
  • With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
  • Digital customer experience for technical documents
  • Maintenance guide via EcoStruxureTM Facility Expect
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Catalogue
Product environmental
End of life manual
Instruction sheet
Image of product
Image of product
Image of product
Image of product
Product Page Link
Product Data Sheet
TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 1NO+1NC instantaneous auxiliary contacts. Rated for operation up to 2A/240V AC and 1A/60V DC. To be installed on front side of the circuit breaker, connection by screw clamp terminals. Sold in lots of 10 units. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute nameAttribute value
Main
Device short nameGVAE
Product compatibilityGV2L, GV3P, GV2LE, GV3L, GV2ME, GV2RT, GV2P
Quantity per setset of 10
Pole contact composition1 NO + 1 NC
Mounting locationfront side
RangeTeSys Deca, TeSys
Product or component typeauxiliary contact block
Range of productTeSys Deca, TeSys GV2, TeSys GV3
Complementary
Rated operational power in W9 W at 60 V DC-13 - electrical durability: 100000 cycles, 24 W at 24 V DC-13 - electrical durability: 100000 cycles, 15 W at 48 V DC-13 - electrical durability: 100000 cycles
Depth29 mm
Width45 mm
Compatibility codeGVAE
Mechanical durability100000 cycles
Rated operational power in VA60 VA at 48-48 V AC-15 - electrical durability: 100000 cycles, 48 VA at 24-24 V AC-15 - electrical durability: 100000 cycles, 120 VA at 230-240 V AC-15 - electrical durability: 100000 cycles, 120 VA at 110-120 V AC-15 - electrical durability: 100000 cycles
Tightening torque1.4 N.m - on screw clamp terminals
Minimum switching voltage17 V
[Ui] rated insulation voltage250 V conforming to IEC 60947-1, 300 V conforming to CSA C22.2 No 14, 300 V conforming to UL 508
Net weight0.02 kg
Protection typeGB2CB06 circuit breaker 10 A, gG fuse 10 A
[Ue] rated operational voltage24...60 V DC, 24...240 V AC
[Ith] conventional free air thermal current2.5 A
Height11 mm
Minimum switching current5 mA
Environment
Environmental characteristicnormal environment
Product certificationsUKCA
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height1.200 cm
Package 1 Width6.000 cm
Package 1 Length7.000 cm
Package 1 Weight17.000 g
Unit Type of Package 22
Number of Units in Package 210
Package 2 Height6.200 cm
Package 2 Width12.000 cm
Package 2 Length7.400 cm
Package 2 Weight174.000 g
Unit Type of Package 33
Number of Units in Package 3220
Package 3 Height15.000 cm
Package 3 Width30.000 cm
Package 3 Length40.000 cm
Package 3 Weight4.123 kg
Unit Type of Package 44
Number of Units in Package 43520
Package 4 Height77.000 cm
Package 4 Width80.000 cm
Package 4 Length60.000 cm
Package 4 Weight65.840 kg

Related products

TeSys Deca, Motor circuit breaker, TeSys Deca, 3P, 4 to 6.3A, thermal magnetic, screw clamp terminals, button control

GV2ME10
$183.61
View Detail

TeSys Deca, Motor circuit breaker, TeSys Deca, 3P, 6 to 10A, thermal magnetic, screw clamp terminals, button control

GV2ME14
$208.97
View Detail

TeSys Deca, Motor circuit breaker, TeSys Deca, 3P, 9 to 14A, thermal magnetic, screw clamp terminals, button control

GV2ME16
$220.75
View Detail

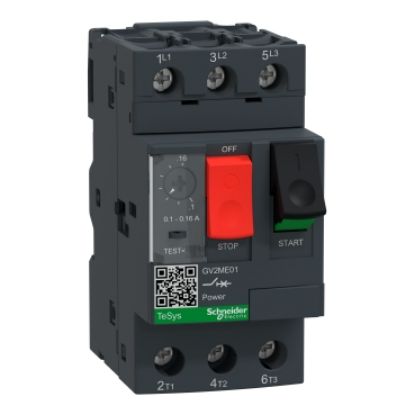

TeSys Deca, Motor circuit breaker, TeSys Deca, 3P, 0.1 to 0.16A, thermal magnetic, screw clamp terminals, button control
