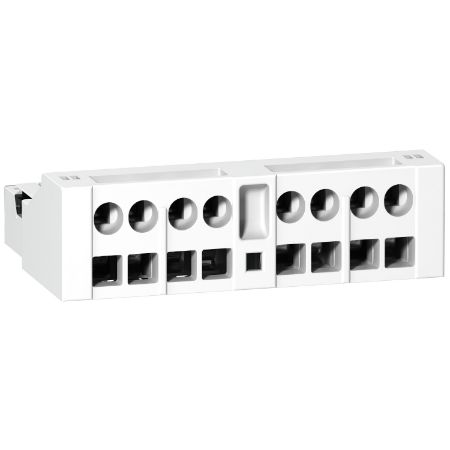

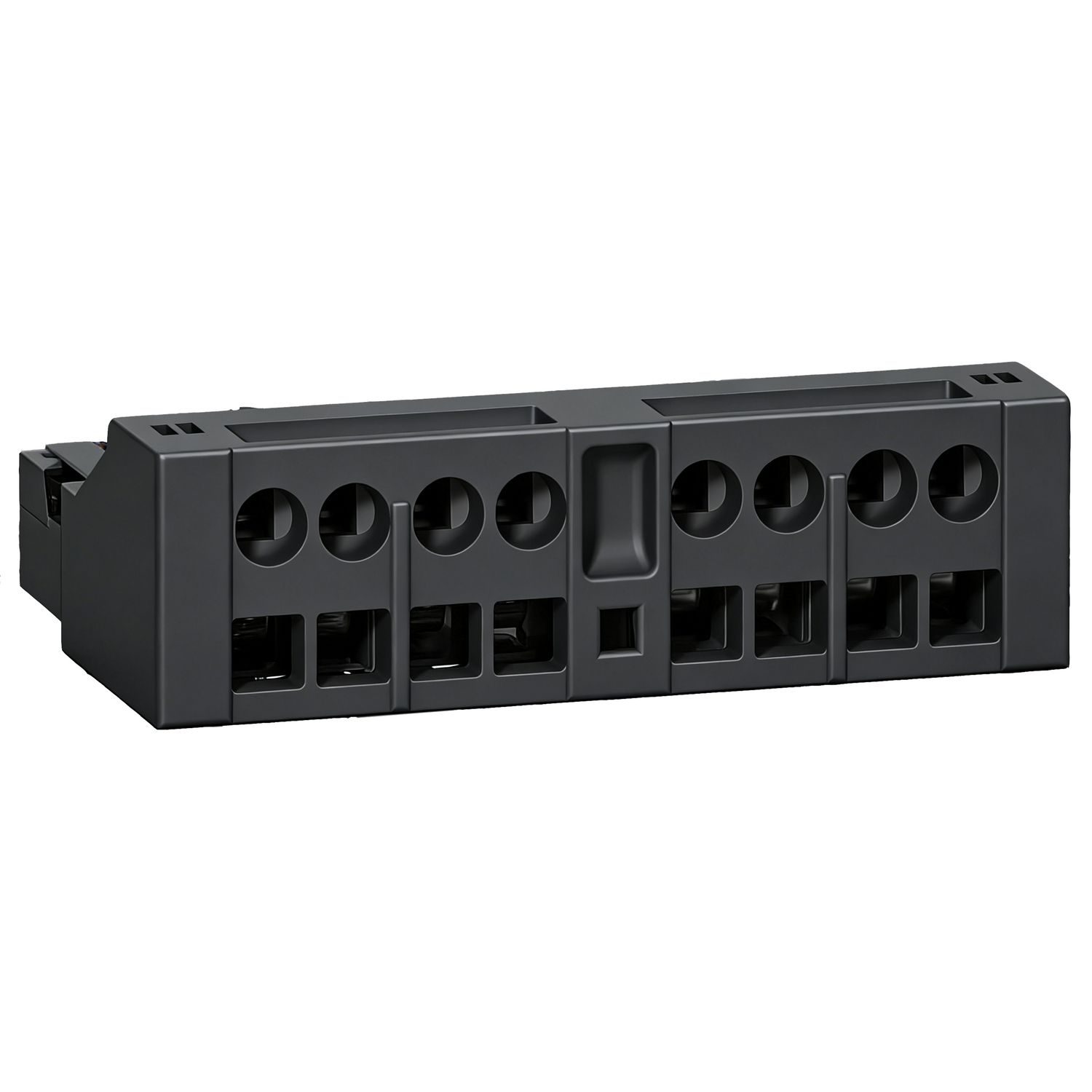

Picture of Add-on contact block,TeSys Deca Frame 2/3,2NO,frontspring terminal,for GV2/GV3(except GV3ME)
SKU:

GVAE203

Add-on contact block,TeSys Deca Frame 2/3,2NO,frontspring terminal,for GV2/GV3(except GV3ME)

$48.58
Available for Shipping : 24-Nov-2024
Add-on contact block,TeSys Deca Frame 2/3,2NO,frontspring terminal,for GV2/GV3(except GV3ME)
  • New modern look & feel of all machines
  • Designed to meet the requirements of Electro domestic and HVAC applications
  • Easier to install and operate with multi-standard screws
  • With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
  • Digital customer experience for technical documents
  • Maintenance guide via EcoStruxureTM Facility Expect
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product environmental
End of life manual
Instruction sheet
Product Page Link
Product Data Sheet
TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 2NO instantaneous auxiliary contacts. Rated for operation up to 2A/240V AC and 1A/60V DC. To be installed on front side of the circuit breaker, connection by spring terminals. Sold in lots of 10 units. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name GVAE
Product compatibility GV2ME, LS1D323, GV3L, GV2LE, GV3P, GV2RT, GV2P, GV2L
Quantity per set set of 10
Pole contact composition 2 NO
Mounting location front side
Range TeSys Deca, TeSys
Product or component type auxiliary contact block
Range of product TeSys Deca, TeSys GV2, TeSys GV3
Complementary
Rated operational power in W 9 W at 60 V DC-13 - electrical durability: 100000 cycles, 24 W at 24 V DC-13 - electrical durability: 100000 cycles, 15 W at 48 V DC-13 - electrical durability: 100000 cycles
Depth 31.5 mm
Width 44.5 mm
Colour dark grey
Compatibility code GVAE
Mechanical durability 100000 cycles
Rated operational power in VA 60 VA at 48-48 V AC-15 - electrical durability: 100000 cycles, 48 VA at 24-24 V AC-15 - electrical durability: 100000 cycles, 120 VA at 230-240 V AC-15 - electrical durability: 100000 cycles, 120 VA at 110-120 V AC-15 - electrical durability: 100000 cycles
Minimum switching voltage 17 V
[Ui] rated insulation voltage 250 V conforming to IEC 60947-1, 300 V conforming to CSA C22.2 No 14, 300 V conforming to UL 508
Net weight 0.05 kg
Protection type GB2CB06 circuit breaker 10 A, gG fuse 10 A
[Ue] rated operational voltage 24...60 V DC, 24...240 V AC
[Ith] conventional free air thermal current 2.5 A
Height 13 mm
Minimum switching current 5 mA
Environment
Environmental characteristic normal environment
Product certifications UKCA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.400 cm
Package 1 Width 3.200 cm
Package 1 Length 4.600 cm
Package 1 Weight 16.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 2.500 cm
Package 2 Width 16.000 cm
Package 2 Length 16.000 cm
Package 2 Weight 168.000 g
Unit Type of Package 3 3
Number of Units in Package 3 100
Package 3 Height 15.000 cm
Package 3 Width 15.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 1.859 kg
