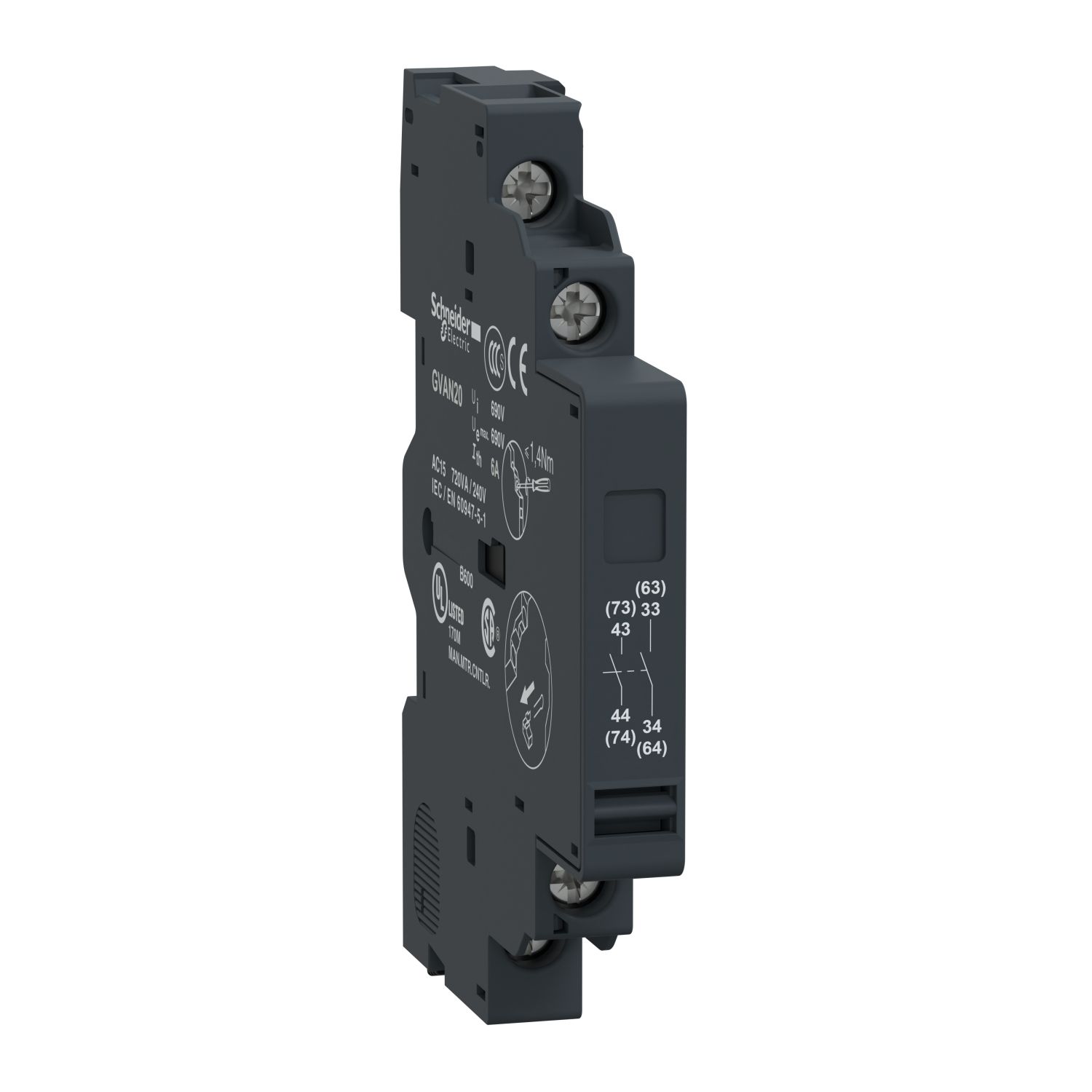

Picture of TeSys; TeSys Deca, - auxiliary contact block - 2 NO
SKU:

GVAN20

TeSys; TeSys Deca, - auxiliary contact block - 2 NO

$56.84
Available for Shipping : 24-Nov-2024
TeSys; TeSys Deca, - auxiliary contact block - 2 NO
  • New modern look & feel of all machines
  • Designed to meet the requirements of Electro domestic and HVAC applications
  • Easier to install and operate with multi-standard screws
  • With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
  • Digital customer experience for technical documents
  • Maintenance guide via EcoStruxureTM Facility Expect
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product environmental
End of life manual
Instruction sheet
Product Page Link
Product Data Sheet
TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 2NO instantaneous auxiliary contacts. Rated for operation up to 6A/690V AC and 6A/240V DC. To be installed on left-hand side of the circuit breaker (2 blocks mounting possible), connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name GVAN
Product compatibility GV2P, GV3L, GV2L, GV2LE, GV2RT, GV3P, GV2ME
Pole contact composition 2 NO
Mounting location left side
Range TeSys Deca, TeSys
Product or component type auxiliary contact block
Range of product TeSys Deca, TeSys GV2, TeSys GV3
Complementary
Rated operational power in W 240 W at 48 V DC-13 - electrical durability: 100000 cycles, 180 W at 60 V DC-13 - electrical durability: 100000 cycles, 140 W at 24 V DC-13 - electrical durability: 100000 cycles, 140 W at 110 V DC-13 - electrical durability: 100000 cycles, 120 W at 240 V DC-13 - electrical durability: 100000 cycles
Depth 66 mm
Width 9.3 mm
Colour dark grey
Compatibility code GVAN
Mechanical durability 100000 cycles
Rated operational power in VA 850 VA at 380-415 V AC-15 - electrical durability: 100000 cycles, 720 VA at 230-240 V AC-15 - electrical durability: 100000 cycles, 650 VA at 440-440 V AC-15 - electrical durability: 100000 cycles, 500 VA at 500-500 V AC-15 - electrical durability: 100000 cycles, 500 VA at 110-127 V AC-15 - electrical durability: 100000 cycles, 414 VA at 690-690 V AC-15 - electrical durability: 100000 cycles, 300 VA at 48-48 V AC-15 - electrical durability: 100000 cycles
Tightening torque 1.4 N.m - on screw clamp terminals
Minimum switching voltage 17 V
[Ui] rated insulation voltage 600 V conforming to CSA C22.2 No 14, 690 V conforming to IEC 60947-1, 600 V conforming to UL 508
Net weight 0.05 kg
Protection type gG fuse 10 A, GB2CB... circuit breaker
[Ue] rated operational voltage 24...240 V DC, 48...690 V AC
[Ith] conventional free air thermal current 6 A
Height 89 mm
Minimum switching current 5 mA
Environment
Environmental characteristic normal environment
Product certifications UKCA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.400 cm
Package 1 Width 9.800 cm
Package 1 Length 15.000 cm
Package 1 Weight 41.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 9.500 cm
Package 2 Width 9.800 cm
Package 2 Length 15.000 cm
Package 2 Weight 461.000 g
Unit Type of Package 3 3
Number of Units in Package 3 60
Package 3 Height 15.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 3.050 kg
Unit Type of Package 4 4
Number of Units in Package 4 960
Package 4 Height 77.000 cm
Package 4 Width 80.000 cm
Package 4 Length 60.000 cm
Package 4 Weight 57.600 kg
