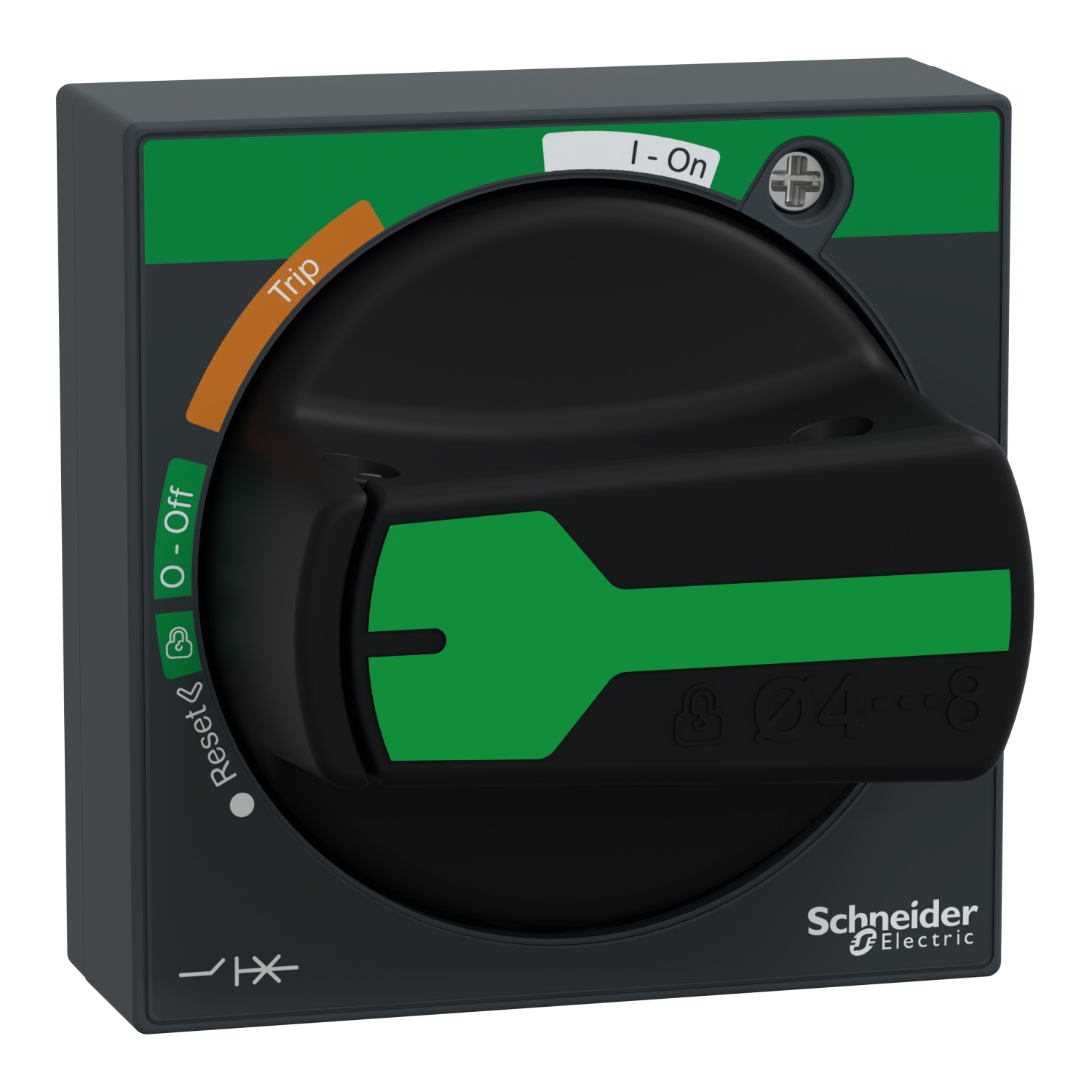

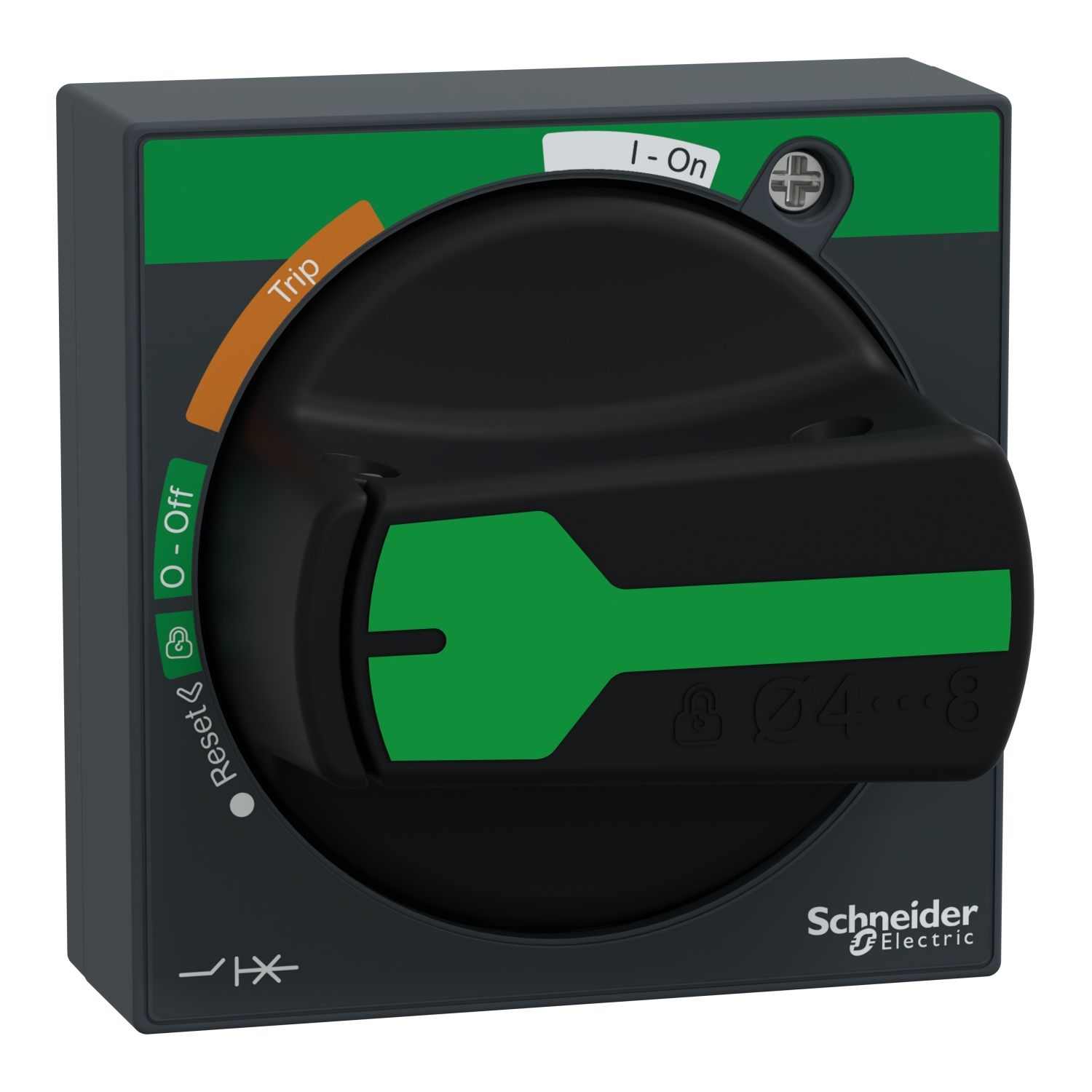

Picture of TeSys, Rotary handle, TeSys Deca-GV3-U, IP54, black handle, with trip indication
SKU:

GVAPB54

TeSys, Rotary handle, TeSys Deca-GV3-U, IP54, black handle, with trip indication

$119.26
TeSys, Rotary handle, TeSys Deca-GV3-U, IP54, black handle, with trip indication
  • Meets the needs of operating the GV installed in the sealed box
  • New modern look & feel of all machines
  • Easier to install.
  • Digital customer experience for technical documents
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 18-Oct-2024
CAD
Catalogue
Product environmental
End of life manual
Instruction sheet
Product Page Link
Product Data Sheet
TeSys Deca control accessories, rotary handle,short shaft. With trip indication,IP 54 safety protection. Easy to Install and Use 1~3 padlocks in on/off position. Directly mounting style on the front. 60mm width.

Products specifications

Attribute nameAttribute value
Main
Device short nameGVAP
Colourgrey, black
RangeTeSys
Product or component typerotary handle
Handle colourblack
Accessory / separate part categorycontrol accessory
Handle front plate colourgrey
Range of productTeSys GV2, TeSys Ultra, TeSys GV3
Complementary
Depth60 mm
Width60 mm
Rotary handle padlockingpadlock in ON position, padlock in OFF position
Compatibility codeGVAP
Net weight0.15 kg
Range compatibilityTeSys TeSys Ultra, TeSys TeSys GV3, TeSys TeSys GV2
Locking options description1 to 3 padlocks
Height43 mm
Rotary handle mounting styledirect
Environment
IP degree of protectionIP54
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height6.500 cm
Package 1 Width9.100 cm
Package 1 Length13.500 cm
Package 1 Weight174.000 g
Unit Type of Package 22
Number of Units in Package 232
Package 2 Height30.000 cm
Package 2 Width30.000 cm
Package 2 Length40.000 cm
Package 2 Weight6.130 kg

Related products

Picture of TeSys, Long shaft for rotary handle,TeSys Deca-U,length 315 mm

TeSys, Long shaft for rotary handle,TeSys Deca-U,length 315 mm

GVAPA1
$33.37
View Detail
Picture of External handle protection frame,TeSys Deca Frame 2/3,TeSys Ulta,black frame

External handle protection frame,TeSys Deca Frame 2/3,TeSys Ulta,black frame

GVAPBPHP
Please Contact Sales to buy this Product. click here
View Detail

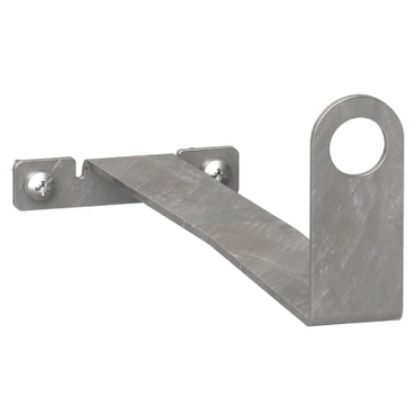

Picture of TeSys, Shaft support bracket for deep enclosure,TeSys Deca,for depth exceeding 250 mm

TeSys, Shaft support bracket for deep enclosure,TeSys Deca,for depth exceeding 250 mm

GVAPK11
$24.62
View Detail

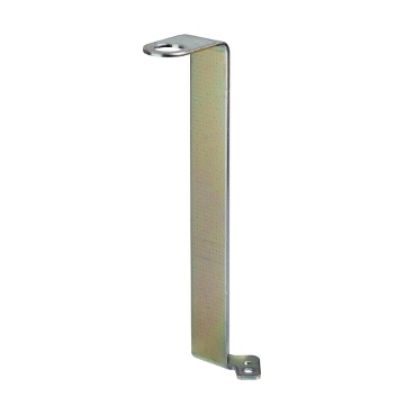

Picture of Shaft support bracket for deep enclosure,TeSys Deca Frame 3,TeSys Ulta,for depth exceeding 300 mm

Shaft support bracket for deep enclosure,TeSys Deca Frame 3,TeSys Ulta,for depth exceeding 300 mm

GVAPK12
$58.81
View Detail

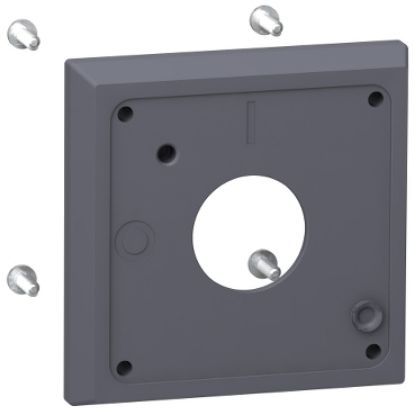

Picture of TeSys, Spacer base for rotary handle mounting, TeSys Deca, retrofit accessory
