SKU:

GVAPK11

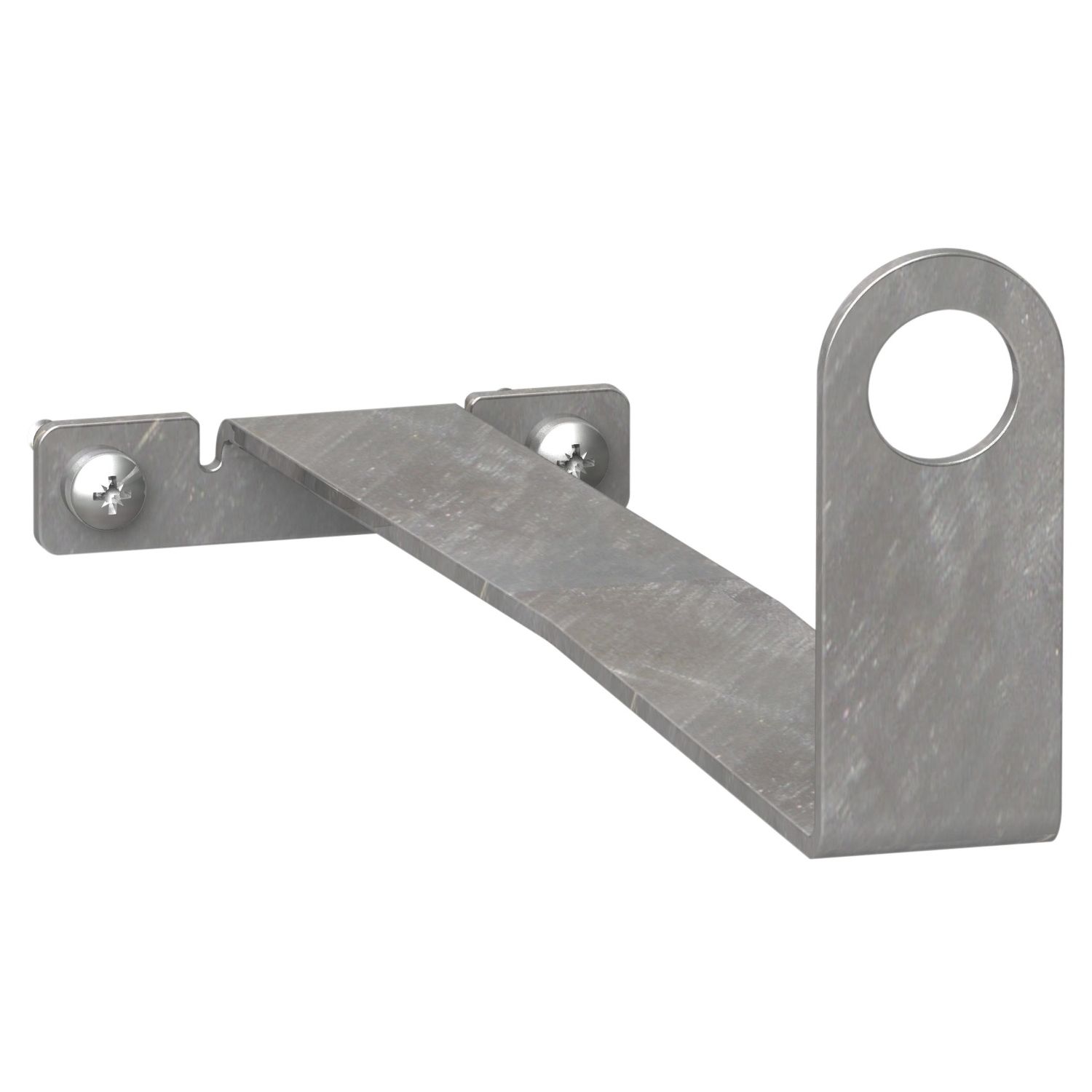

TeSys, Shaft support bracket for deep enclosure,TeSys Deca,for depth exceeding 250 mm

$24.62
Available for Shipping : 24-Nov-2024
TeSys, Shaft support bracket for deep enclosure,TeSys Deca,for depth exceeding 250 mm
  • Meets the needs of operating the GV installed in the sealed box
  • New modern look & feel of all machines
  • Easier to install.
  • Digital customer experience for technical documents
Manufacturer: Schneider Electric
A set of control accessory for TeSys Deca,protection cover. Shaft support bracket for deep enclosure. The deepth is exceeding 250mm.

Products specifications

Attribute name Attribute value
Main
Device short name GVAP
Range TeSys
Product or component type shaft bracket
Accessory / separate part category control accessory
Range of product TeSys Deca, TeSys GV2
Complementary
Product compatibility GVAPA1, GV2APN04, GV2APN03, GV2APN02, GV2APN01
Compatibility code GVAP
Length 250 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.5 cm
Package 1 Width 6.0 cm
Package 1 Length 14.0 cm
Package 1 Weight 37.0 g
Unit Type of Package 2 2
Number of Units in Package 2 80
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 3.485 kg
