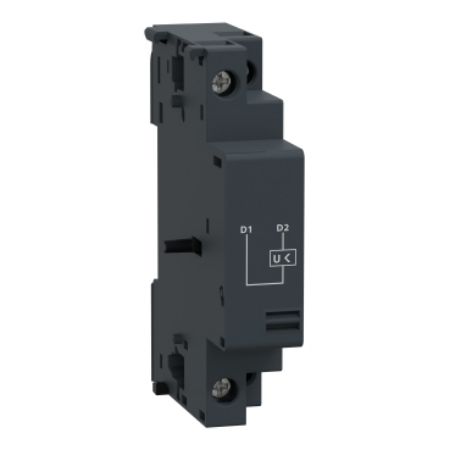

Picture of TeSys; TeSys Deca, Undervoltage release (MN),TeSys Deca, 110-115V AC 50Hz
SKU:

GVAU115

TeSys; TeSys Deca, Undervoltage release (MN),TeSys Deca, 110-115V AC 50Hz

$158.35
TeSys; TeSys Deca, Undervoltage release (MN),TeSys Deca, 110-115V AC 50Hz
  • New modern look & feel of all machines
  • Designed to meet the requirements of Electro domestic and HVAC applications
  • Easier to install and operate with multi-standard screws
  • With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
  • Digital customer experience for technical documents
  • Maintenance guide via EcoStruxureTM Facility Expect
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 18-Oct-2024
Catalogue
CAD
Product environmental
End of life manual
Instruction sheet
Product Page Link
Product Data Sheet

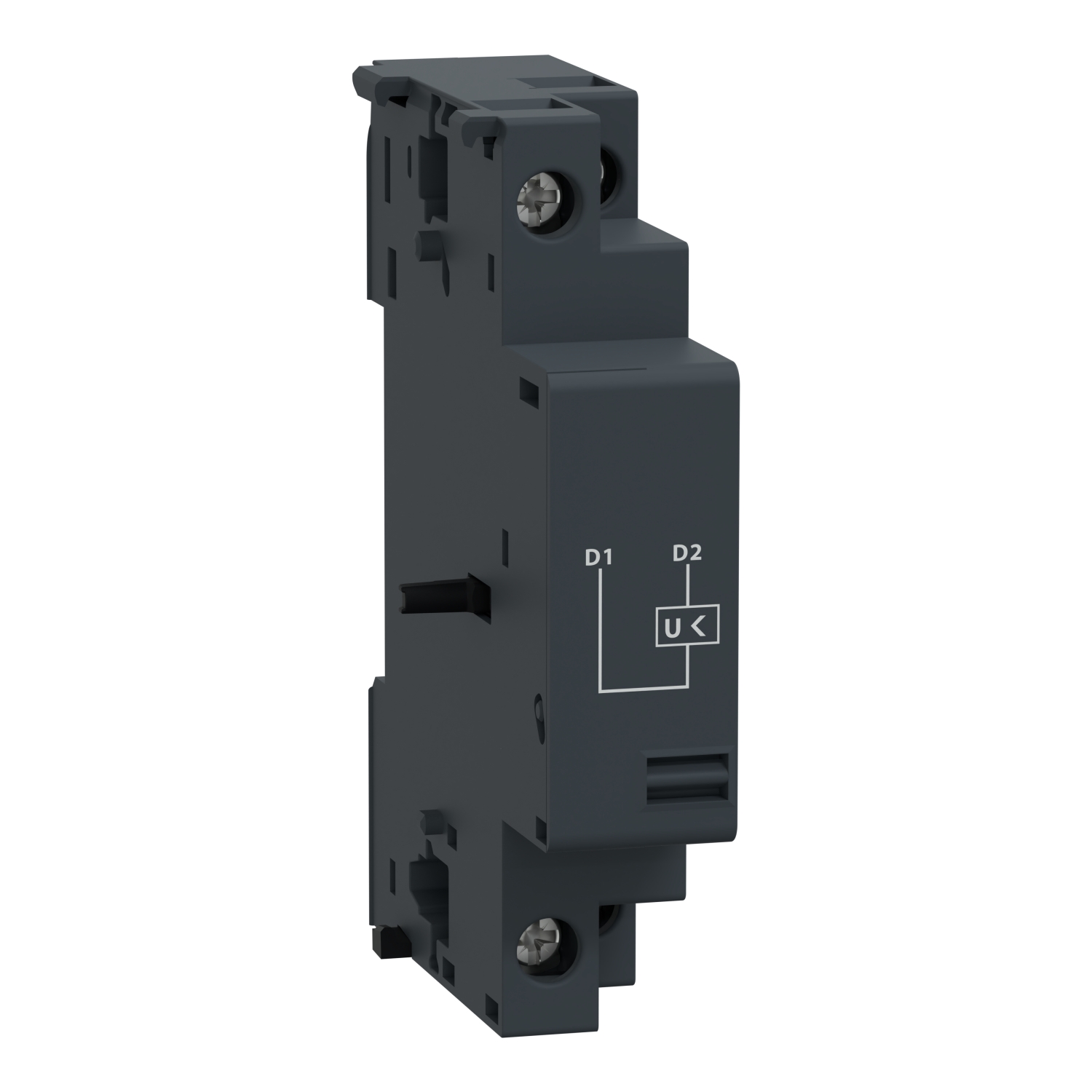

TeSys GV electrical trip, MN undervoltage release, 110-115V AC 50Hz / 127V AC 60Hz, for motor circuit breakers GV2, GV3. It trips the circuit breaker when the control voltage drops below 0.35 Uc, possible opening between 0.35-0.7 Uc. Closing of the circuit breaker is only possible when the control voltage is applied in the range 0.85-1.1 Uc. To be mounted on right-hand side of the circuit breaker, connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute nameAttribute value
Main
Device short nameGVAU
RangeTeSys Deca, TeSys
Product or component typeundervoltage release
Range of productTeSys Deca, TeSys GV3, TeSys GV2
Complementary
Inrush power in W8 W
Depth66 mm
Width18 mm
Colourdark grey
Operating time10...15 ms conforming to IEC 60947-1
Quantity per setset of 10
On-load factor100 %
Hold-in power consumption in VA3.5-3.5 VA AC
Compatibility codeGVAU
Threshold tripping voltage0.7...0.35 Un
Mechanical durability30000 cycles with GV2ME and GV2P, 10000 cycles with GV3P and GV3L
[Ui] rated insulation voltage600 V AC conforming to CSA C22.2 No 60947-4-1, 600 V AC conforming to UL 60947-4-1, 690 V AC conforming to IEC 60947-1
Connections - terminalsscrew clamp terminals 2 cable(s) 0.75-1.5 mm²flexible with cable end, screw clamp terminals 1 cable(s) 0.75-1.5 mm²flexible with cable end, screw clamp terminals 2 cable(s) 0.75-2.5 mm²flexible without cable end, screw clamp terminals 1 cable(s) 0.75-2.5 mm²flexible without cable end, screw clamp terminals 2 cable(s) 1-2.5 mm²solid, screw clamp terminals 1 cable(s) 1-2.5 mm²solid
Inrush power in VA12-12 VA AC
Net weight0.105 kg
Hold-in power consumption in W1.1-1.1 W
Range compatibilityTeSys Deca, TeSys GV3P, TeSys GV3L, TeSys GV2P, TeSys GV2L, TeSys GV2LE, TeSys GV2ME
Tightening torque< 1.4 N.m on screw clamp terminals
Control circuit voltage limits0.85...1.1 Un
Height89 mm
[Uc] control circuit voltage110...115 V AC 50 Hz, 127 V AC 60 Hz
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height3.600 cm
Package 1 Width8.300 cm
Package 1 Length9.200 cm
Package 1 Weight109.000 g
Unit Type of Package 22
Number of Units in Package 216
Package 2 Height15.000 cm
Package 2 Width15.000 cm
Package 2 Length40.000 cm
Package 2 Weight1.914 kg
