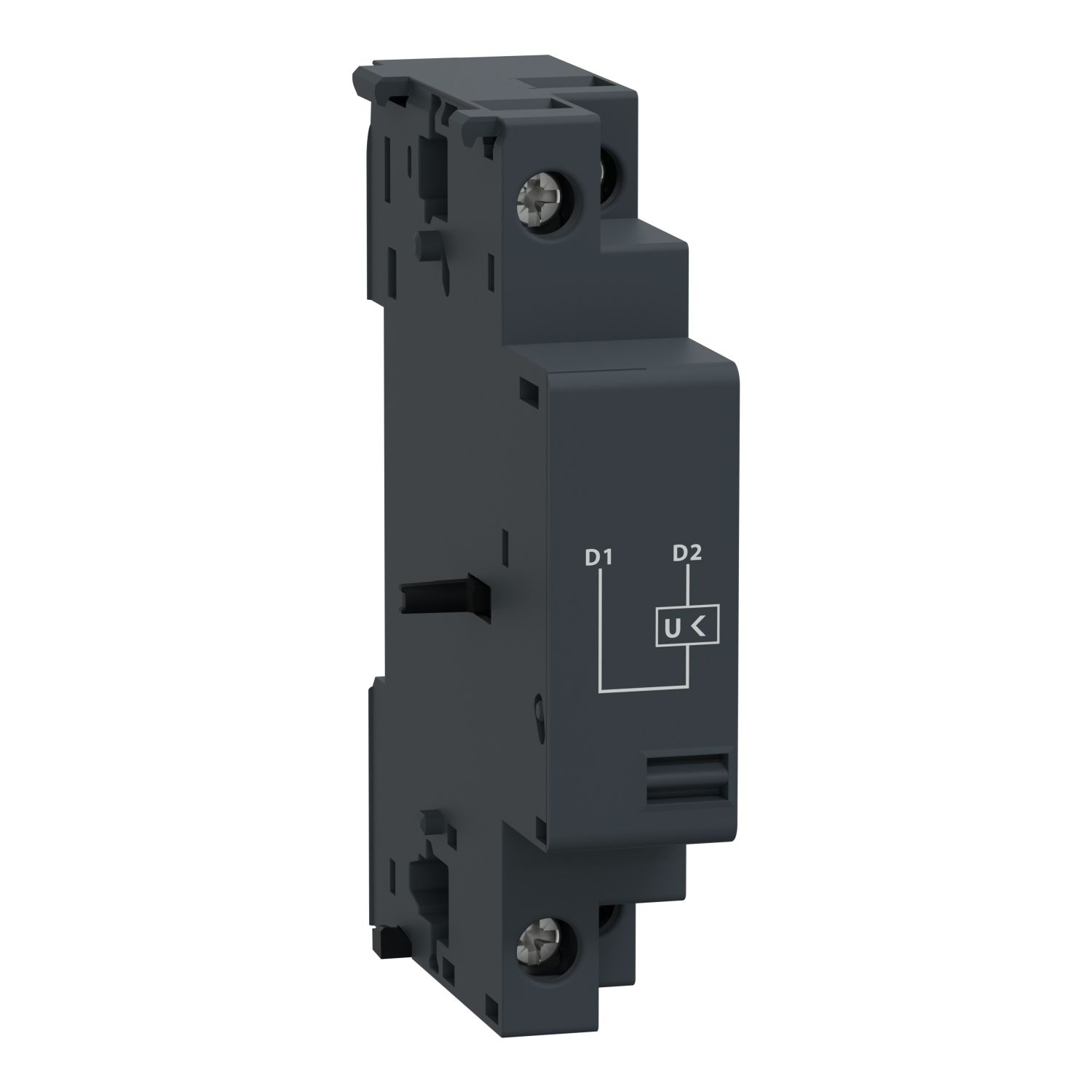

Picture of TeSys; TeSys Deca, Undervoltage release (MN),TeSys Deca, 220-240V AC 50Hz
SKU:

GVAU225

TeSys; TeSys Deca, Undervoltage release (MN),TeSys Deca, 220-240V AC 50Hz

$158.35
Available for Shipping : 03-Dec-2024
TeSys; TeSys Deca, Undervoltage release (MN),TeSys Deca, 220-240V AC 50Hz
  • New modern look & feel of all machines
  • Designed to meet the requirements of Electro domestic and HVAC applications
  • Easier to install and operate with multi-standard screws
  • With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
  • Digital customer experience for technical documents
  • Maintenance guide via EcoStruxureTM Facility Expect
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
CAD
Product environmental
End of life manual
Instruction sheet
Product Page Link
Product Data Sheet
TeSys GV electrical trip, MN undervoltage release, 220-240V AC 50Hz, for motor circuit breakers GV2, GV3. It trips the circuit breaker when the control voltage drops below 0.35 Uc, possible opening between 0.35-0.7 Uc. Closing of the circuit breaker is only possible when the control voltage is applied in the range 0.85-1.1 Uc. To be mounted on right-hand side of the circuit breaker, connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name GVAU
Range TeSys Deca, TeSys
Product or component type undervoltage release
Range of product TeSys Deca, TeSys GV3, TeSys GV2
Complementary
Inrush power in W 8 W
Depth 66 mm
Width 18 mm
Colour dark grey
Operating time 10...15 ms conforming to IEC 60947-1
Quantity per set set of 10
On-load factor 100 %
Hold-in power consumption in VA 3.5-3.5 VA AC
Compatibility code GVAU
Threshold tripping voltage 0.7...0.35 Un
Mechanical durability 30000 cycles with GV2ME and GV2P, 10000 cycles with GV3P and GV3L
[Ui] rated insulation voltage 600 V AC conforming to CSA C22.2 No 60947-4-1, 600 V AC conforming to UL 60947-4-1, 690 V AC conforming to IEC 60947-1
Connections - terminals screw clamp terminals 2 cable(s) 0.75-1.5 mm²flexible with cable end, screw clamp terminals 1 cable(s) 0.75-1.5 mm²flexible with cable end, screw clamp terminals 2 cable(s) 0.75-2.5 mm²flexible without cable end, screw clamp terminals 1 cable(s) 0.75-2.5 mm²flexible without cable end, screw clamp terminals 2 cable(s) 1-2.5 mm²solid, screw clamp terminals 1 cable(s) 1-2.5 mm²solid
Inrush power in VA 12-12 VA AC
Net weight 0.105 kg
Hold-in power consumption in W 1.1-1.1 W
Range compatibility TeSys Deca, TeSys GV3P, TeSys GV3L, TeSys GV2P, TeSys GV2L, TeSys GV2LE, TeSys GV2ME
Tightening torque < 1.4 N.m on screw clamp terminals
Control circuit voltage limits 0.85...1.1 Un
Height 89 mm
[Uc] control circuit voltage 220...240 V AC 50 Hz
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.800 cm
Package 1 Width 8.500 cm
Package 1 Length 9.500 cm
Package 1 Weight 108.000 g
Unit Type of Package 2 2
Number of Units in Package 2 42
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.878 kg
