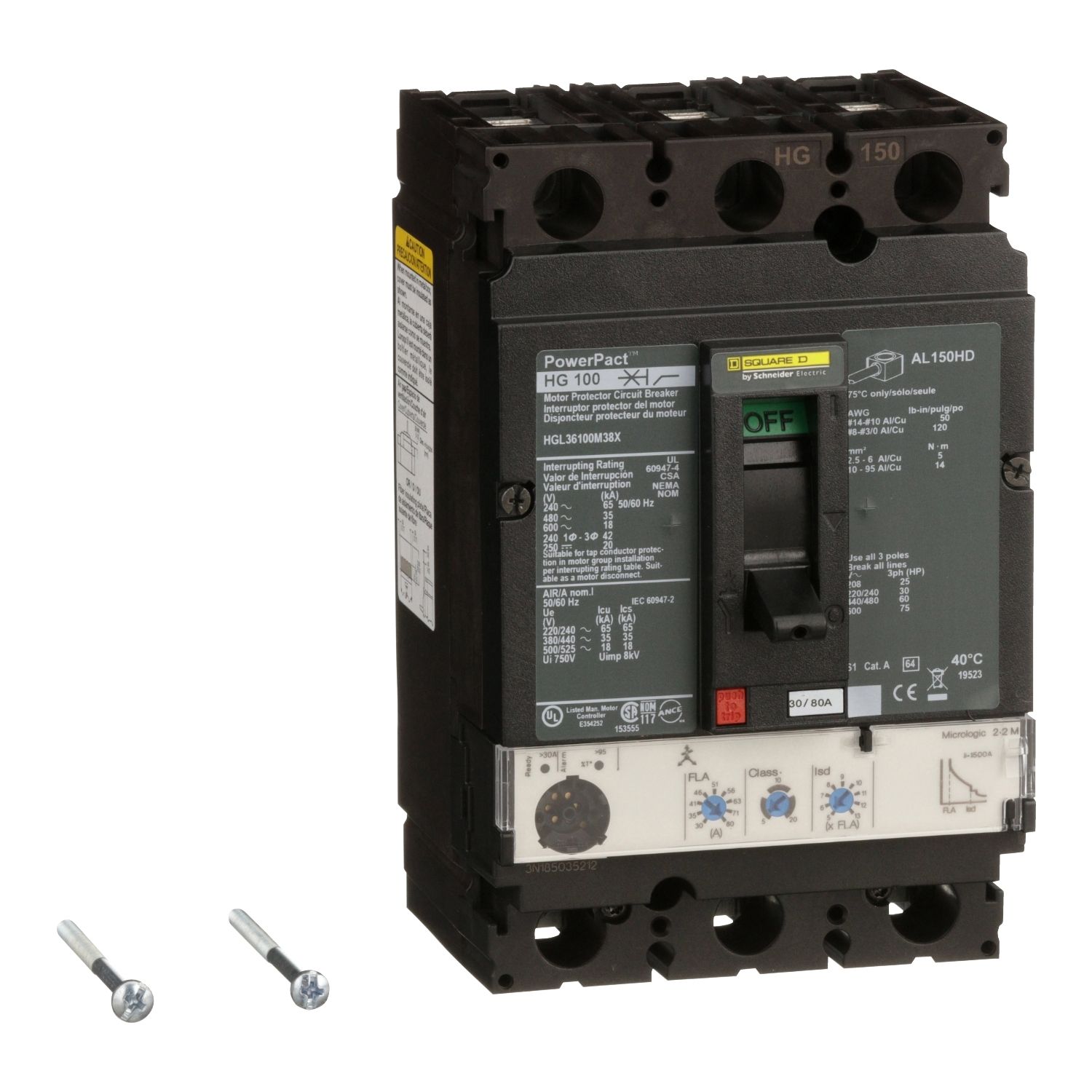

Picture of Motor circuit protector, PowerPacT H, 100A, 3 pole, 600VAC, 18kA, lugs, Micrologic 2.2M, 80%
SKU:

HGL36100M38X

Motor circuit protector, PowerPacT H, 100A, 3 pole, 600VAC, 18kA, lugs, Micrologic 2.2M, 80%

$3,008.92 INC GST
Available for Shipping : 07-Jul-2025
Motor circuit protector, PowerPacT H, 100A, 3 pole, 600VAC, 18kA, lugs, Micrologic 2.2M, 80%
Be the first to review this product
Manufacturer: Square D
Technical illustration
Catalogue
End of life manual
Product environmental
Instruction sheet
Product Page Link
Product Data Sheet
PowerPact electronic Motor Circuit Protectors (MCP) are magnetic-only instantaneous-trip circuit breakers. Designed to offer short circuit protection, they are National Electrical Code (NEC) compliant when installed as part of a combination controller having motor overload protection. PowerPact electronic Motor Circuit Protectors has sensor ratings from 30–1200 A at up to 600 Vac. They have Electronic trip units with adjustable instantaneous trip ranges and comes in 3-pole available in unit mount and I-Line construction. PowerPact electronic Motor Circuit Protectors accept the same accessories and terminals as equivalent PowerPact circuit breakers. PowerPact electronic Motor Circuit Protectors accept the same accessories and terminals as equivalent PowerPact circuit breakers. This PowerPact H, Motor Circuit Protector has a rated current of 100A and is a 3P breaker. This breaker has a breaking capacity of 35kA@480VACand has an electronic trip technology. This breaker complies to UL, CE, IEC & CSA standards. Thermal current for this breaker has a magnetic tripping current of 500-1300A. This product comes with an 18 months warranty.

Products specifications

Attribute name Attribute value
Main
Device application distribution
Range PowerPact
Product name PowerPact H
Product or component type Motor Circuit Protector
Complementary
Depth 86 mm
Width 104 mm
Colour black
AWG gauge AWG 14...AWG 3/0 aluminium/copper terminal
Protection type phase unbalance,  overload protection, short-circuit protection
Quantity per set 1
Poles description 3P
Communication interface Ethernet, Modbus
Suitability for isolation yes conforming to IEC 60947-2
[Ui] rated insulation voltage 750 V conforming to IEC 60947-2
Breaking capacity 20 kA at 500 V DC conforming to UL 489,  20 kA at 250 V DC conforming to UL 489,  18 kA at 600 V AC 50/60 Hz conforming to UL 489,  35 kA at 480 V AC 50/60 Hz conforming to UL 489,  65 kA at 240 V AC 50/60 Hz conforming to UL 489
Continuous current rating 80 %
Utilisation category category A
[In] rated current 100-100 A
Wire stripping length 16 mm
Control type toggle
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947-2
Net weight 2.2 kg
Electrical connection lugs, load, lugs, line
Number of slots 1 slot(s) for voltage release MN or MX (plug-in), 1 slot(s) for overcurrent trip switch SDE (plug-in), 1 slot(s) for alarm switch SD (plug-in), 2 slot(s) for auxiliary switch OF (plug-in)
Protected poles description 3t
Breaking capacity code G
Mounting support lug
Tightening torque 14-14 N.m for 10-95 mm² (AWG 8...AWG 3/0), 5-5 N.m for 2.5-6 mm² (AWG 14...AWG 10)
[Ue] rated operational voltage 690 V AC 50/60 Hz conforming to IEC 60947-3
Height 163 mm
Trip unit name MicroLogic 2.2 M
Trip unit technology electronic, standard, MicroLogic 2.2 M, LSoI
[Ith] conventional free air thermal current 30-80 A
[Ics] rated service breaking capacity 20 kA at 500 V DC conforming to IEC 60947-2, 20 kA at 250 V DC conforming to IEC 60947-2, 18 kA at 500/525 V AC 50/60 Hz conforming to IEC 60947-2, 35 kA at 380/440/415 V AC 50/60 Hz conforming to IEC 60947-2, 65 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
Terminal identifier AL150HD
Network frequency 50/60 Hz
Mounting mode unit mount (lug)
Environment
Operating altitude 5000 m with derating, < 2000 m without derating
Quality labels CE
Ambient air temperature for storage -50-85 °C
Pollution degree 3 conforming to IEC 60947-1
IP degree of protection front cover: IP40 conforming to IEC 60529
Product certifications NOM, CSA, UL
Standards IEC 60947-2, NOM-003-SCFI-2000, NEMA, CSA, UL
Ambient air temperature for operation -25-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
