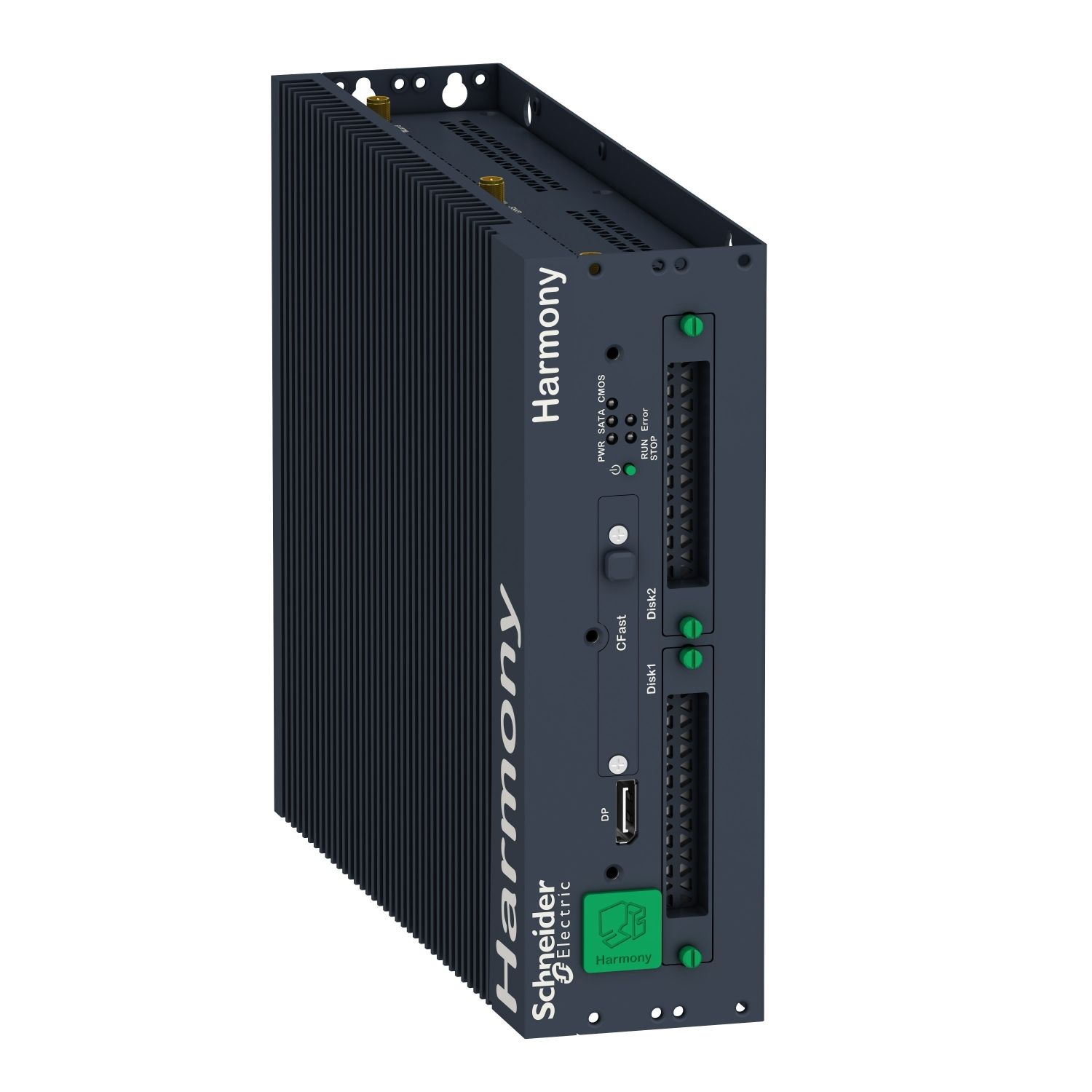

Picture of Modular box PC, Harmony iPC, HMIBM Universal DC Base unit 4 GB 2 slots
SKU:

HMIBMU0I29D2001

Modular box PC, Harmony iPC, HMIBM Universal DC Base unit 4 GB 2 slots

$4,443.31
Available for Shipping : 05-Jan-2025
Product Selector
Modular box PC, Harmony iPC, HMIBM Universal DC Base unit 4 GB 2 slots
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
CAD
Product environmental
Declaration of conformity
User guide
End of life manual
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Chipset type Intel QM87
Device short name Modular BOX PC Universal
Processor name Intel Celeron 2980U 1.6 GHz
Software package EcoStruxure augmented operator advisor server augmented operator license not included, EcoStruxure machine SCADA expert run time HMI/SCADA on configured offer only, EcoStruxure Operator Terminal Expert run time HMI license not included, EcoStruxture secure connect advisor annual subscription cyber security license not included, McAfee white listing installer cyber security license not included, Node-RED and system nodes restore IIoT Wiring Operating System Restore
Range of product Harmony iPC
Range compatibility Modular Display HMIDM, iDisplay
Accessory / separate part destination PC panel on HMIDM modular display
Product or component type modular box PC
Video controller type Intel HD Graphics
Complementary
Type of cooling fan required to mount PCI/PCIe cards above 3 W, fanless
Display resolution 3200 x 2000 pixels at 60 Hz
Number of slots available for expansion 2 slot(s) for mini PCIe
Free slots 1 mSATA, 1 CFast, 2 Internal SATA HDD/SSD with slide-in HMIYMADSDD1 to mount . hot swap RAID with Intel Rapid Storage Technology
Supply voltage limits 18-36 V
Depth 65.2 mm
Watchdog timer 1-255 ms
Control type ON/OFF button
Height 207 mm
Electrical connection connector, connector type: SMA, 3 ways - location: top, screw connector, connector type: pin, 1 way, circuit application: ground - location: bottom
Width 254 mm
Integrated connection type TPM connector Ver 1.2 for cyber security - hardware encryption TPM module HMIYMINATPM201 to be installed/default installed on motherboard, USB 3.0 port with 2 USB type A, transmission rate: 5 Gbit/s on bottom, USB 2.0 port with 2 USB type A, transmission rate: 480 Mbit/s on bottom, COM1 serial link for battery backup with 1 male SUB-D 9 RS232/422/485 on bottom, Ethernet with 2 RJ45 I210, transmission rate: 10/100/1000 Mbps on bottom IEEE 1588 supported, display port with 1 on front, display port with 1 on bottom
Memory description 512 KB MRAM internal, 4 GB RAM DDR3 internal (not expandable)
Mounting location flat mounting, book mounting, wall mounting
Net weight 3.1 kg
Main type Universal
Number of slots 2 slot(s) for mini PCI Express full-size
Inrush current 8.9 A
[Us] rated supply voltage 100...240 V AC power supply, 24 V DC power supply
Power consumption in W 45 W (with Wide 22" display HMIDMA521), 43 W (with Wide 19" display HMIDM9521), 41 W (with Wide 15" display HMIDM7521), 40 W (with 4:3 15" display HMIDM7421), 37.0 W (with Wide 12" display HMIDM6521), 39.0 W (with 4:3 12" display HMIDM6421), 35.0 W (box)
Environment
Relative humidity 10-95 % non-condensing conforming to EN/IEC 60068-2-30
Ambient air temperature for storage -30-70 °C conforming to IEC 60068-2-14, -30-70 °C conforming to IEC 60068-2-2
Directives 2006/95/EC - low voltage directive, 2004/108/EC - electromagnetic compatibility
IP degree of protection IP40 conforming to IEC 60529
Electromagnetic compatibility conducted and radiated emissions class A conforming to EN 55022, disturbing field emission class A conforming to EN 55011, immunity to high frequency interference conforming to IEC 61000-4
Product certifications IEC Ex hazardous locations 3GD zone 2/22, EAC, RCM, CCC, ATEX, cULus HazLoc Class I Division 2 CSA 22-2 No 213, cULus HazLoc Class I Division 2 ANSI/ISA 12-12-01, cULus CSA 22-2 No 142, cULus, CE
Standards UL 61010,  FCC part 15, EN 61131-2, EN 61000-6-4, class A group 1 EN 55011
Ambient air temperature for operation 0-45 °C conforming to 2 on mini PCIe HMIDM modular display, 0-40 °C flat mounting on PCI/PCIe, 0-40 °C flat mounting on mini PCIe, 0-40 °C flat mounting on HDD, 0-45 °C on PCI/PCIe HMIDM modular display with HDD, 0-50 °C flat mounting, 0-55 °C (by default) conforming to EN/IEC 60068-2-2
Operating altitude 2000 m conforming to IEC 60664-1
Quality labels CE
Vibration resistance 1 gn (f = 5-500 Hz) HDD, 2 gn (f = 5-500 Hz) SSD or CFast
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.5 cm
Package 1 Width 20.7 cm
Package 1 Length 25.4 cm
Package 1 Weight 3.1 kg
Unit Type of Package 2 2
Number of Units in Package 2 1
Package 2 Height 45.0 cm
Package 2 Width 24.5 cm
Package 2 Length 43.0 cm
Package 2 Weight 5.1 kg
