HMIBMUCI29D4W01

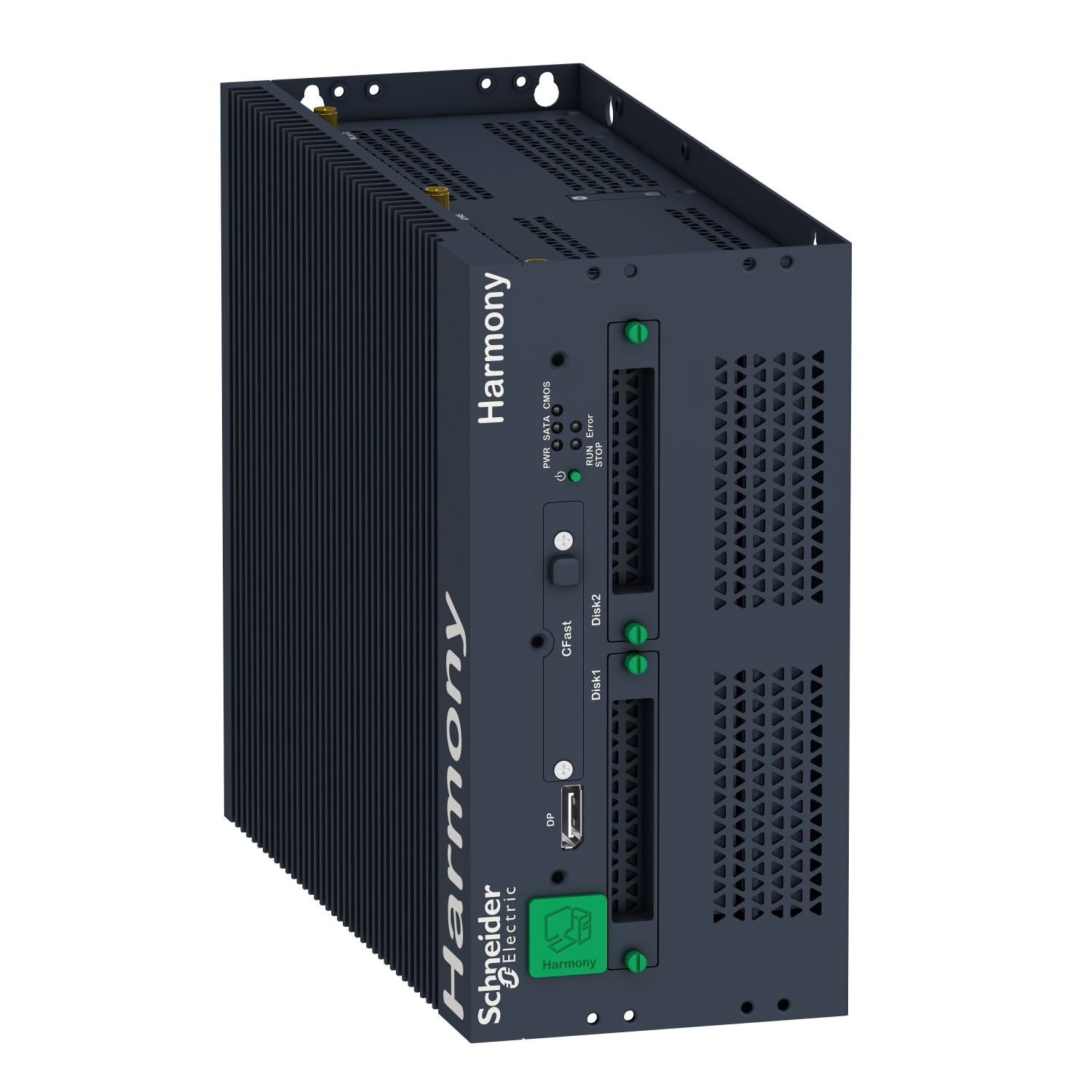

Modular box PC, Harmony iPC, HMIBM Universal CFast DC WES 4 slots

Please Contact Sales to buy this Product. click here

Product Selector

Modular box PC, Harmony iPC, HMIBM Universal CFast DC WES 4 slots

Be the first to review this product

Manufacturer: Schneider Electric

Estimated Delivery Date: 06-Feb-2025

Catalogue

CAD

Product environmental

Declaration of conformity

Products specifications

Attribute name	Attribute value
Main
Operating system	WES 7 Premium SP1 64-bitmulti-language
Chipset type	Intel QM87
Device short name	Modular BOX PC Universal
Processor name	Intel Celeron 2980U 1.6 GHz
Software package	EcoStruxure augmented operator advisor server augmented operator license not included, EcoStruxure machine SCADA expert run time HMI/SCADA on configured offer only, EcoStruxure Operator Terminal Expert run time HMI license not included, EcoStruxture secure connect advisor annual subscription cyber security license not included, McAfee white listing installer cyber security license not included, Node-RED and system nodes restore IIoT Wiring Operating System Restore
Range of product	Harmony iPC
Range compatibility	iDisplay, Modular Display HMIDM
Accessory / separate part destination	PC panel on HMIDM modular display
Product or component type	modular box PC
Video controller type	Intel HD Graphics
Complementary
Data storage equipment	32 GB CFast card
Type of cooling	fan required to mount PCI/PCIe cards above 3 W, fanless
Display resolution	3200 x 2000 pixels at 60 Hz
Number of slots available for expansion	1 slot(s) for PCI express 4x, 1 slot(s) for PCI, 2 slot(s) for mini PCIe
Free slots	1 mSATA, 1 CFast, 2 Internal SATA HDD/SSD with slide-in HMIYMADSDD1 to mount . hot swap RAID with Intel Rapid Storage Technology
Supply voltage limits	18-36 V
Depth	103.2 mm
Watchdog timer	1-255 ms
Control type	ON/OFF button
Height	207 mm
Electrical connection	connector, connector type: SMA, 3 ways - location: top, screw connector, connector type: pin, 1 way, circuit application: ground - location: bottom
Width	254 mm
Integrated connection type	TPM connector Ver 1.2 for cyber security - hardware encryption TPM module HMIYMINATPM201 to be installed/default installed on motherboard, USB 3.0 port with 2 USB type A, transmission rate: 5 Gbit/s on bottom, USB 2.0 port with 2 USB type A, transmission rate: 480 Mbit/s on bottom, COM1 serial link for battery backup with 1 male SUB-D 9 RS232/422/485 on bottom, Ethernet with 2 RJ45 I210, transmission rate: 10/100/1000 Mbps on bottom IEEE 1588 supported, display port with 1 on front, display port with 1 on bottom
Memory description	512 KB MRAM internal, 4 GB RAM DDR3 internal (not expandable)
Mounting location	flat mounting, book mounting, wall mounting
Net weight	3.9 kg
Main type	Universal
Number of slots	1 slot(s) for PCI express 1x, 2 slot(s) for mini PCI Express full-size, 1 slot(s) for PCI
Inrush current	8.9 A
[Us] rated supply voltage	100...240 V AC power supply, 24 V DC power supply
Power consumption in W	45 W (with Wide 22" display HMIDMA521), 43 W (with Wide 19" display HMIDM9521), 41 W (with Wide 15" display HMIDM7521), 40 W (with 4:3 15" display HMIDM7421), 37.0 W (with Wide 12" display HMIDM6521), 39.0 W (with 4:3 12" display HMIDM6421), 35.0 W (box)
Environment
Relative humidity	10-95 % non-condensing conforming to EN/IEC 60068-2-30
Ambient air temperature for storage	-30-70 °C conforming to IEC 60068-2-14, -30-70 °C conforming to IEC 60068-2-2
Directives	2004/108/EC - electromagnetic compatibility, 2006/95/EC - low voltage directive
IP degree of protection	IP40 conforming to IEC 60529
Electromagnetic compatibility	conducted and radiated emissions class A conforming to EN 55022, disturbing field emission class A conforming to EN 55011, immunity to high frequency interference conforming to IEC 61000-4
Product certifications	IEC Ex hazardous locations 3GD zone 2/22, EAC, RCM, CCC, ATEX, cULus HazLoc Class I Division 2 CSA 22-2 No 213, cULus HazLoc Class I Division 2 ANSI/ISA 12-12-01, cULus CSA 22-2 No 142, cULus, CE
Standards	UL 61010, FCC part 15, EN 61131-2, EN 61000-6-4, class A group 1 EN 55011
Ambient air temperature for operation	0-45 °C conforming to 2 on mini PCIe HMIDM modular display, 0-40 °C flat mounting on PCI/PCIe, 0-40 °C flat mounting on mini PCIe, 0-40 °C flat mounting on HDD, 0-45 °C on PCI/PCIe HMIDM modular display with HDD, 0-50 °C flat mounting, 0-55 °C (by default) conforming to EN/IEC 60068-2-2
Operating altitude	2000 m conforming to IEC 60664-1
Quality labels	CE
Vibration resistance	1 gn (f = 5-500 Hz) HDD, 2 gn (f = 5-500 Hz) SSD or CFast
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	25.9 cm
Package 1 Width	48.1 cm
Package 1 Length	44.3 cm
Package 1 Weight	6.0 kg
Unit Type of Package 2	2
Number of Units in Package 2	4
Package 2 Height	62.5 cm
Package 2 Width	80.0 cm
Package 2 Length	120.0 cm
Package 2 Weight	24.0 kg
