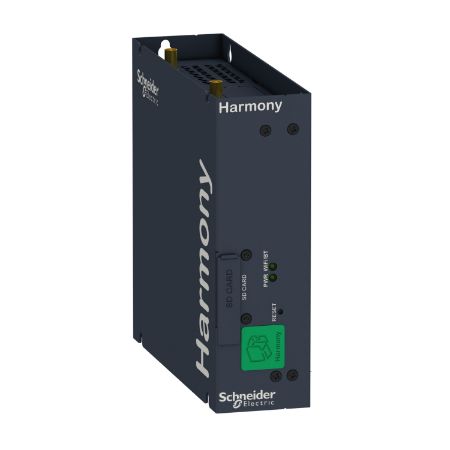

IIoT Edge Box Core, Harmony iPC, eMMC DC Linux TPM

$1,430.16
Available for Shipping : 27-Mar-2025
IIoT Edge Box Core, Harmony iPC, eMMC DC Linux TPM
Be the first to review this product
Manufacturer: Schneider Electric
User guide
End of life manual
Product environmental
Declaration of conformity
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Operating system Linux Yocto (Linux Kernel 4.4.38), Linux Yocto (BitBake branch 1.30.0), Linux Yocto (Linux Yocto project Krogoth 2.1)
Device short name IIoT Edge Box Core
Processor name ARM Cortex-A53 quad core 1.2 GHz Qualcomm Snapdragon 410
Software package Node-RED and system nodes default IIoT Wiring
Range of product Harmony iPC
Range compatibility HMIYBIN2AIM21 Interface M.2 2x Analog Input 0-10V/4-20mA, HMIYMIN8AI1 Interface Mini PCIe 8x Analog Input 0-10V, HMIYMIN4GEU1 Interface Mini PCIe 4G EU for iPC, HMIYMIN4GUS1 Interface Mini PCIe 4G US for iPC
Accessory / separate part destination Celullar 4G and analog Inputs
Product or component type IIoT Edge Box Core
Complementary
Data storage equipment 8 GB eMMC (soldered)
Type of cooling fanless
Display resolution 1920 x 1080 pixels at 60 Hz
Number of slots available for expansion 1.0 slot(s) for M.2 (not for storage), 1.0 slot(s) for mini PCIe
Free slots 1 SD card SD 3.0, max raw transfer rate 104 MBps . Supports SD,SDHC,SDXC (Standard 32 mm x 24 mm)
Supply voltage limits 12-24 V
Depth 46 mm
Watchdog timer 1-255 ms
Control type resettable
Height 150 mm
Electrical connection connector, connector type: SMA - location: top, screw connector, connector type: pin, 1 way, circuit application: ground - location: bottom
Width 157 mm
Communication network type 1.0 WCN3620 Bluetooth 4.1, 1.0 WCN3620 Wi-Fi 2.4 GHz conforming to IEEE 802.11 b/g/n
Integrated connection type TPM connector Ver 2.0 for cyber security - hardware encryption TPM module by default on motherboard, USB 2.0 port with 2.0 USB type A, transmission rate: 480 Mbit/s on bottom, COM1 serial link for battery backup with 1 male SUB-D 9 RS232/422/485 non-isolated, Ethernet with 2 RJ45 SMSC LAN7500, transmission rate: 10/100/1000 Mbps on bottom IEEE 1588 not supported, HDMI for For configuration only with 1 on bottom
Memory description 1 GB RAM LPDDR3 internal (not expandable)
Mounting location wall mounting, flat mounting, book mounting
Net weight 1 kg
Main type IIoT Edge Box Core
Cyber secured boot Secure password boot
Number of slots 1 slot(s) for M.2 not for storage, , 1 slot(s) for mini PCI Express full-size with optional interface plate,
Connector type 1.0 GPIO Pin, 8 pins bottom(Software utility provided)
Inrush current 0.43 A
[Us] rated supply voltage 100...240 V AC power supply, 24 V DC power supply
Power consumption in W 16 W
Environment
Relative humidity 10-95 % non-condensing conforming to EN/IEC 60068-2-30
Ambient air temperature for storage -20-60 °C conforming to IEC 60068-2-14, -20-60 °C conforming to IEC 60068-2-2
Directives 2006/95/EC - low voltage directive, 2004/108/EC - electromagnetic compatibility
IP degree of protection IP40 conforming to IEC 60529
Electromagnetic compatibility conducted and radiated emissions class A conforming to EN 55022, disturbing field emission class A conforming to EN 55011, immunity to high frequency interference conforming to IEC 61000-4
Product certifications ANATEL, FAC, TELEC, SRRC, IC, FCC RF, RED, EAC, RCM, CCC, UL 60950 for IT equipments, cULus, CE
Standards UL 60950,  FCC part 15, EN 61131-2, EN 61000-6-4, class A group 1 EN 55011
Ambient air temperature for operation 0-45 °C flat mounting on mini PCIe, 0-45 °C on mini PCIe, 0-50 °C flat mounting, 0-50 °C (by default) conforming to EN/IEC 60068-2-2
Operating altitude 2000 m conforming to EN/IEC 60664-1
Quality labels CE
Vibration resistance 2 gn (f = 5-500 Hz) eMMC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.5 cm
Package 1 Width 22.0 cm
Package 1 Length 32.0 cm
Package 1 Weight 1.362 kg
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30.0 cm
Package 2 Width 40.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 8.942 kg
