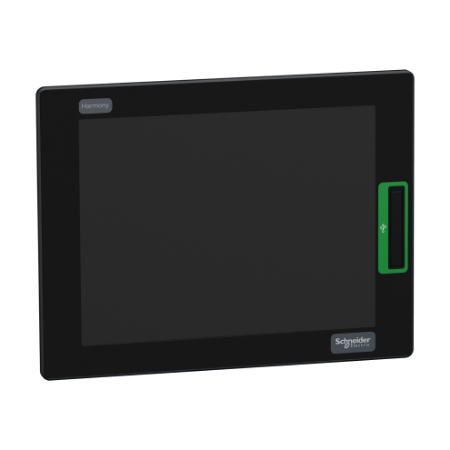

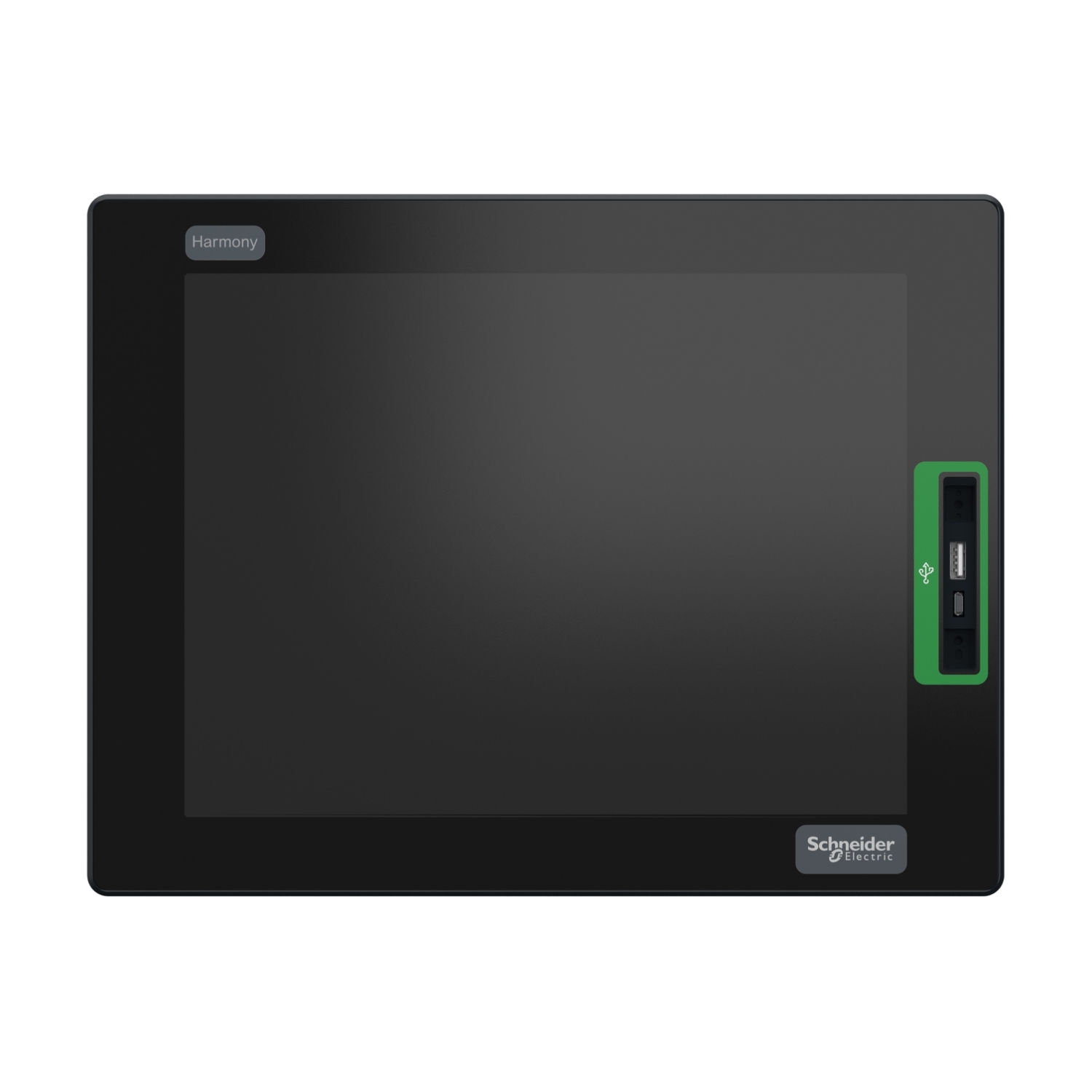

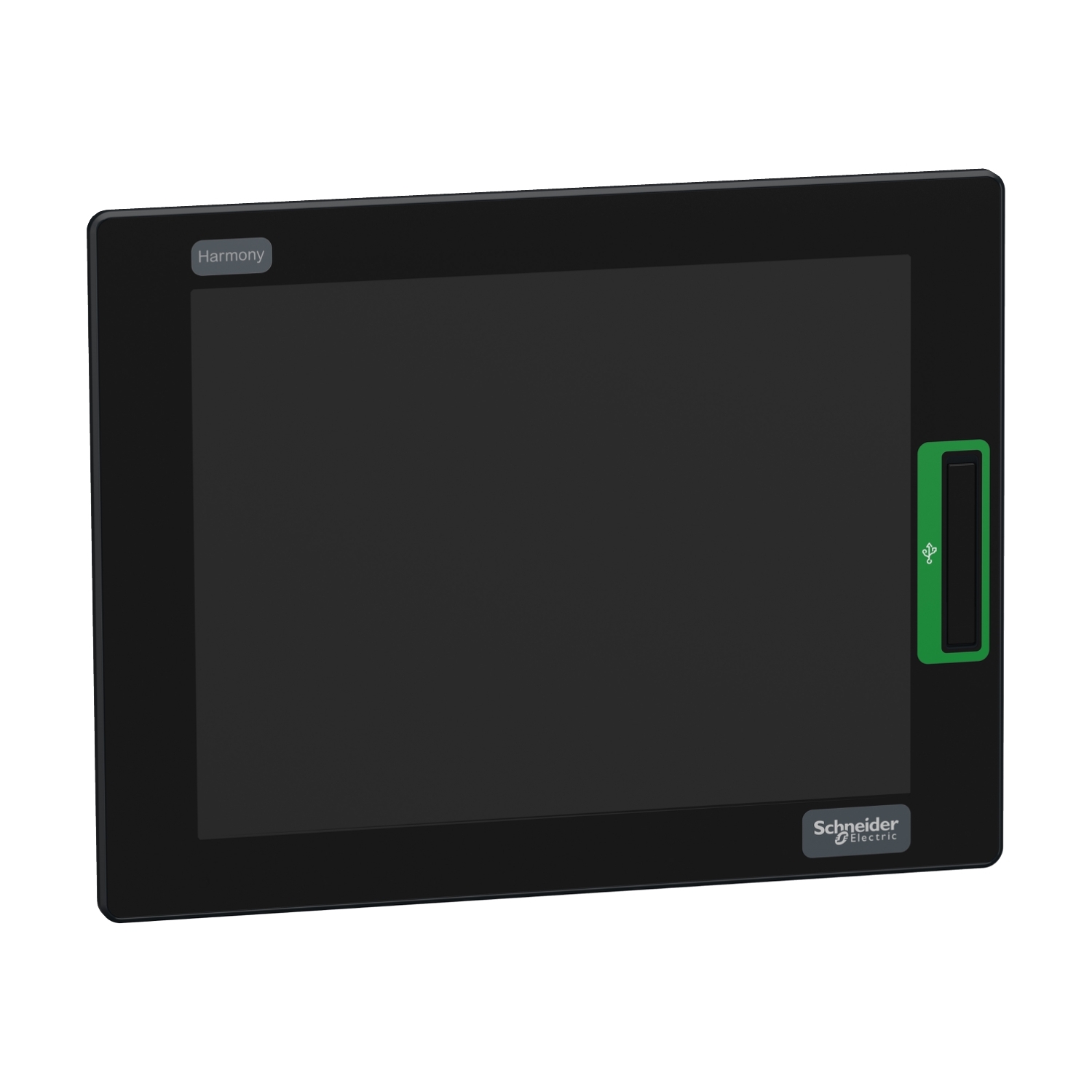

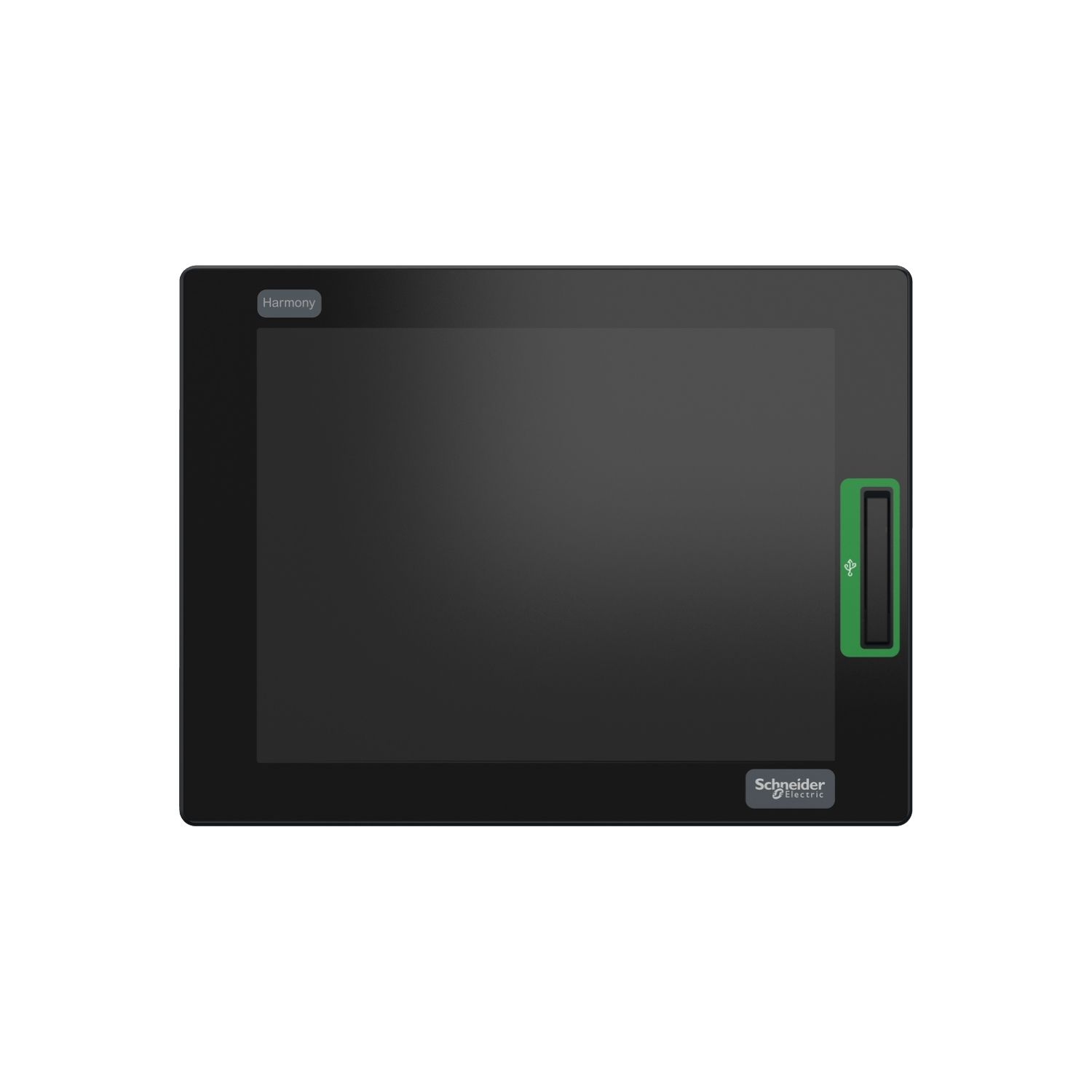

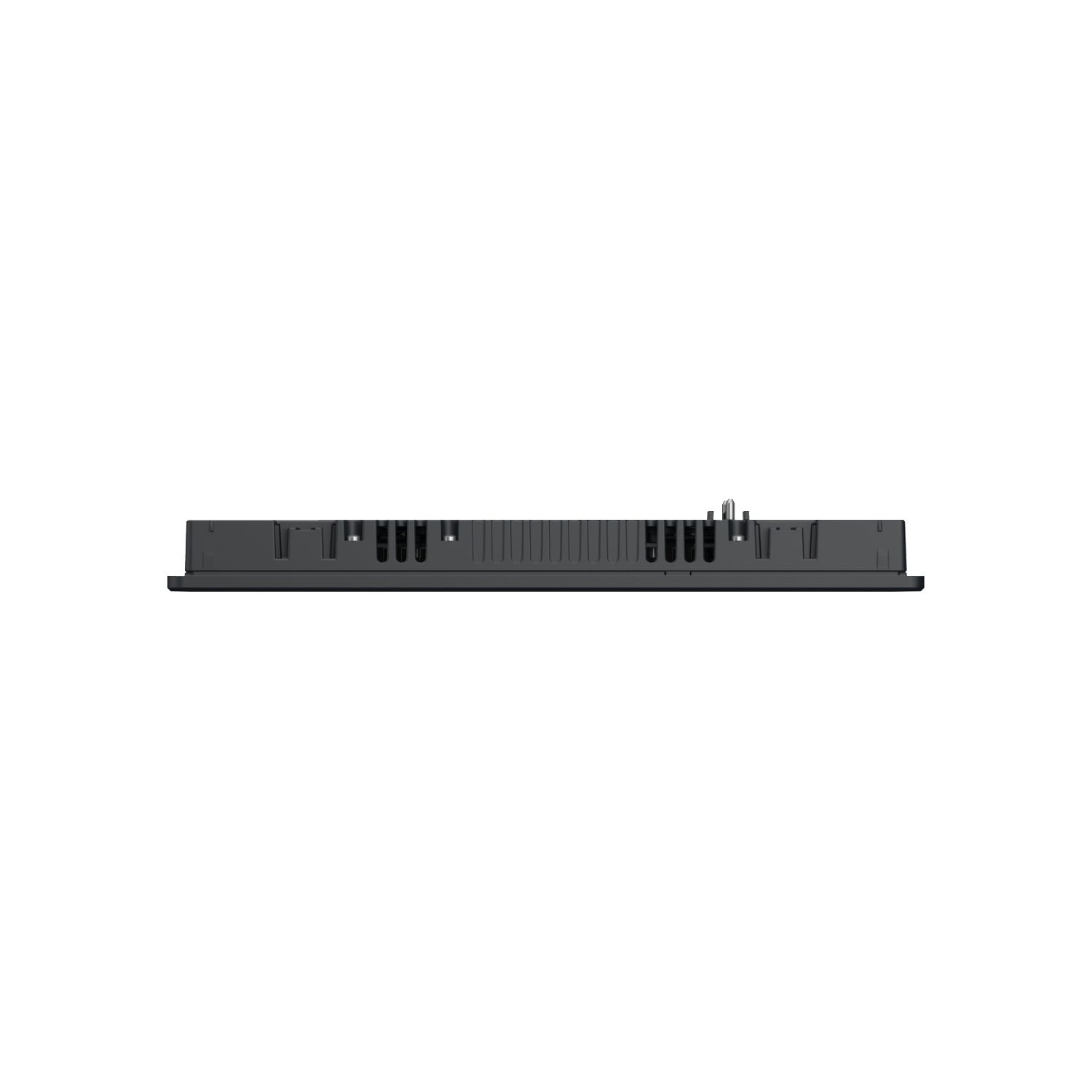

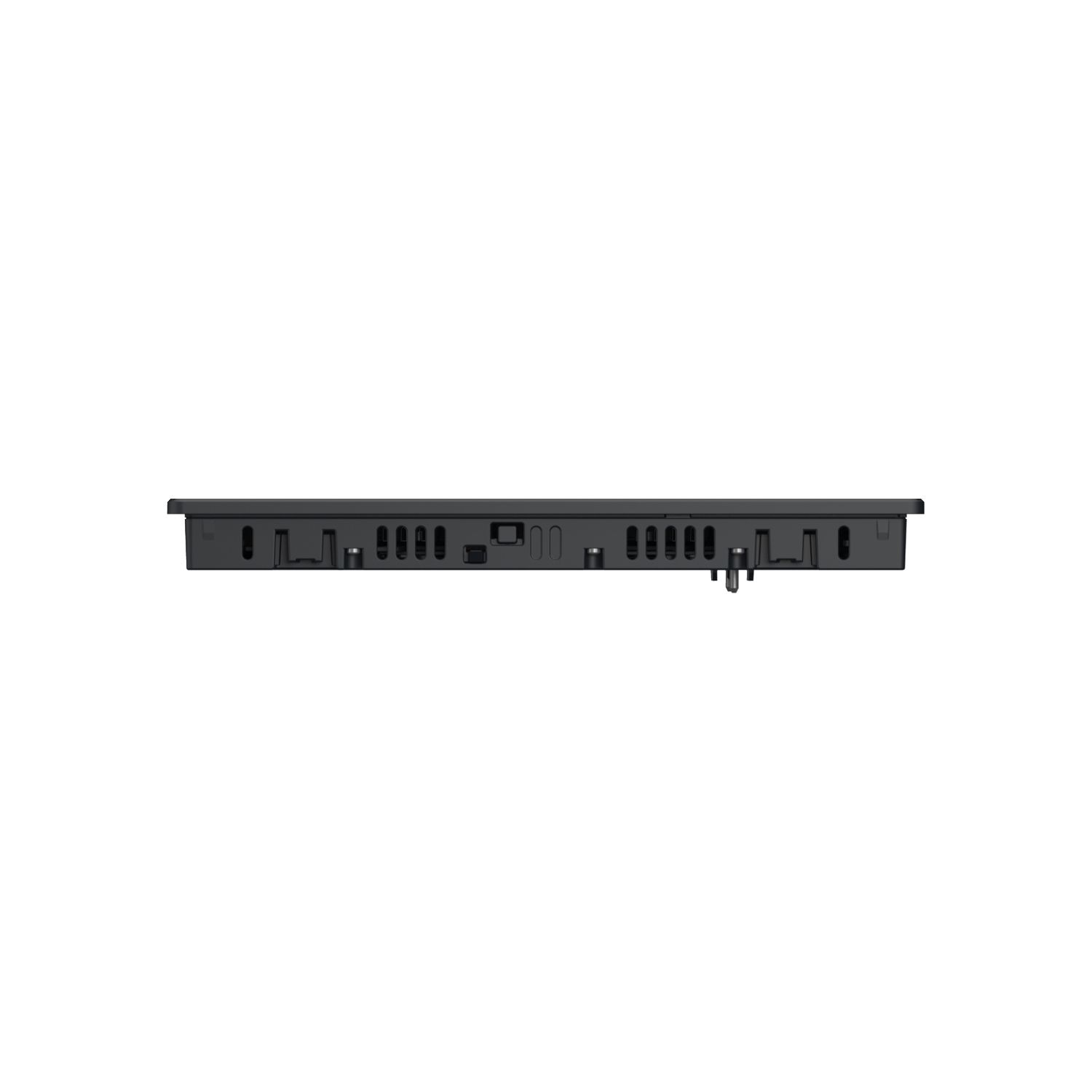

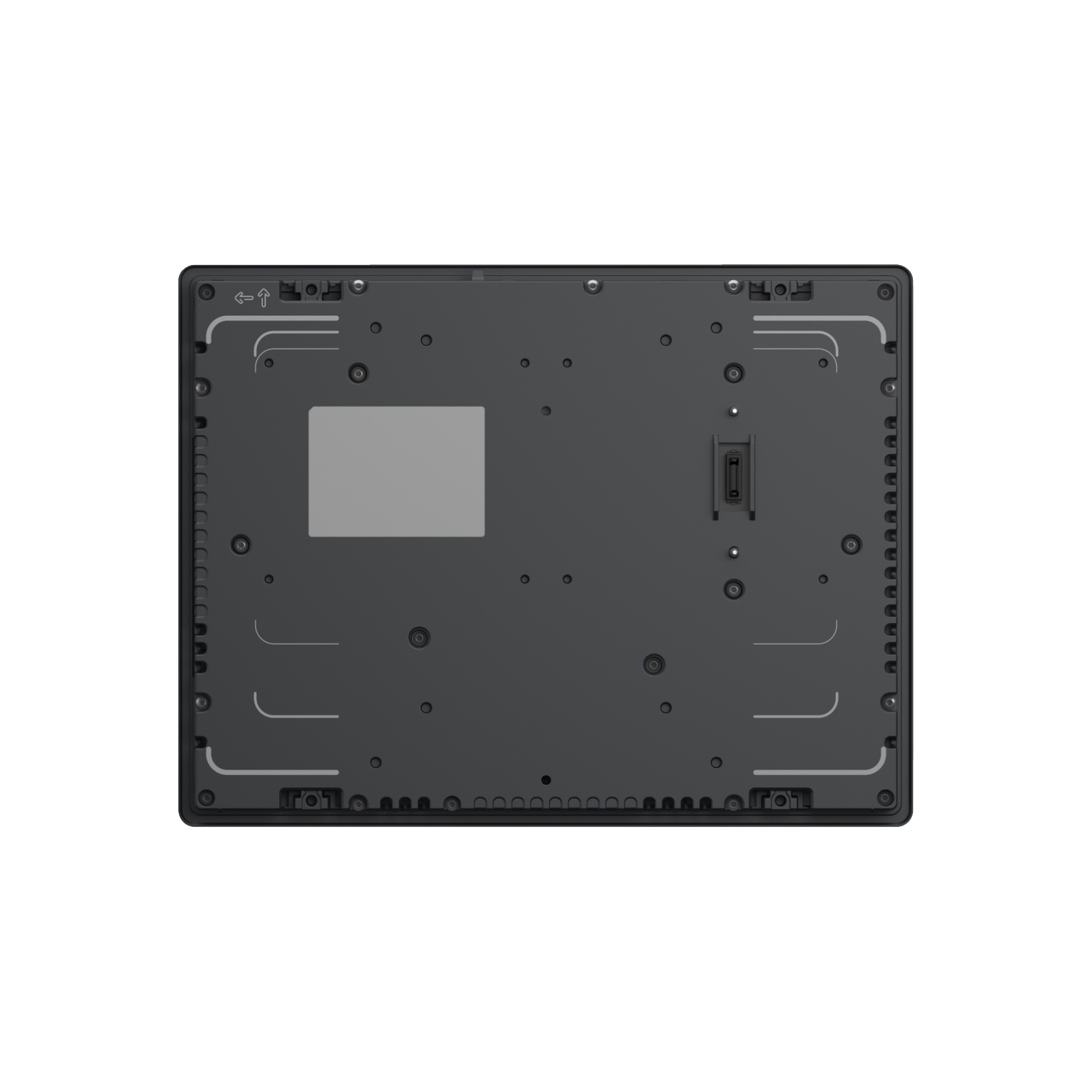

12.1 Display module, Harmony P6, XGA, 16M colors, Analog Multi Touch (2 points), Front USB A/micro-B

Please Contact Sales to buy this Product. click here
12.1 Display module, Harmony P6, XGA, 16M colors, Analog Multi Touch (2 points), Front USB A/micro-B
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 25-Oct-2024
Declaration of conformity
User guide
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet
This industrial display belongs to the Schneider Electric's Harmony HMI P6 range. This 2 point multi-touch resistive HMIDM6 display has a plastic overlay surface design with backlight service life of 50,000 hours. This is a 12.1 inch wide screen of 16 million colors and 1024×768 pixel resolution (XGA). There is a 1x USB 2.0 (Type A) port on the front panel with an USB cover. The modularity of the iPC display facilitates fast deliveries, multiple choices, easier mounting, and optimum ergonomics. The front panel when properly installed in an enclosure provides IP66F, IP67F, Type 1, Type 4X (NEMA indoor use only), and Type 13 degree of protection. The power consumption when this DM6 display is paired with P6 Advanced Modular Box is 156VAMax. (AC model) and 136WMax. (DC model), with P6 Standard Modular Box is 77VAMax. (AC model) and 68WMax. (DC model). Its dimensions are 315mm (width) x 241mm (height) x 32mm (depth) and weighs 2.40Kg. Harmony P6 industiral PCs caters to the complex machine, line monitor and processes at Edge Control and Apps Analytics level of EcoStruxure. It complies with CE, RCM, UL 61010-2-201 and CSA C22.2 No. 61010-2-201 for both AC and DC models. This display when combined with any of the Harmony P6 Boxes makes a Panel PC. It can be mounted on front enclosure or VESA 100 ]× 100 mount on the rear of Box PC. The stylish Harmony P6 displays provide high visibility during operation featuring glass-top capacitive multi-touch panel with narrow frame and thin design. The Harmony P6 online Configurator with enlarged line-up offers many possibilities and when linked with EcoStruxure Plant Builder eases the design of complete automation architectures and solutions.

Products specifications

Attribute nameAttribute value
Main
Range of productHarmony P6
Terminal typetouchscreen display
Product or component typetouch panel screen
Complementary
Device mountingdirect mounting VESA, panel mounting
Display colour16 million colours
Display resolution1024 x 768 pixels XGA
Display size12.1 inch
Touch panelmulti touch analogue resistive
Display typecolour TFT LCD, LED not replaceable
Cut-out dimensions301.5 (+ 1/- 0) x 227.5 (+ 1/- 0) mm
Backlight lifespan50000 hours at 25 °C
Depth32 mm enclosure:
Height30 mm
Aspect ratio4:3
Width241 mm
Integrated connection typeUSB type A for USB 2.0, transmission rate: 1.5 Mbit/s
Type of installationindoor installation
Net weight2.4 kg
Inrush current30 A
Pixel resolution1024 x 768
Power consumption in W68 W (maximum) with standard box, 50 W (typical) with standard box, 136 W (maximum) with advanced box, 71 W (typical) with advanced box
Environment
Relative humidity10-90 % without condensation
Type of coolingnatural
Ambient air temperature for storage-20-60 °C
Pollution degree2
IP degree of protectionType 13, Type 12, Type 4X indoor use, Type 1, IP67f, IP66f
Electromagnetic compatibilityelectrical fast transient/burst immunity test - test level: 1 kV (signal ports) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4, electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2 level 3, electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3
Product certificationsIECEx zone 22 (DC model, front USB cover must be locked with screw), IECEx zone 2 (DC model, front USB cover must be locked with screw), cULus Class 1 Division 2 (without DIO option), ATEX zone 2 (DC model, front USB cover must be locked with screw), ATEX zone 22 dust (DC model, front USB cover must be locked with screw), DNV (DC model without HDD/fan/ EtherCAT card/22" wide display with expansion slot), UKCA, KC, RCM
StandardsCSA C22.2 No 61010-2-201, UL 61010-2-201,  FCC part 15, CE
Ambient air temperature for operation0-60 °C
Operating altitude2000 m
Vibration resistance1 gn X, Y, Z directions for 10 cycles (approx. 100 min) conforming to IEC 61131-2, 1 gn (f = 9-150 Hz) fixed amplitude conforming to IEC 61131-2, 1 gn (f = 5-9 Hz) single amplitude conforming to IEC 61131-2
Environmental characteristiccorrosive gas free, dust resistant 0.1 mg/m3 (non-conductive)
Shock resistance147 m/s² 3 shocks in each direction X, Y and Z, 147 m/s² conforming to IEC 61131-2
Storage Relative Humidity10-90 % without condensation
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height41.0 cm
Package 1 Width15.0 cm
Package 1 Length41.0 cm
Package 1 Weight2.9 kg
Unit Type of Package 22
Number of Units in Package 228
Package 2 Height150.0 cm
Package 2 Width80.0 cm
Package 2 Length120.0 cm
Package 2 Weight91.2 kg
