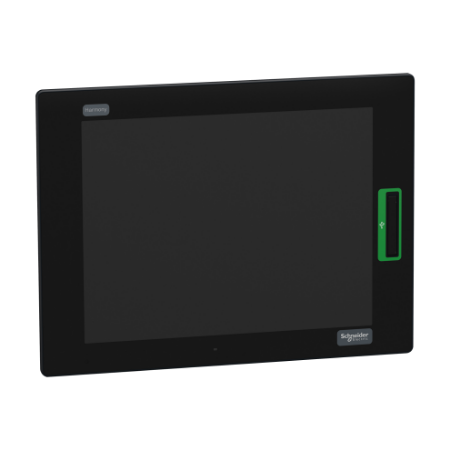

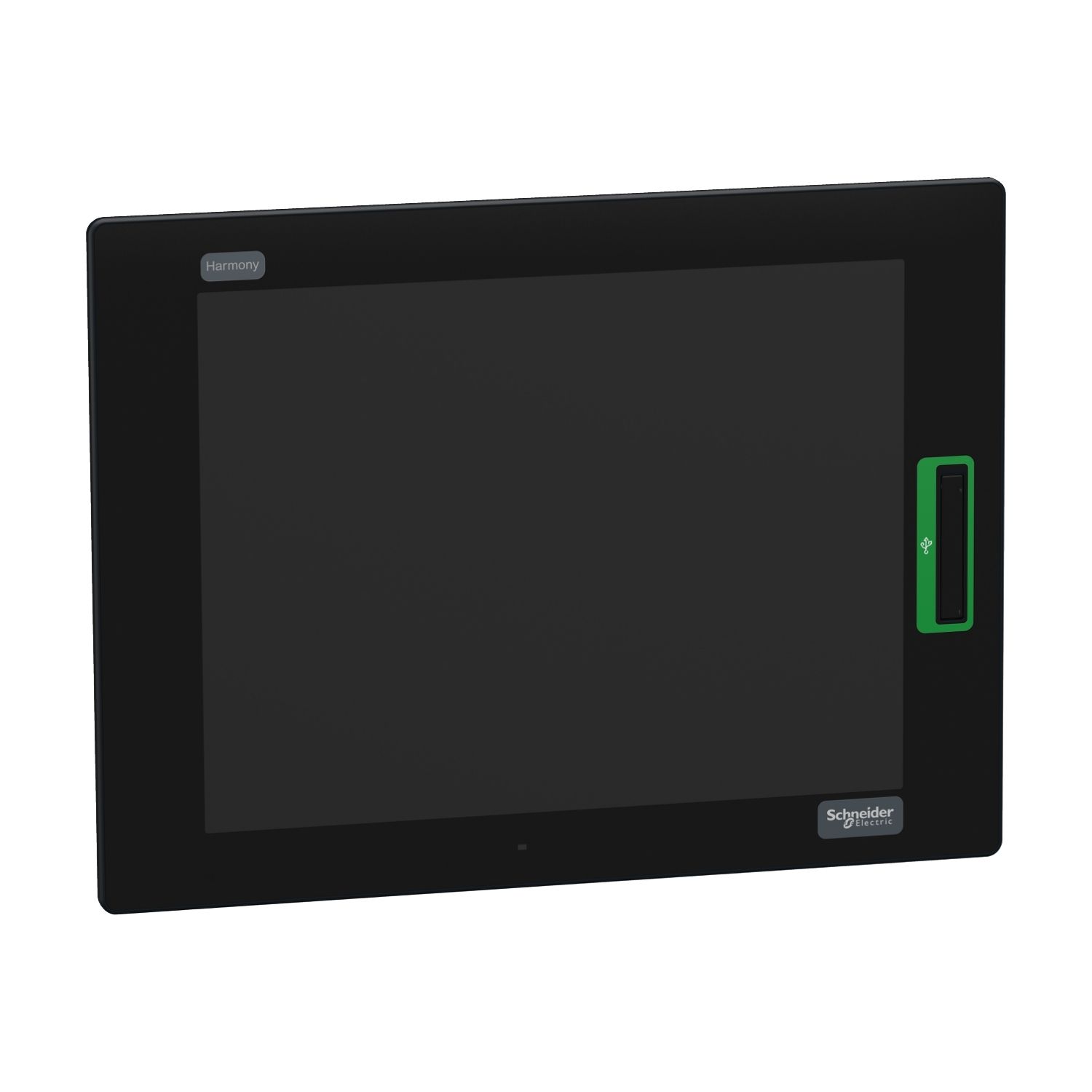

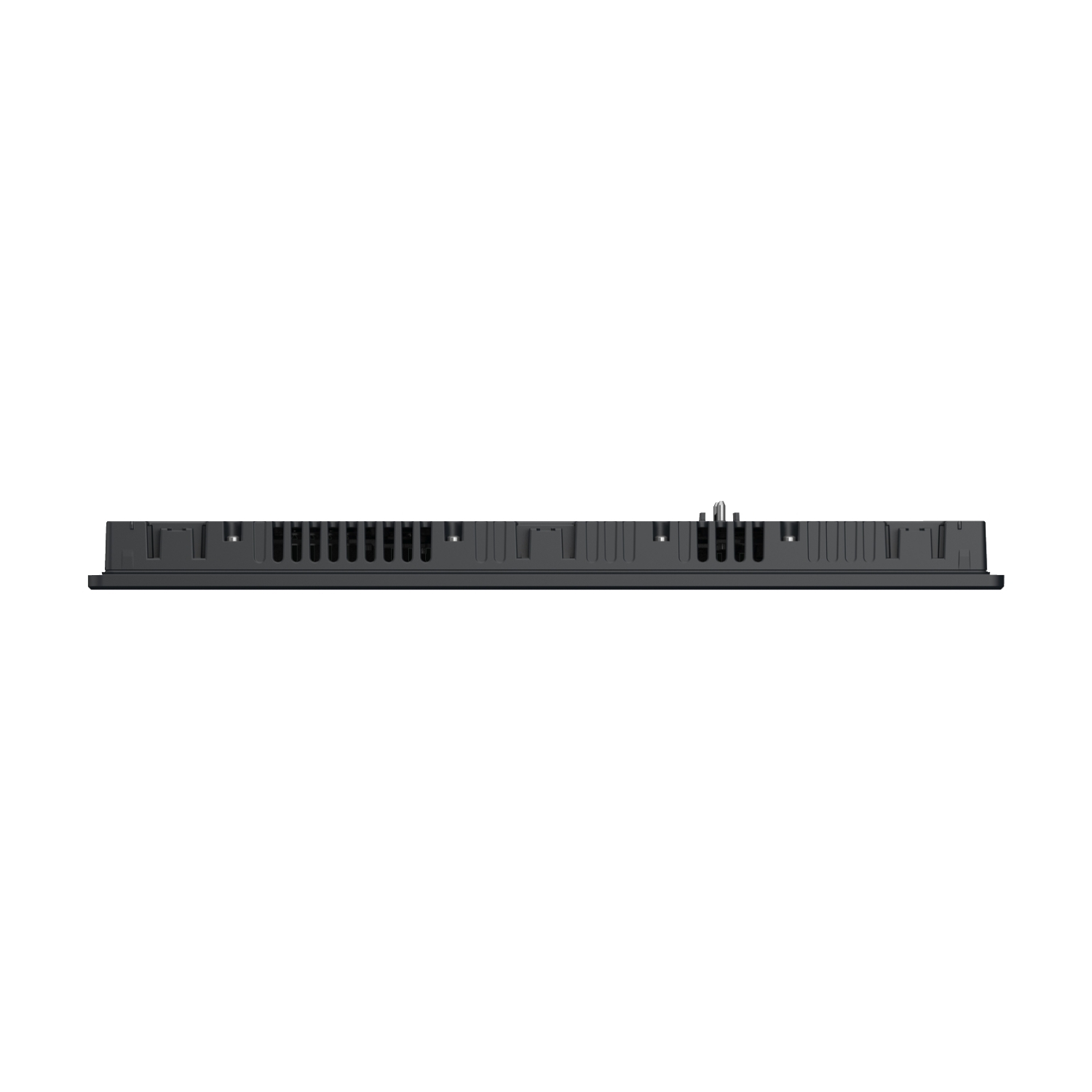

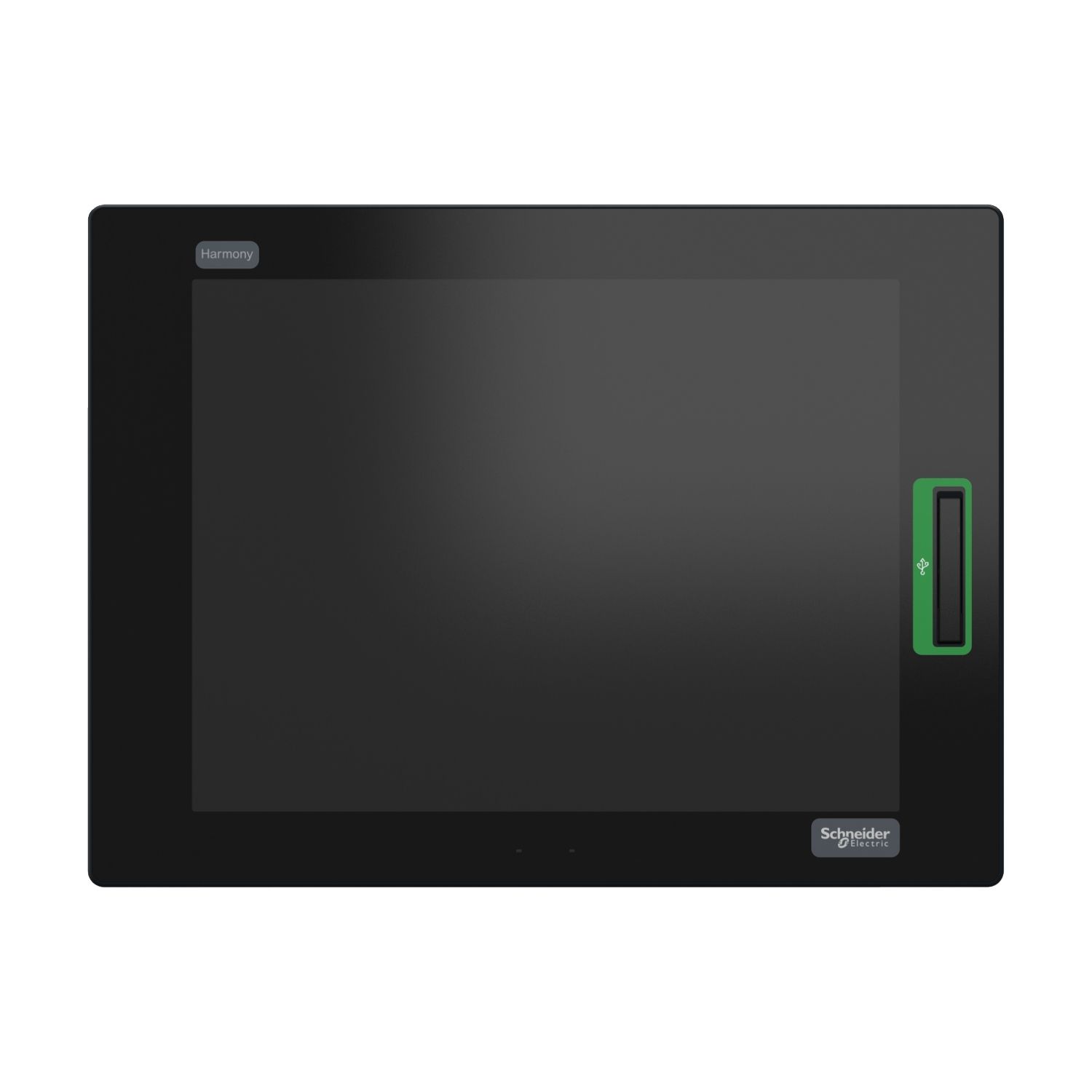

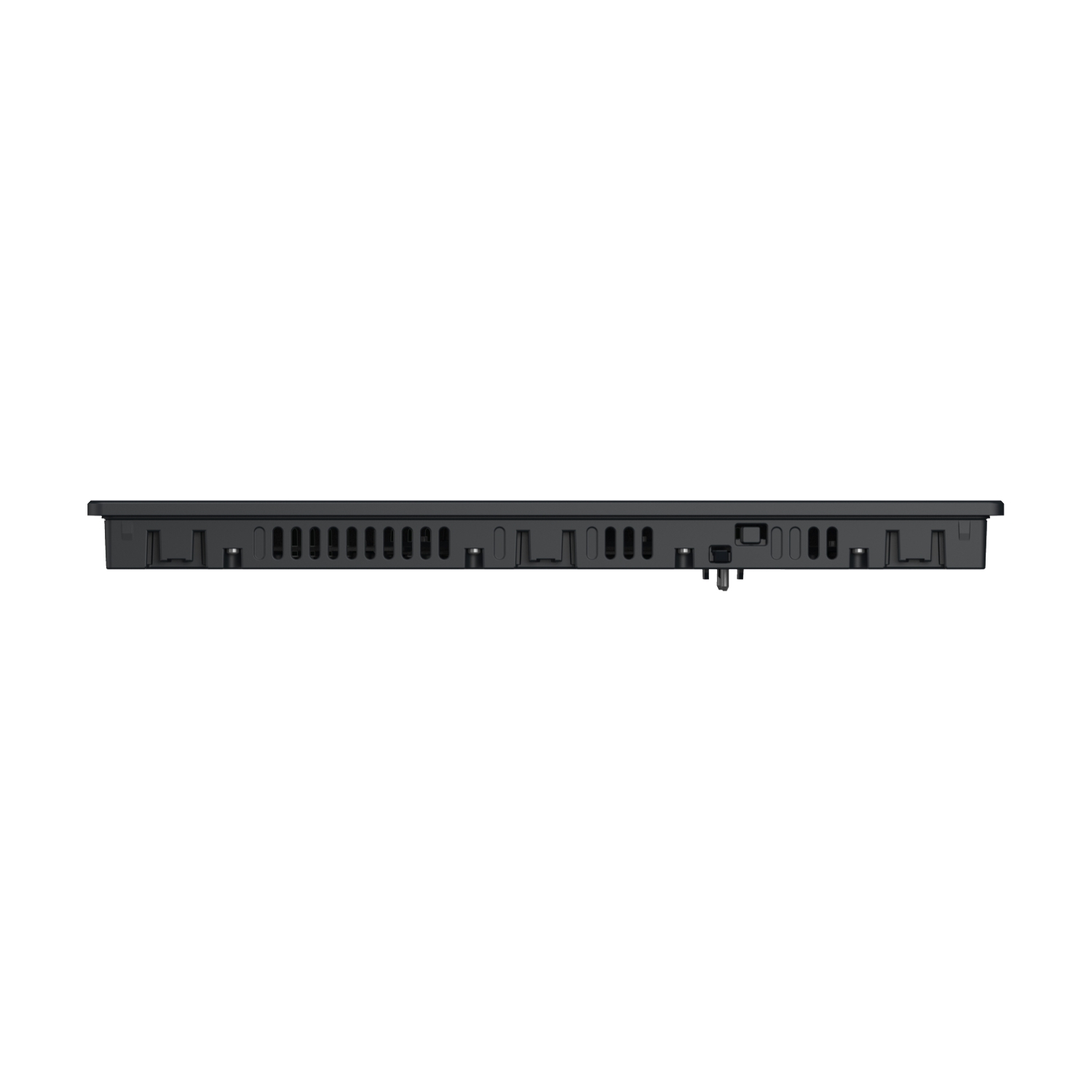

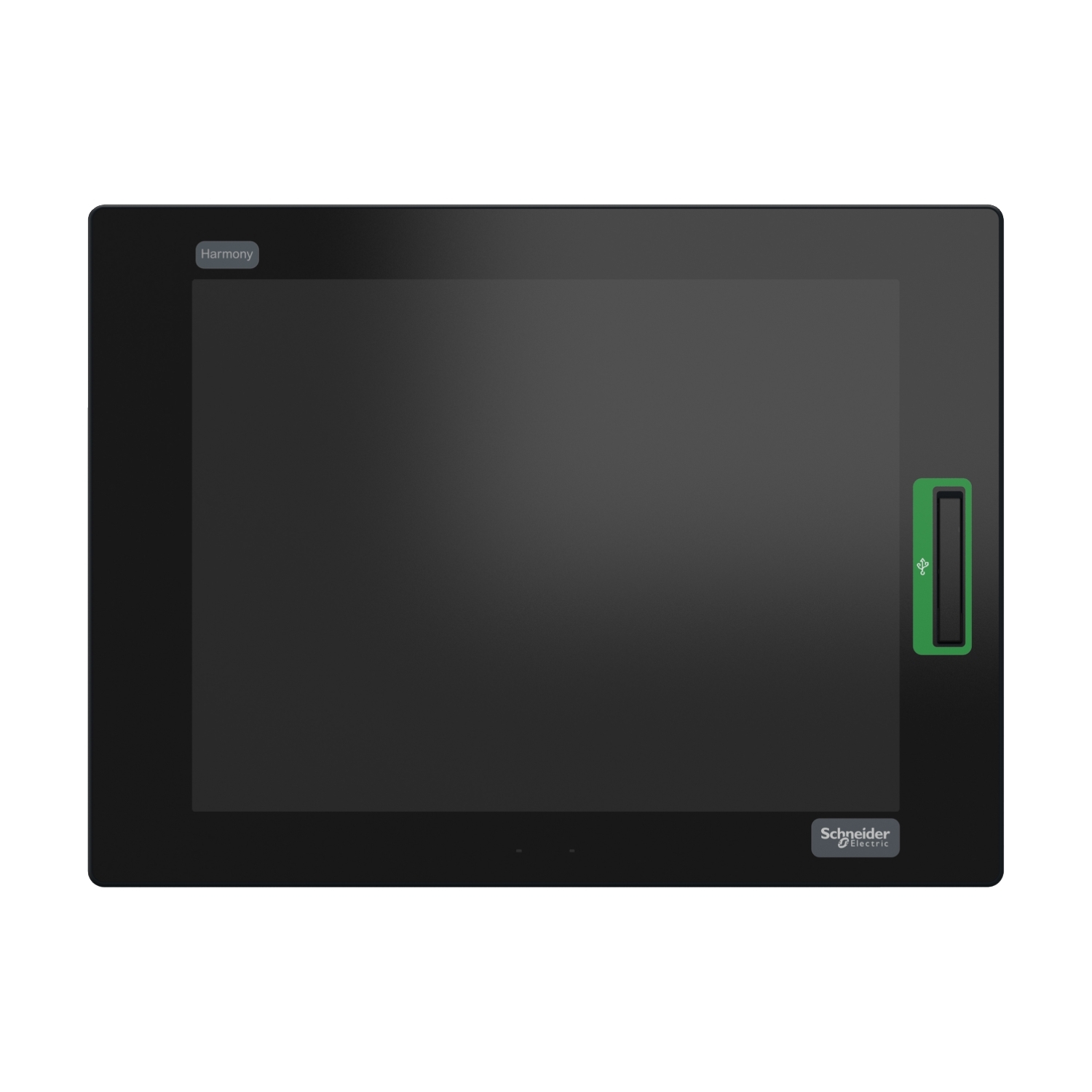

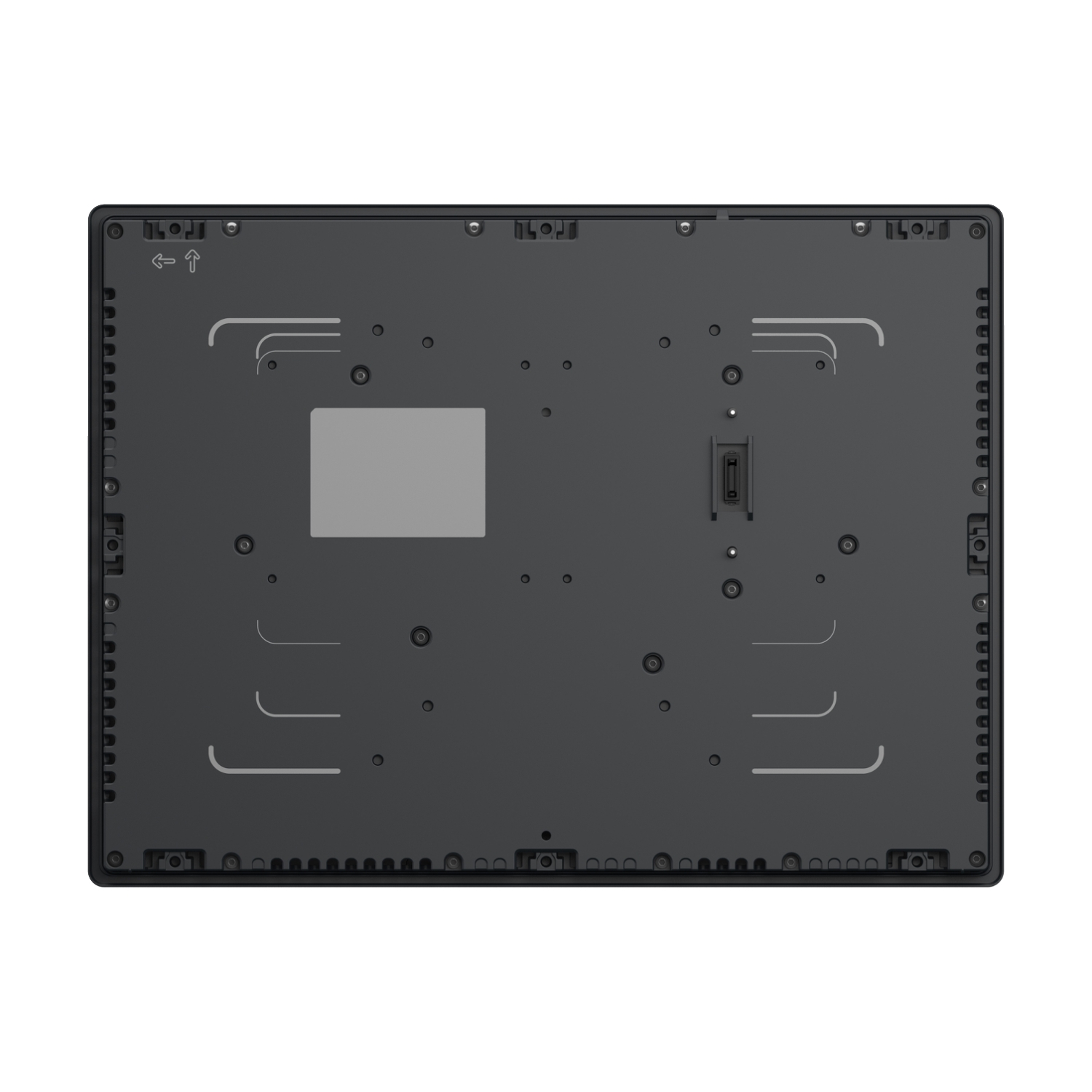

Picture of 15.0 Display module, Harmony P6, XGA, 16M colors, Analog Multi Touch (2 points), Front USB A/micro-B
SKU:

HMIDM6700TM

15.0 Display module, Harmony P6, XGA, 16M colors, Analog Multi Touch (2 points), Front USB A/micro-B

$3,575.41 INC GST
Available for Shipping : 11-Jun-2025
15.0 Display module, Harmony P6, XGA, 16M colors, Analog Multi Touch (2 points), Front USB A/micro-B
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
End of life manual
Product environmental
Declaration of conformity
User guide
Product Page Link
Product Data Sheet
This industrial display belongs to the Schneider Electric's Harmony HMI P6 range. This 2 point multi-touch resistive HMIDM6 display has a plastic overlay surface design with backlight service life of 50,000 hours. This is a 15 inch wide screen of 16 million colors and 1024×768 pixel resolution (XGA). There is a 1x USB 2.0 (Type A) port on the front panel with an USB cover. The modularity of the iPC display facilitates fast deliveries, multiple choices, easier mounting, and optimum ergonomics. The front panel when properly installed in an enclosure provides IP66F, IP67F, Type 1, Type 4X (NEMA indoor use only), and Type 13 degree of protection. The power consumption when this DM6 display is paired with P6 Advanced Modular Box is 161VAMax. (AC model) and 141WMax. (DC model), with P6 Standard Modular Box is 82VAMax. (AC model) and 72WMax. (DC model). Its dimensions are 397mm (width) x 296mm (height) x 30mm (depth) and weighs 3.70Kg. Harmony P6 industiral PCs caters to the complex machine, line monitor and processes at Edge Control and Apps Analytics level of EcoStruxure. It complies with CE, RCM, UL 61010-2-201 and CSA C22.2 No. 61010-2-201 for both AC and DC models. This display when combined with any of the Harmony P6 Boxes makes a Panel PC. It can be mounted on front enclosure or VESA 100 × 100 mount on the rear of Box PC. The stylish wide Harmony P6 displays provide high visibility during operation featuring glass-top capacitive multi-touch panel with narrow frame and thin design. The Harmony P6 online Configurator with enlarged line-up offers many possibilities and when linked with EcoStruxure Plant Builder eases the design of complete automation architectures and solutions.

Products specifications

Attribute name Attribute value
Main
Range of product Harmony P6
Terminal type touchscreen display
Product or component type touch panel screen
Complementary
Device mounting direct mounting VESA, panel mounting
Display colour 16 million colours
Display resolution 1024 x 768 pixels XGA
Display size 15 inch
Touch panel multi touch analogue resistive
Display type colour TFT LCD, LED not replaceable
Cut-out dimensions 383.5 (+ 1/- 0) x 282.5 (+ 1/- 0) mm
Backlight lifespan 50000 hours at 25 °C
Depth 30 mm enclosure:
Height 296 mm
Aspect ratio 4:3
Width 397 mm
Integrated connection type USB type A for USB 2.0, transmission rate: 1.5 Mbit/s
Type of installation indoor installation
Net weight 3.7 kg
Inrush current 30 A
Pixel resolution 1024 x 768
Power consumption in W 72 W (maximum) with standard box, 54 W (typical) with standard box, 141 W (maximum) with advanced box, 76 W (typical) with advanced box
Environment
Relative humidity 10-90 % without condensation
Type of cooling natural
Ambient air temperature for storage -20-60 °C
Pollution degree 2
IP degree of protection Type 13, Type 12, Type 4X indoor use, Type 1, IP67f, IP66f
Electromagnetic compatibility electrical fast transient/burst immunity test - test level: 1 kV (signal ports) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4, electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2 level 3, electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3
Product certifications IECEx zone 22 (DC model, front USB cover must be locked with screw), IECEx zone 2 (DC model, front USB cover must be locked with screw), cULus Class 1 Division 2 (without DIO option), ATEX zone 2 (DC model, front USB cover must be locked with screw), ATEX zone 22 dust (DC model, front USB cover must be locked with screw), DNV (DC model without HDD/fan/ EtherCAT card/22" wide display with expansion slot), UKCA, KC, RCM
Standards CSA C22.2 No 61010-2-201, UL 61010-2-201,  FCC part 15, CE
Ambient air temperature for operation 0-60 °C
Operating altitude 2000 m
Vibration resistance 1 gn X, Y, Z directions for 10 cycles (approx. 100 min) conforming to IEC 61131-2, 1 gn (f = 9-150 Hz) fixed amplitude conforming to IEC 61131-2, 1 gn (f = 5-9 Hz) single amplitude conforming to IEC 61131-2
Environmental characteristic corrosive gas free, dust resistant 0.1 mg/m3 (non-conductive)
Shock resistance 147 m/s² 3 shocks in each direction X, Y and Z, 147 m/s² conforming to IEC 61131-2
Storage Relative Humidity 10-90 % without condensation
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 14.73 cm
Package 1 Width 45.97 cm
Package 1 Length 48.01 cm
Package 1 Weight 4.37 kg
Unit Type of Package 2 2
Number of Units in Package 2 22
Package 2 Height 150 cm
Package 2 Width 80 cm
Package 2 Length 120 cm
Package 2 Weight 109 kg
