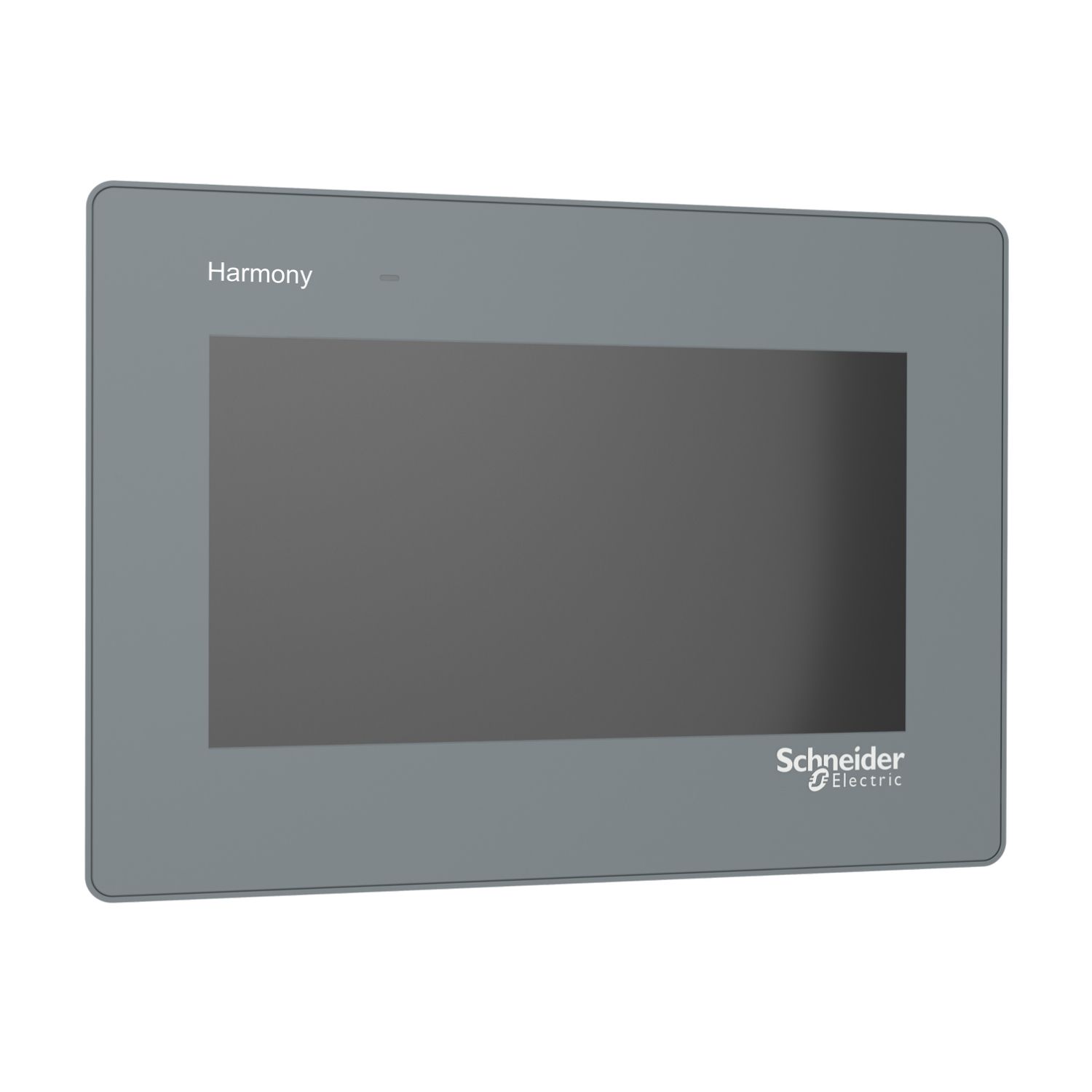

Picture of 7" wide screen touch panel, 16M colors, COM x 2, ETH x 1, USB host / device, RTC, DC24V
SKU:

HMIET6400

7" wide screen touch panel, 16M colors, COM x 2, ETH x 1, USB host / device, RTC, DC24V

$760.33
Available for Shipping : 25-Nov-2024
7" wide screen touch panel, 16M colors, COM x 2, ETH x 1, USB host / device, RTC, DC24V
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
User guide
Declaration of conformity
Product environmental
End of life manual
Product Page Link
Product Data Sheet
HMIET6400 is an essential touchscreen panel of the Schneider Electric's Easy Harmony ET6 range. This single touch resistive HMI Ethernet panel has high resolution and more colors. This HMI interface is 7 inch wide with 16 million colors and 800 x 480 pixel resolution (WVGA). It is powered by Vijeo Designer Basic software for intuitive user experience. It has a 800 MHz ARM Cortex-A8 CPU, 256 MB as system and application memory, 128 KB nonvolatile memory. This HMI ET6 supports Ethernet port, COM1 (RS-232C), COM2 (RS-422/485), 1x USB 2.0 Type A, and 1x USB 2.0 Micro-B port. Its dimensions are 205.5mm (width) x 150.5mm (height) x 45mm (depth) and weighs 0.60Kg. This is intended for industries like Packaging, HVAC, Pump, Electronics, battery, machine tools and material working etc. It conforms to standards like EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201 and certifications like UL, CE, KC, EAC, China RoHS, REACH. The maintenance accessories (installation fastener screw, power supply connector, battery, etc.) and external options (USB download cable, USB extension cable, screen protection sheet, etc.) are available with HMI ET6. It is designed for panel mounting by 4 or 6 fastener screws (the quantity of screws depends on screen size). This range is designed with high resolution screen, more colors, and Ethernet capability to enable OEMs to optimize their HMI design and investment. The degree of protection is IP65F.

Products specifications

Attribute name Attribute value
Main
Processor name ARM Cortex-A8
Range of product Easy Harmony ET6
Software designation Vijeo Designer Basic
Operating system VxWorks
Product or component type touch panel screen
Complementary
Memory description backup memory 128 kB, user data memory 256 MB, device memory 256 MB
Character font Taiwanese (traditional Chinese), Korean, Katakana, Japanese (ANK, Kanji), Chinese (simplified Chinese), ASCII (European characters), ASCII
Display type colour TFT LCD
Display colour 16 million colours
Downloadable protocols third party protocols, Uni-TE, Modbus
Display size 7 inch
Fixing mode by 4 screws, mounting on 1.6...5 mm thick panel
Processor frequency 800 MHz
Power consumption in W 9 W
Height 151 mm
Depth 45 mm
Realtime clock built-in 10...90 % RH, built-in 0...50 °C
Width 206 mm
Port Ethernet 10/100BASE
Integrated connection type 1 USB 2.0 type micro Bback, 1 USB 2.0 type Aback, 1 Ethernetbottom,  COM2 serial link (rate: 2400...187500 bps)bottom, 1 COM2 serial link - 1 SUB-D 9-pin male - RS422/RS485 (rate: 2400...115200 bps)bottom, 1 COM1 serial link - 1 SUB-D 9-pin male - RS232C (rate: 2400...115200 bps)bottom
Local signalling status LED, off for power supply (OFF), status LED red, steady for power supply (ON), status LED orange, steady for software starting up, status LED green, steady for operating
Touch panel single touch analogue resistive
Net weight 0.61 kg
Display resolution 800 x 480 pixels WVGA
Supply external supply
Cut-out dimensions 190 x 135 mm panel cut dimension
Inrush current 30 A
Brightness 16 levels
Number of pages 200 application pages
[Us] rated supply voltage 24 V DC +/- 20 %
Product brand Schneider Electric
Environment
Relative humidity 10-90 % non-condensing
Ambient air temperature for storage -20-60 °C
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
IP degree of protection IP65 (front panel) conforming to IEC 61131-2, IP20 (rear panel) conforming to IEC 61131-2
Electromagnetic compatibility electrostatic discharge immunity test - test level: 8 kV (air discharge), electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2 level 3, electrical fast transient/burst immunity test - test level: 1 kV (signal ports), electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4
Immunity to microbreaks 5 ms
Ambient air temperature for operation 0-50 °C
Operating altitude 2000 m
Front material plastic
Enclosure material PC
Shock resistance 147 m/s² for 11 ms (X, Y, Z directions for 3 times) conforming to EN/IEC 61131-2
Vibration resistance 9.8 m/s² (f = 9-150 Hz), +/- 3.5 mm (f = 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to EN/IEC 61131-2
Standards CSA C22.2 No 61010-1-201, UL 61010-2-201, EN 61131-2, EN 61000-6-2, EN 61000-6-4
Product certifications KC-Mark (pending), EAC (pending), UL, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.500 cm
Package 1 Width 19.000 cm
Package 1 Length 28.200 cm
Package 1 Weight 904.000 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 6.153 kg
