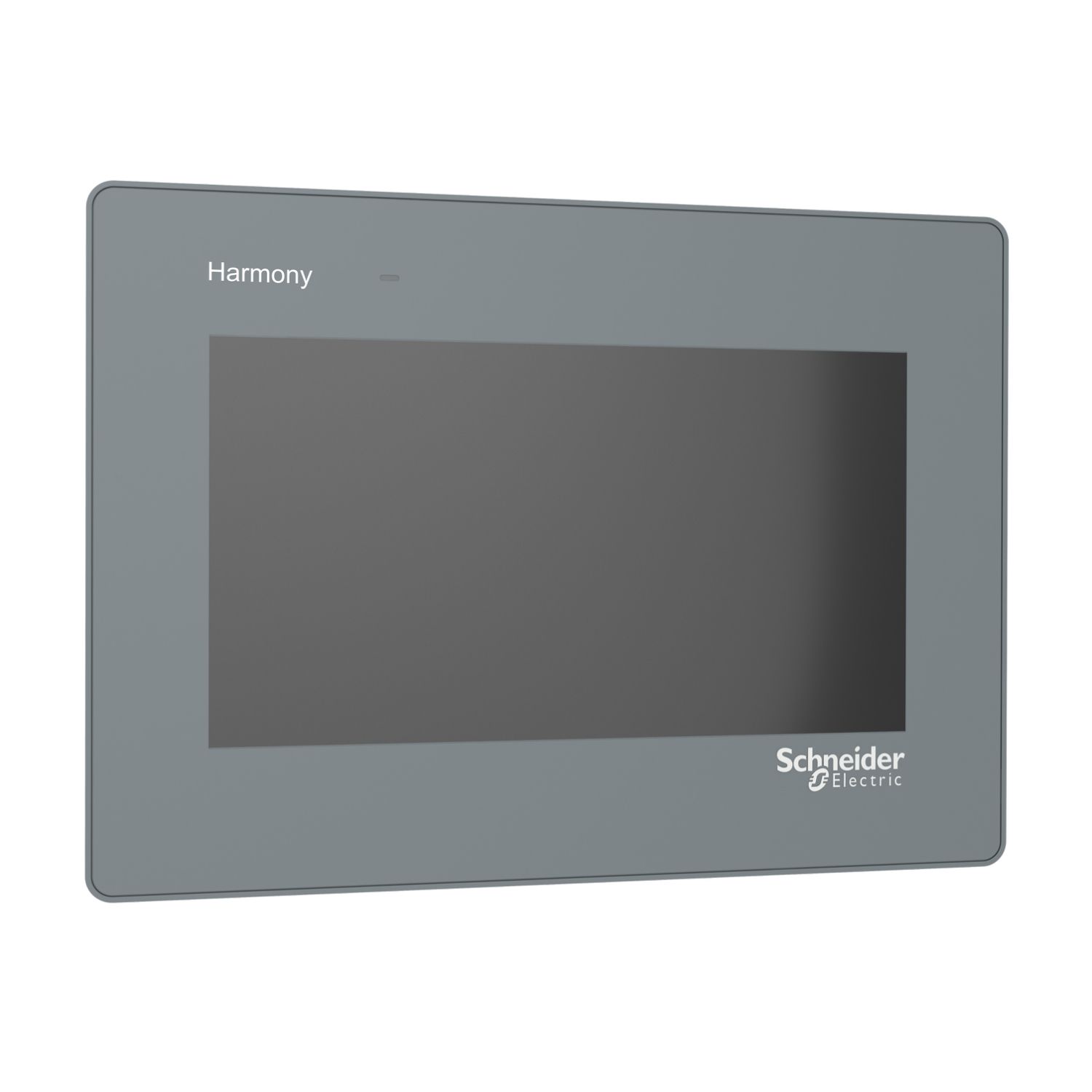

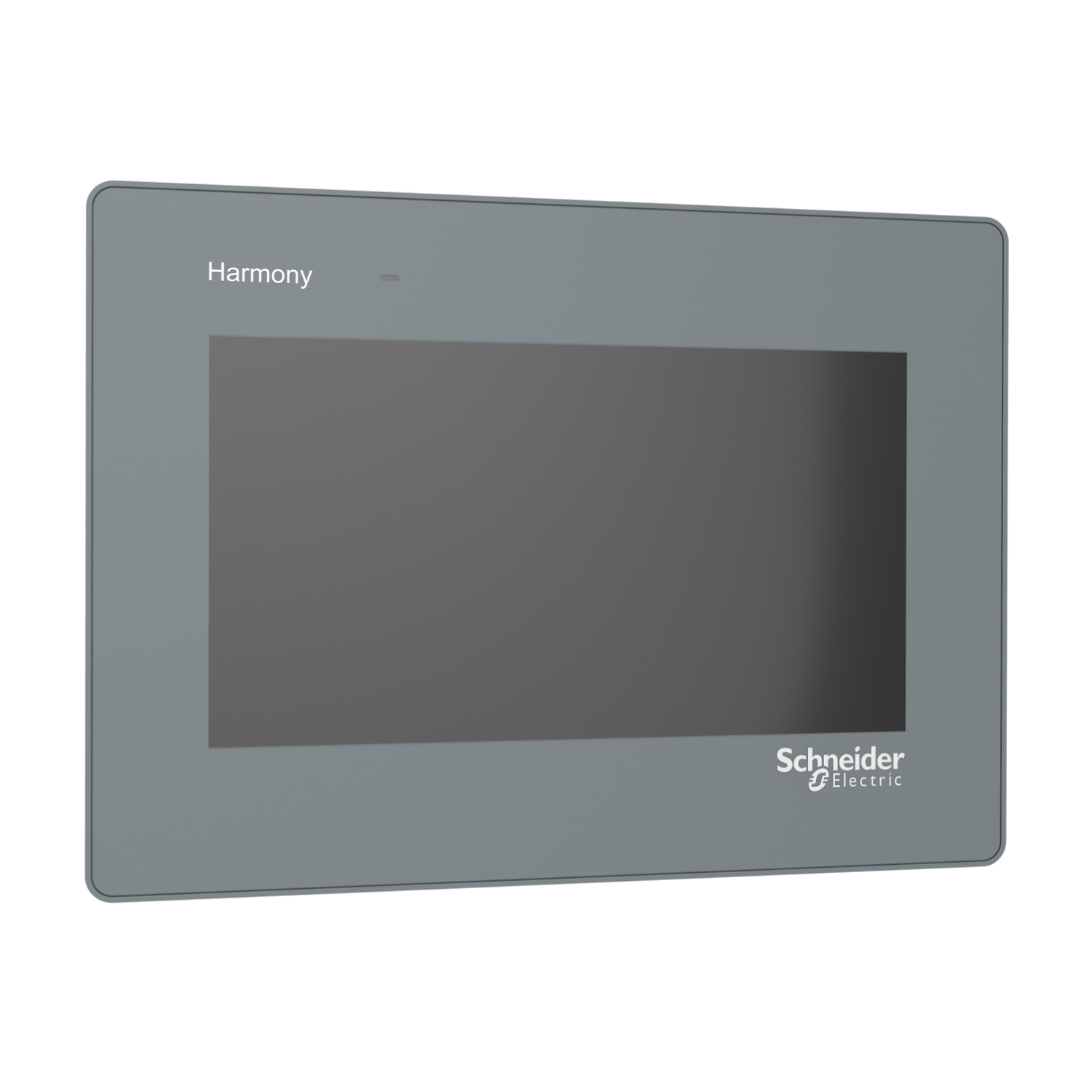

Picture of 7" wide screen touch panel, 16M colors, COM x 2, USB device, RTC, DC24V
SKU:

HMIET6401

7" wide screen touch panel, 16M colors, COM x 2, USB device, RTC, DC24V

Please Contact Sales to buy this Product. click here
7" wide screen touch panel, 16M colors, COM x 2, USB device, RTC, DC24V
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 06-Nov-2024
User guide
Catalogue
Declaration of conformity
Product environmental
End of life manual
Product Page Link
Product Data Sheet
HMIET6401 is an essential touchscreen panel of the Schneider Electric's Easy Harmony ET6 range. This single touch resistive HMI Serial panel has high resolution and more colors. This HMI interface is 7 inch wide with 16 million colors and 800 x 480 pixel resolution (WVGA). It is powered by Vijeo Designer Basic software for intuitive user experience. It has a 800 MHz ARM Cortex-A8 CPU, 256 MB as system and application memory, 128 KB nonvolatile memory. This HMI ET6 supports COM1 (RS-232C), COM2 (RS-422/485), 1x USB 2.0 Micro-B port. Its dimensions are 205.5mm (width) x 150.5mm (height) x 45mm (depth) and weighs 0.60Kg. This is intended for industries like Packaging, HVAC, Pump, Electronics, battery, machine tools and material working etc. It conforms to standards like EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201 and certifications like UL, CE, KC, EAC, China RoHS, REACH. The maintenance accessories (installation fastener screw, power supply connector, battery, etc.) and external options (USB download cable, USB extension cable, screen protection sheet, etc.) are available with HMI ET6. It is designed for panel mounting by 4 or 6 fastener screws (the quantity of screws depends on screen size). This range is designed with high resolution screen, more colors, and Ethernet capability to enable OEMs to optimize their HMI design and investment. The degree of protection is IP65F.

Products specifications

Attribute nameAttribute value
Main
Processor nameARM Cortex-A8
Range of productEasy Harmony ET6
Software designationVijeo Designer Basic
Operating systemVxWorks
Product or component typetouch panel screen
Complementary
Memory descriptionbackup memory 128 kB, user data memory 256 MB, device memory 256 MB
Character fontTaiwanese (traditional Chinese), Korean, Katakana, Japanese (ANK, Kanji), Chinese (simplified Chinese), ASCII (European characters), ASCII
Display typecolour TFT LCD
Display colour16 million colours
Downloadable protocolsthird party protocols, Uni-TE, Modbus
Display size7 inch
Fixing modeby 4 screws, mounting on 1.6...5 mm thick panel
Processor frequency800 MHz
Power consumption in W9 W
Height151 mm
Depth45 mm
Realtime clockbuilt-in 10...90 % RH, built-in 0...50 °C
Width206 mm
Integrated connection type1 USB 2.0 type micro Bback,  COM2 serial link (rate: 2400...187500 bps)bottom, 1 COM2 serial link - 1 SUB-D 9-pin male - RS422/RS485 (rate: 2400...115200 bps)bottom, 1 COM1 serial link - 1 SUB-D 9-pin male - RS232C (rate: 2400...115200 bps)bottom
Local signallingstatus LED, off for power supply (OFF), status LED red, steady for power supply (ON), status LED orange, steady for software starting up, status LED green, steady for operating
Touch panelsingle touch analogue resistive
Net weight0.60 kg
Display resolution800 x 480 pixels WVGA
Supplyexternal supply
Cut-out dimensions190 x 135 mm panel cut dimension
Inrush current30 A
Brightness16 levels
Number of pages200 application pages
[Us] rated supply voltage24 V DC +/- 20 %
Product brandSchneider Electric
Environment
Relative humidity10-90 % non-condensing
Ambient air temperature for storage-20-60 °C
Directives2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
IP degree of protectionIP65 (front panel) conforming to IEC 61131-2, IP20 (rear panel) conforming to IEC 61131-2
Electromagnetic compatibilityelectrostatic discharge immunity test - test level: 8 kV (air discharge), electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2 level 3, electrical fast transient/burst immunity test - test level: 1 kV (signal ports), electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4
Immunity to microbreaks5 ms
Ambient air temperature for operation0-50 °C
Operating altitude2000 m
Front materialplastic
Enclosure materialPC
Shock resistance147 m/s² for 11 ms (X, Y, Z directions for 3 times) conforming to EN/IEC 61131-2
Vibration resistance9.8 m/s² (f = 9-150 Hz), +/- 3.5 mm (f = 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to EN/IEC 61131-2
StandardsCSA C22.2 No 61010-1-201, UL 61010-2-201, EN 61131-2, EN 61000-6-2, EN 61000-6-4
Product certificationsKC-Mark (pending), EAC (pending), UL, CE
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height8.900 cm
Package 1 Width18.800 cm
Package 1 Length28.300 cm
Package 1 Weight889.000 g
Unit Type of Package 22
Number of Units in Package 26
Package 2 Height30.000 cm
Package 2 Width30.000 cm
Package 2 Length40.000 cm
Package 2 Weight6.073 kg
