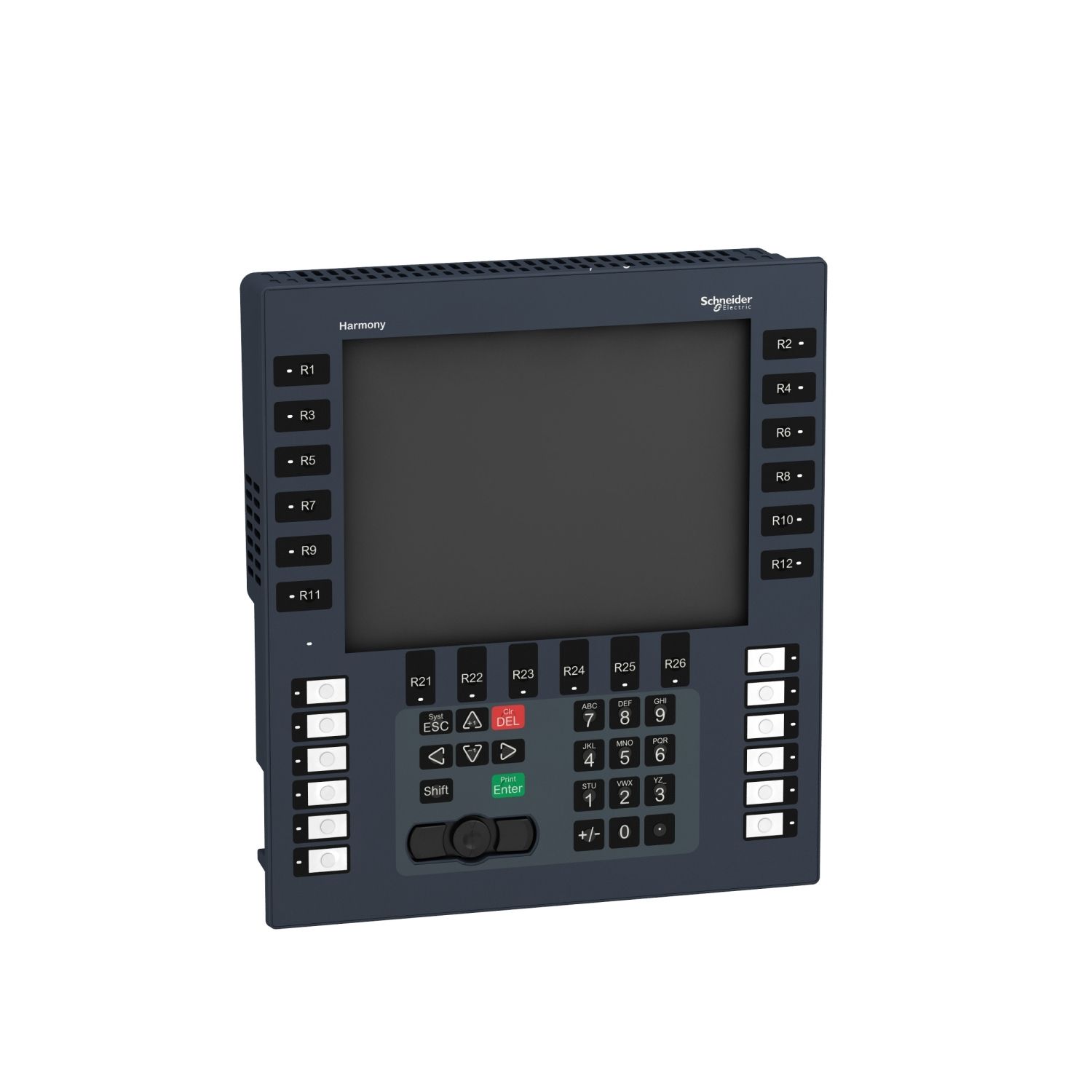

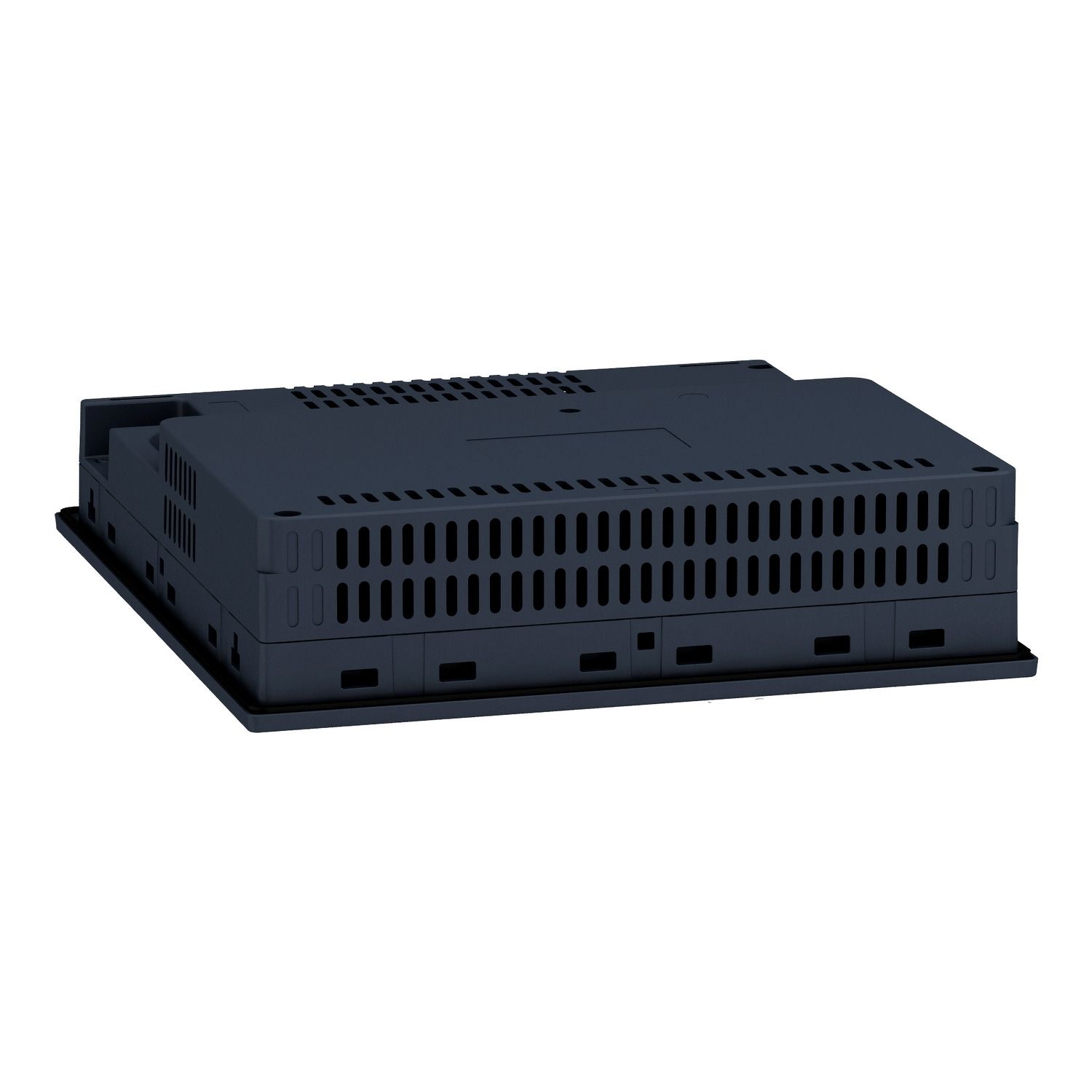

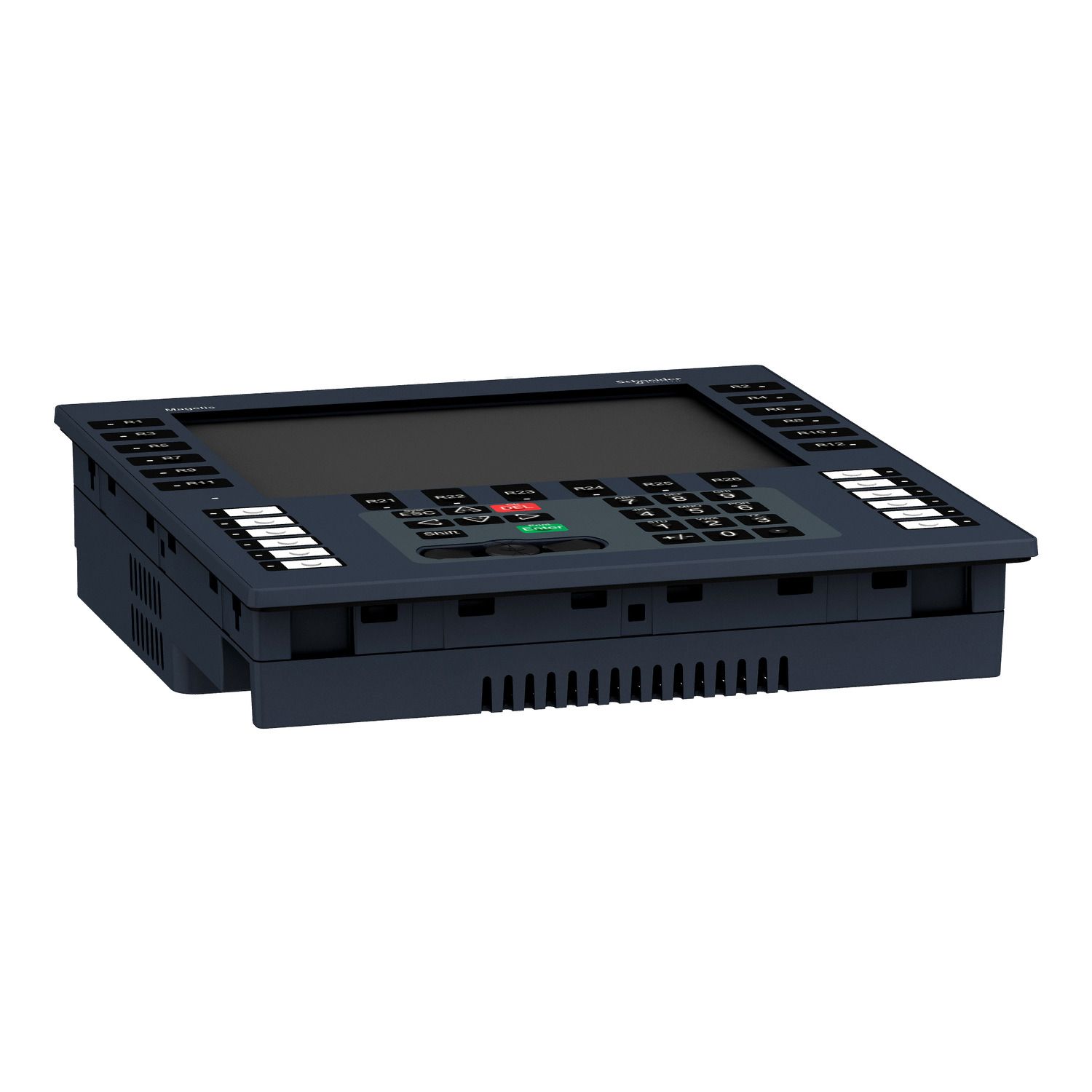

Picture of Keypad-touchscreen panel color - 640 x 480 pixels VGA -10.4" - TFT LCD
SKU:

HMIGK5310

Keypad-touchscreen panel color - 640 x 480 pixels VGA -10.4" - TFT LCD

Please Contact Sales to buy this Product. click here
Product Selector
Keypad-touchscreen panel color - 640 x 480 pixels VGA -10.4" - TFT LCD
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 11-Dec-2024
User guide
End of life manual
Product environmental
Catalogue
Product Page Link
Product Data Sheet
This Magelis GK keypad-touchscreen operator interface (HMI) is supplied with 24V DC, has a 10.4" color TFT LCD display with, 640 x 480 pixels (VGA), a complete keypad and 128MB EPROM. It also has 1 SD card slot, 1 host + 1 mini-B USB ports, 1 RS232C port, 1 RS485 port and 1 Ethernet TCP/IP port. It is ideal for complete control of an automation system in industry such as complex machines, CNC machines, food & beverage machines and pharmaceutical industry. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. It also offers 18 dynamic function keys, 12 static function keys, 12 alphanumeric keys, 8 service keys and an industrial mouse pointer. Its RS485 host port makes it ideal to supervise and control simple systems and machines.

Products specifications

Attribute nameAttribute value
Main
Display colour65536 colours
Display size10.4 inch
Processor nameCPU RISC
Range of productHarmony GK
Operating systemHarmony
Product or component typetouchscreen panel with keypad
Supplyexternal source
Complementary
Memory description128 MB flash EPROM application memory, 512 KB SRAM back up of data with lithium battery back-up
Character fontChinese (simplified Chinese), Taiwanese (traditional Chinese), ASCII (European characters), Korean, Japanese (ANK, Kanji)
Downloadable protocolsTelemecanique Modicon Uni-TE, Siemens Simatic third party protocols, Rockwell Automation Allen-Bradley third party protocols, Omron Sysmac third party protocols, Mitsubishi Melsec third party protocols, Telemecanique Modicon Modbus, Telemecanique Modicon Modbus TCP, Telemecanique Modicon Modbus Plus, Telemecanique Modicon FIPWAY
Display typebacklit colour TFT LCD
Realtime clockbuilt-in
Number of alphanumeric keys12
Cut-out dimensions285 (+/- 0.4) x 309 (+/- 0.4) mm
Supply voltage limits19.2-28.8 V
Mounting modeflush mounting
[Us] rated supply voltage24 V DC
Software typeconfiguration software
Backlight lifespan50000 hours
Number of dynamic function keys symb18 with LED
Processor frequency333 MHz
MarkingCE
Power consumption in W11.4 W
Touch sensitive zone1024 x 1024
Height332 mm
Front materialaluminium alloy
Number of static function keys12 with LED and labels
Depth76 mm
Width296 mm
Port Ethernet10BASE-T/100BASE-TX
Enclosure materialPPT
Local signalling1 LED (green or orange) for normal operation or backlighting faulty
Integrated connection typeUSB 2.0 type mini B,  RJ45 Ethernet TCP/IP,  removable screw terminal block power supply, <= 115.2 kbits/s male SUB-D 9, RS232C COM1 serial link,  USB 2.0 type A master port for Modicon M340 terminal port communication, <= 187.5 kbit/s RJ45, RS485 COM2 serial link for Siemens MPI (187.5 kbits/s)
Memory typeup to 32 GB SDHC card RAM, up to 32 GB SD card RAM
Software designationVijeo Designer
Touch panelanalogue
Net weight3.3 kg
Display resolution640 x 480 pixels VGA
Fixing modeby 12 spring clips
Number of SERVICE keys8
Inrush current30 A
Brightness16 levels via touch panel
Number of pageslimited by internal memory capacity
Environment
Relative humidity10-90 % without condensation
Ambient air temperature for storage-20-60 °C
IP degree of protectionIP65 (front panel) conforming to IEC 60529, IP20 (rear panel) conforming to IEC 60529
Electromagnetic compatibilityresistance to fast transient - test level: 2 kV level 3 conforming to IEC 61000-4-4, resistance to radiated electromagnetic fields - test level: 10 V/m conforming to IEC 61000-4-3, resistance to electrostatic discharge - test level: 4 kV level 3 conforming to IEC 61000-4-2
Immunity to microbreaks10 ms
Ambient air temperature for operation0-55 °C
Operating altitude< 2000 m
NEMA degree of protectionNEMA 4X front panel (indoor use)
Shock resistance15 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance3.5 mm conforming to IEC 60068-2-6 (f = 5-9 Hz), 1 gn conforming to IEC 60068-2-6 (f = 9-150 Hz)
StandardsIEC 61131-2, ANSI/ISA 12.12.01, UL 61010-2-201, CSA C22.2 No 213, IEC 61000-6-4, IEC 61000-6-2
Product certificationsUKCA, CSA Class 1 Division 2 T5, CSA Class 1 Division 2 T4A, RCM, UL Class 1 Division 2 T4A, KC, UL Class 1 Division 2 T5, EAC, cULus
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height22.4 cm
Package 1 Width37.2 cm
Package 1 Length45.5 cm
Package 1 Weight5.852 kg

Related products

Picture of Harmony GTO, DC Power Supply Connector for Magelis Terminals

Harmony GTO, DC Power Supply Connector for Magelis Terminals

HMIZGPWS
Please Contact Sales to buy this Product. click here
View Detail
Picture of Vijeo Designer 6.2 RT Intelligent Data Services license extension

Vijeo Designer 6.2 RT Intelligent Data Services license extension

VJDSNTRCKV62M
Please Contact Sales to buy this Product. click here
View Detail
Picture of Pack Vijeo Designer 6.2 RT Intelligent Data Services report print

Pack Vijeo Designer 6.2 RT Intelligent Data Services report print

VJDSNTRPKV62M
Please Contact Sales to buy this Product. click here
View Detail
Picture of Vijeo Designer 6.2 RT Intelligent Data Services report printing

Vijeo Designer 6.2 RT Intelligent Data Services report printing

VJDSNTRPRV62M
Please Contact Sales to buy this Product. click here
View Detail

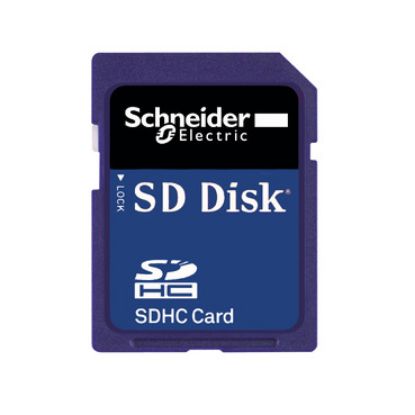

Picture of memory card, Harmony GTO, 4GB SD card, for terminals
