SKU:

HMIGTO5310

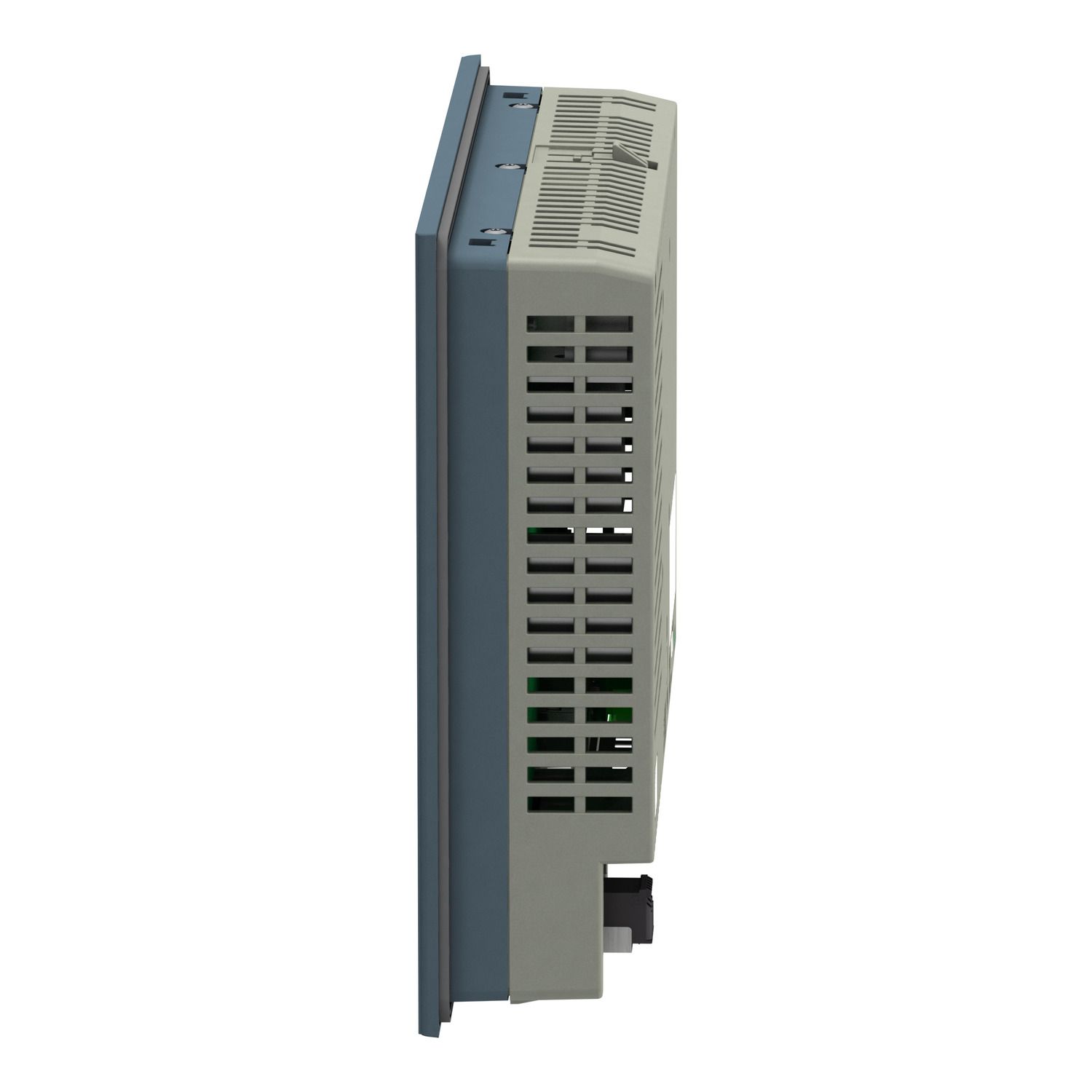

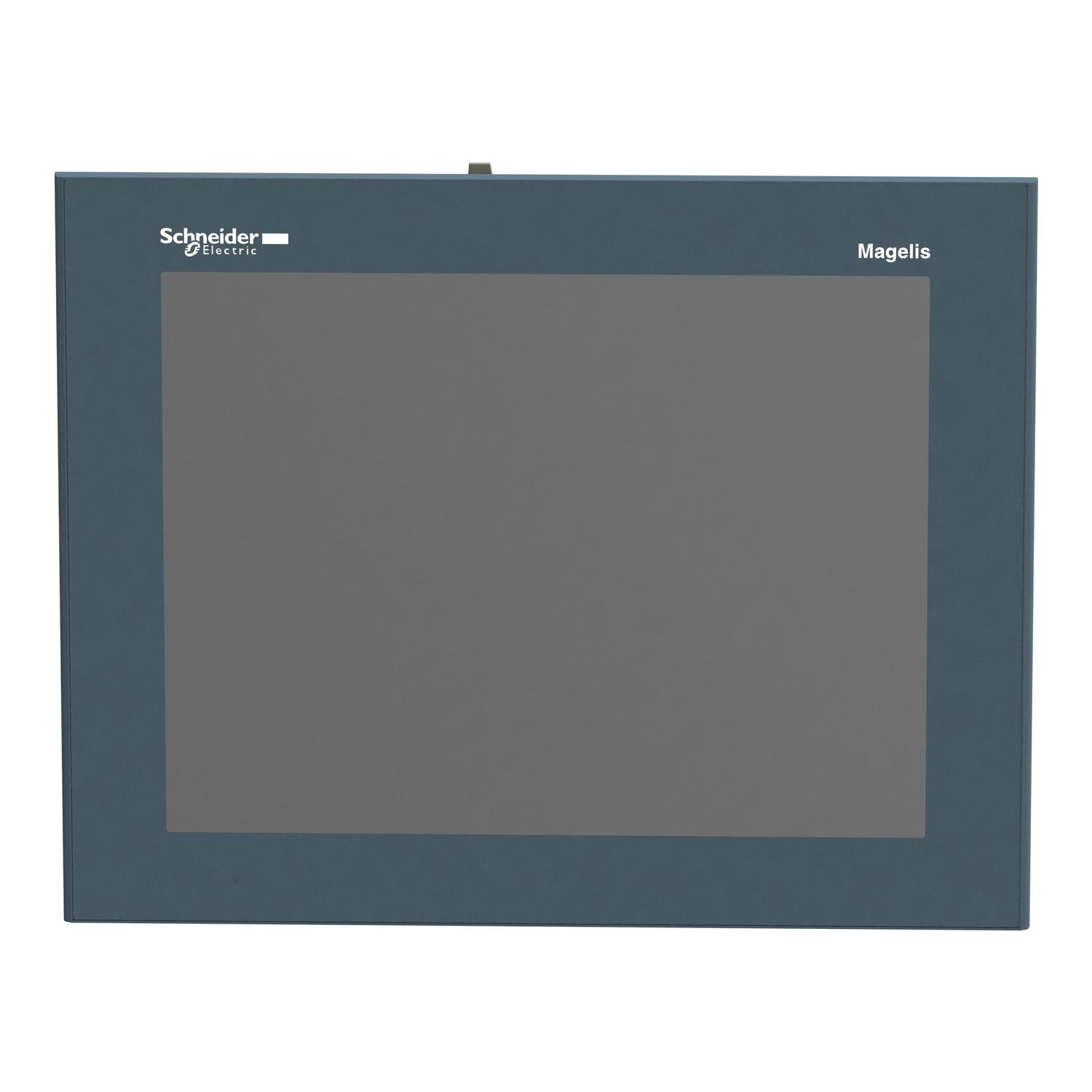

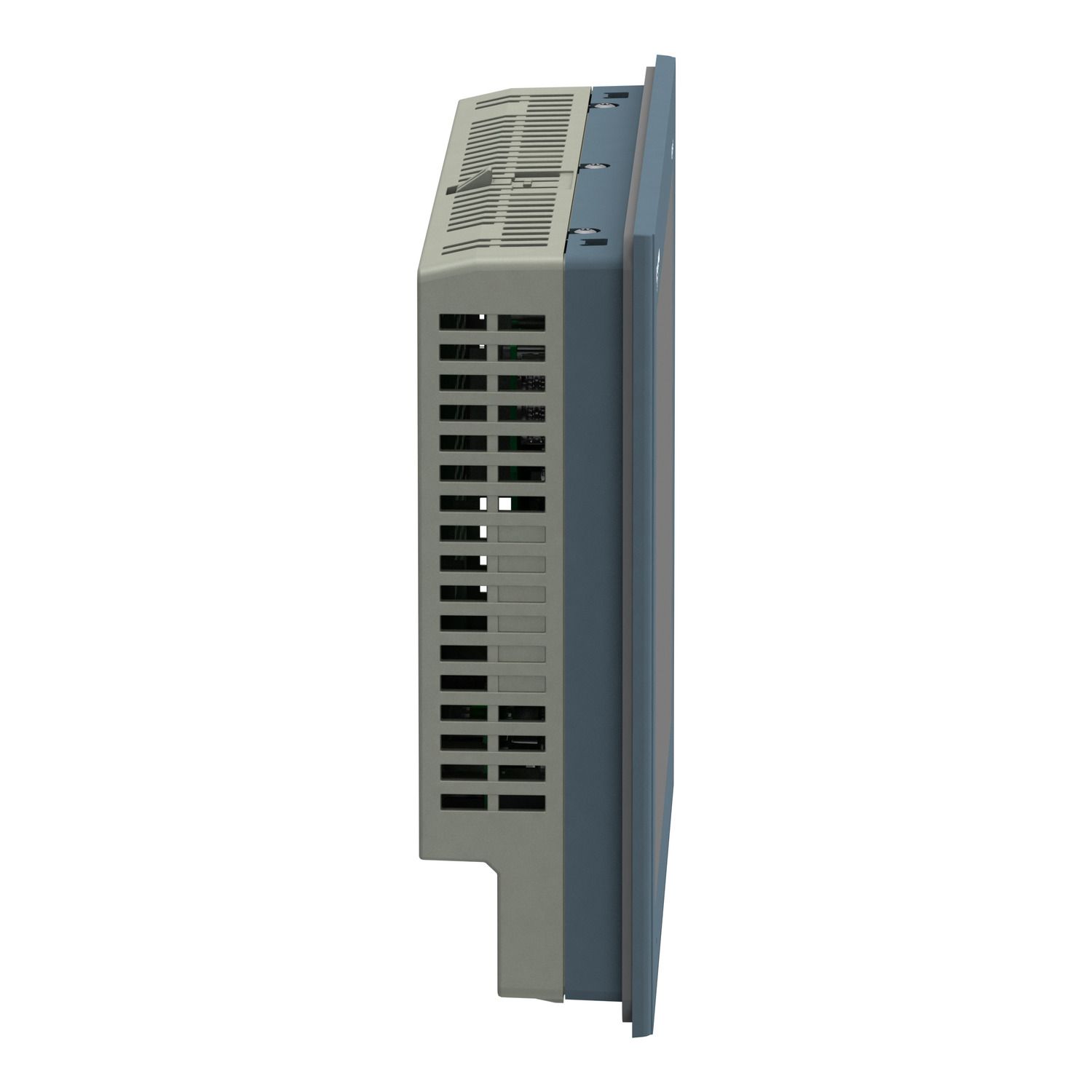

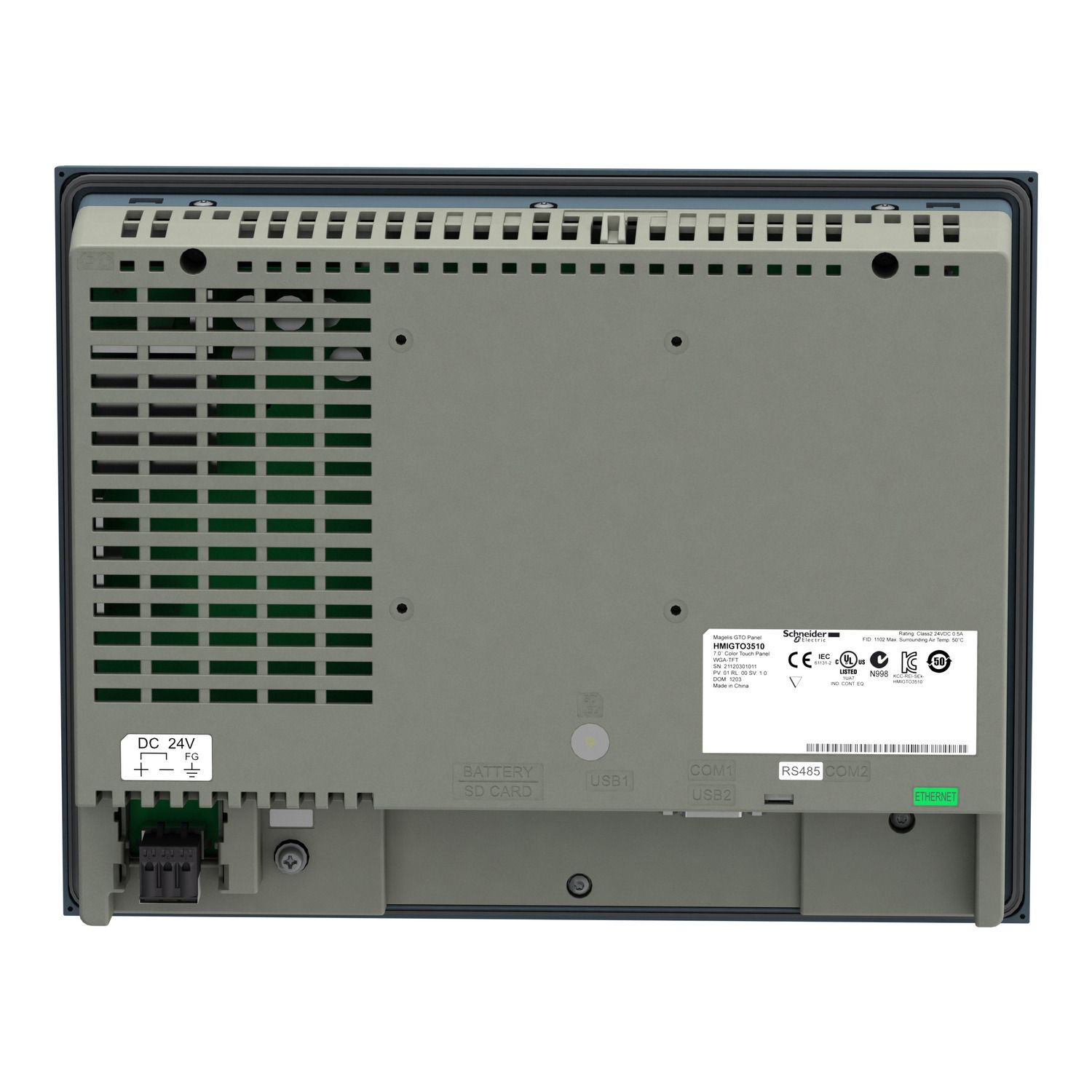

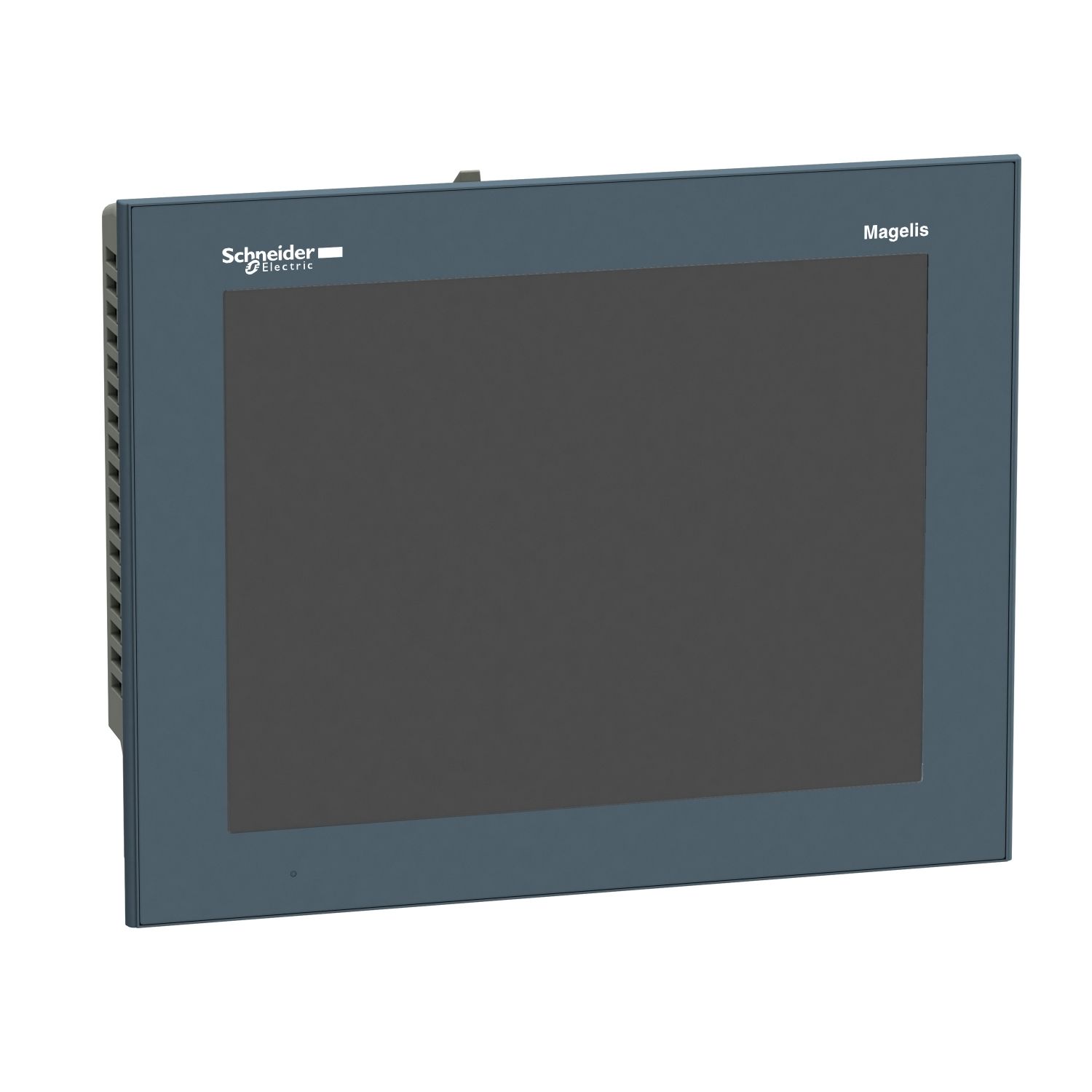

advanced touchscreen panel, Harmony GTO, 640 x 480pixels VGA, 10.4inch TFT, 96MB

$5,428.28 INC GST

Qty:

Available for Shipping : 02-Mar-2025

Product Selector

Advanced Harmony GTO Touch Screen Panel, 640 x 480 pixels VGA, 10.4inch TFT, 96MB

Screen Resolution: 640 x 480 pixels (VGA)

Display Type: 10.4-inch TFT

Memory: 96MB

Be the first to review this product

Manufacturer: Schneider Electric

Instruction sheet

Product environmental

End of life manual

CAD

User guide

Declaration of conformity

Catalogue

Product Page Link

Product Data Sheet

The Magelis GTO IP65 touchscreen operator interface (HMI) works with a 24V DC power supply and comes with a 10.4" color TFT LCD display, offering a resolution of 640 x 480 pixels (VGA) and 96MB EPROM. It features several connectivity options, including an SD card slot, a host USB port, a mini-B USB port, an RS232C port, an RS485 port, and an Ethernet TCP/IP port.

This HMIGTO5310 is designed to make communication and data sharing with automation systems easy and efficient. It’s perfect for industries like compact machinery, material handling systems, food and beverage production, and pharmaceuticals. The screen can display text messages, graphics, and mimic diagrams, while also letting you manage and configure data. The RS485 host port is especially helpful for monitoring and controlling simple machines and systems. Programming is a breeze with Vijeo Designer software, requiring little to no coding skills.

Products specifications

Attribute name	Attribute value
Main
Display colour	65536 colours
Display size	10.4 inch
Range of product	Harmony GTO
Operating system	Harmony
Product or component type	advanced touchscreen panel
Battery type	lithium battery for internal RAM, autonomy: 100 days, charging time = 5 day(s), battery life = 10 year(s)
Supply	external source
Complementary
Memory description	flash EPROM, 96 MB
Character font	Taiwanese (traditional Chinese), ASCII, Korean, Japanese (ANK, Kanji), Chinese (simplified Chinese)
Data storage equipment	SDHC card, <= 32 GB, SD card, <= 32 GB
Downloadable protocols	Schneider Electric Modicon Modbus TCP, Siemens Simatic third party protocols, Rockwell Automation Allen-Bradley third party protocols, Omron Sysmac third party protocols, Mitsubishi Melsec third party protocols, Schneider Electric Modicon FIPWAY, Schneider Electric Modicon Modbus Plus, Schneider Electric Modicon Uni-TE, Schneider Electric Modicon Modbus
Display type	backlit colour TFT LCD
Product mounting	flush mounting
Touch panel	resistive film, 1000000 cycles
Type of cooling	natural convection
Supply voltage limits	19.2-28.8 V
Backlight lifespan	50000 hours white at 25 °C
Fixing mode	by 4 screw clamps
Brightness	16 levels - control by software, 16 levels - control by touch panel
Software designation	Vijeo Designer configuration software >= V6.1
Touch sensitive zone	1024 x 1024
Height	214.5 mm
Data backed up	512 KB internal RAM (SRAM)
[Us] rated supply voltage	24 V DC
Maximum power consumption in W	17 W, 8 W when backlight is dimmed, 7 W when backlight is OFF, 12 W when power is not supplied to external devices
Depth	57 mm
Front material	PPT
Width	272.5 mm
Enclosure material	PPT
Integrated connection type	USB 2.0 type mini B, USB 2.0 type A, Ethernet RJ45, interface: IEEE 802.3, Ethernet RJ45, interface: 10BASE-T/100BASE-TX, COM2 serial link RJ45, interface: RS485, transmission rate: 187.5 kbps compatible with Siemens MPI, COM2 serial link RJ45, interface: RS485, transmission rate: 2400...115200 bps, COM1 serial link SUB-D 9, interface: RS232C, transmission rate: 2400...115200 bps
Local signalling	SD card LED green, faded for card is not inserted or is not being accessed, SD card LED green, steady for card is inserted, COM2 LED yellow, faded for no data transmission, COM2 LED yellow, steady for data is being transmitted, status LED clear, faded for power supply (OFF), status LED red, steady for power supply (ON), status LED orange, flashing for software starting up, status LED green, steady for operating, status LED green, steady for offline
Net weight	2 kg
Terminal type	touchscreen display
Display resolution	640 x 480 pixels VGA
Inrush current	30 A
Environment
Resistance to electrostatic discharge	6 kV contact discharge conforming to IEC 61000-4-2 level 3
Relative humidity	10-90 % without condensation
Ambient air temperature for storage	-20-60 °C
IP degree of protection	IP65 (front panel) conforming to IEC 60529, IP20 (rear panel) conforming to IEC 60529
Shock resistance	147 m/s² 3 chocks in each direction X, Y and Z conforming to IEC 61131-2
Ambient air temperature for operation	0-55 °C
Operating altitude	< 2000 m
NEMA degree of protection	NEMA 4X front panel (indoor use)
Vibration resistance	1 gn (f = 9-150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - conforming to IEC 61131-2, 3.5 mm (f = 5-9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - conforming to IEC 61131-2
Standards	IEC 61000-6-2, IEC 61131-2, UL 508
Product certifications	UKEX, UKCA, KCC, C-Tick, CE, cULus
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	17.500 cm
Package 1 Width	30.000 cm
Package 1 Length	35.500 cm
Package 1 Weight	2.625 kg
Unit Type of Package 2	2
Number of Units in Package 2	30
Package 2 Height	82.000 cm
Package 2 Width	80.000 cm
Package 2 Length	120.000 cm
Package 2 Weight	100.000 kg
