SKU:

HMISCU8B5

5â€7 color touch controller panel - Dig 8 inputs/8 outputs +Ana 4 In/2 Out

$2,191.31

Qty:

Available for Shipping : 17-Dec-2024

Product Selector

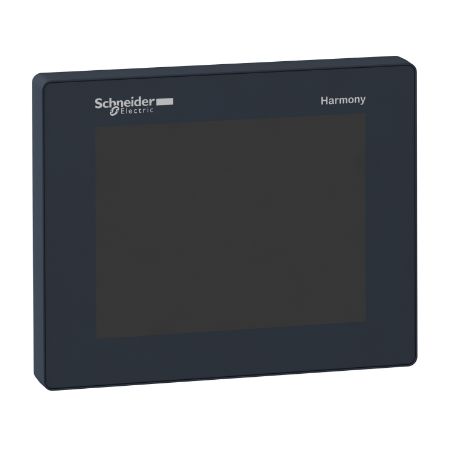

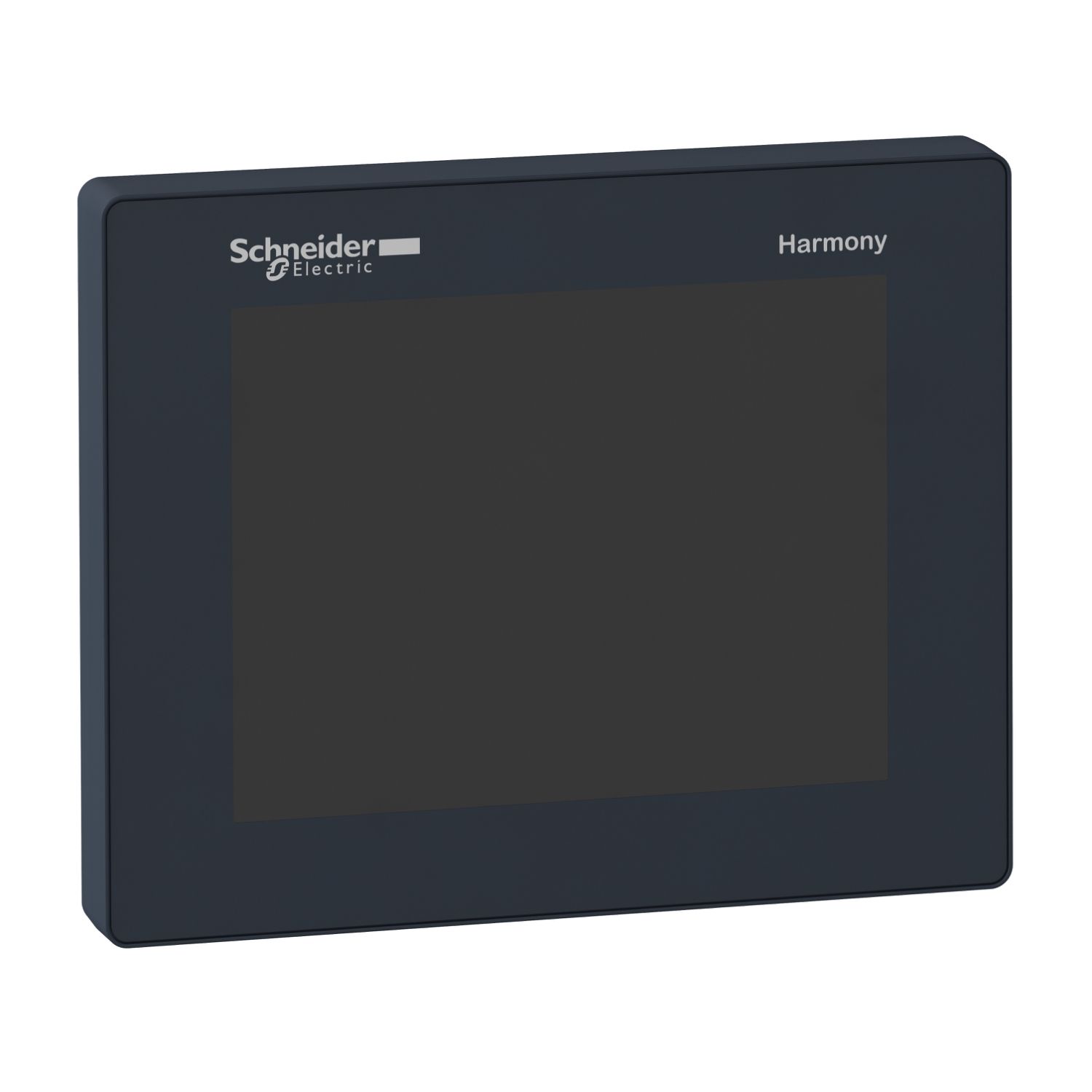

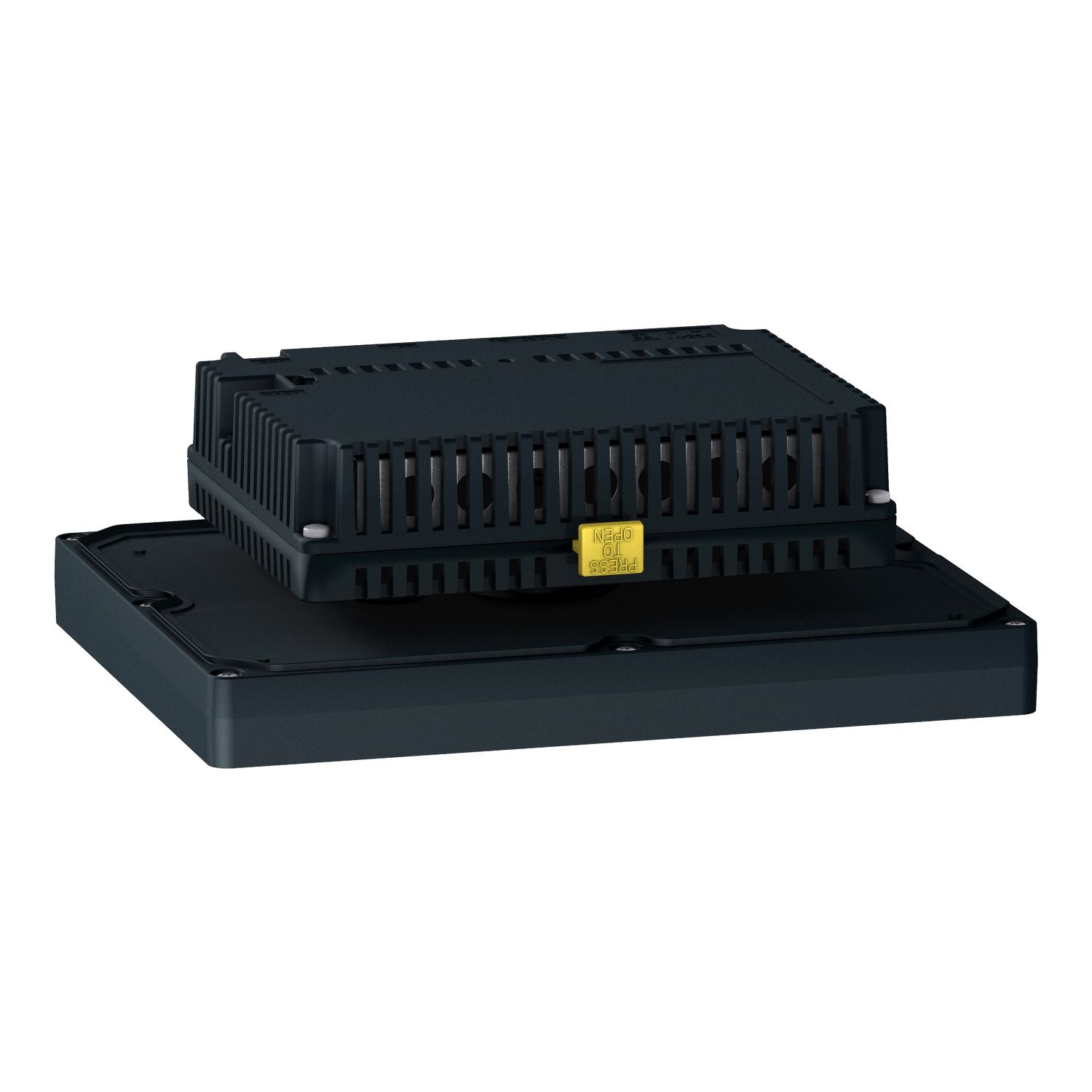

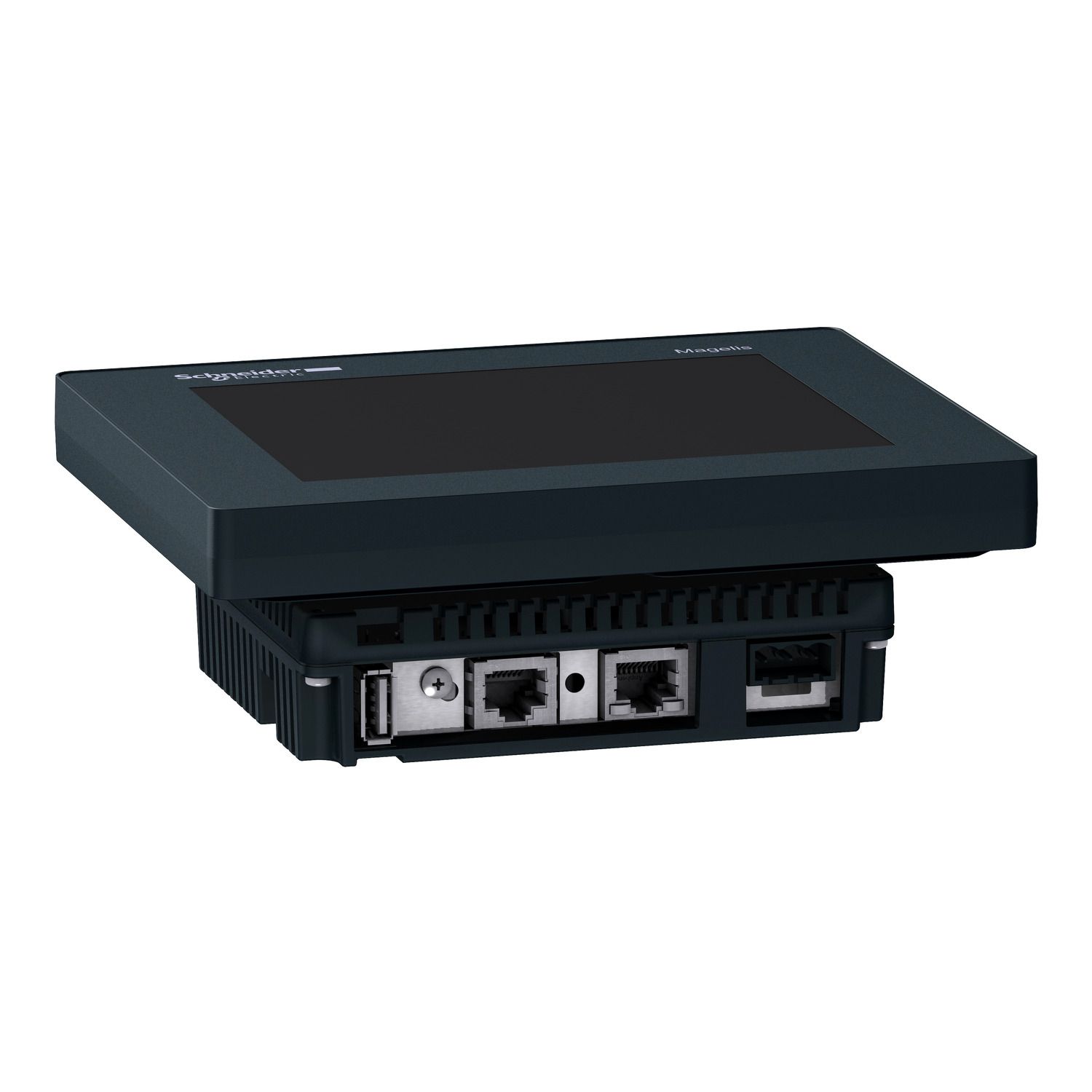

5â€7 color touch controller panel - Dig 8 inputs/8 outputs +Ana 4 In/2 Out

Be the first to review this product

Manufacturer: Schneider Electric

Quick start guide

User guide

Instruction sheet

System user guide

Catalogue

Declaration of conformity

Product Page Link

Product Data Sheet

This Magelis SCU small touchscreen operator interface controller (HMI) is supplied with 24V DC, has a 5.7" color TFT LCD display and 128MB EPROM. It also has 8 digital inputs, 8 digital outputs, 4 analog inputs, 2 analog outputs, 1 host + 1 mini-B USB ports, 1 RS232C / RS485 port and 1 CANopen port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. Its RS485 and CANopen host ports make it ideal to supervise and control simple systems and machines. Its multiple I/O, including high speed counters, allowing you to processes with fast sensing chains.

Products specifications

Attribute name	Attribute value
Main
Display type	with backlit LED colour TFT LCD
Display size	5.7 inch
Device presentation	complete product
Range of product	Harmony SCU
Touch panel	analogue
Product or component type	small touch HMI controller
Complementary
Number of common point	1 for digital input, 1 for fast input (HSC mode)
Memory description	application run DRAM, 128 MB, internal data storage FRAM, 128 kB, flash NAND, 128 MB
Character font	Taiwanese (traditional Chinese), Korean, ASCII, Japanese (ANK, Kanji), Chinese (simplified Chinese)
Discrete input number	6 for digital input conforming to IEC 61131-2 Type 1, 2 for fast input (normal mode) conforming to IEC 61131-2 Type 1
Input/output number	6 for digital output, terminal(s): DQ0...DQ5, 6 for digital input, terminal(s): DI0...DI5, 2 for fast output, terminal(s): FQ0...FQ1, 2 for fast input, terminal(s): FI0...FI1
Realtime clock	built-in
Downloadable protocols	CANopen, Modbus TCP/IP, Modbus
Maximum output frequency	1 kHz for fast output (PWM mode), 100 kHz for fast output (PTO mode)
Maximum input frequency	100 kHz for fast input - control type pulse/direction, 100 kHz for fast input - control type single phase, 100 kHz for fast input (encoder mode) - control type A/B
Processor name	CPU RISC
Backlight lifespan	50000 hours with 65000 colours
Configurable filtering time	3...12 ms integrator (none/run/stop), 0.004...0.04 ms bounce filter (latch/event and cumulative filter by step Nx0.5ms (64>=N>=2)), 0 ms no filter (none)
Processor frequency	333 MHz
Isolation between channels	none
Discrete output voltage	220 V AC (voltage limit: 100...250 V) with relay discrete output(s), 24 V DC (voltage limit: 5...30 V) with relay discrete output(s), 24 V DC (voltage limit: 19.2...28.8 V) with transistor discrete output(s)
Electromagnetic compatibility	radiated emission - test level: 30 MHz...1 GHz conforming to EN 55011, conducted emission - test level: 150 kHz...30 MHz conforming to EN 55011, conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6, surge immunity test - test level: 0.5 kV differential mode (digital I/O) conforming to IEC 61000-4-5, surge immunity test - test level: 1 kV common mode (digital I/O) conforming to IEC 61000-4-5, surge immunity test - test level: 1 kV (power supply (differential mode)) conforming to IEC 61000-4-5, surge immunity test - test level: 2 kV (power supply (common mode)) conforming to IEC 61000-4-5, electrical fast transient/burst immunity test - test level: 1 kV (CAN line) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 1 kV (COM line) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 1 kV (Ethernet line) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 2 kV (relay wires) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 1 kV (between analogue I/O and operating voltage) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 2 kV (power lines) conforming to IEC 61000-4-4, susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz...3 GHz) conforming to IEC 61000-4-3, electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2
View angle horiz x vert	60° bottom, 40° top, 60° right, 60° left
Power consumption in W	24 W
Discrete input voltage	24 V DC, discrete input logic: sink or source (positive/negative)
[Us] rated supply voltage	24 V (20.4-28.8 V)DC
Analogue input range	-10...+10 V or 0...10 V - resolution: 12 bits + sign, input impedance: >= 1 MOhm, 0...20 mA/4...20 mA - resolution: 12 bits, input impedance: 250 Ohm (tolerance: +/- 1 %)
Immunity to microbreaks	10 ms
Connection pitch	3.5 mm
Height	129.4 mm
Maximum cable distance between devices	unshielded cable: <50 m for digital input, shielded cable: <100 m for digital input, shielded cable: <10 m for fast input
Fixing mode	by 1 nut - diameter: Ø 22 mm, mounting on: 1...6 mm thick panel
Analogue input type	RTD at - 200...1300 °C - resolution: 16 bits (thermocouple N), RTD at - 200...900 °C - resolution: 16 bits (thermocouple E), RTD at - 200...400 °C - resolution: 16 bits (thermocouple T), RTD at 0...1600 °C - resolution: 16 bits (thermocouple S), RTD at 200...1800 °C - resolution: 16 bits (thermocouple B), RTD at 0...1600 °C - resolution: 16 bits (thermocouple R), RTD at - 240...1370 °C - resolution: 16 bits (thermocouple K), RTD at - 200...760 °C - resolution: 16 bits (thermocouple J), RTD at - 50...200 °C - resolution: 16 bits temperature probe: Ni 100/Ni 1000, RTD at - 200...600 °C - resolution: 16 bits temperature probe: Pt 100/Pt 1000
Discrete output current	50 mA, response time 2 ms for fast output (PWM or PTO mode), 300 mA, response time 2 ms for fast output (normal mode), 2 A 4 A), response time 2 ms with closing contact for digital output, 2 A 4 A), response time 5 ms with opening contact for digital output
Depth	76.22 mm
Sensor power supply	15-28.8 V DC >= 15 V, current (state 1): >= 2.5 mA <= 5 V, current (state 0): <= 1 mA, 15-28.8 V DC >= 15 V, current (state 1): >= 5 mA <= 5 V, current (state 0): <= 1.5 mA
Width	163 mm
Local signalling	no indicator
Enclosure material	PC/PBT and PAA
Discrete input current	5 mA for digital, 7.83 mA for fast input
Input impedance	2.81 kOhm, 4.7 kOhm
Absolute accuracy error	+/- 15 % of full scale cyclic ratio 30...70% for fast output (PWM or PTO mode), +/- 10 % of full scale cyclic ratio 20...80% for fast output (PWM or PTO mode), +/- 5 % of full scale cyclic ratio 10...90% for fast output (PWM or PTO mode), 1 % of full scale cyclic ratio 1...99% for fast output (PWM or PTO mode), +/- 0.1 % of full scale cyclic ratio 1...99% for fast output (PWM or PTO mode)
Integrated connection type	CANopen master bus - SUB-D 9, 1 USB 2.0 type A, 1 USB 2.0 type mini B, 1 Ethernet TCP/IP - RJ45, 1 serial link - RJ45 - RS232/RS485 (rate: <= 115.2 kbits/s)
Software designation	SoMachine
Analogue input number	2 for RTDs, 2 for analog input
Isolation between channels and internal logic	500 V DC
Net weight	0.803 kg
Analogue output range	-10...10 V/0...10 V (> 2 kOhm) for short-circuit, 0...20 mA/4...20 mA (> 300 Ohm) for open-circuit
Overvoltage protection	with overvoltage protection
Operating system	Harmony
Vibration resistance	1 gn (f = 9-150 Hz) conforming to IEC 60068-2-6, +/- 3.5 mm (f = 5-9 Hz) conforming to IEC 60068-2-6
Shock resistance	294 m/s² for 6 ms (on panel mounting) conforming to IEC 60068-2-27, 147 m/s² for 11 ms (on DIN rail) conforming to IEC 60068-2-27
Display resolution	320 x 240 pixels QVGA
Insulation resistance	> 10 MOhm between power supply and earth, > 10 MOhm between the I/O and internal logic
Supply	external source
Discrete output number	6 digital output, output logic: source, 2 fast output (normal mode), output logic: source
Inrush current	30 A
Brightness	16 levels via touch panel
Number of pages	limited by internal memory capacity
Analogue output number	2 resistive load for 12 bits + sign
Environment
Relative humidity	5-85 % without condensation
Ambient air temperature for storage	-20-60 °C
Pollution degree	2 conforming to IEC 60664
IP degree of protection	IP65 (front panel) conforming to IEC 60529, IP20 (rear panel) conforming to IEC 60529
Marking	CE
Ambient air temperature for operation	0-50 °C
Operating altitude	<= 2000 m
NEMA degree of protection	NEMA 4X front panel
Environmental characteristic	corrosive gas free
Maximum pressure	800...1114 hPa
Storage altitude	0-10000 m
Standards	ANSI/ISA 12-12-01, CSA C22.2 No 213 Class I Division 2, IEC 61000-6-2, UL 508, EN 61131-2, FCC Class A
Product certifications	UKEX, UKCA, KCC, C-Tick, cUL 1604 Class 1 Division 2, GOST, cULus CSA 22-2 No 142, cULus 508
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	18.8 cm
Package 1 Width	11 cm
Package 1 Length	20.7 cm
Package 1 Weight	1.364 kg
Unit Type of Package 2	2
Number of Units in Package 2	4
Package 2 Height	30 cm
Package 2 Width	30 cm
Package 2 Length	40 cm
Package 2 Weight	5.964 kg
Unit Type of Package 3	3
Number of Units in Package 3	64
Package 3 Height	75 cm
Package 3 Width	80 cm
Package 3 Length	120 cm
Package 3 Weight	135.776 kg
