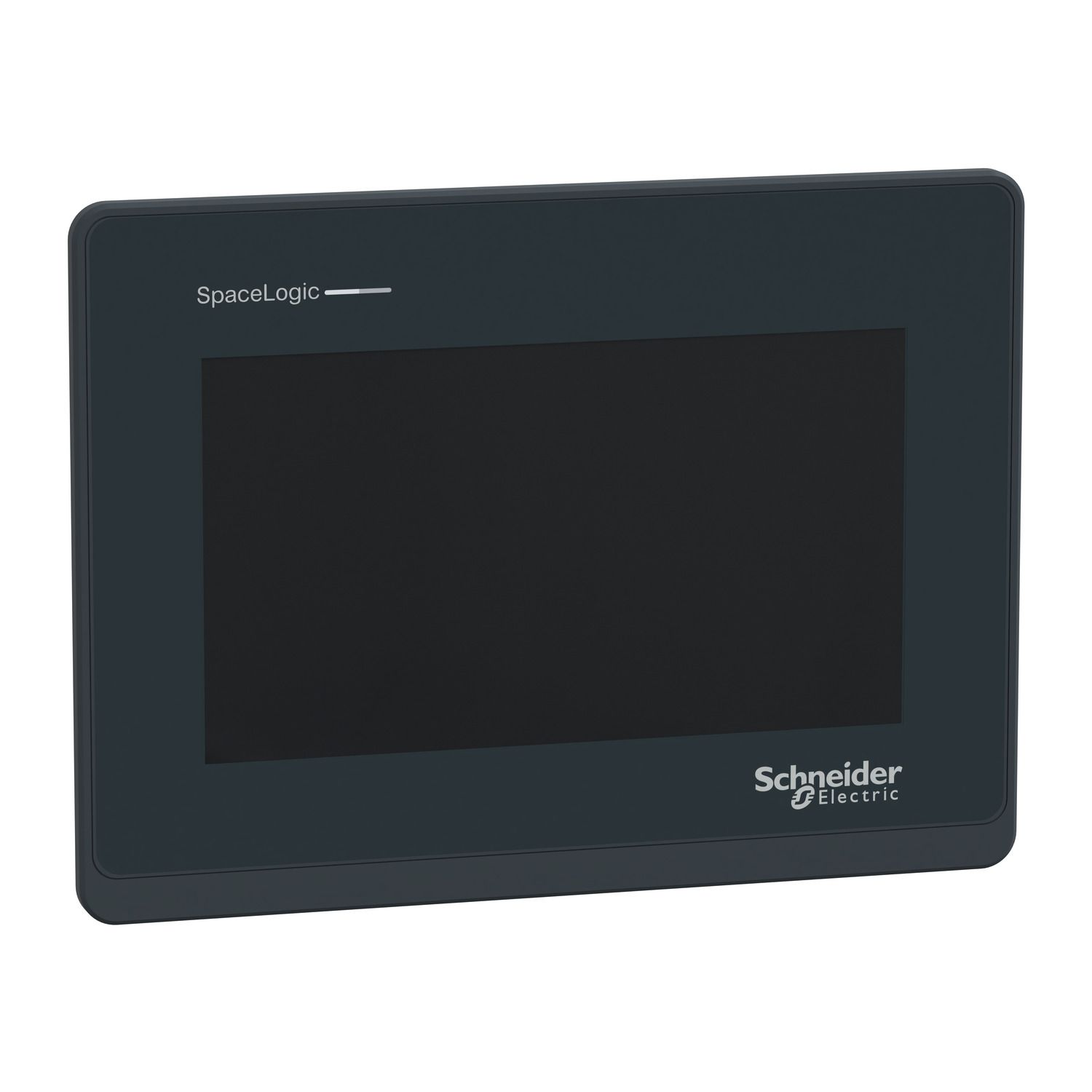

Picture of SpaceLogic Operator Display, 7” HMI for monitoring plant and zone controllers, BACnet /IP, panel-mounted in equipment room
SKU:

HMIST6400SL

SpaceLogic Operator Display, 7” HMI for monitoring plant and zone controllers, BACnet /IP, panel-mounted in equipment room

Please Contact Sales to buy this Product. click here
SpaceLogic Operator Display, 7” HMI for monitoring plant and zone controllers, BACnet /IP, panel-mounted in equipment room
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 12-Oct-2024
Instruction sheet
Brochure
Product environmental
User guide
End of life manual
Product Page Link
Product Data Sheet
SpaceLogicTM Operator Display is a touch-screen Human Machine Interface (HMI) for SpaceLogic controllers and servers. It is designed for local monitoring of controllers in small and medium-sized buildings, and in large buildings with full building management systems. Operator Display is specifically designed for panel mounting in equipment rooms. It simplifies operations, service, and troubleshooting for System Integrators and Service Engineers, as well as for Facility Managers and Janitors. The simplified user interface and the intuitive touchscreen navigation make it easy to operate and maintain the system. Operator Display communicates quickly over BACnet/IP open protocol with a direct connection to SpaceLogic AS servers, or MP or RP controllers. Only one Operator Display is required per cabinet in the equipment room, and up to seven controllers can be monitored from one display. The operator can view and acknowledge alarms, edit schedules and adjust setpoint temperatures. Authorized operators can also view and override inputs, outputs, and other virtual points. The Operator Display dimensions are 153 mm (6.02 in.) in height, 208 mm (8.19 in.) in width and 45 mm (1.77 in.) in depth. It is IEC/EN 61131-2 compliant for vibration resistance and shock resistance. Each Operator Display 7-inc bundle includes an installation gasket, installation fasteners, and power supply connectors, also available as spares. Other required parts not included in the bundle are 24 VDC power supply, Micro USB 2.0 OTG cable and USB stick (FAT formatted).

Products specifications

Attribute nameAttribute value
Main
Depth45 mm
Display typecolour TFT LCD
Width208 mm
Enclosure materialPC
Relative humidity10-90 % non-condensing
Display size7 inch
Ambient air temperature for storage-20-60 °C
Directives2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Net weight0.8 kg
Product or component typetouch panel screen
Display resolution800 x 480 pixels WVGA
StandardsIEC 61326-1, UL 61010-2-201, EN 61131-2, EN 61000-6-2, EN 61000-6-4
Range of productOperator Display ST6
Ambient air temperature for operation0-50 °C
Height153 mm
Communication port supportETHERNET 10/100BASE
[Us] rated supply voltage24 V DC +/- 20 %
Product brandSchneider Electric
Product certificationsUL, CE
Complementary
Character fontASCII (European characters), ASCII
Front materialaluminium
Display colour16 million colours
Touch panelsingle touch analogue resistive
MarkingUL, EAC, CE
Supplyexternal supply
Power consumption in W9 W
Immunity to microbreaks2 ms
Inrush current30 A
Brightness16 levels
Environment
Operating altitude2000 m
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height9.4 cm
Package 1 Width18.0 cm
Package 1 Length27.0 cm
Package 1 Weight1.028 kg
