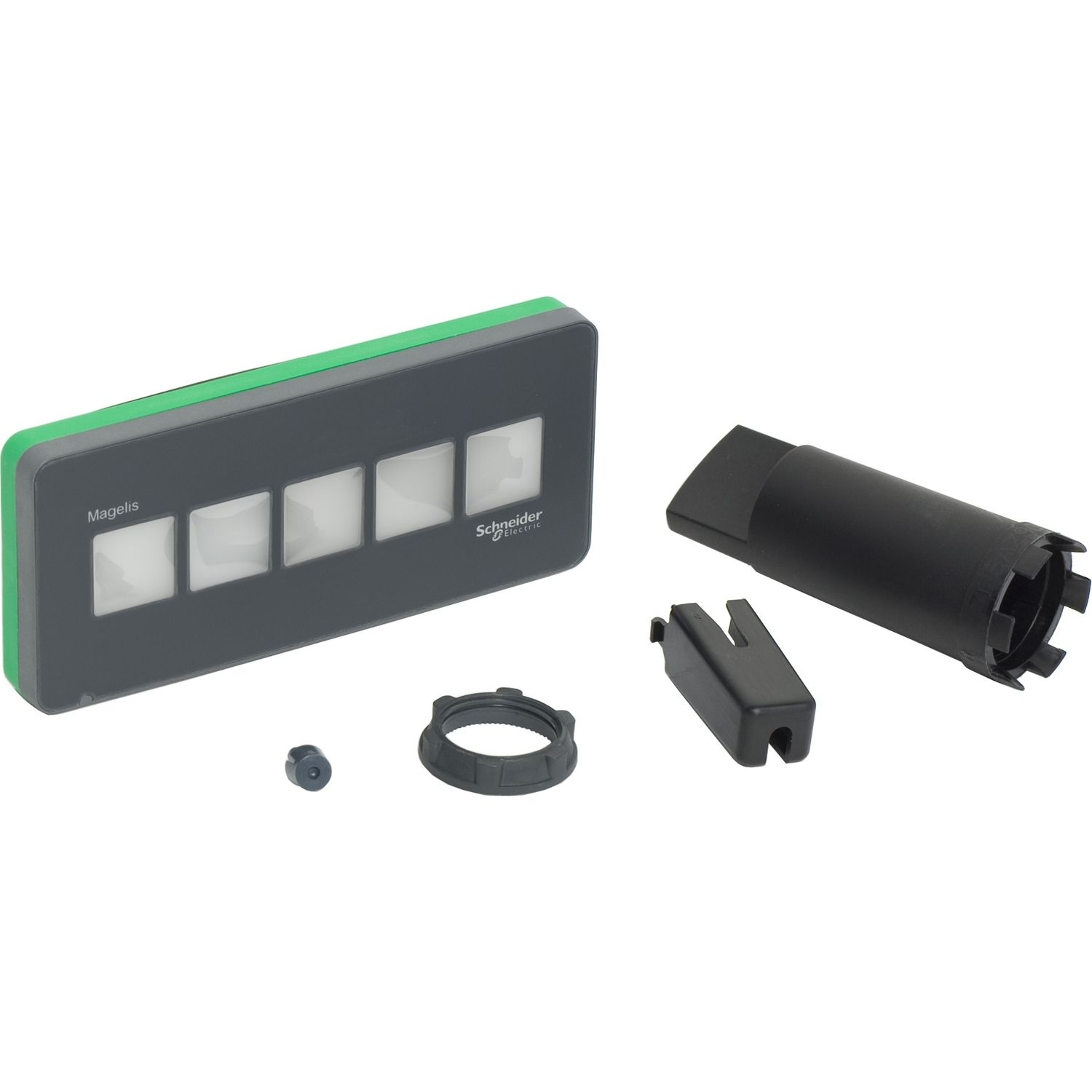

Picture of Illuminated Switch-5 Function keys with multi-color LEDs backlit
SKU:

HMIZRA1

Illuminated Switch-5 Function keys with multi-color LEDs backlit

Please Contact Sales to buy this Product. click here
Illuminated Switch-5 Function keys with multi-color LEDs backlit
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 25-Oct-2024
CAD
Instruction sheet
User guide
Catalogue
Product Page Link
Product Data Sheet
This illuminated USB switch accessory is connected via a USB cable and compatible with Harmony HMI range terminals. HMIZRA1 with click sensation is used as function keys with an HMI terminal where repetitive and reliable operations in dirty environments are required, while keeping the touch panel clean and protected. It is IP65 protected and has 5 switches with backlit LED. With Vijeo Desigher, the switches can be set to alarm display and acknowledgement mode or illuminated function keys mode. It is designed with wide view angle and brightness for easy visualization and quick acknowledgement of alarm. It offers water-resistance and can operate in harsh environments. The users can select and adjust the colors of the switch. It weighs 0.110Kg. It iis ideal for use in industrial applications like machine tool, packaging, printing, automotive, metal processing, food and beverage, and paper. It is compatible with Harmony Panel PC and Box PC, XBTGT, XBTGC, HMIGTO, HMIGXO, and HMISCU terminals. It is an Ideal complement to Harmony HMI series for direct access to functions without the need to touch the screen.

Products specifications

Attribute nameAttribute value
Main
Device applicationindustrial machines, food and beverage
Provided equipment1 x USB cable type A/B (with 1 m, 1 x insert label, 1 x gasket, 1 x anti-rotation tee, 1 x tightening wrench, 1 x fixing nut, 1 x USB type B cable clamp, 1 x user manual
Product compatibilityHMIBMI - Modular Box PC, HMIBMO - Modular Box PC, HMIBMP - Modular Box PC, HMIBMU - Modular Box PC, HMIPSO - S-Panel PC, HMIPSP - S-Panel PC, HMIGTO - advanced touch panel, HMISTU - touch panel, XBTGT7... - advanced touch panel, XBTGT5... - advanced touch panel, XBTGT4... - advanced touch panel, XBTGK - graphic display, HMIGTW - advanced touch panel, XBTGT6... - advanced touch panel, HMISCU - touch panel, HMISTO - touch panel, XBTGT2... - advanced touch panel, XBTGC - controller panel
Product or component typeilluminated USB switch
Range of productHarmony HMIZ
Complementary
Depth28 mm
Width122 mm
Quantity per set1 piece
Control type5 push-buttons with multi-colour backlit LED
Supply voltage limits4.75-5.25 V DC
Colour of coverfront dark grey cover
Connector typeUSB type B
Mounting locationflat surface
Net weight0.11 kg
Shock resistance147 m/s² for 3 chocks in each direction X, Y and Z conforming to IEC 61131-2
Electromagnetic compatibilityelectrical fast transient/burst immunity test - test level: 1 kV (signal ports) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4, electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2
Power consumption in W2 W
[Us] rated supply voltage5 V DC, connector type: USB 2.0
Software designationVijeo Designer version >= V6.1 SP2
Height54 mm
Environment
Operating altitude<= 2000 m
NEMA degree of protectionNEMA 13 for enclosed outdoor installation, NEMA 4X for indoor installation installation
Level or classClass I Division 2 Groups A/B/C/D
Relative humidity10-90 % at 0-55 °C non-condensing
Environmental characteristiccorrosive gas free
Ambient air temperature for storage-20-60 °C
IP degree of protectionIP65 (front panel (in enclosure))
Vibration resistance3.5 mm (f= 5-9 Hz) conforming to IEC 61131-2
Pollution degree2
StandardsEMC 2004/108/EC, EN 61000-6-2, ANSI/ISA 12.12.01, EN 61000-6-4, CSA C22.2 No 213, UL 508, CSA C22.2 No 142
Product certificationsCE, C-Tick, UL/cUL listed, GOST
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height7.5 cm
Package 1 Width13.6 cm
Package 1 Length18.7 cm
Package 1 Weight307.5 g
