SKU:

HRCPDG42R

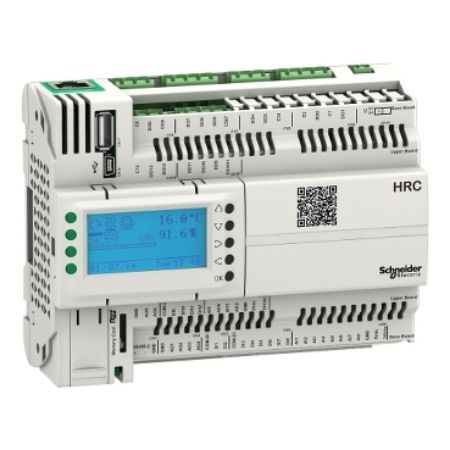

Hotel Room Controller w/Display 42IO

$2,085.60 INC GST

Qty:

Available for Shipping : 10-Feb-2025

Hotel Room Controller w/Display 42IO

Manufacturer: Schneider Electric

End of life manual

Instruction sheet

Brochure

Product environmental

User guide

Product Page Link

Product Data Sheet

Hotel Room Controller w/Display 42IO

Attribute name	Attribute value
Main
Device application	hotel
Depth	60.5 mm
Width	144 mm
Relative humidity	5-95 % RH, non-condensing
Input voltage	24 V AC/DC
Output current	1 A, 3 A
Ambient air temperature for storage	-30-70 °C
Directives	86/188/EEC - physical agents (noise) directive, 2006/95/EC - low voltage directive
Mounting mode	DIN rail mount
Input type	12 x analog, 12 x digital
Net weight	380 g
Output type	6 xanalog, 2 xdigital, 10 xdigital
Product or component type	room controller
Output voltage	0...10 V, 250 V AC
Standards	UL 60730-1:2009, UL 60730-1, UL 60730-2-9:2010, UL 60730-2-9, CSA E60730-2-9:ed. 1, 2011, CSA E60730-2-9, CSA E60730-1:ed. 13, CSA E60730-1, EN/IEC 60730
Ambient air temperature for operation	-20-60 °C
Height	110 mm
Complementary
Output impedance	700 Ohm
Realtime clock	built-in
Input impedance	20000 Ohm
Rated power in W	15 W
Rated operational power in VA	35 VA
Display resolution	128 x 64 pixels
Environment
Overvoltage category	II
Pollution degree	2
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	9.000 cm
Package 1 Width	13.500 cm
Package 1 Length	18.500 cm
Package 1 Weight	510.000 g
Unit Type of Package 2	2
Number of Units in Package 2	6
Package 2 Height	15.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	3.393 kg
Unit Type of Package 3	3
Number of Units in Package 3	240
Package 3 Height	90.000 cm
Package 3 Width	80.000 cm
Package 3 Length	120.000 cm
Package 3 Weight	147.720 kg
